Series DT
 |
Series DT |
| Description | ExeGate dt series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging mode (buffer mode). |
| Features | The case is made of plastic that does not support Gorenje. Internal gas recombination system, does not require adding water. Operation is allowed in any position other than upside down. Calcium-doped lead plates provide high energy density. |
| Standards and certifications | Declaration of conformity GOST 12.2.007.12-88; GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10;GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4 |
| Battery Life | |
| In buffered mode | 5 years (at 25°C) |
| In cyclic mode | 1000 cycles at 30% depth of discharge |
| Number of charge-discharge cycles in cyclic mode at 100% discharge | 240 |
| Self-discharge | 3% per month at 20°C |
| Charge method | Constant voltage charge (25°C) |
| Cyclic mode | 2.4 - 2.5 V / cell |
| Buffer mode | 2.27 - 2.3 V / cell |
| Cabinet material | ABS plastic |
| Temperature modes | |
| Storage | from -15°C to + 50°C |
| Charge | from -10°C to + 50°C |
| Discharge | from -20°C to + 50°C |
| Warranty | 12 months if operating conditions are observed |
| Model | Weight, kg | Terminal type | Supply voltage, V | Battery capacity, Ah | Maximum discharge current (25°C) | Length, mm | Width, mm | Height, mm | Height with terminal, mm | P/N | EAN |
| DT 4045 (4V 4.5Ah) | 0,51 | F1 | 4 | 4,5 | 65A(5s) | 70 | 47 | 101 | 105 | EX282943 | 4895205115316 |
| DT 6012 (6V 1.2Ah) | 0,27 | F1 | 6 | 1,2 | 17A(5s) | 97 | 24 | 52 | 58 | EX282944 | 4895205115323 |
| DT 6015 (6V 1.5Ah) | 0,30 | F1 | 6 | 1,5 | 17A(5s) | 97 | 24 | 58 | 58 | EX285770 | 4895205121980 |
| DT 6028 (6V 2.8Ah) | 0,56 | F1 | 6 | 2,8 | 52A(5s) | 66 | 33 | 96 | 99 | EX282946 | 4895205115347 |
| DT 6045 (6V 4.5Ah) | 0,70 | F1 | 6 | 4,5 | 75A(5s) | 70 | 47 | 101 | 107 | EP234535 | 4897040857307 |
| DT 606 (6V 6Ah) | 0,80 | F1 | 6 | 6 | 97A(5s) | 70 | 47 | 101 | 107 | EX282950 | 4895205115385 |
| DT 609 (6V 9Ah) | 1,25 | F1 | 6 | 9 | 120A(5s) | 70 | 47 | 101 | 107 | EX294051S | 4895205138209 |
| DT 612 (6V 12Ah) | 1,68 | F1 | 6 | 12 | 160A(5s) | 151 | 50 | 94 | 100 | EP234537 | 4897040857321 |
| DT 12008 (12V 0.8Ah) | 0,34 | T9/VHR-2N | 12 | 0,8 | 10A(5s) | 97 | 25 | 63 | 65 | EP255178 | 4895205100671 |
| DT 12012 (12V 1.2Ah) | 0,52 | F1 | 12 | 1,2 | 21A(5s) | 97 | 44 | 53 | 59 | EP249948 | 4897040859189 |
| DT 12022 (12V 2.2Ah) | 0,95 | F1 | 12 | 2,2 | 47A(5s) | 178 | 35 | 60 | 66 | EP249950 | 4897040859172 |
| DT 12032 (12V 3.2Ah) | 1,32 | F1 | 12 | 3,2 | 63A(5s) | 135 | 67 | 61 | 61 | EX282958 | 4895205115460 |
| DT 12045 (12V 4.5Ah) | 1,45 | F1 | 12 | 4,5 | 70A(5s) | 90 | 70 | 101 | 107 | ES252439 | 4897040859905 |
| DT 1205 (12V 5Ah) | 1,66 | F1 | 12 | 5 | 81A(5s) | 90 | 70 | 107 | 107 | EX285964 | 4895205122949 |
| DT 1207 (12V 7Ah) | 1,98 | F1 | 12 | 7 | 110A(5s) | 151 | 65 | 95 | 102 | ES252436 | 4897040859912 |
| 3,30 | F2 | 12 | 12 | 175A(5s) | 151 | 98 | 95 | 101 | ES255176 | 4895205100695 | |
| DT 1217 (12V 17Ah) | 5,05 | F3 | 12 | 17 | 240A(5s) | 180 | 75 | 165 | 165 | EX285954 | 4895205122932 |

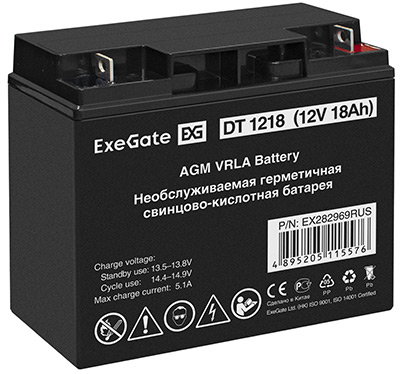

| DT 1218 (12V 18Ah) | 5,47 | F3 | 12 | 18 | 250A(5s) | 181 | 76 | 168 | 168 | EX282969 | 4895205115576 |
| DT 1226 (12V 26Ah) | 7,40 | for M5 bolt | 12 | 26 | 400A(5s) | 166 | 175 | 125 | 126 | EX282970 | 4895205115583 |
| DT 1233 (12V 33Ah) | 10,00 | for M5 bolt | 12 | 33 | 470A(5s) | 197 | 131 | 163 | 180 | EX282974 | 4895205115620 |
| DT 1240 (12V 40Ah) | 13,40 | for M6 bolt | 12 | 40 | 550A(5s) | 198 | 166 | 170 | 170 | EX282976 | 4895205115644 |
| DT 1265 (12V 65Ah) | 20,80 | for M6 bolt | 12 | 65 | 680A(5s) | 350 | 167 | 179 | 179 | EX282980 | 4895205115682 |
| DT 1275 (12V 75Ah) | 23,50 | for M5 bolt | 12 | 75 | 890A(5s) | 259 | 169 | 208 | 213 | EX282983 | 4895205115712 |
| DT 12100 (12V 100Ah) | 29,20 | for M6 bolt | 12 | 100 | 1050A(5s) | 329 | 172 | 215 | 241 | EX282985 | 4895205115736 |
| DT 12120 (12V 120Ah) | 33,00 | for M8 bolt | 12 | 120 | 1100A(5s) | 410 | 176 | 224 | 226 | EX282988 | 4895205115767 |
| DT 12150 (12V 150Ah) | 41,00 | for M8 bolt | 12 | 150 | 1550A(5s) | 486 | 171 | 243 | 240 | EX282990 | 4895205115781 |
| DT 12200 (12V 200Ah) | 55,00 | for M8 bolt | 12 | 200 | 600A(5s) | 523 | 240 | 219 | 224 | EX282991 | 4895205115798 |
