AB-21x

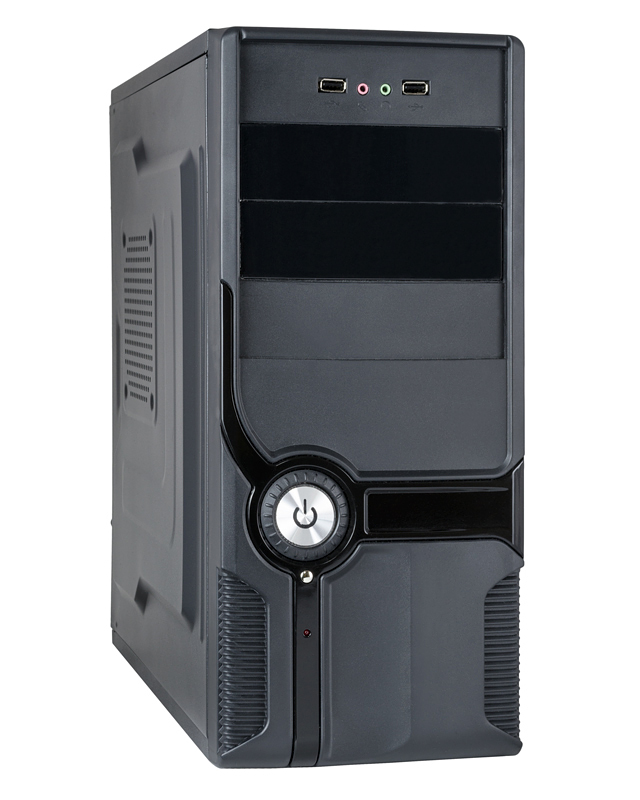

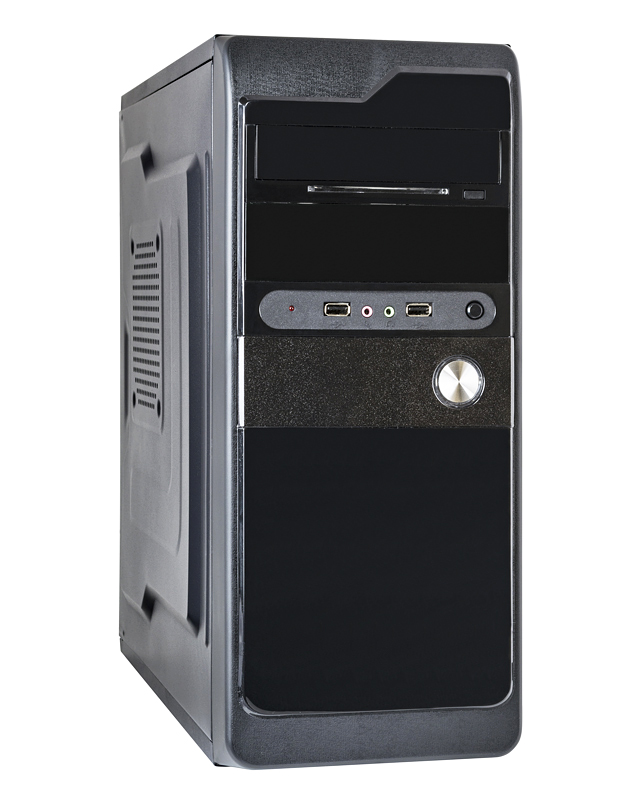

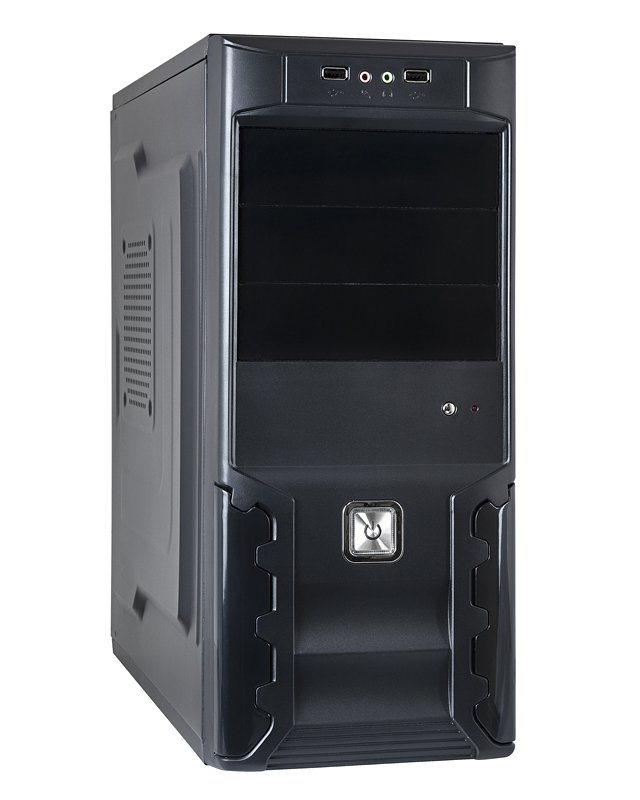

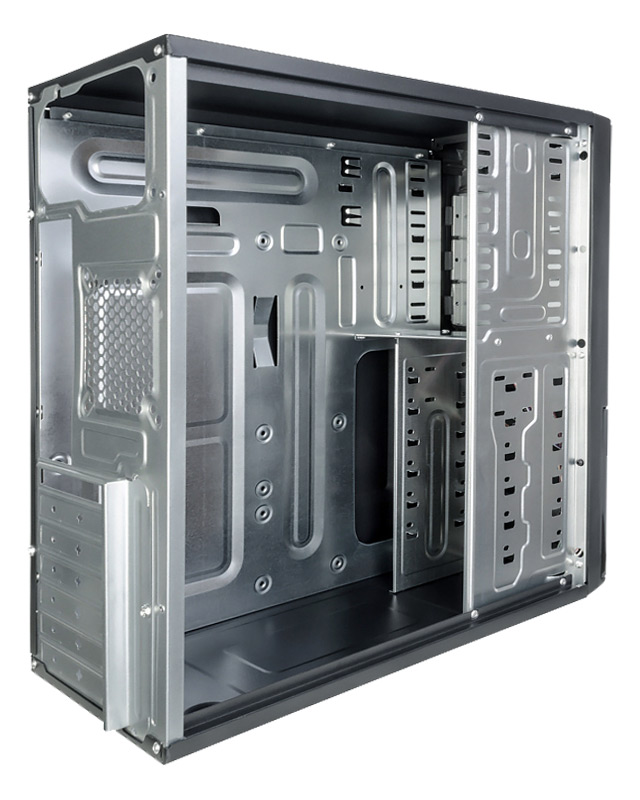

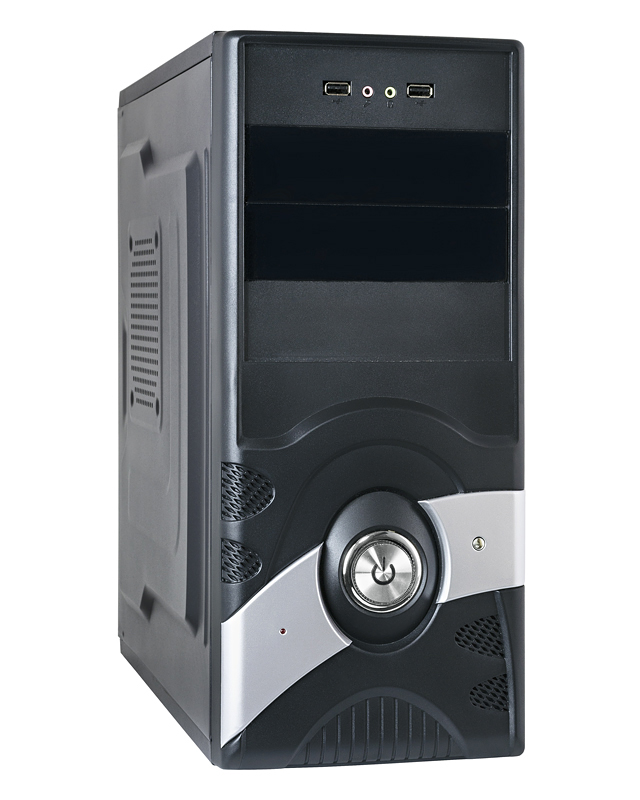

AB-215 | AB-216 | AB-217 | AB-218 |
Specification
Case Type | Miditower |
Chassis Material | Steel |
Case Color | Black |
Motherboard Support | mATX, ATX |
Drive Bay: | |
Ext. 5.25" | 2 3 for AB-218 |
Int. 5.25" | 2 1 for AB-218 |
Int. 3.5" | 6 |
Front I/O Ports | 2xUSB 2.0, MIC & HD Audio |
Expansion Slots | 7 |
Cooling System | |
Rear | 1x8 cm/ 1x9,2 cm |
Side | 1x12 cm |
PSU models | AB350, AB400, AB450, AB500, w/o PSU |
Max. motherboard length, mm | 244 |
Max. height of the CPU fan, mm | 130 |
Max. PSU length, mm | 155 |
Max. SVGA length, mm | 210 |
Chassis dimensions (W x H x D), mm | 175 x 410 x 370 |
Dimensions (W x H x D), mm | 175 x 410 x 405 |
Net Weight w/o PSU / with PSU, kg | 2,5/3,5 |
Optional accessories | HDD Adapters Front panel 3,5" Card Reader 3,5" Multifunction panel 5,25" |
Model | w/o PSU | 350 W | 400 W | 450 W | 500 W | |
AB-215 | P/N | EX219387 | EX219370 | EX219374 | EX219379 | EX219383 |
EAN | 4897040855266 | 4897040855273 | 4897040855280 | 4897040855297 | 4897040855303 | |
AB-216 | P/N | EX219388 | EX219367 | EX219375 | EX219380 | EX219384 |
EAN | 4897040855310 | 4897040855327 | 4897040855334 | 4897040855341 | 4897040855358 | |
AB-217 | P/N | EX219389 | EX219372 | EX219376 | EX219381 | EX219385 |
EAN | 4897040855365 | 4897040855372 | 4897040855389 | 4897040855396 | 4897040855402 | |
AB-218 | P/N | EX219390 | EX219373 | EX219378 | EX219382 | EX219386 |
EAN | 4897040855419 | 4897040855426 | 4897040855433 | 4897040855440 | 4897040855457 |
