BA-10X

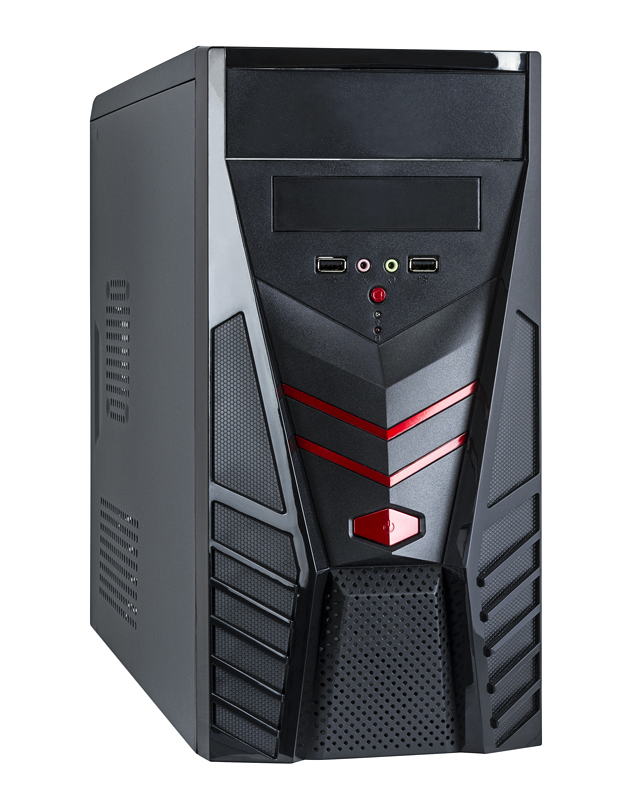

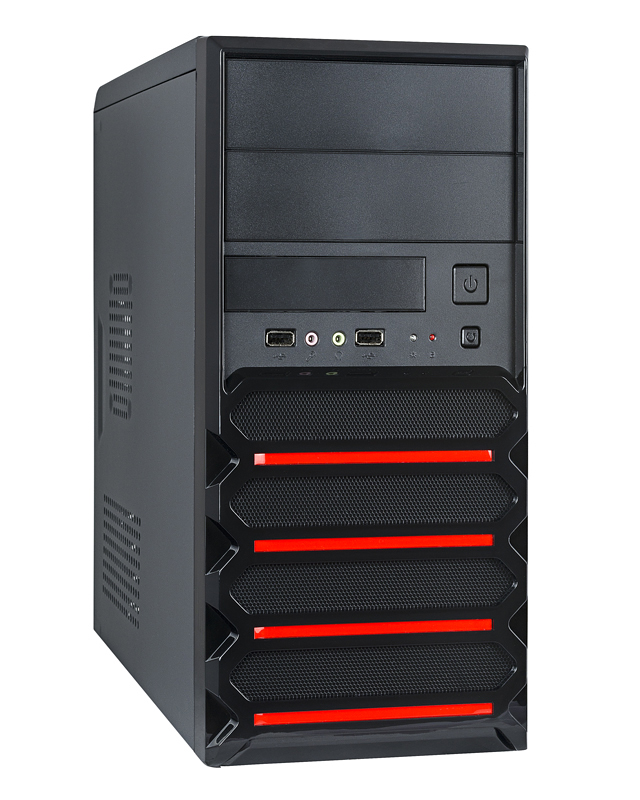

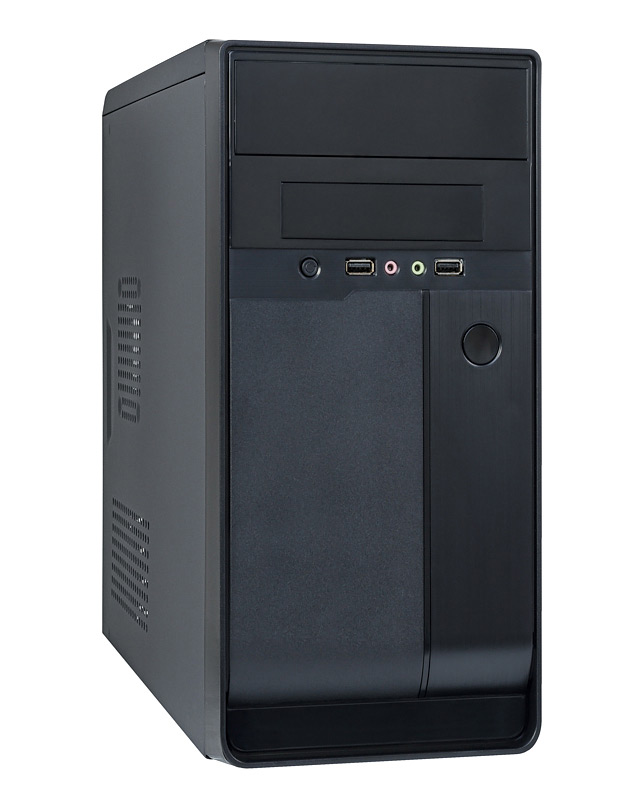

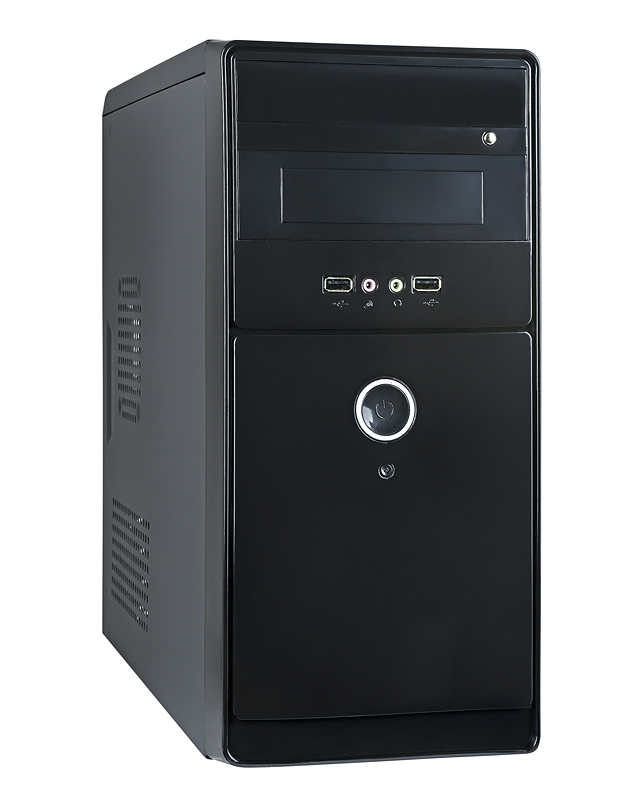

BA-106 BA-107 BA-108 BA-109 BA-110
BA-106 BA-107 BA-108 BA-109 BA-110

Specification

Case Type Minitower
Chassis Material Steel
Case Color Black
Motherboard Support mATX
Drive Bay:
Ext. 5.25" 1 for BA-106, BA-108, BA-109
2 for BA-107
Int. 5.25" 1 for BA-106, BA-108, BA-109
Ext. 3.5" 1
Int. 3.5" 2
Front I/O Ports 2 x USB 2.0, 2xUSB 2.0, MIC & HD Audio
Expansion Slots 4
Cooling System
Rear 1x8 cm
Side 1x9,2 cm
PSU models AB350, AB400, AB450, AB500, w/o PSU
Max. motherboard length, mm 220
Max. height of the CPU fan, mm 135
Max. PSU length, mm 150
Max. SVGA length, mm 210
Chassis dimensions (W x H x D) mm 170 x 350 x 350
Dimensions (W x H x D) mm 170 x 350 x 385
Net Weight w/o PSU / with PSU, kg 2,0/3,0
Optional accessories HDD Adapters
Front panel 3,5"
Card Reader 3,5"
Multifunction panel 5,25"


Model   w/o PSU 350 W 400 W 450 W 500 W
BA-106 P/N EX219364 EX219138 EX219135 EX219136 EX219137
EAN 4897040856799 4897040855105 4897040855112 4897040855129 4897040855136
BA-107 P/N EX219365 EX219134 EX219139 EX219140 EX219141
EAN 4897040856805 4897040855143 4897040855150 4897040855167 4897040855174
BA-108 P/N EX219366 EX219142 EX219143 EX219144 EX219145
EAN 4897040856812 4897040855181 4897040855198 4897040855204 4897040855211
BA-109 P/N EX237038 EX237034 EX237035 EX237036 EX237037
EAN 4897040857116 4897040857079 4897040857086 4897040857093 4897040857109
BA-110 P/N EX251814 EX249049 EX251815 EX251816 EX251817
EAN 4897040859752 4897040858885 4897040859769 4897040859776 4897040859783
