BA-11X

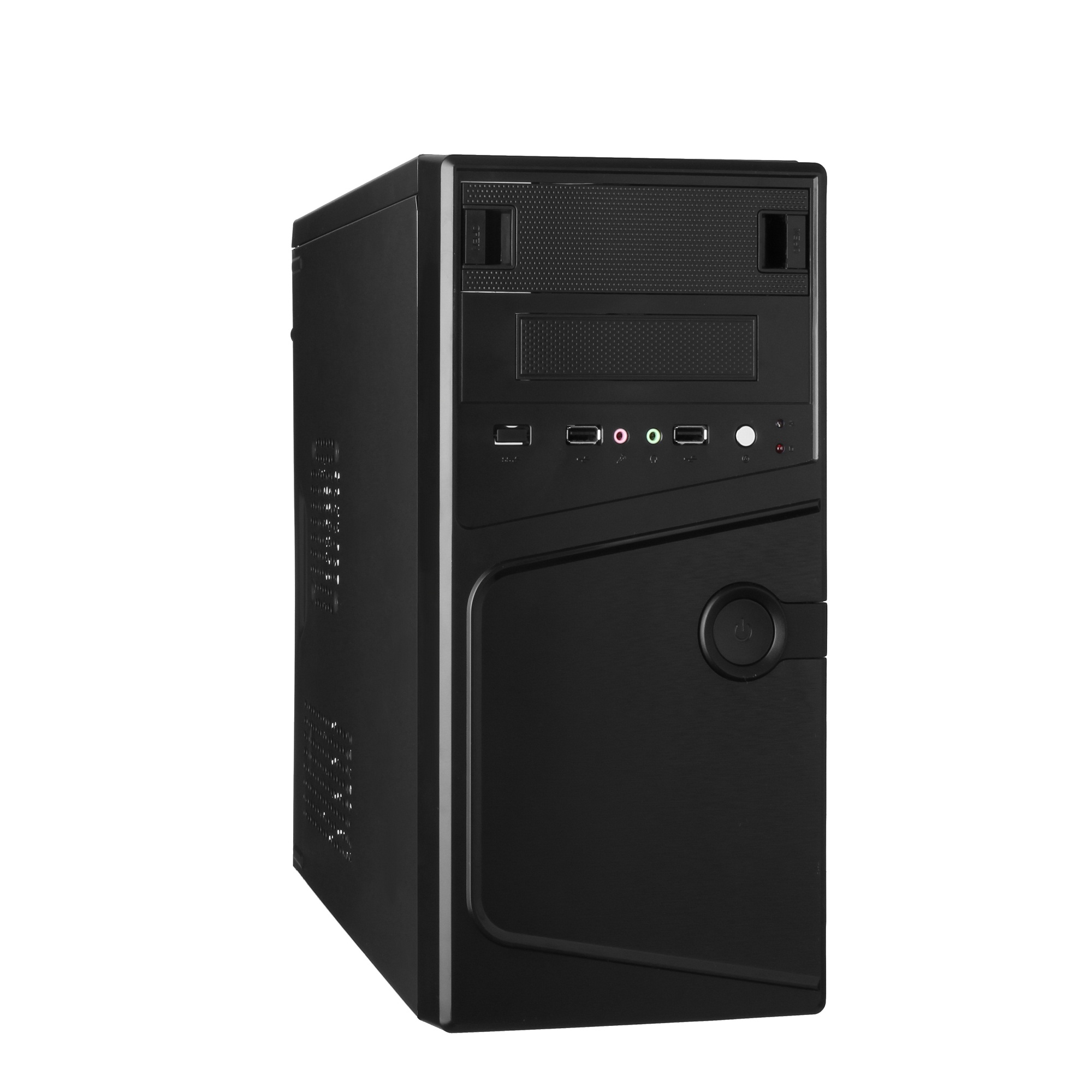

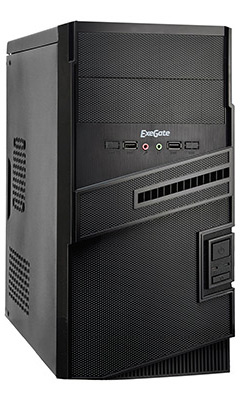

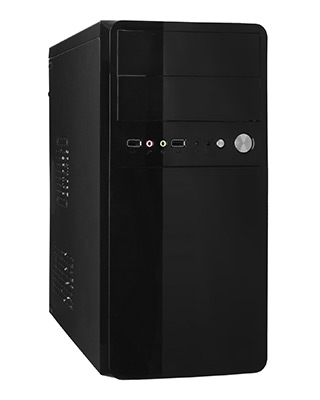

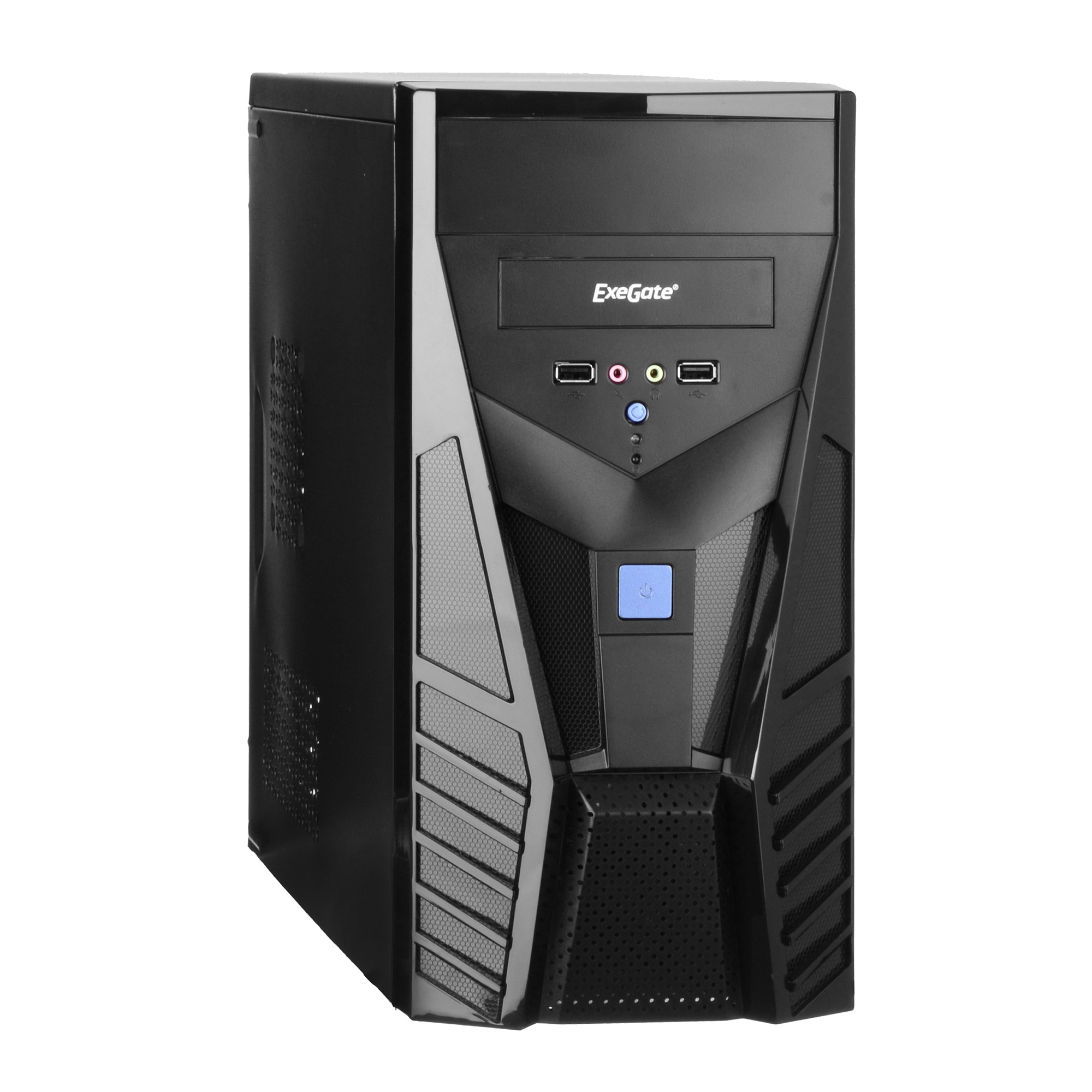

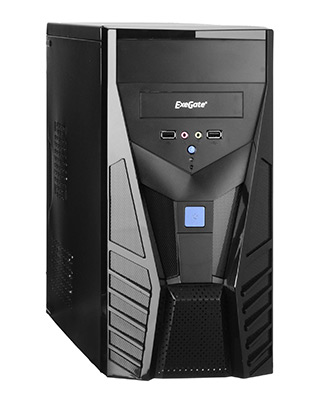

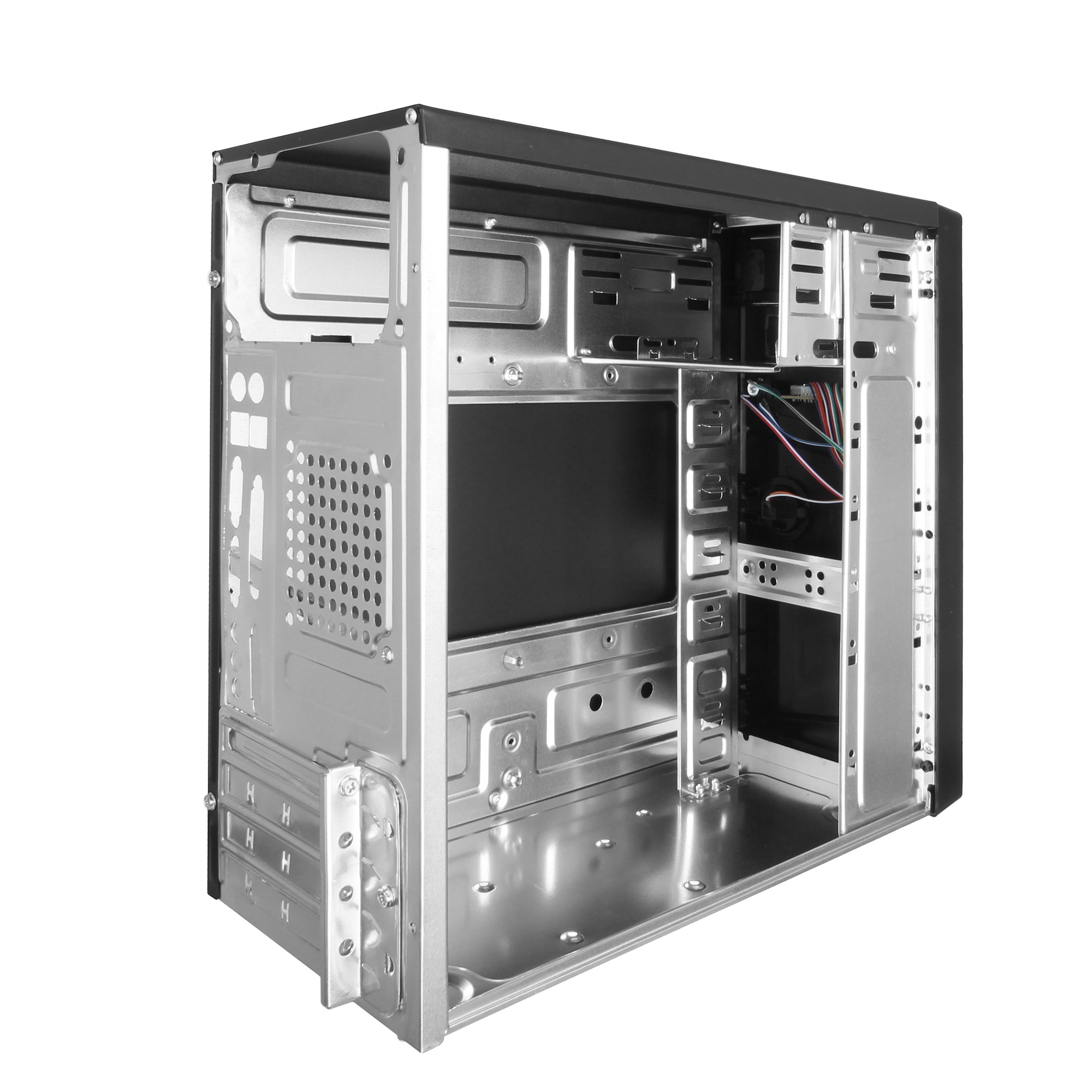

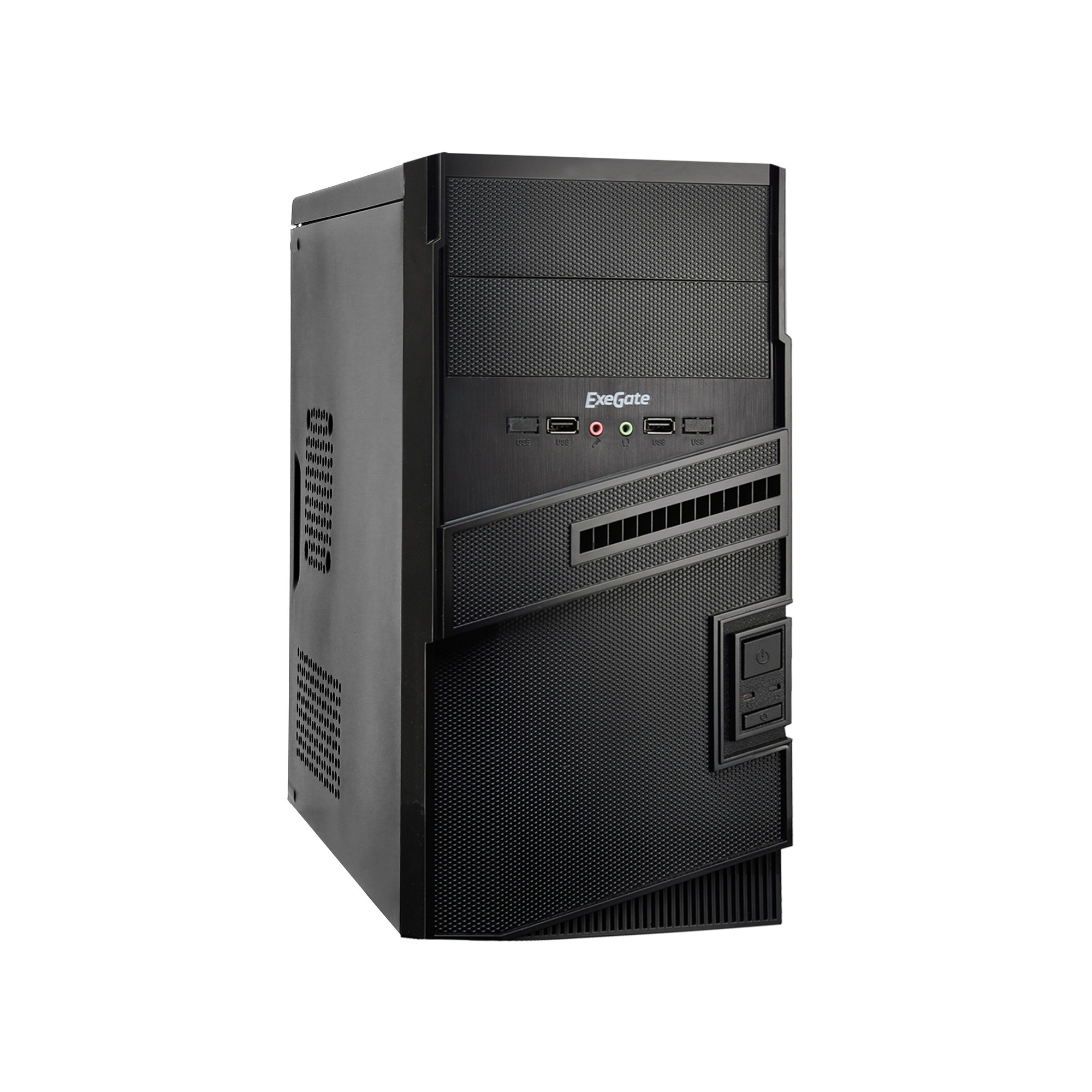

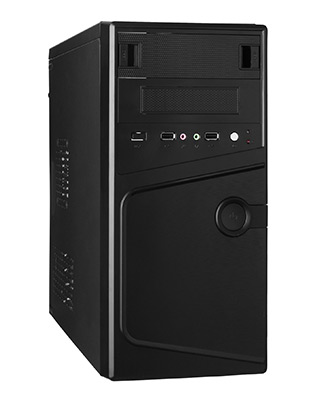

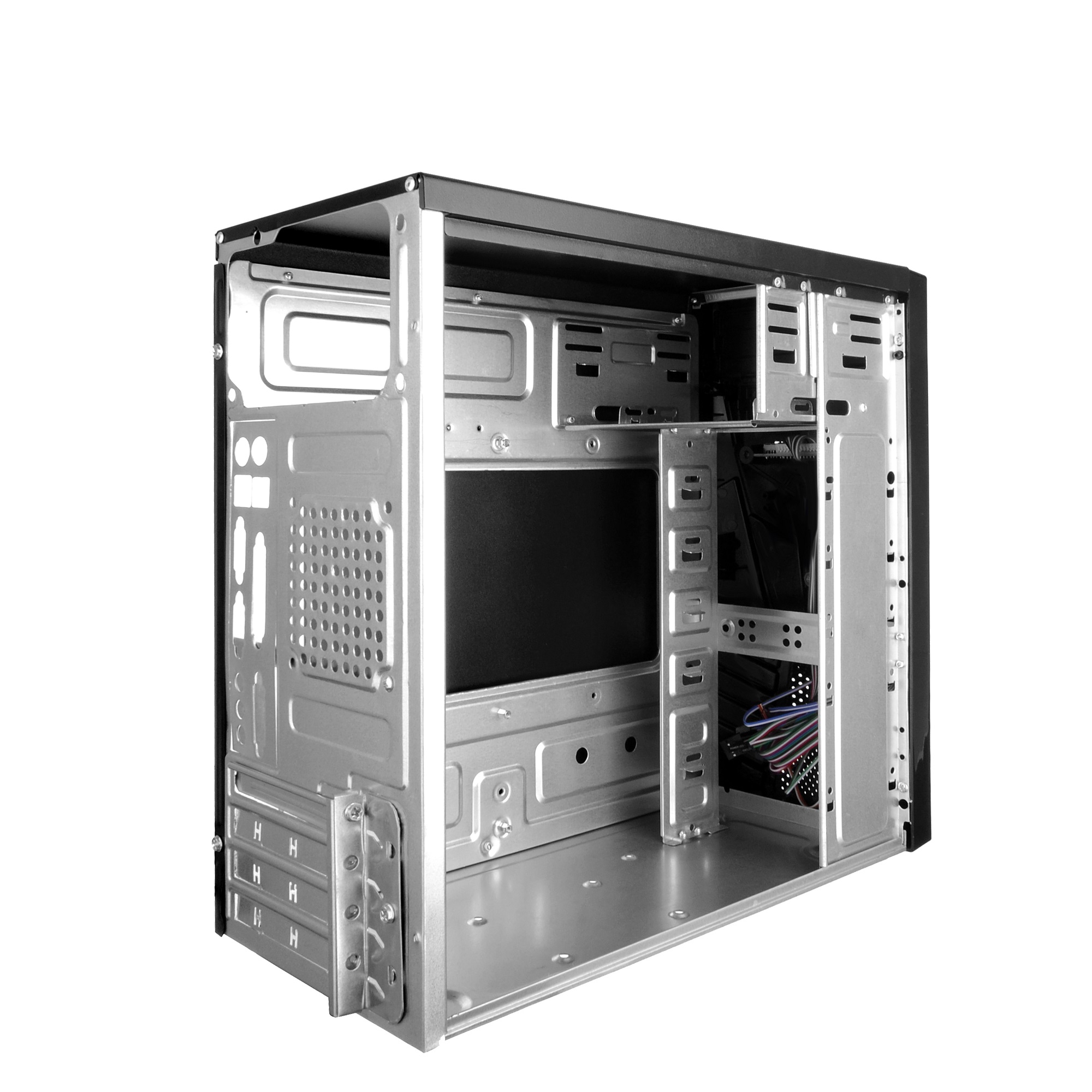

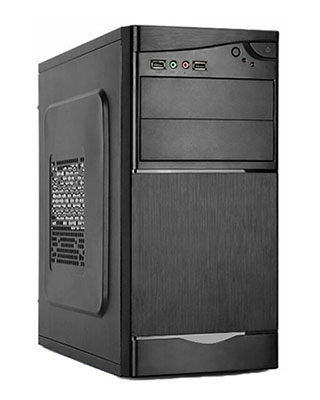

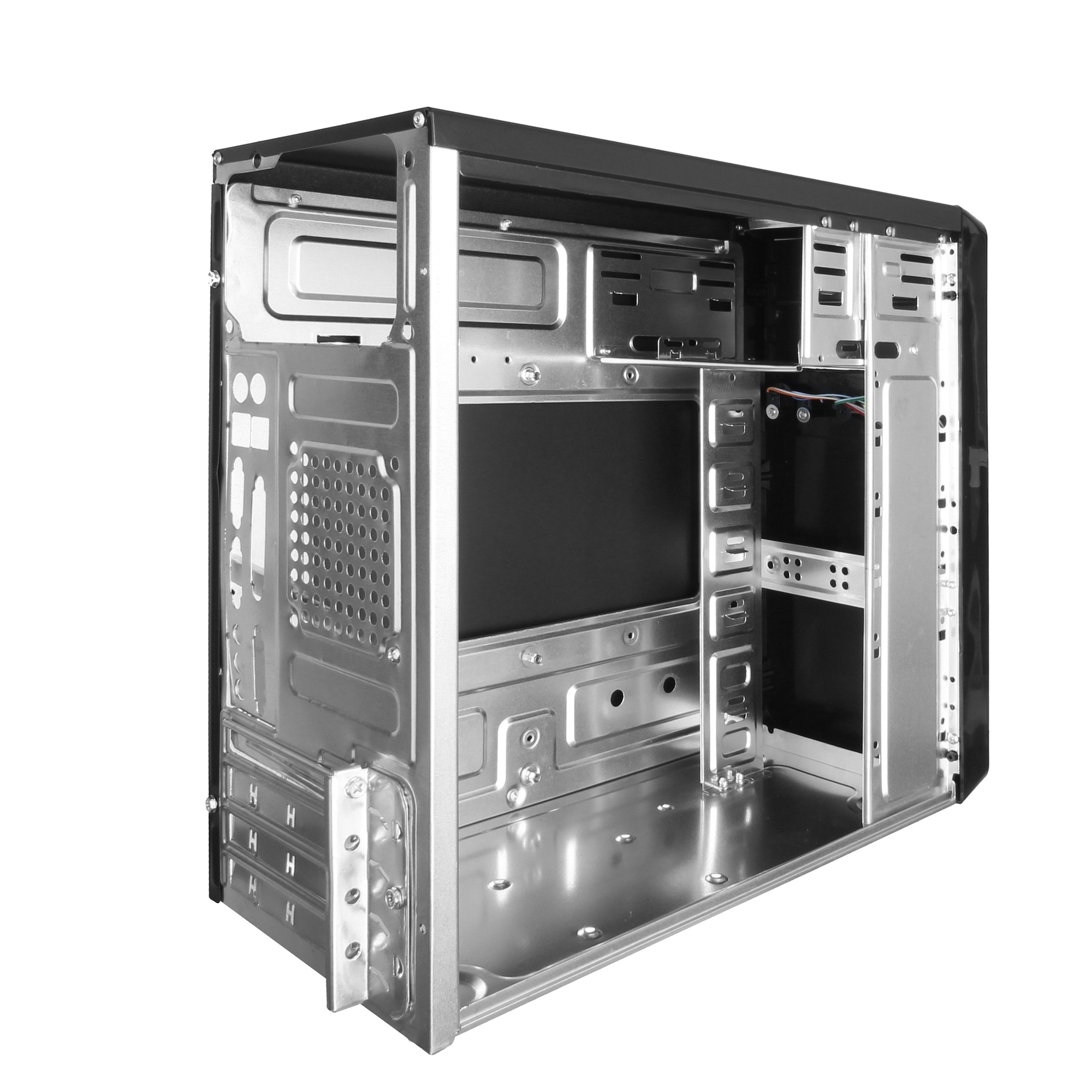

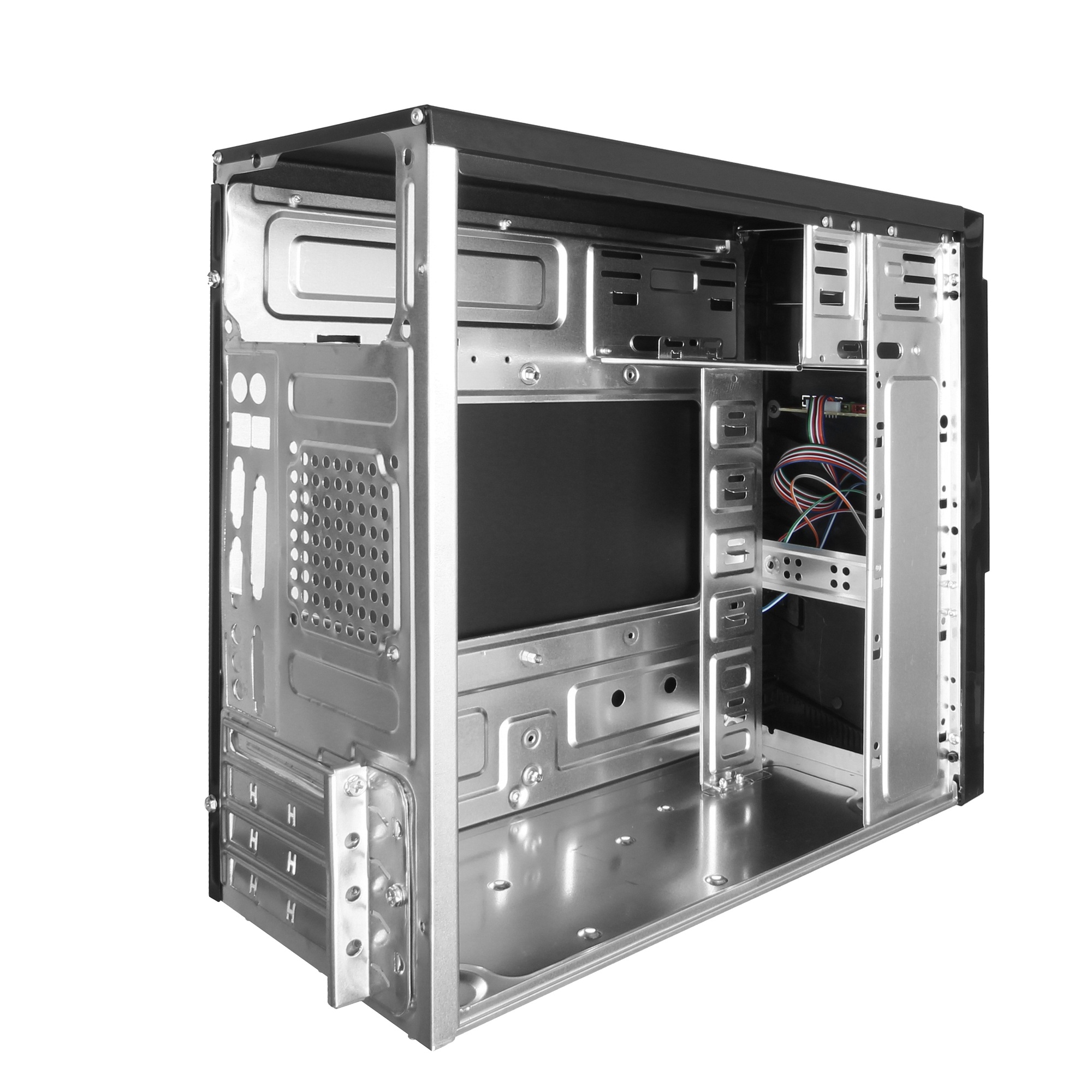

BA-110 BA-111 BA-112 BA-113
BA-110 BA-111 BA-112 BA-113

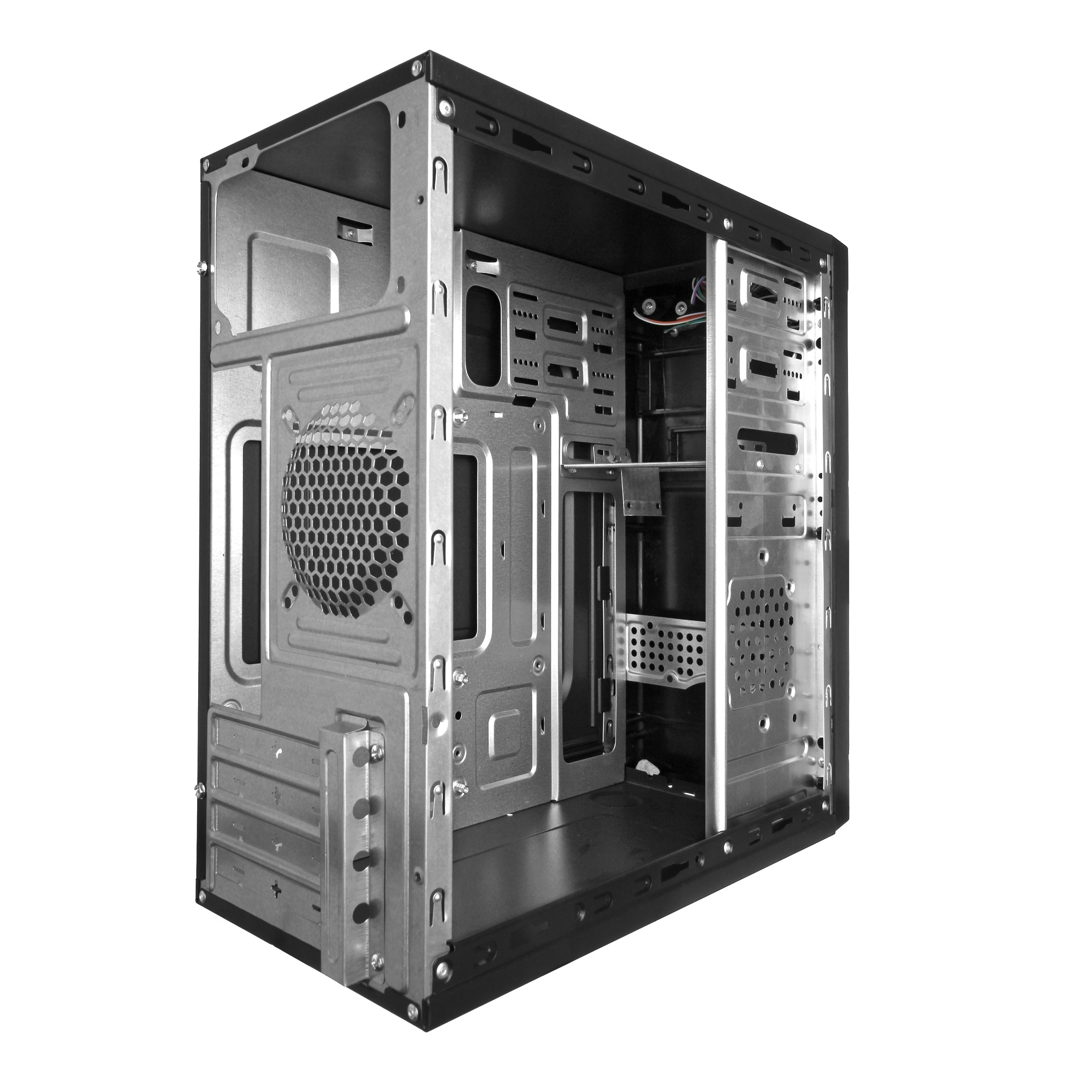

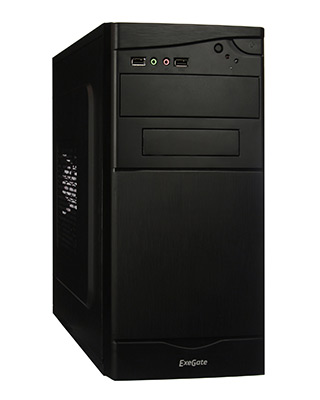

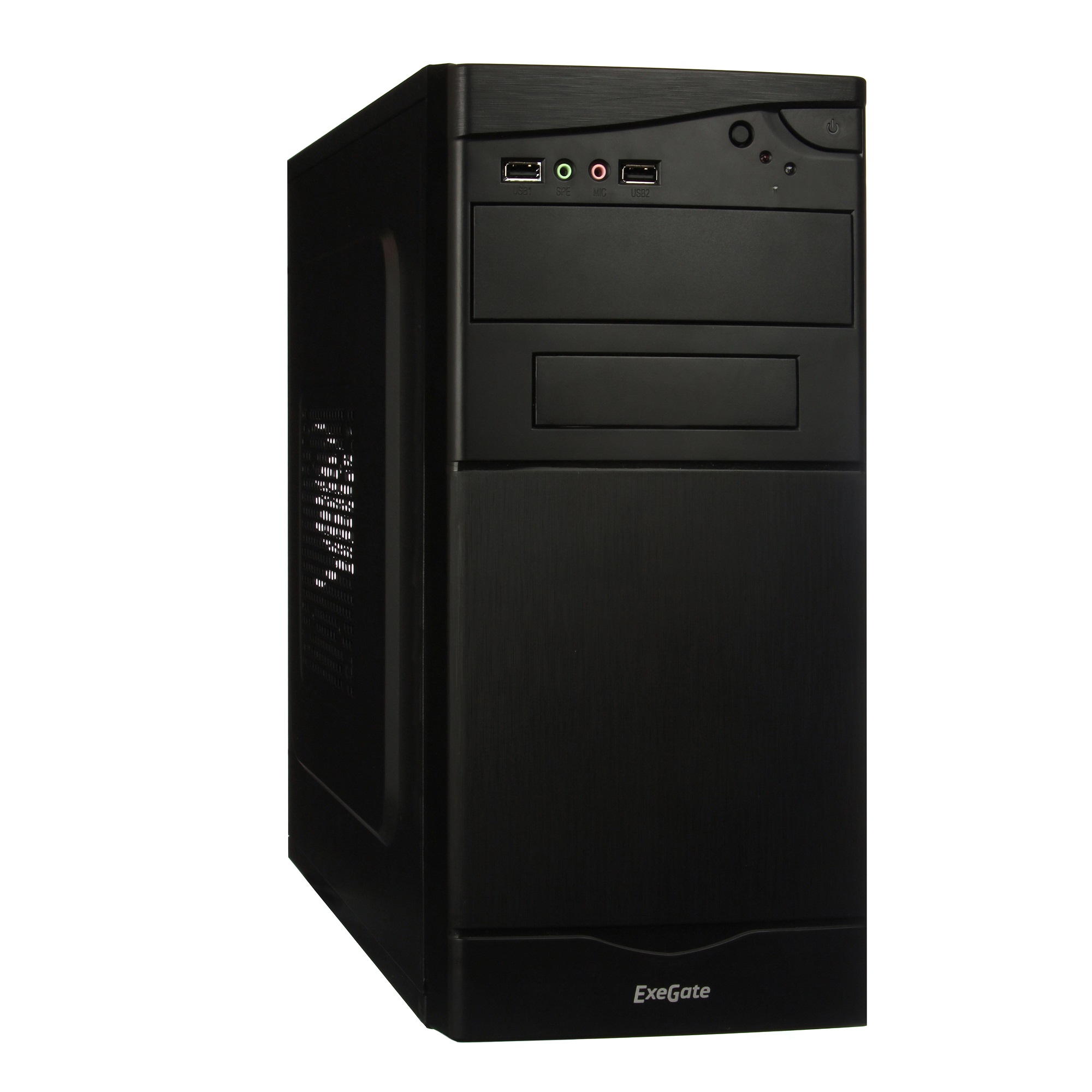

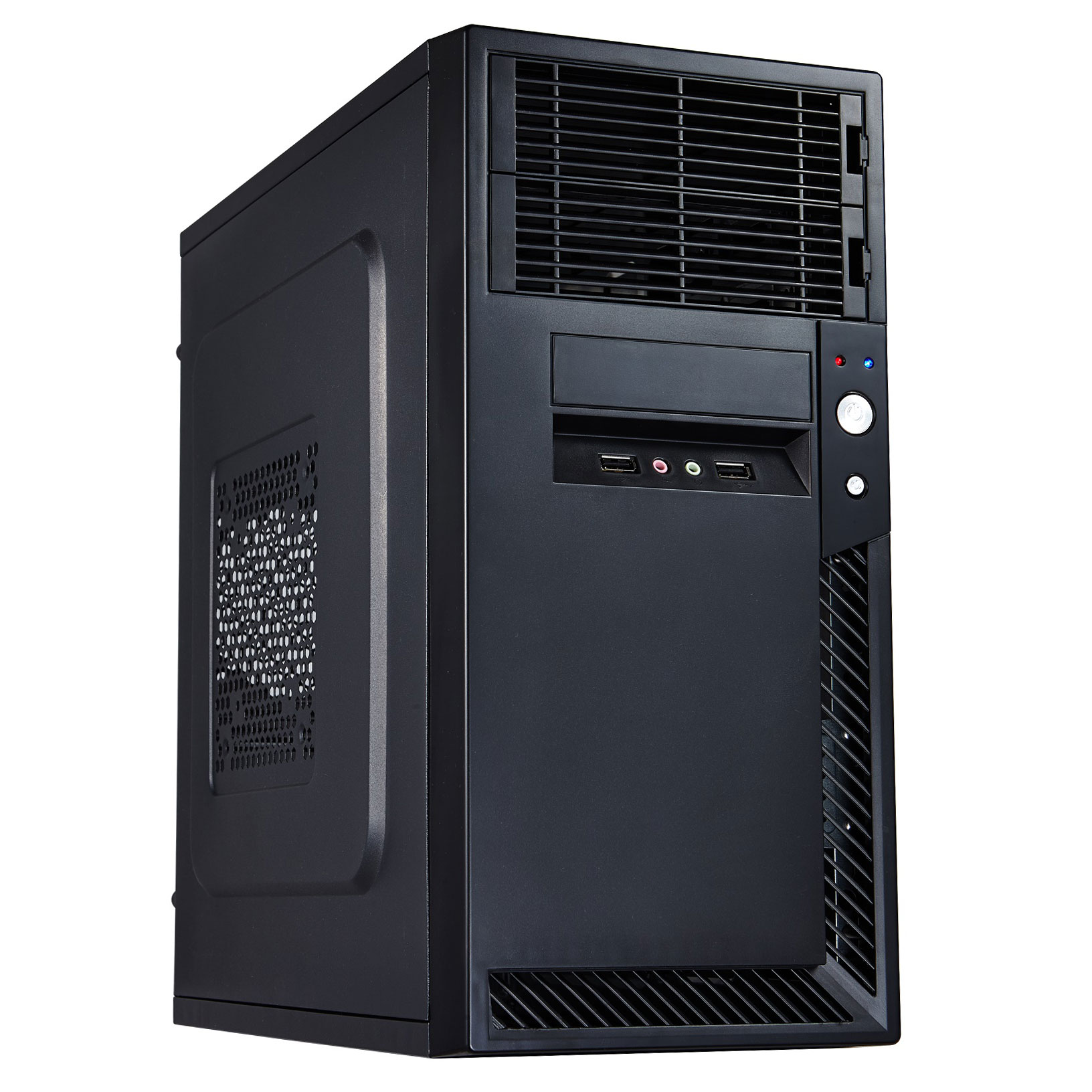

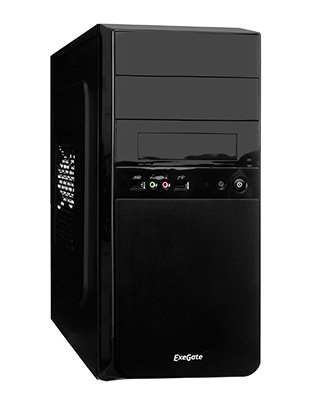

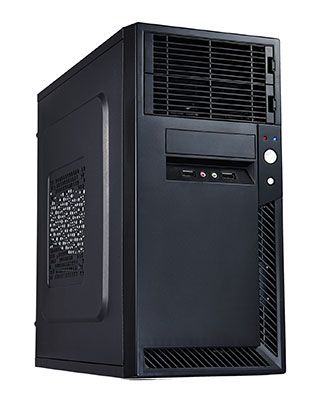

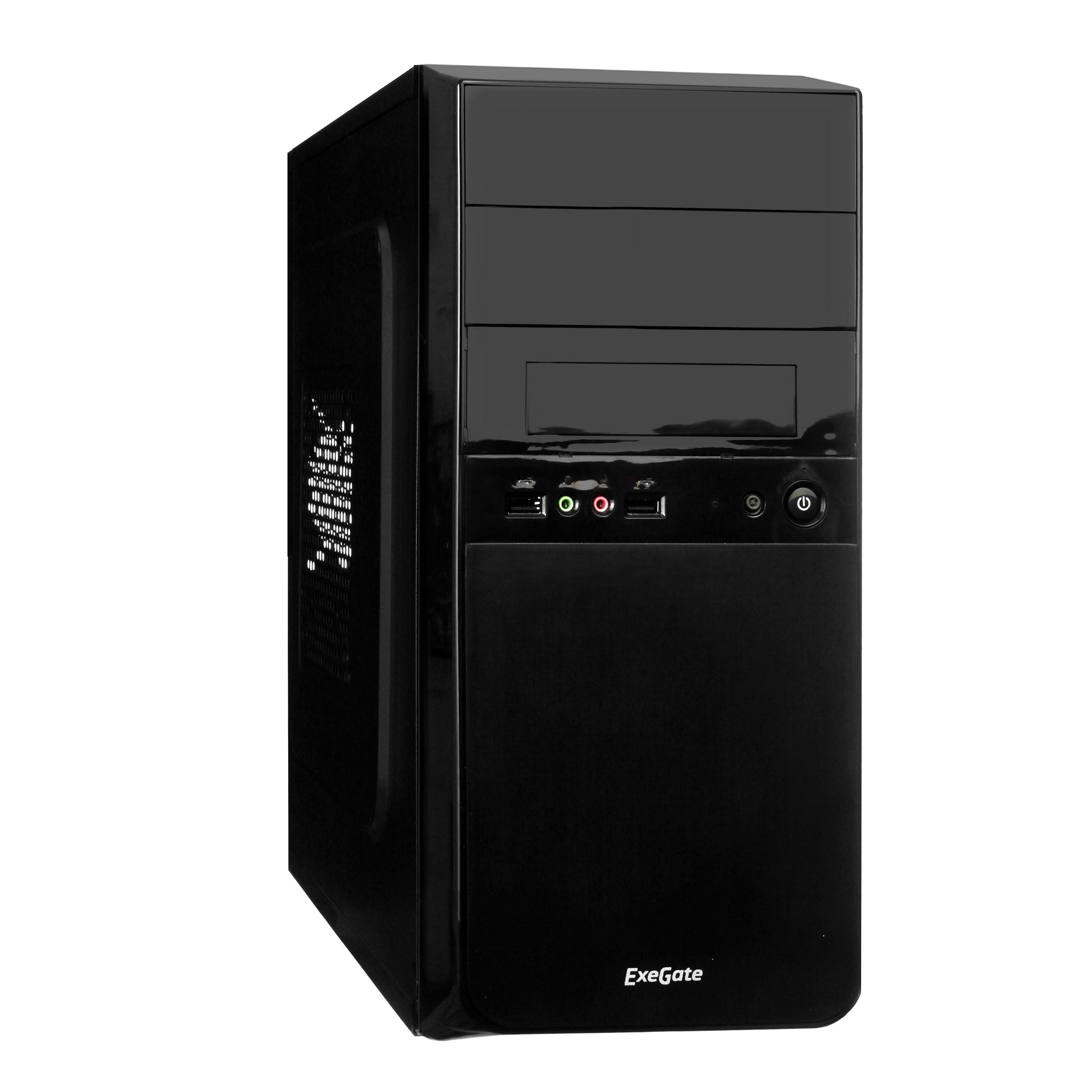

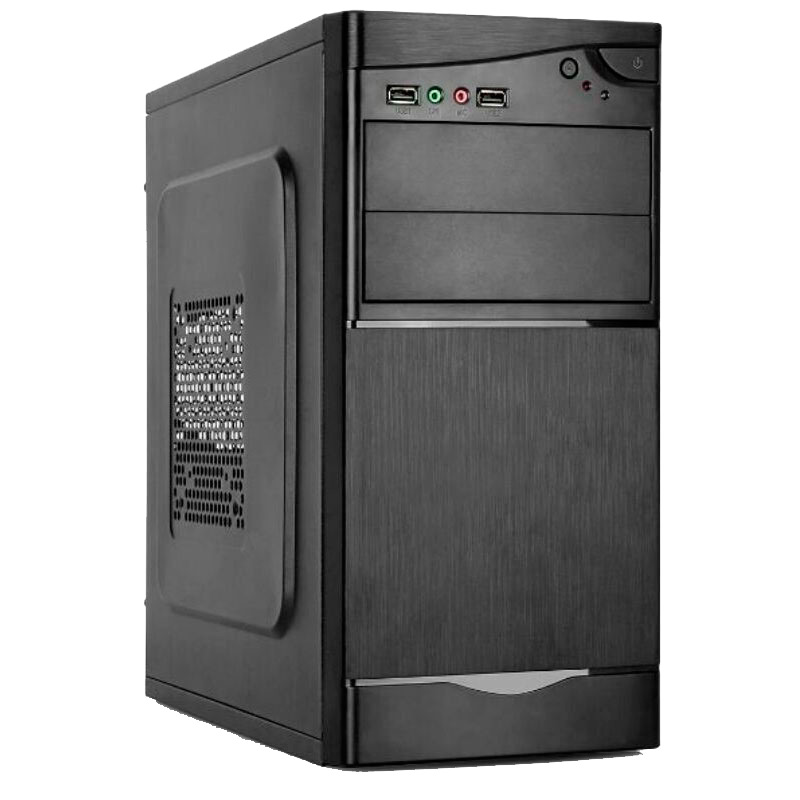

BA-114 BA-115 BA-116 BA-117
BA-114 BA-115 BA-116 BA-117

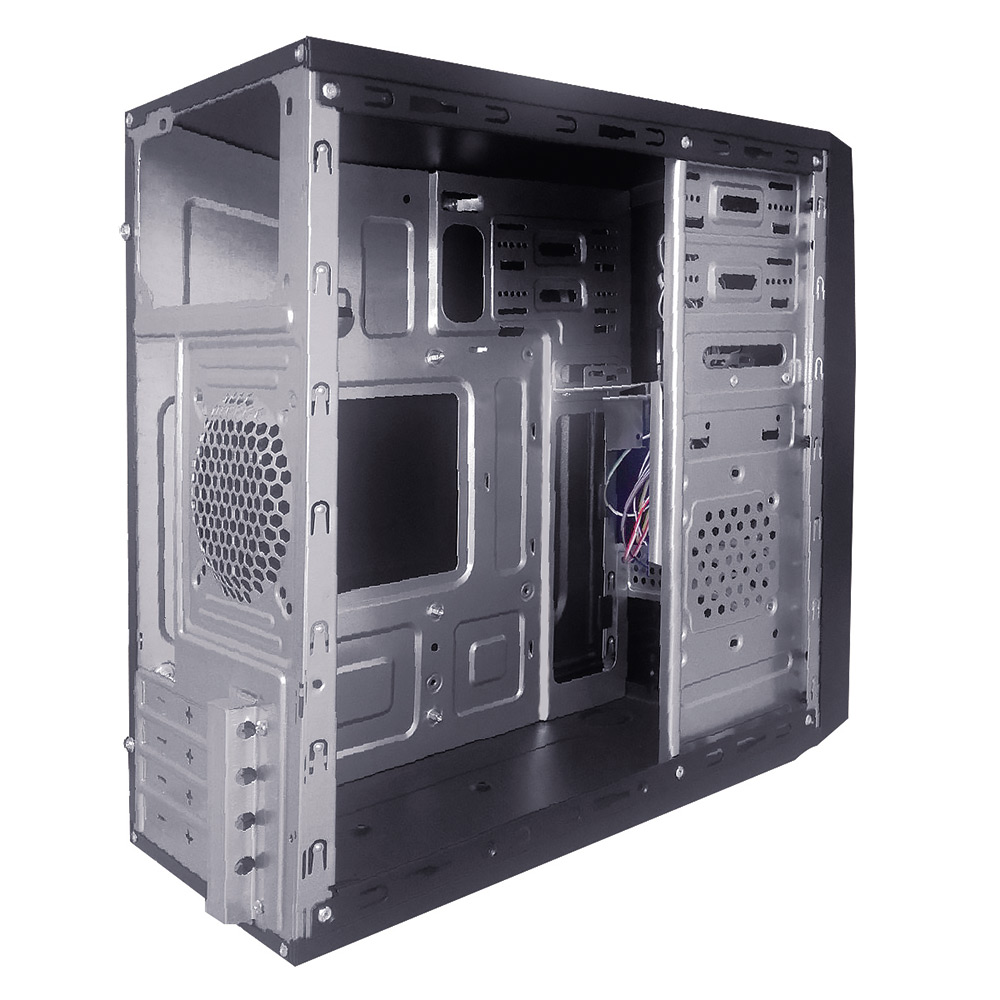

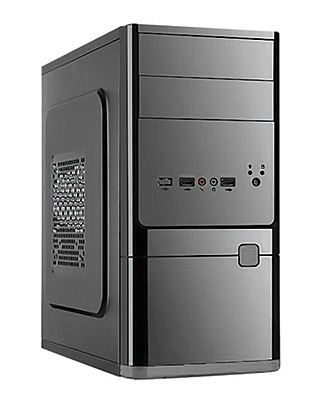

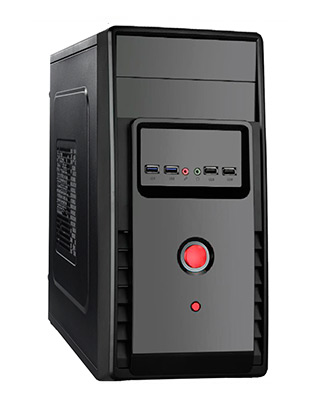

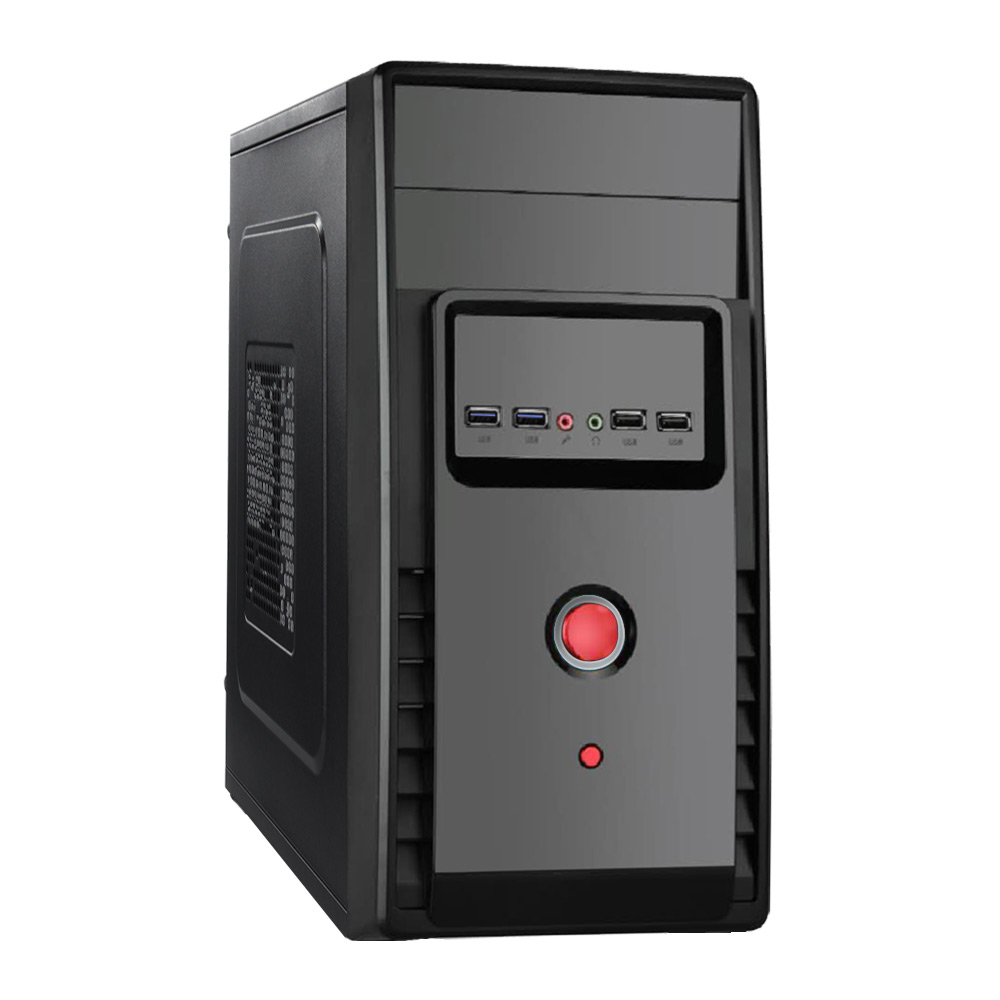

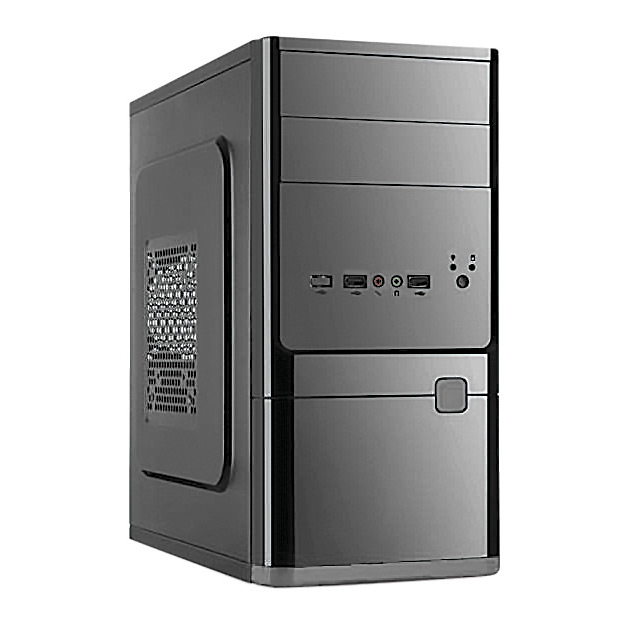

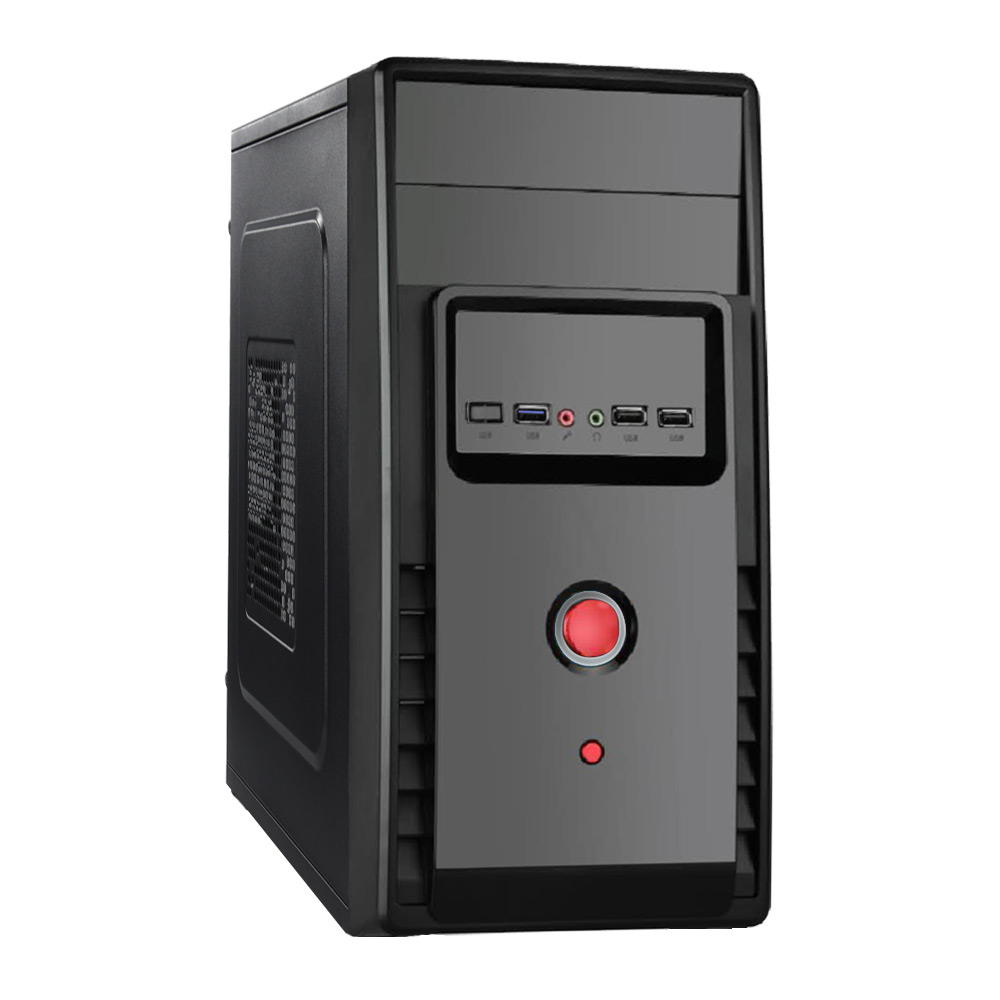

BA-118U BA-119U BA-120
BA-118U BA-119U BA-120

Specification

Case Type Minitower
Chassis Material Steel
Case Color Black
Motherboard Support mATX
Drive Bay:
Ext. 5.25" 1
Ext. 3.5" 1 for BA-113, BA-114, BA-115, BA-116
Int. 5.25" 1 for BA-115, BA-117
Int. 3.5" 3
1 for BA-115
Int. 2.5" 1
2 for BA-116, BA-117
Front I/O Ports 2xUSB 2.0, 2 x 3.5mm Audio
Expansion Slots 4
Cooling System
Rear 1 x 12 cm
1 x 8 cm / 1 x 12 cm for BA-115
Front 1 x 8 cm
1 x 8 cm / 1 x 12 cm for BA-115
Side 1 x 8 cm
1 x 8 cm / 1 x 9,2 cm for BA-115
PSU models AA350, AA400, AA450, AA500, w/o PSU
Max. motherboard length, mm 244
Max. height of the CPU fan, mm 125
130 for BA-115
Max. PSU length, mm 170/205
160 for BA-115
Max. SVGA length, mm 180/245
325 for BA-115
Structure Color Silver
Chassis dimensions (W x H x D), mm 170 x 345 x 336
173 x 365 x 330 for BA-114, BA-115
Dimensions (W x H x D), mm 172 x 347 x 383
180 x 367 x 380 for BA-115
Net Weight w/o PSU / with PSU, kg 2,0/3,0
Optional accessories HDD Adapters
Front panel 3,5"
Card Reader 3,5"
Multifunction panel 5,25"


Model   w/o PSU 350W 400W 450W 500W 600W
BA-110 P/N EX251814 EX249049 EX251815 EX251816 EX251817 EX251818
EAN 4897040859752 4897040858885 4897040859769 4897040859776 4897040859783 4897040859790
BA-111 P/N EX251820 EX249050 EX251821 EX251822 EX251823 EX251824
EAN 4897040859806 4897040858892 4897040859813 4897040859820 4897040859837 4897040859844
BA-112 P/N EX251825 EX249051 EX251826 EX251827 EX251828 EX251829
EAN 4897040859851 4897040858908 4897040859868 4897040859875 4897040859882 4897040859899
BA-113 P/N EX256032 EX255770 EX255771 EX255772 EX256033
EAN 4895205101616 4895205100718 4895205100725 4895205100732 4895205101623
BA-114 P/N EX256661 EX256662 EX256663 EX256664 EX256665
EAN 4895205101234 4895205101241 4895205101258 4895205101265 4895205101272
BA-115 P/N EX256666 EX256667 EX256668 EX256669 EX256670
EAN 4895205101289 4895205101296 4895205101302 4895205101319 4895205101326
BA-116 P/N EX259131 EX259121 EX259124 EX259125 EX259126
EAN 4895205101982 4895205101999 4895205102002 4895205102019 4895205102026
BA-117 P/N EX259130 EX259123 EX259127 EX259128 EX259129
EAN 4895205102033 4895205102040 4895205102057 4895205102064 4895205102071
BA-118U P/N EX265168 EX265167 EX265166 EX265165 EX265164
EAN 4895205103597 4895205103603 4895205103610 4895205103627 4895205103634
BA-119U P/N EX265170 EX265171 EX265172 EX265173 EX265174
EAN 4895205103641 4895205103658 4895205103665 4895205103672 4895205103689
BA-120 P/N EX267137 EX267138 EX267139 EX267140 EX267141
EAN 4895205104631 4895205104594 4895205104600 4895205104617 4895205104624
