CP-5xx
  |
 |
 |
 |
 |

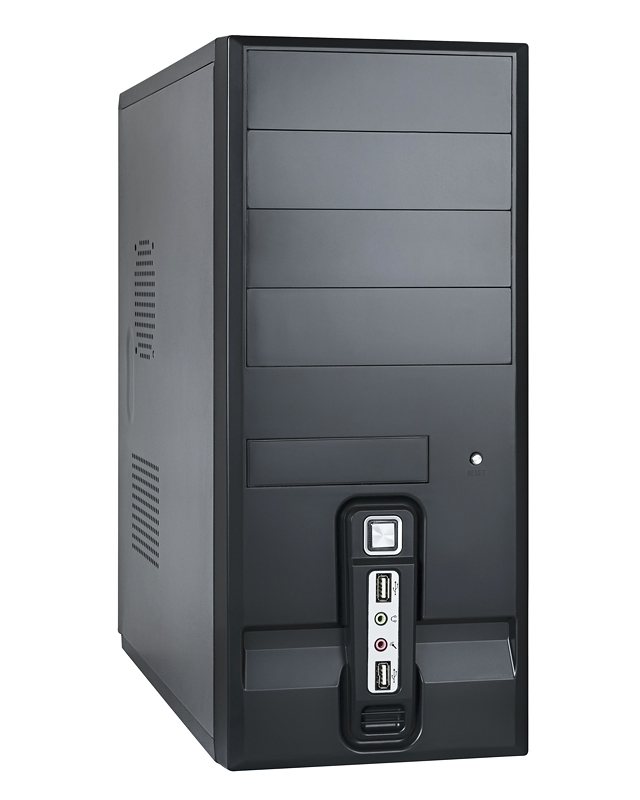

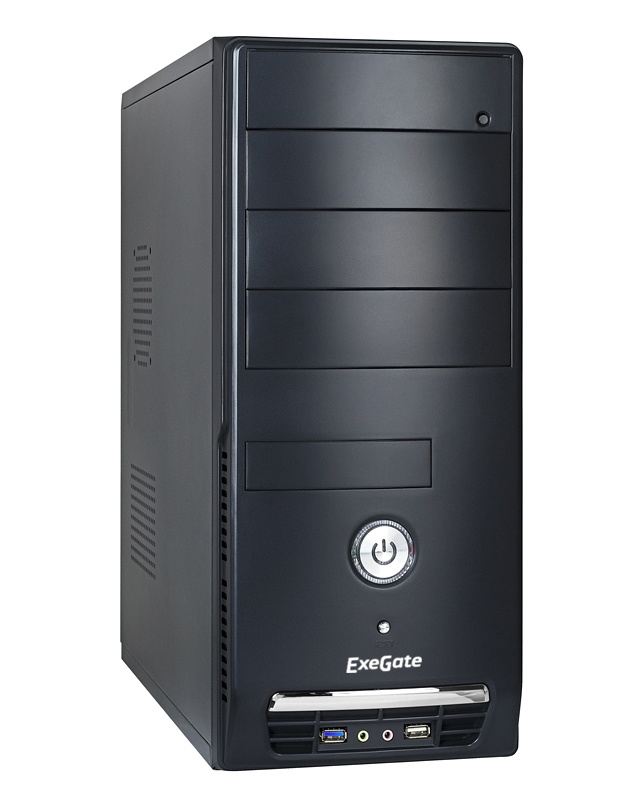

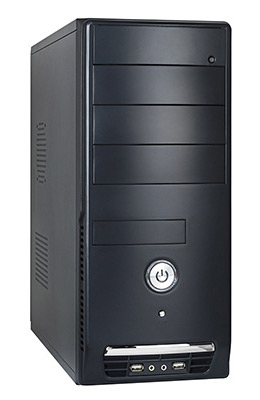

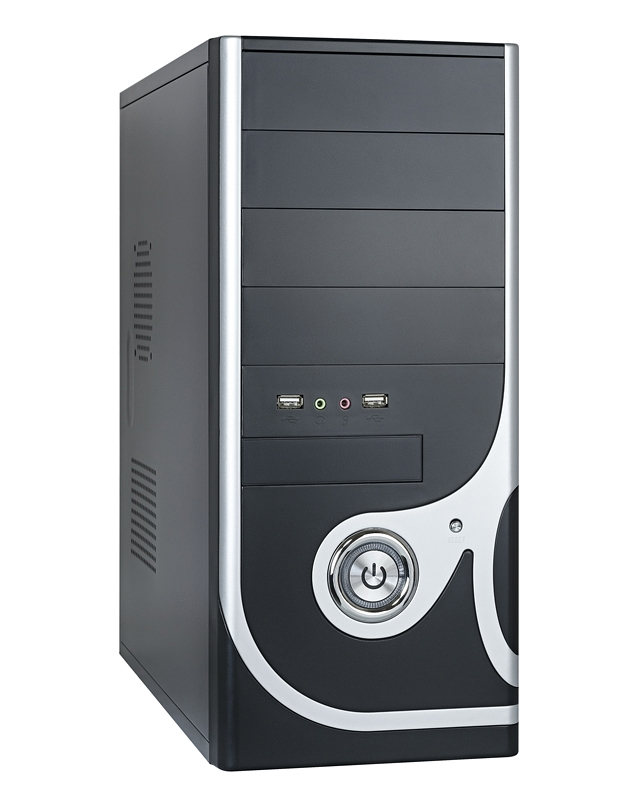

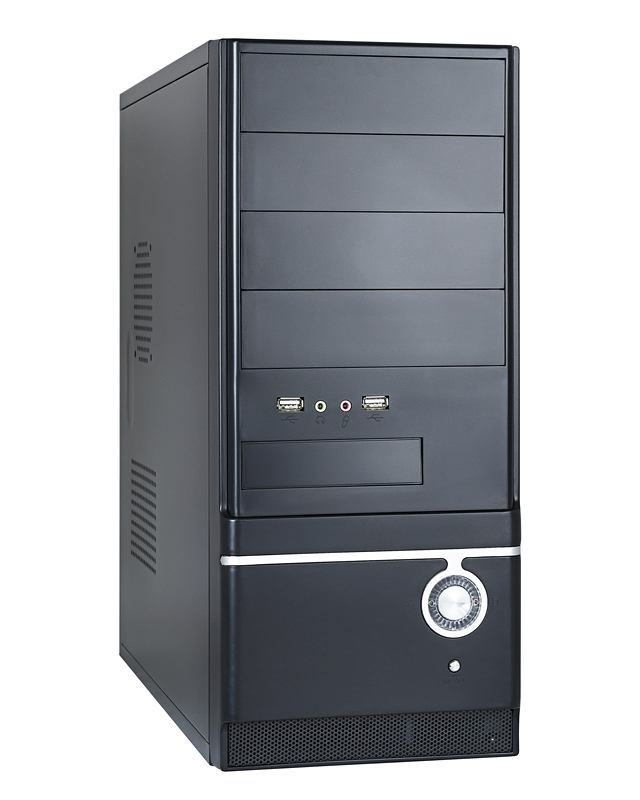

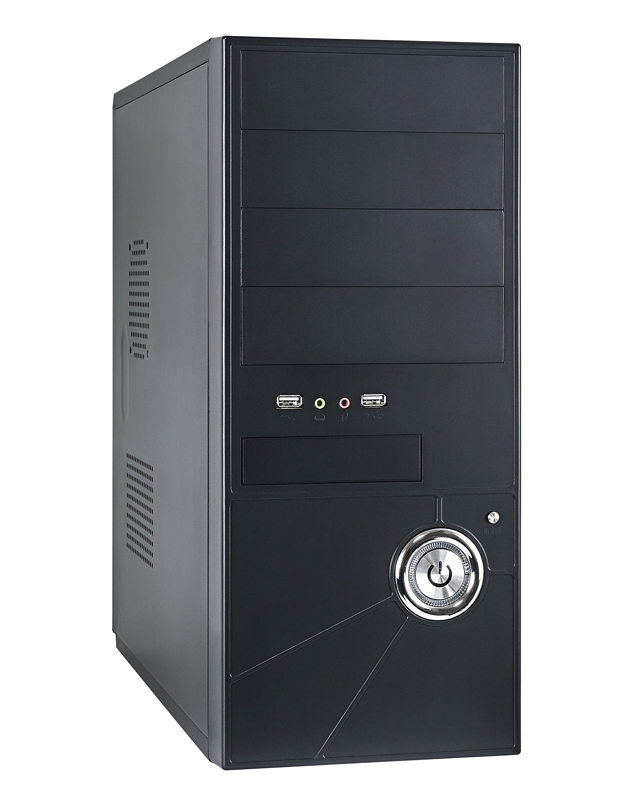

| CP-501 | CP-506 | CP-507 | CP-510 | CP-528 |
Specification
| Case Type | Miditower |
| Chassis Material | Steel |
| Case Color | Black |
| Motherboard Support | mATX, ATX |
| Drive Bay: | |
| Ext. 5.25" | 4 |
| Ext. 3.5" | 1 |
| Int. 3.5" | 4 |
| Front I/O Ports | 2xUSB 2.0, MIC & HD Audio |
| Expansion Slots | 7 |
| Cooling System | |
| Rear | 1x9,2 cm |
| Side | 1x8 cm |
| PSU models | CP350, CP400, CP450, CP500, w/o PSU |
| Max. motherboard length, mm | 244 |
| Max. height of the CPU fan, mm | 135 |
| Max. PSU length, mm | 160 |
| Max. SVGA length, mm | 220 |
| Chassis dimensions (W x H x D) mm | 175 x 410 x 370 |
| Dimensions (W x H x D) mm | 175 x 410 x 405 |
| Net Weight w/o PSU / with PSU, kg | 2,8/3,8 |
| Optional accessories | HDD Adapters Front panel 3,5" Card Reader 3,5" Multifunction panel 5,25" |
| Model | w/o PSU | 350 W | 400 W | 450 W | 500 W | |
| CP-501 | P/N | EX188990 | EX156802 | EX194361 | EX188985 | EX188979 |
| EAN | 4897040856621 | 4897040850513 | 4897040852258 | 4897040852265 | 4897040853750 | |
| CP-506 | P/N | EX187623 | EX156803 | EX194363 | EX188992 | EX188993 |
| EAN | 4897040856638 | 4897040850520 | 4897040852272 | 4897040852289 | 4897040853767 | |
| CP-507 | P/N | EX188994 | EX156804 | EX194374 | EX188996 | EX188999 |
| EAN | 4897040856645 | 4897040850537 | 4897040852296 | 4897040852302 | 4897040853774 | |
| CP-510 | P/N | EX188995 | EX166012 | EX194375 | EX188997 | EX189002 |
| EAN | 4897040856652 | 4897040850544 | 4897040852319 | 4897040852326 | 4897040853781 | |
| CP-528 | P/N | EX199133 | EX189195 | EX195007 | EX194768 | EX199134 |
| EAN | 4897040856676 | 4897040852098 | 4897040853354 | 4897040853361 | 4897040853804 |
