CP-6xx - CP-7xx

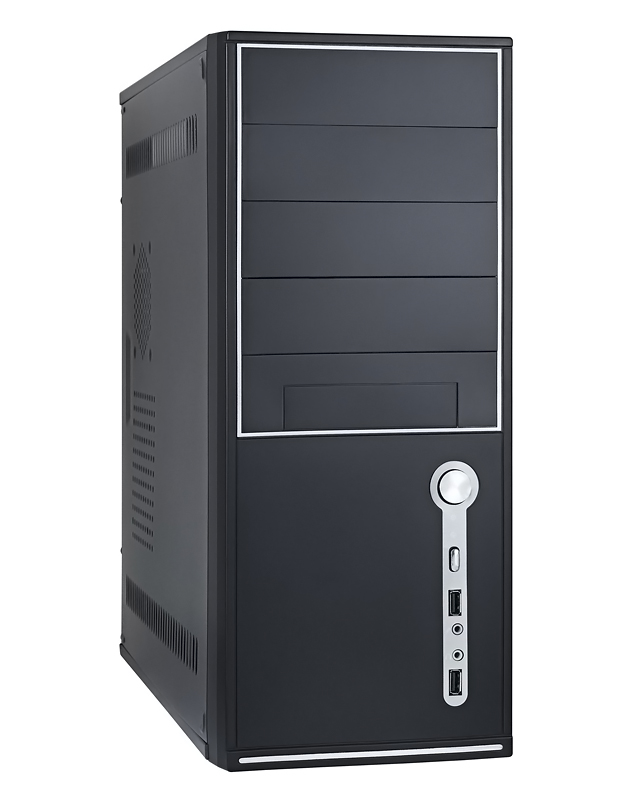

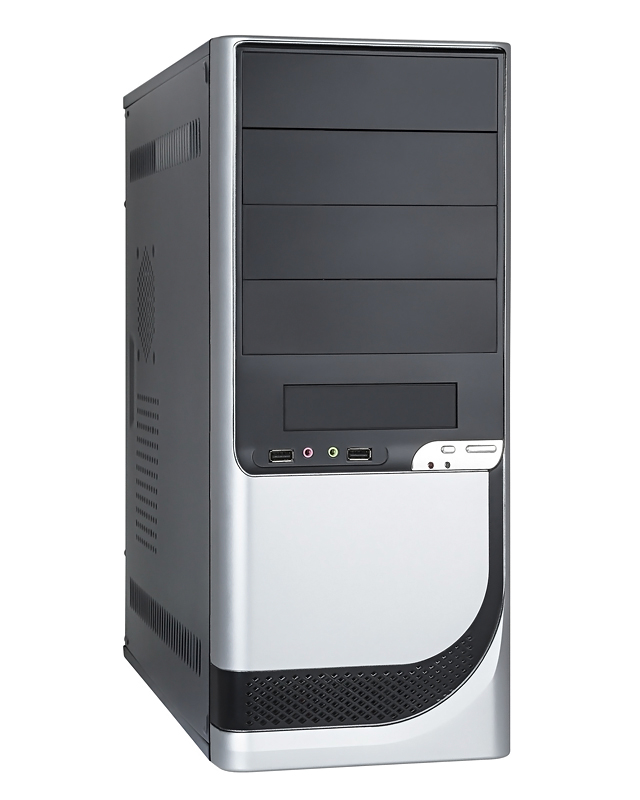

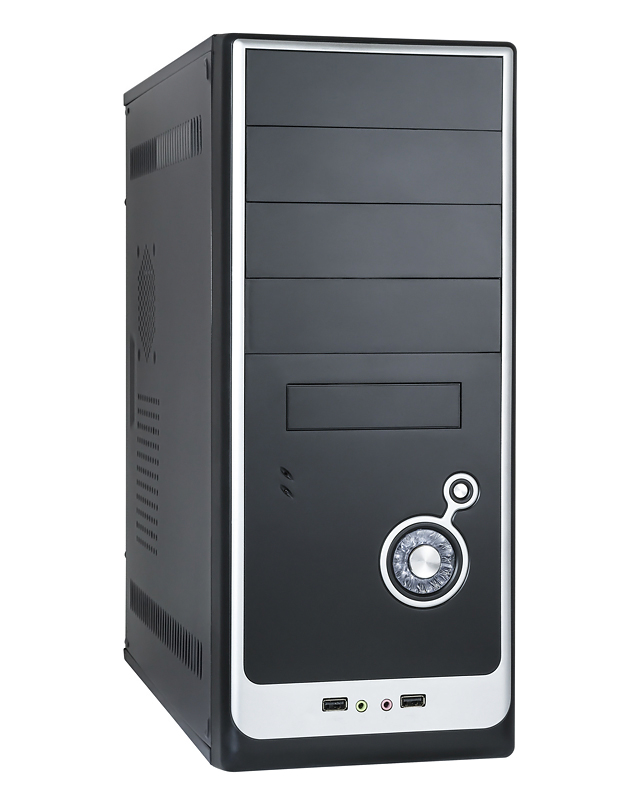

CP-629 CP-633 CP-730

Specification

Case Type Miditower
Chassis Material Steel
Case Color Black
Motherboard Support mATX, ATX
Drive Bay:
Ext. 5.25" 4
Ext. 3.5" 1
Int. 3.5" 5
Front I/O Ports 2xUSB 2.0, MIC & HD Audio
Expansion Slots 7
Cooling System
Rear 1x9,2 cm
Side 1x8 cm
PSU models CP350, CP400, CP450, CP500, w/o PSU
Max. motherboard length, mm 244
Max. height of the CPU fan, mm 135
Max. PSU length, mm 160
Max. SVGA length, mm 230
Chassis dimensions (W x H x D) mm 175 x 410 x 370
Dimensions (W x H x D) mm 175 x 410 x 405
Net Weight w/o PSU / with PSU, kg 2,5/3,5
Optional accessories HDD Adapters
Front panel 3,5"
Card Reader 3,5"
Multifunction panel 5,25"


Model   w/o PSU 350 W 400 W 450 W 500 W
CP-629 P/N EX184206 EX113241 EX167831 EX195694 EX189124
EAN 4897040856683 4897040850438 4897040850445 4897040853293 4897040853712
CP-633 P/N EX189097 EX113242 EX167833 EX195697 EX189123
EAN 4897040856690 4897040850452 4897040850469 4897040853309 4897040853729
CP-730 P/N EX189099 EX113243 EX167834 EX194165 EX189096
EAN 4897040856706 4897040850476 4897040850483 4897040853316 4897040853736
