CP-81xx - CP-90xx

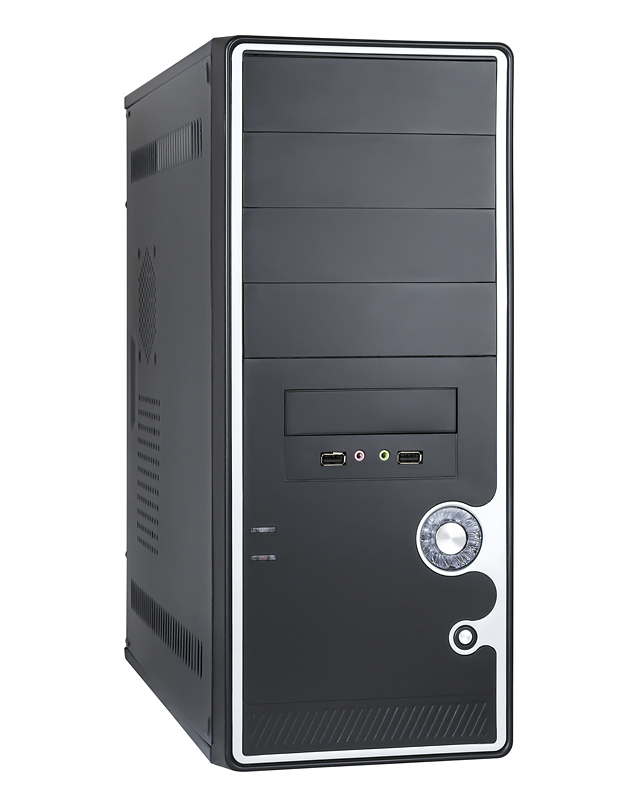

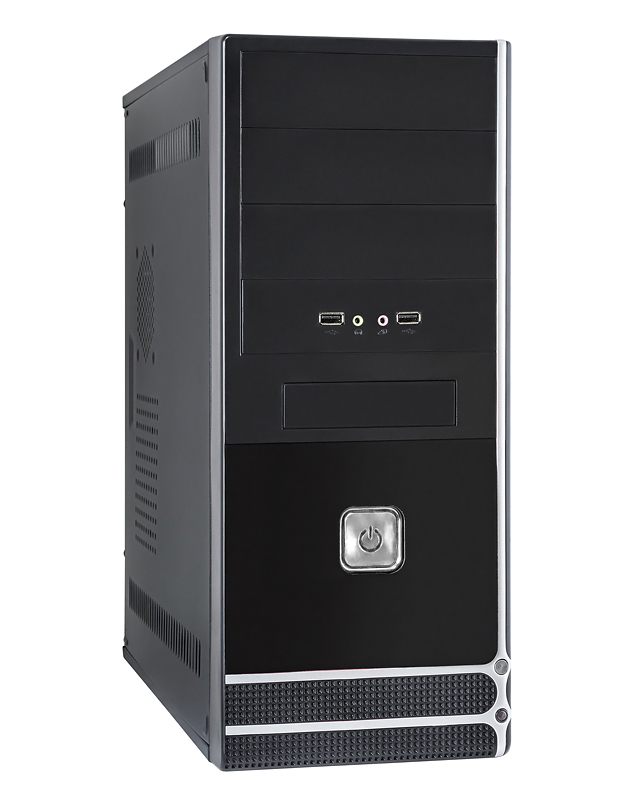

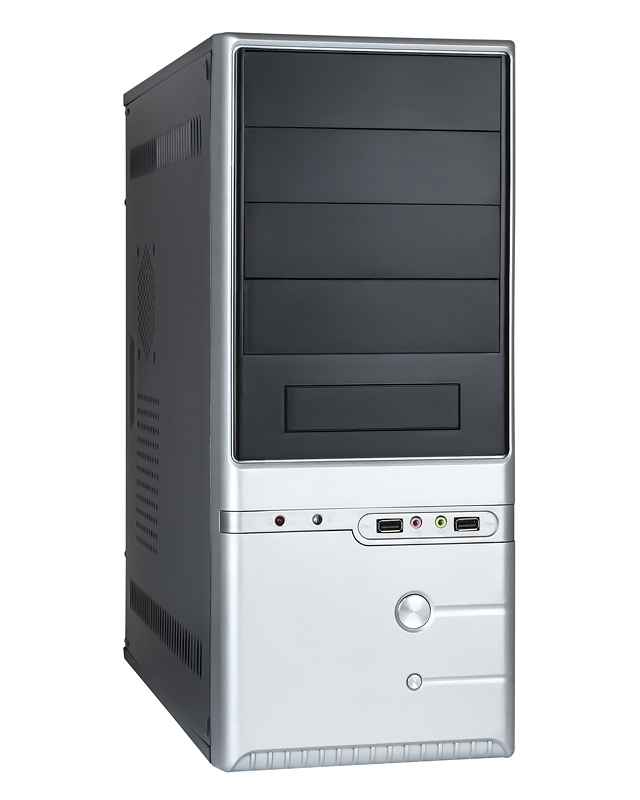

CP-8126 CP-8131 CP-9026

Specification

Case Type Miditower
Chassis Material Steel
Case Color Black/Silver
Motherboard Support mATX, ATX
Drive Bay:
Ext. 5.25" 4
Ext. 3.5" 1
Int. 3.5" 5
Front I/O Ports 2xUSB 2.0, MIC & HD Audio
Expansion Slots 7
Cooling System
Rear 1x9,2 cm
Side 1x8 cm
PSU models CP350, CP400, CP450, CP500, w/o PSU
Max. motherboard length, mm 244
Max. height of the CPU fan, mm 135
Max. PSU length, mm 160
Max. SVGA length, mm 230
Chassis dimensions (W x H x D) mm 175 x 420 x 390
Dimensions (W x H x D) mm 175 x 420 x 425
Net Weight w/o PSU / with PSU, kg 2,5/3,5
Optional accessories HDD Adapters
Front panel 3,5"
Card Reader 3,5"
Multifunction panel 5,25"


Model   w/o PSU 350 W 400 W 450 W 500 W
CP-8126 P/N EX189100 EX113244 EX167835 EX194637 EX189125
EAN 4897040856713 4897040850490 4897040850506 4897040853323 4897040853743
CP-8131 P/N EX219316 EX219313 EX219311 EX219314 EX219315
EAN 4897040855464 4897040855471 4897040855488 4897040855495 4897040855501
CP-9026 P/N EX219317 EX219468 EX219312 EX219318 EX219319
EAN 4897040855518 4897040855525 4897040855532 4897040855549 4897040855556
