Series EVO

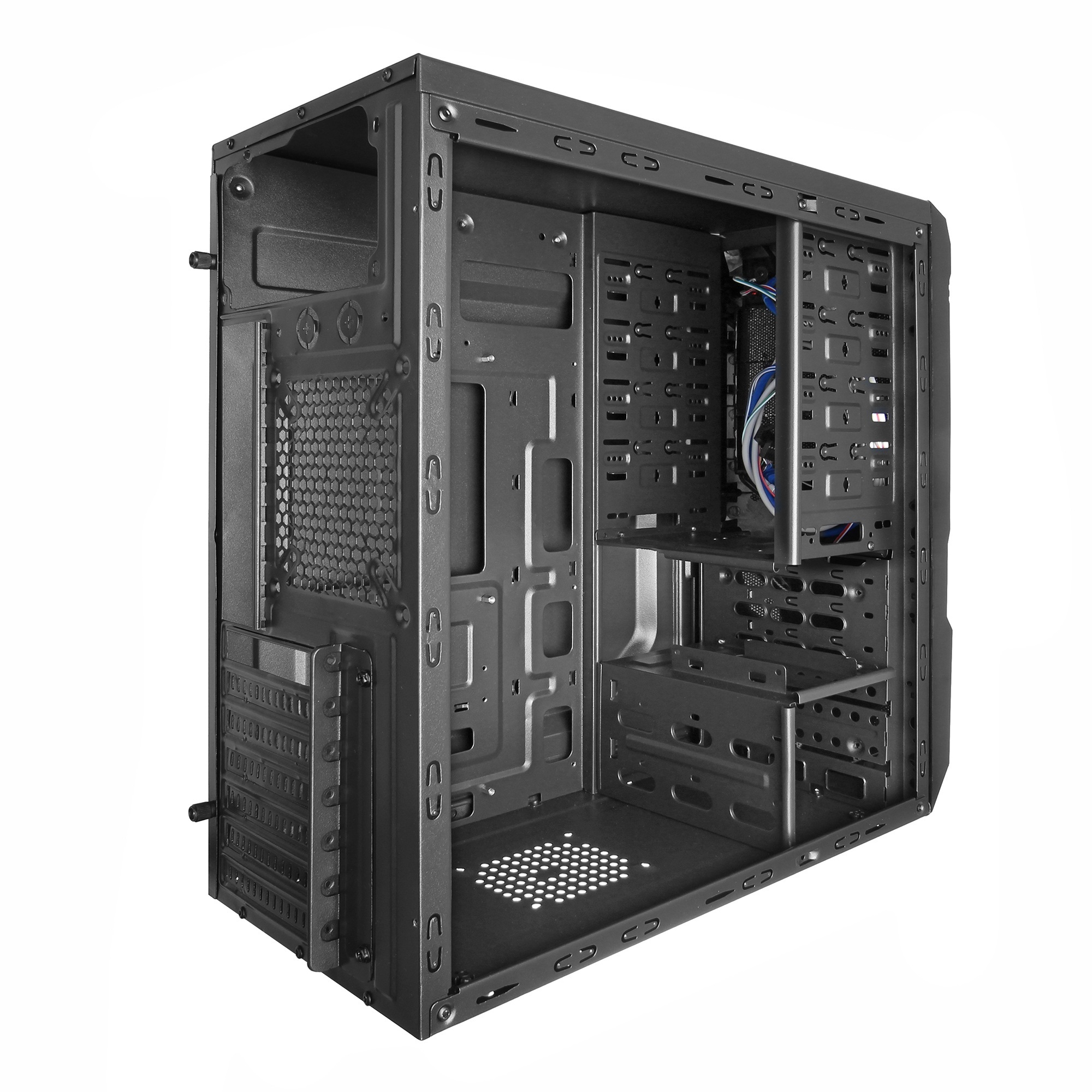

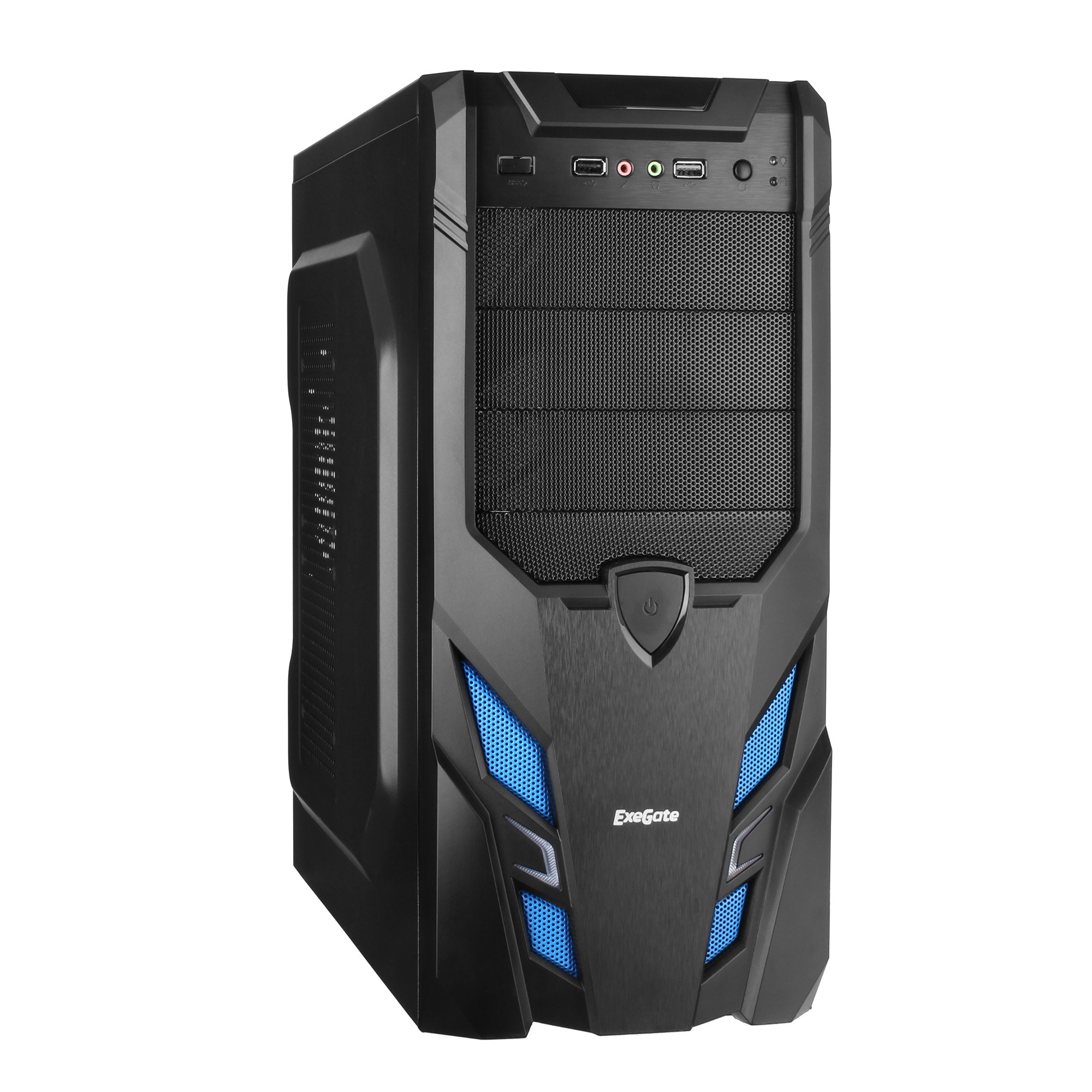

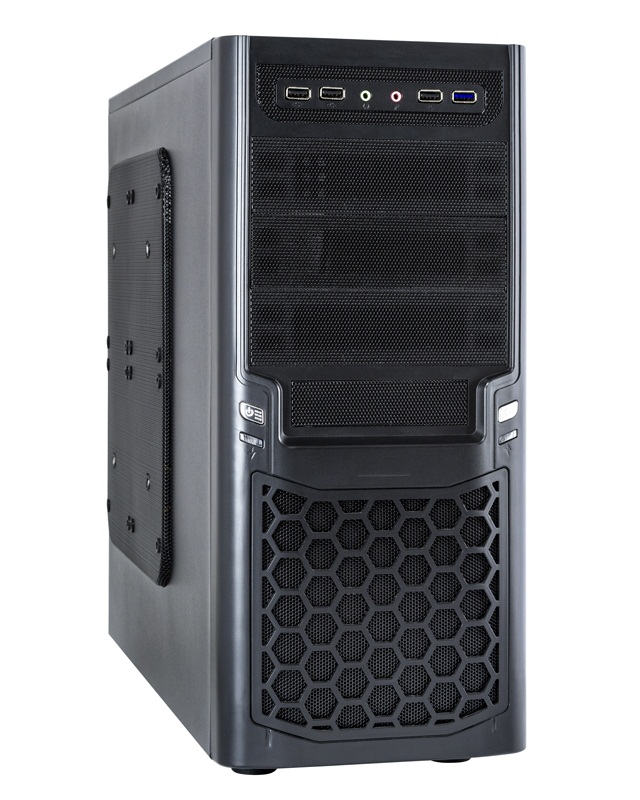

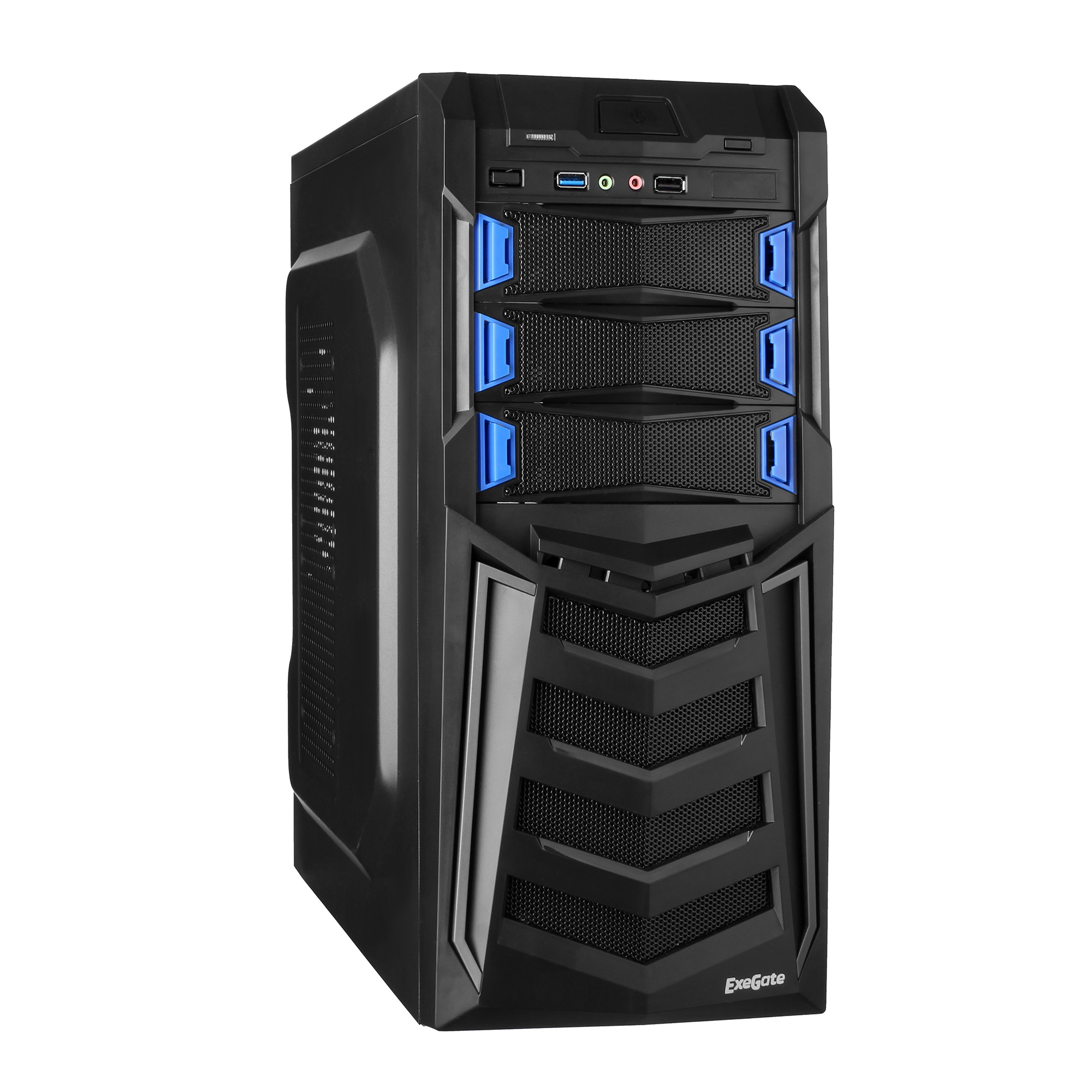

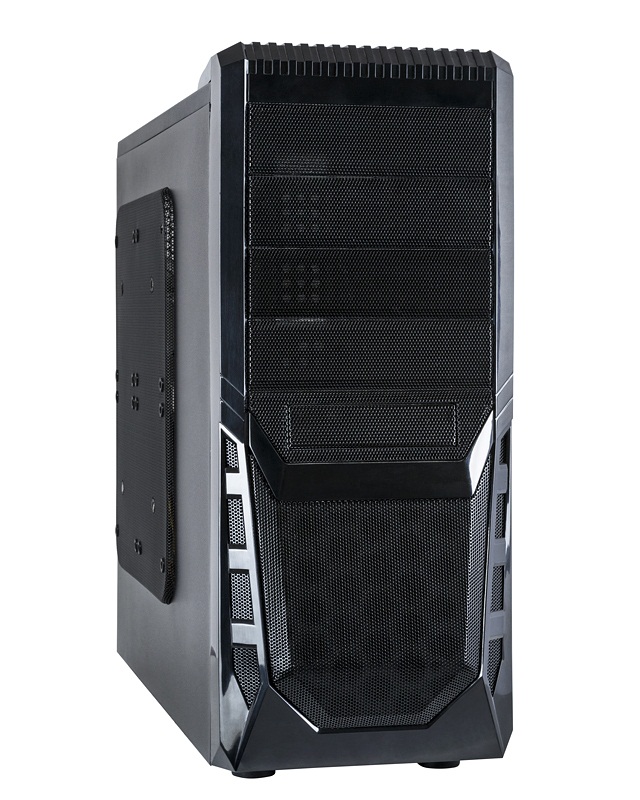

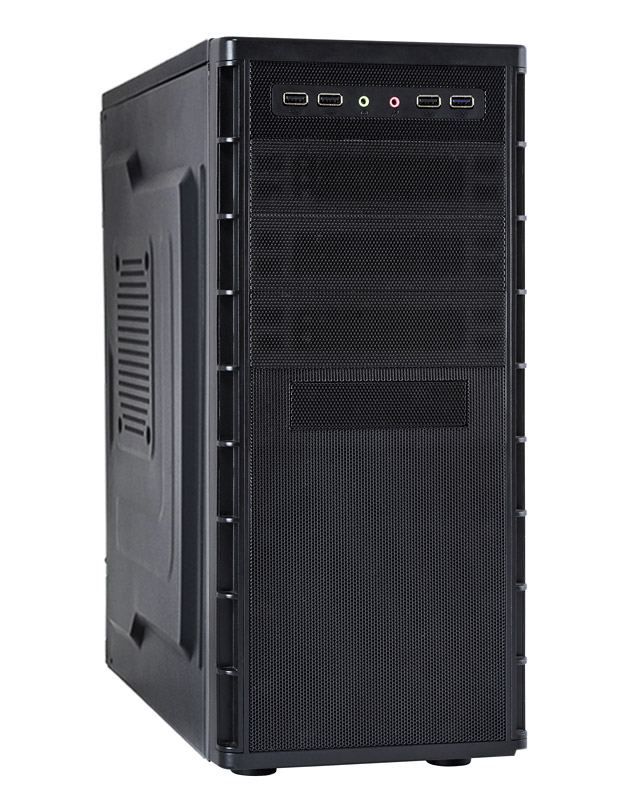

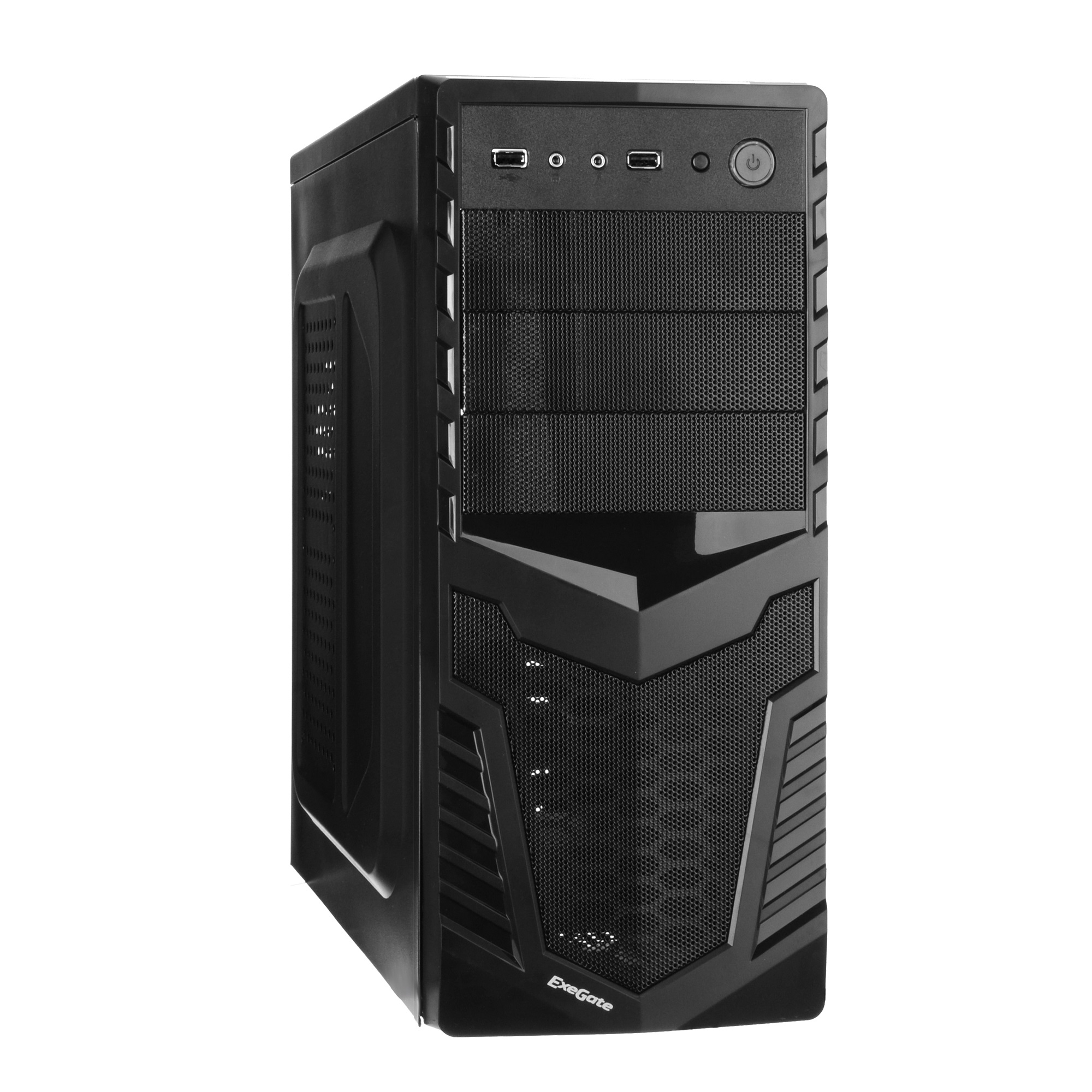

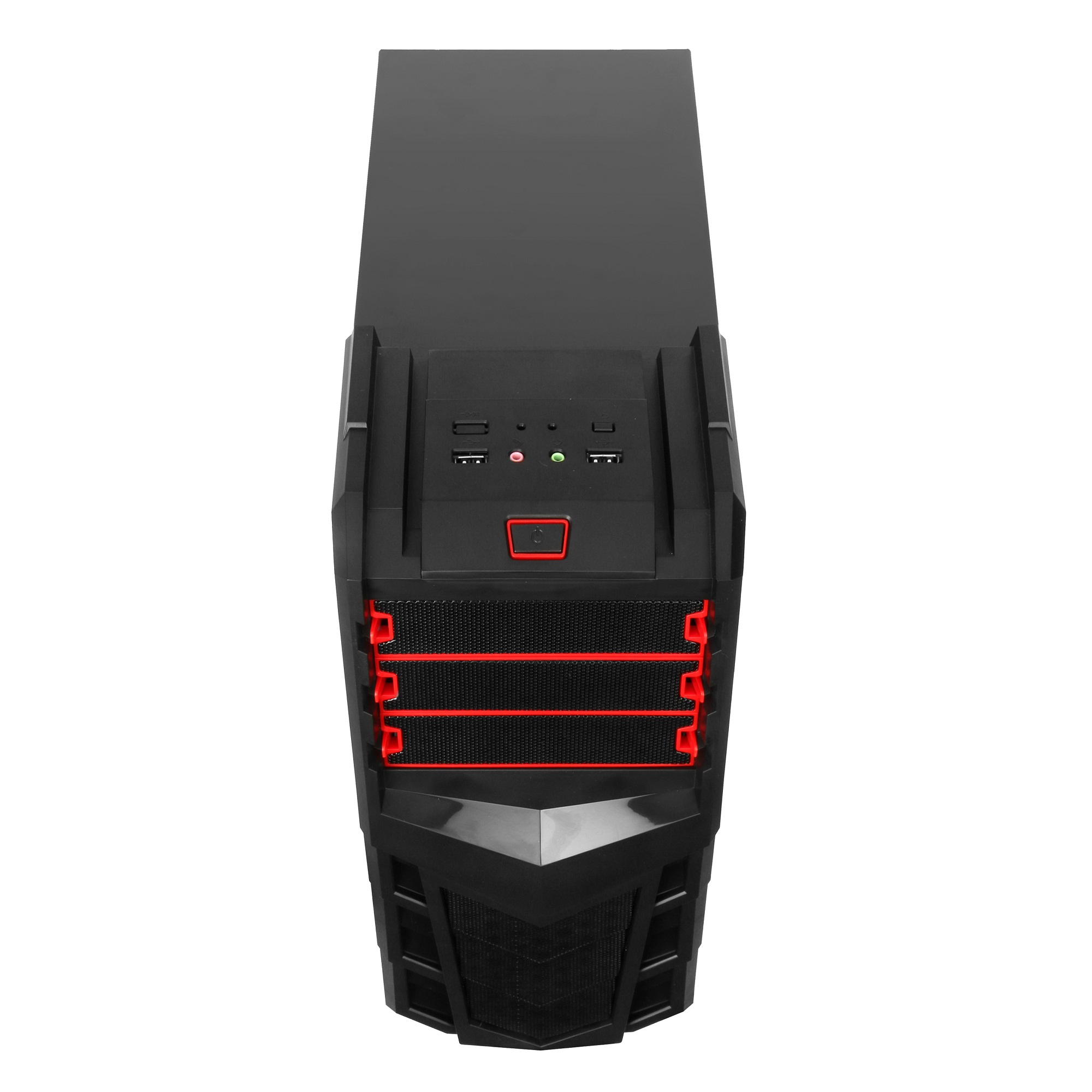

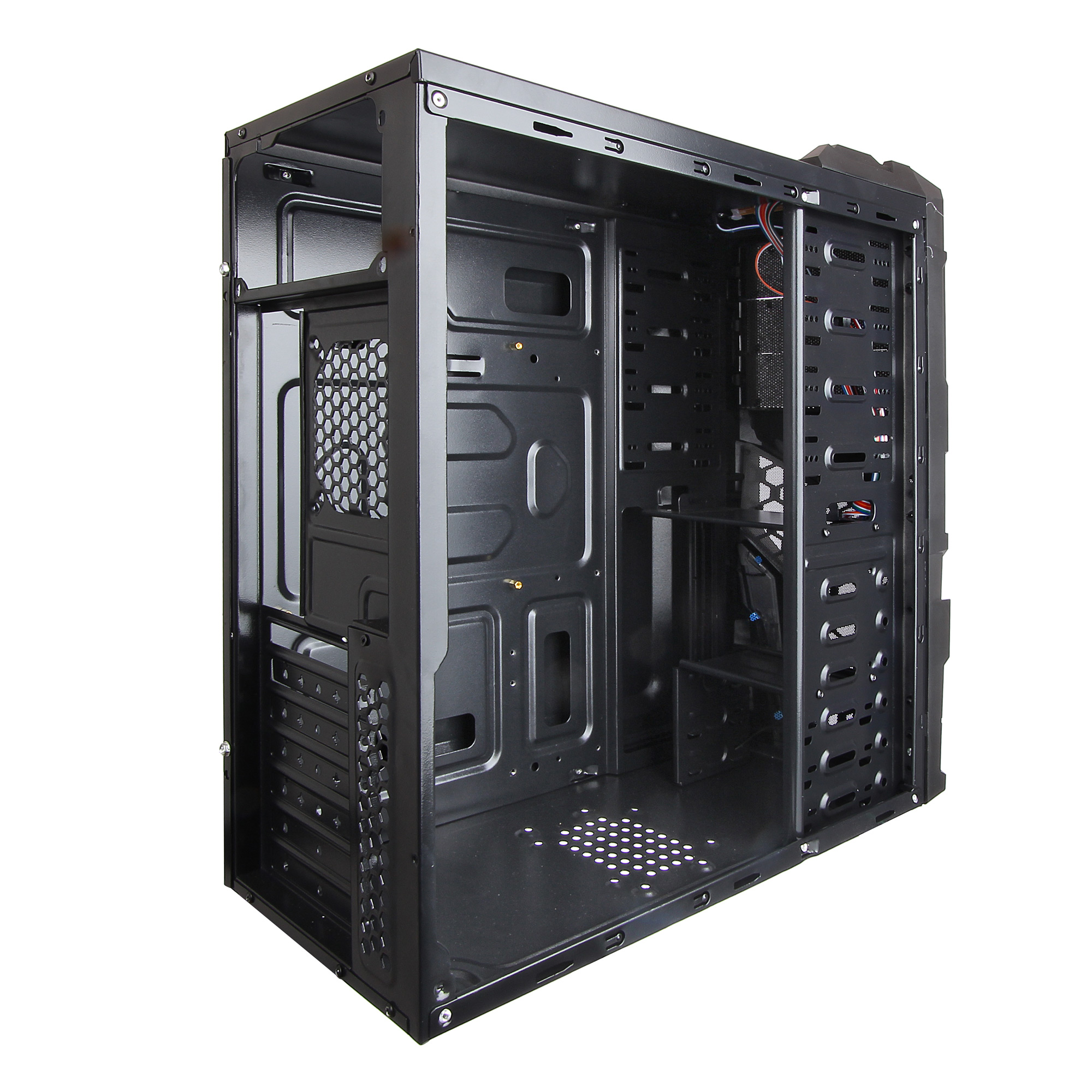

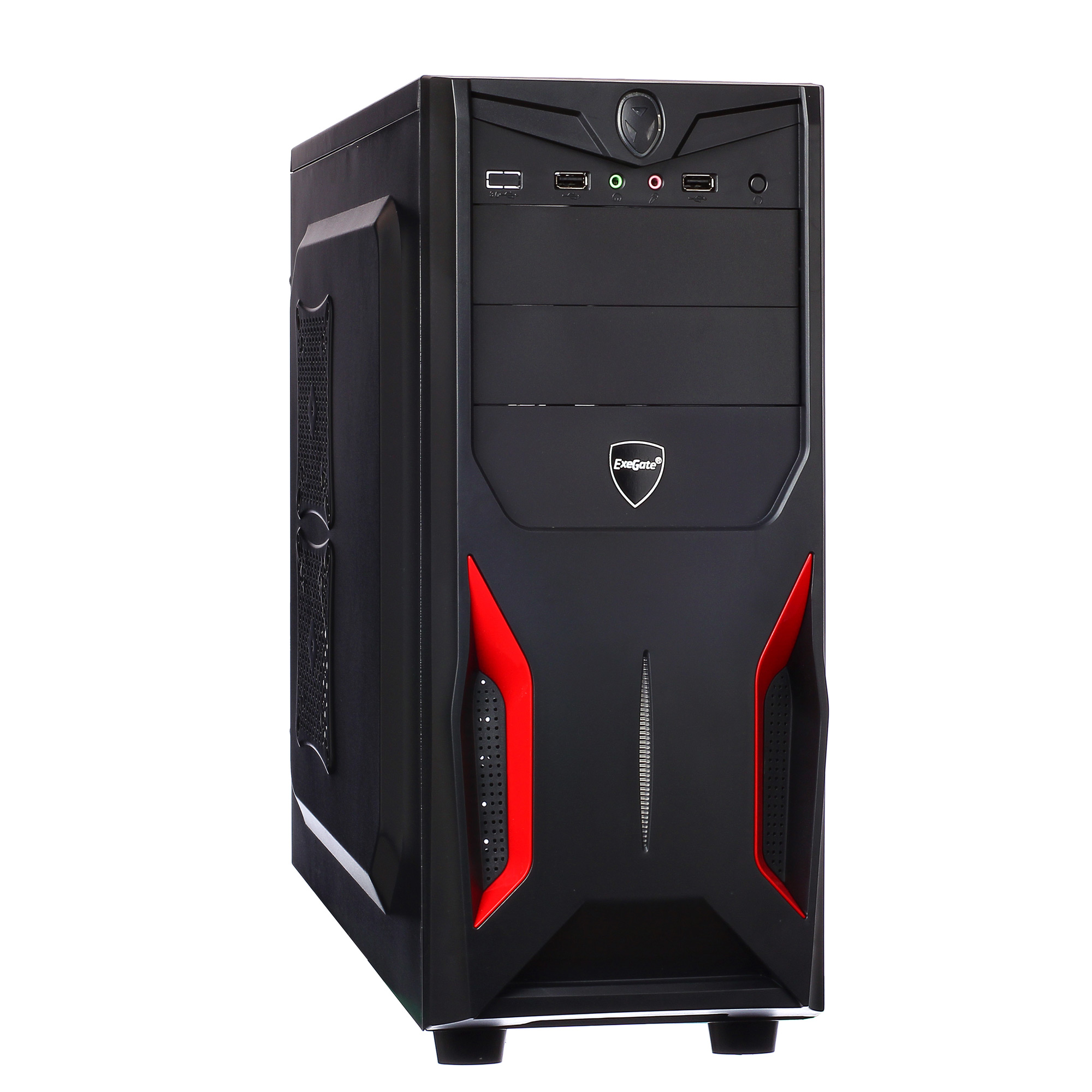

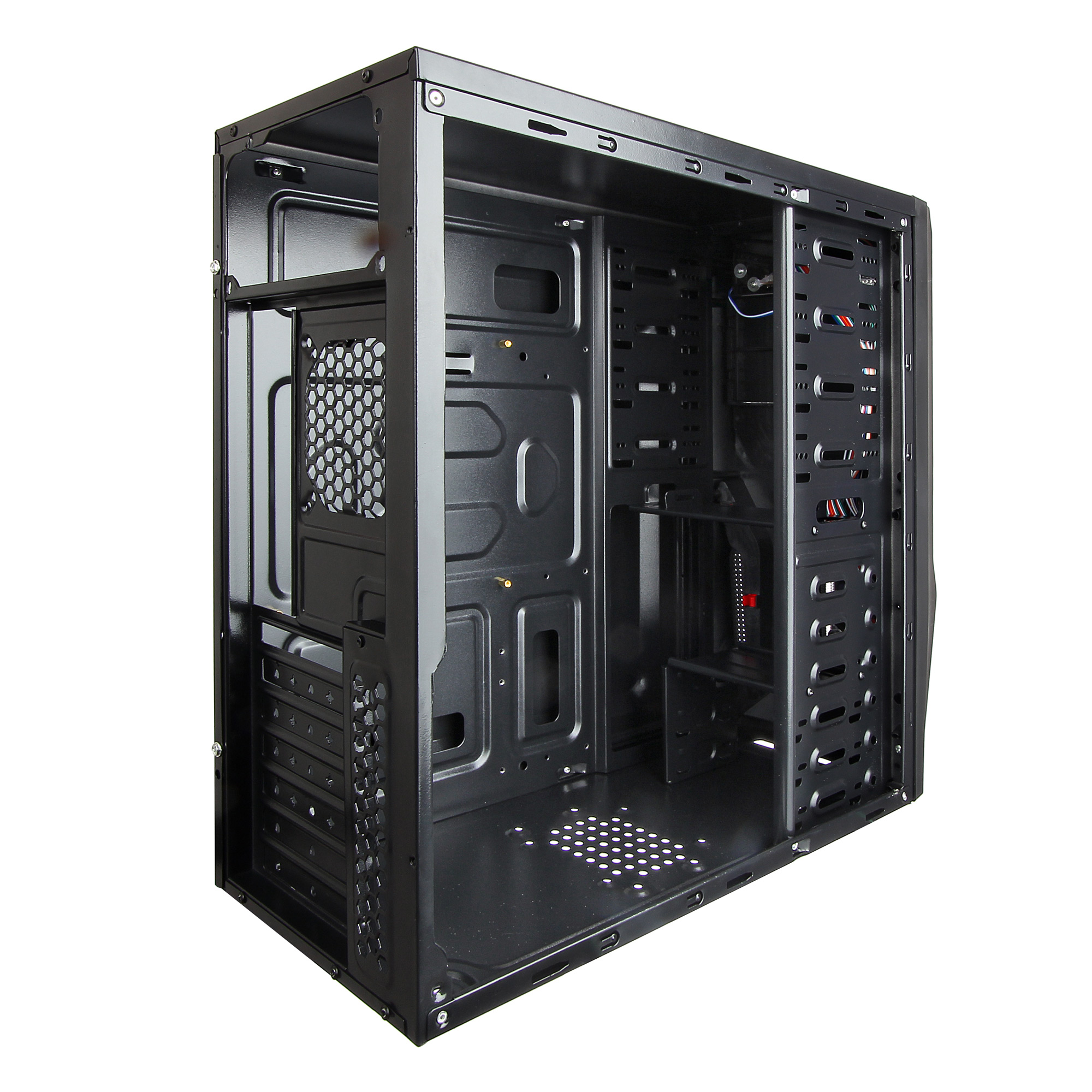

EVO-7202 EVO-7203 EVO-7205 EVO-7206 EVO-7207
EVO-7202 EVO-7203 EVO-7205 EVO-7206 EVO-7207

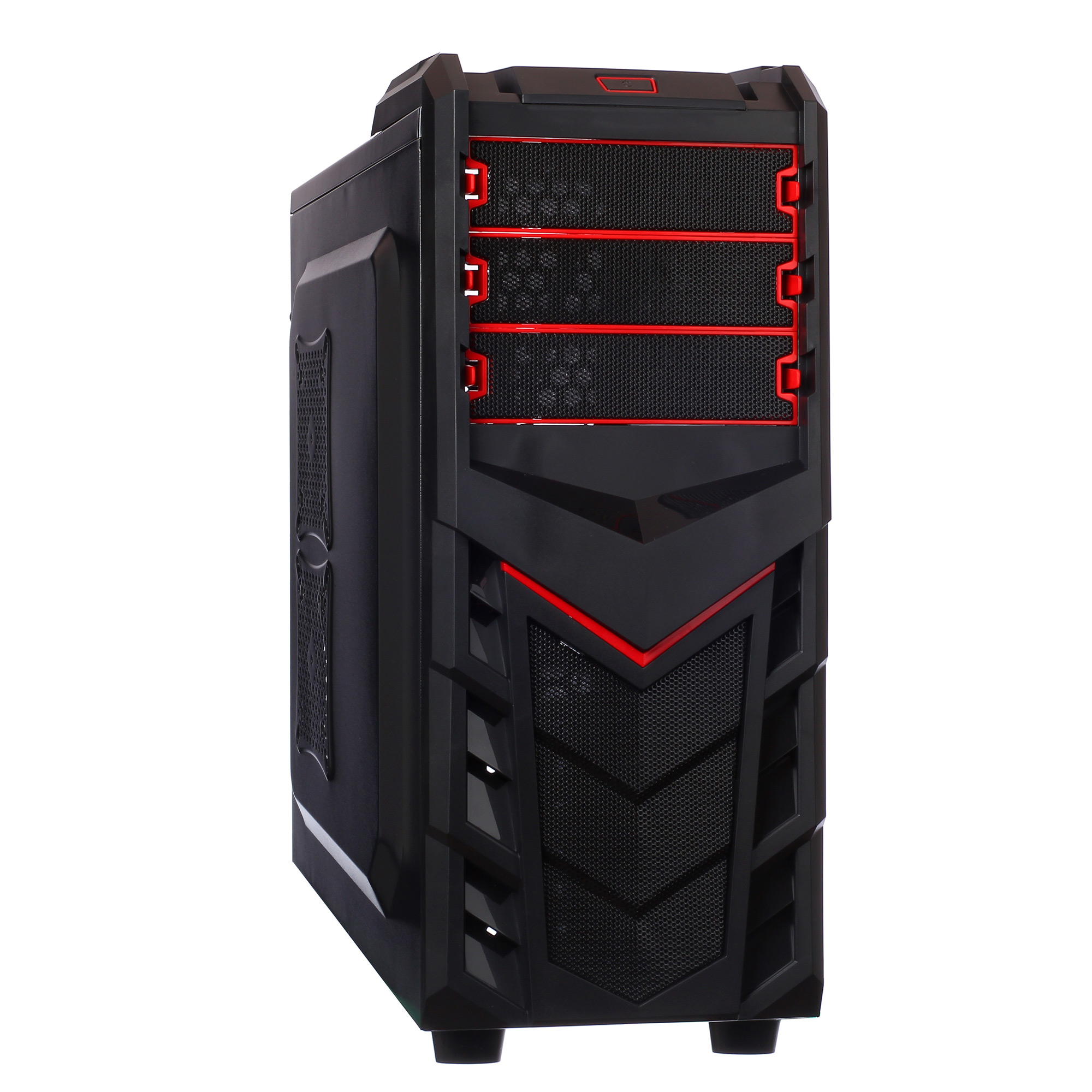

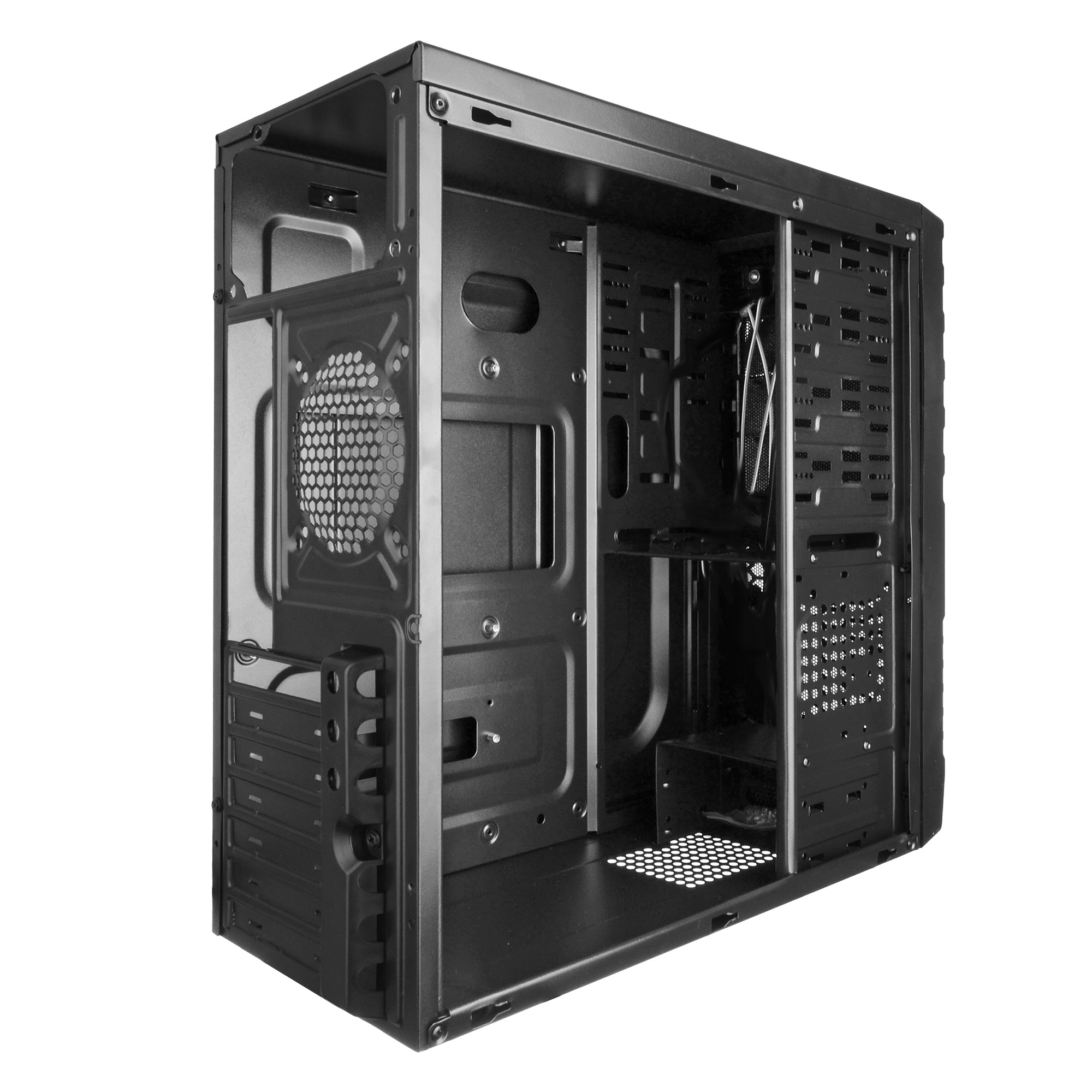

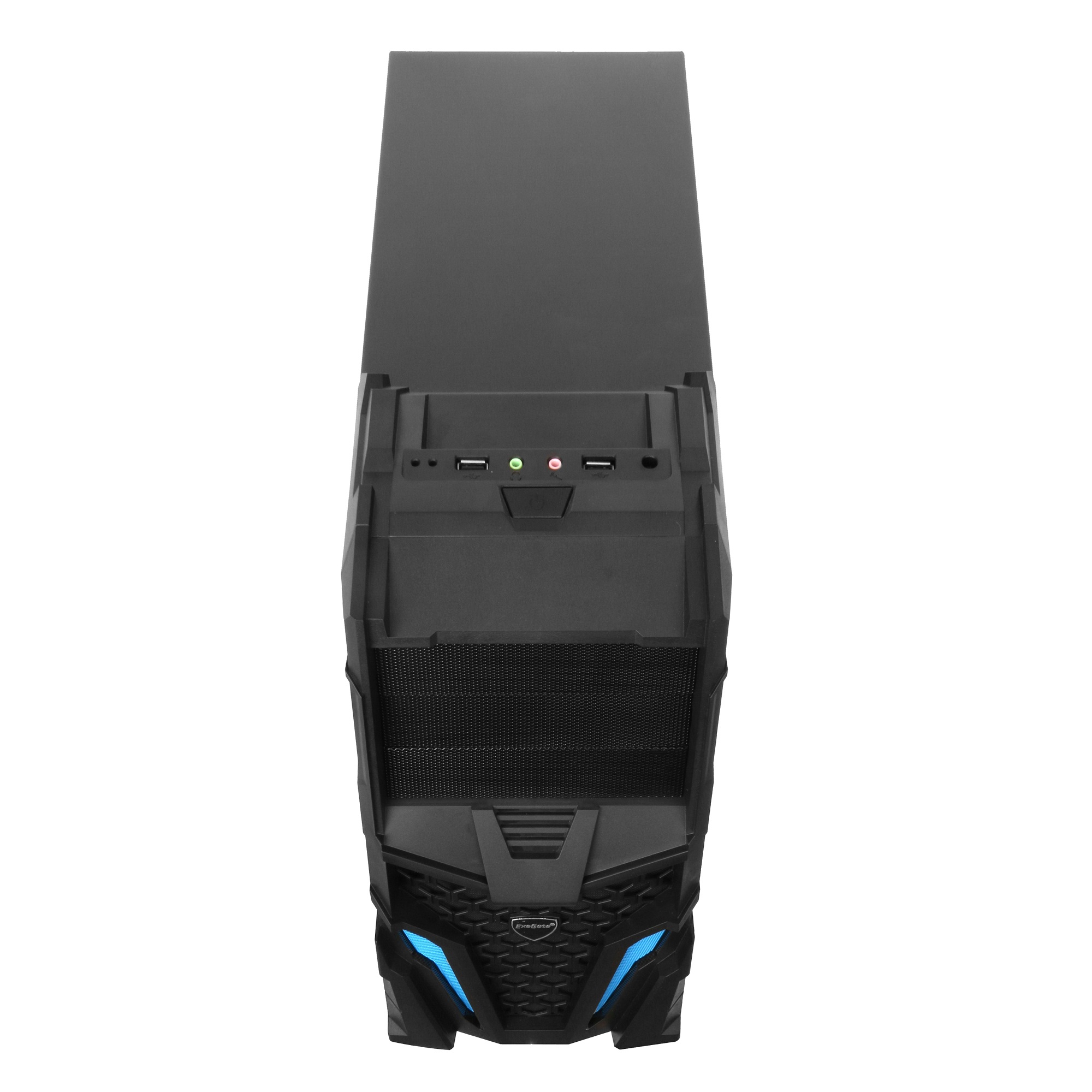

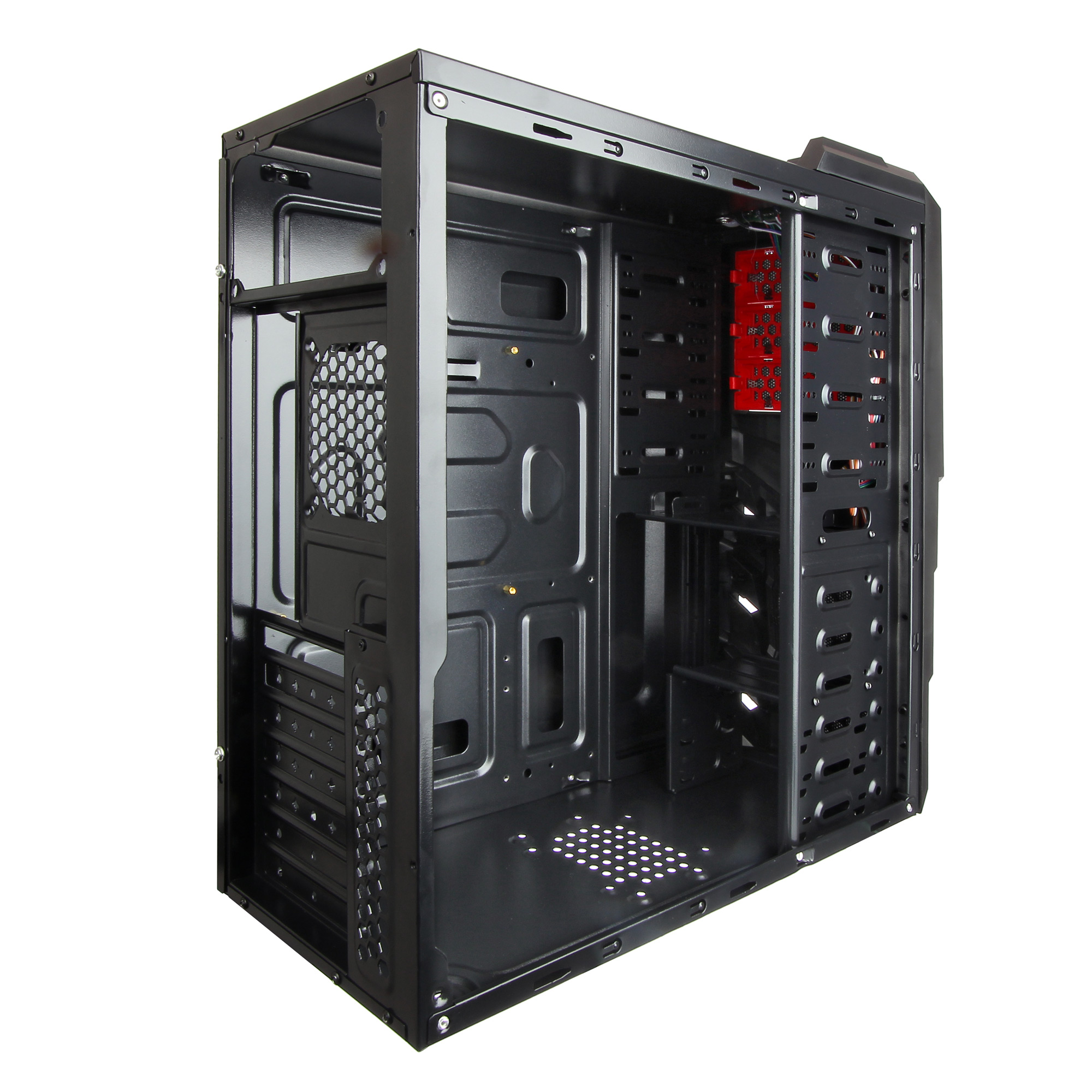

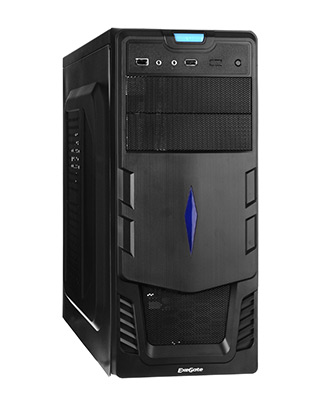

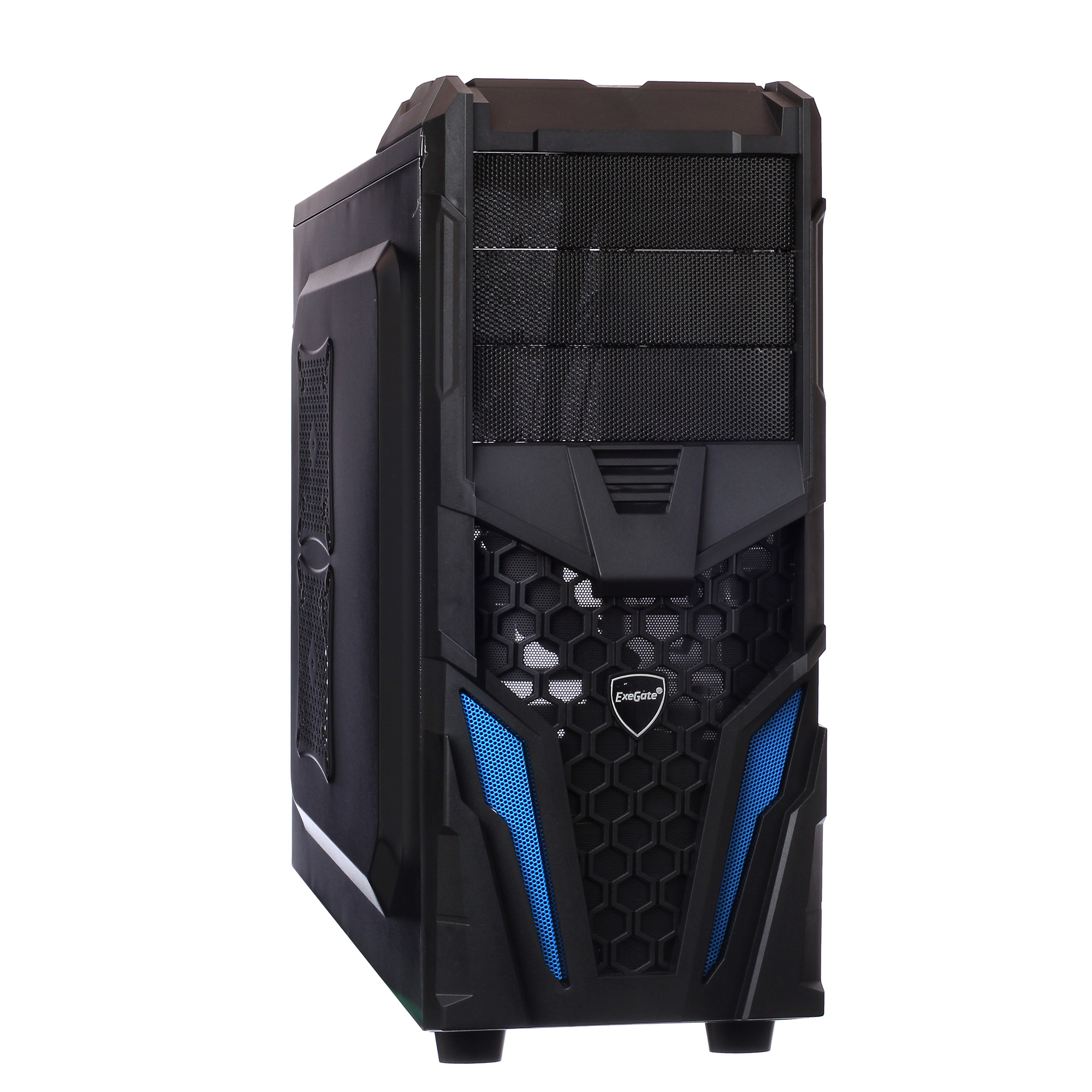

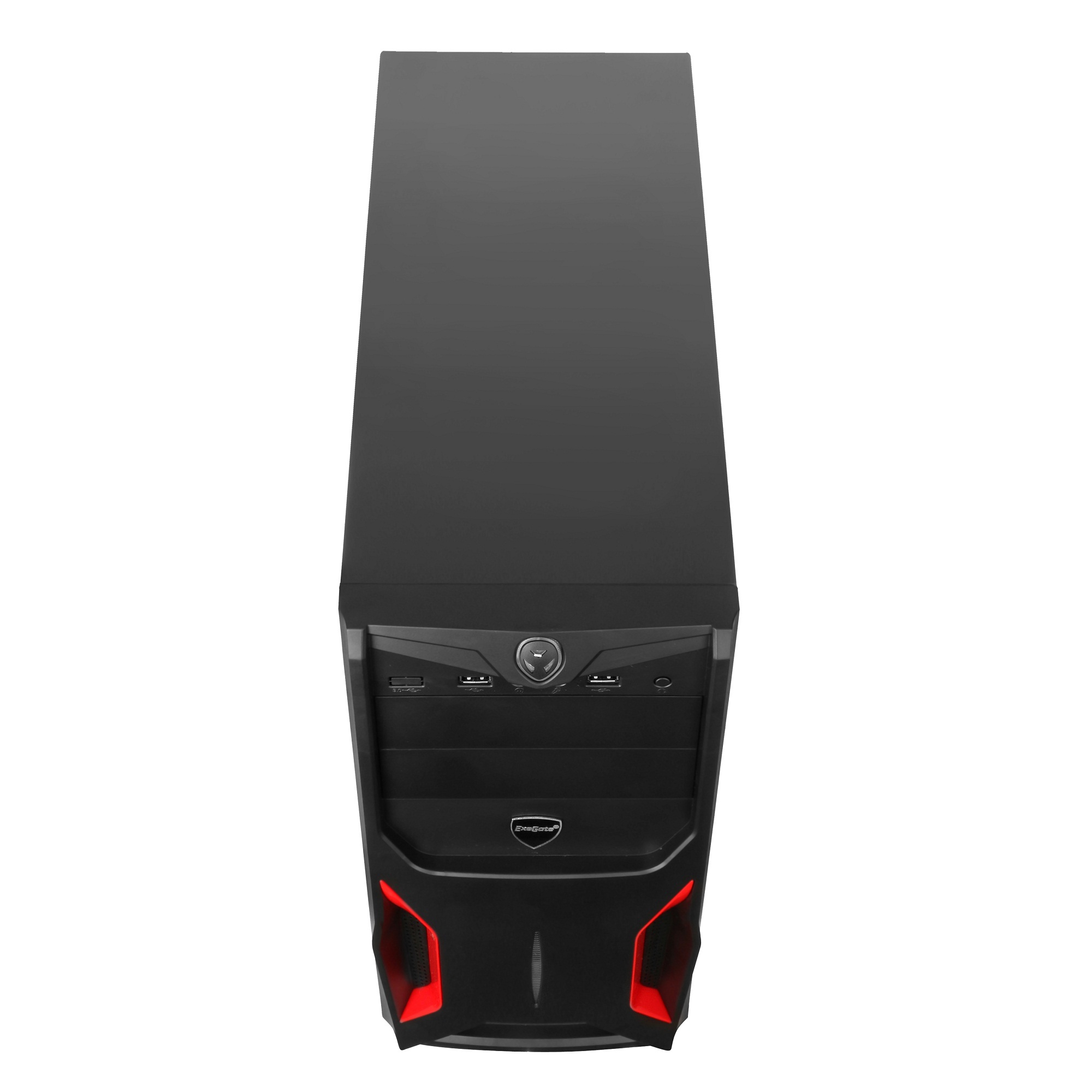

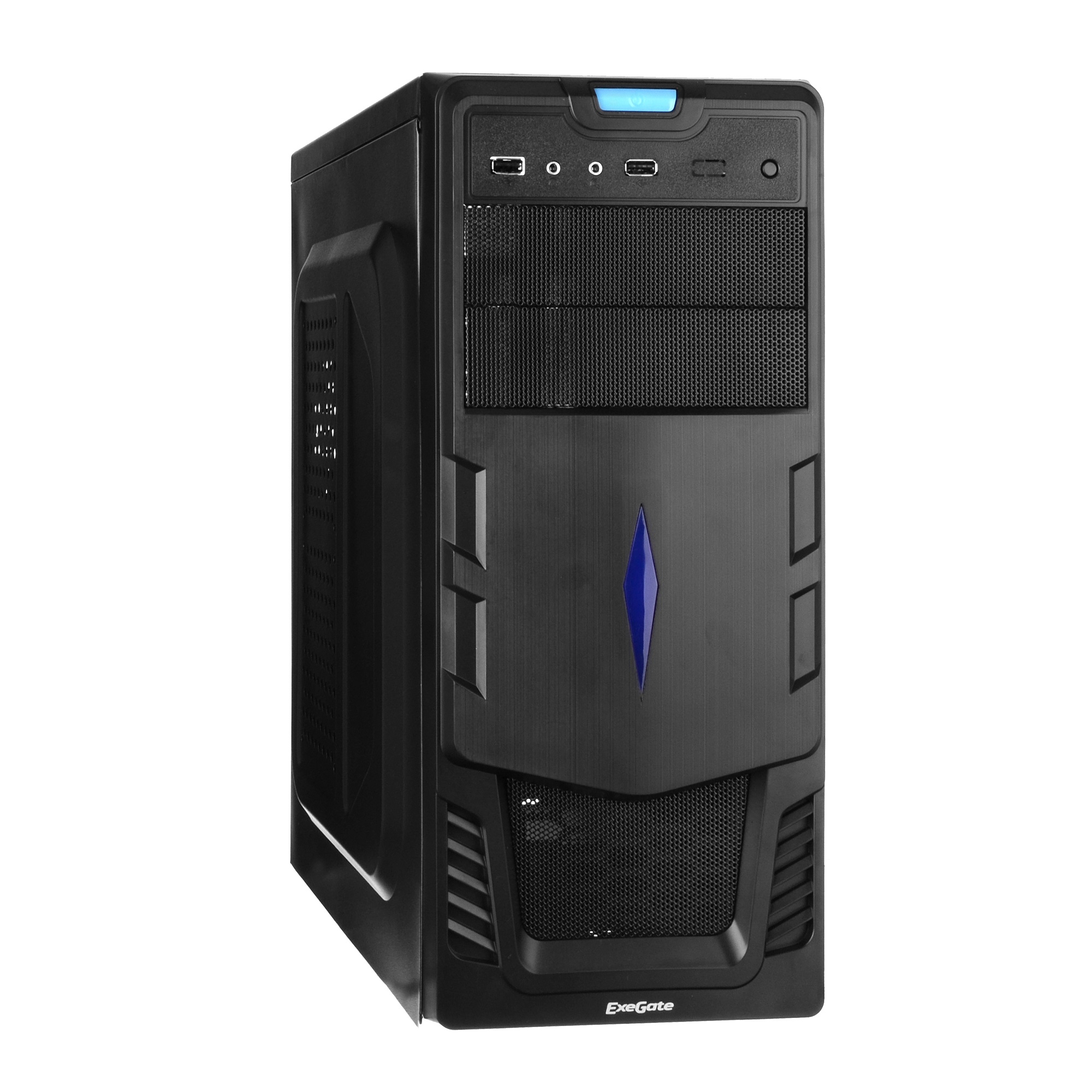

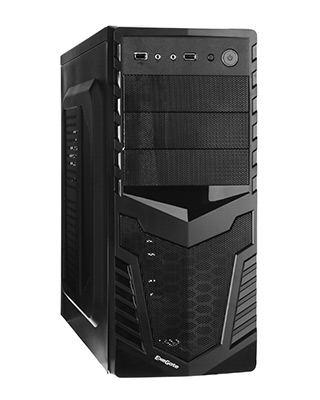

EVO-7208 EVO-7209 EVO-7210 EVO-7211 EVO-7212
EVO-7208 EVO-7209 EVO-7210 EVO-7213 EVO-7214

Specification

Case Type Miditower
Chassis Material Steel
Case Color Black
Motherboard Support mATX, ATX

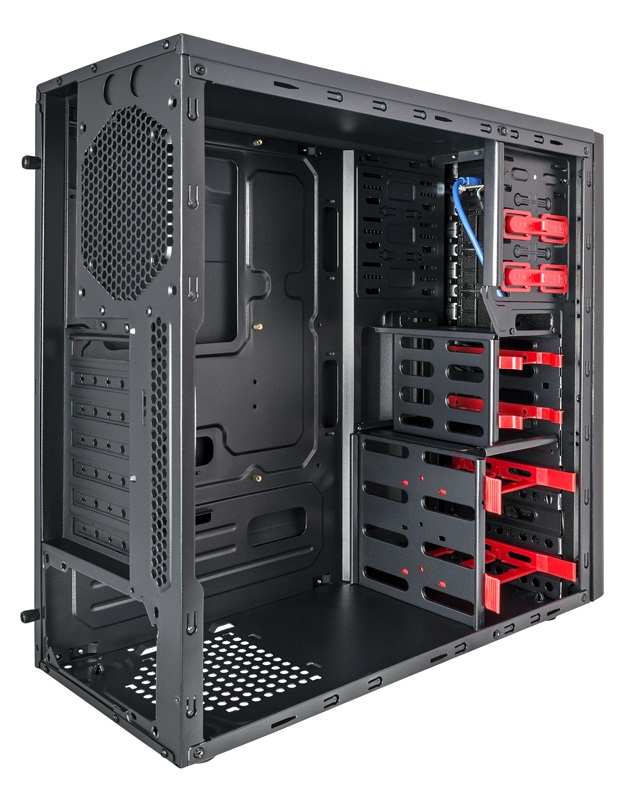

Drive Bay:
Ext. 5.25" 2 for EVO-7212
3
Int. 5.25" 1 for EVO-7211
2
Int. 3.5" 2
Int. 2.5" 1 for EVO-7211,EVO-7212
2
Front I/O Ports 2xUSB 2.0, MIC & HD Audio
Expansion Slots 7
Cooling System
Front 1x12 cm
Rear 1x8 cm/1x9,2 cm/1x12 cm
Side 2x12 cm
PSU models NPX450, NPX500, NPX600, w/o PSU
Max. motherboard length, mm 244
Max. height of the CPU fan, mm 150
Max. PSU length, mm 150
Max. SVGA length, mm 345
Chassis dimensions (W x H x D) mm 185 x 420 x 390
Dimensions (W x H x D) mm 205 x 420 x 440
Net Weight w/o PSU / with PSU, kg 3,15/4,15
Optional accessories HDD Adapters
Front panel 3,5"
Card Reader 3,5"
Multifunction panel 5,25"


Model   w/o PSU 450 W 500 W 600 W
EVO-7202 P/N EX179437 EX234331 EX195626 EX195625
EVO-7203 P/N EX179438 EX234332 EX195628 EX195627
EVO-7205 P/N EX179439 EX234333 EX195630 EX195629
EVO-7206 P/N EX244467 EX244471 EX244468 EX244470
EAN 4897040857734 4897040857741 4897040857758 4897040857765
EVO-7207 P/N EX244474 EX244475 EX244476 EX244477
EAN 4897040857772 4897040857789 4897040857796 4897040857802
EVO-7208 P/N EX254044 EX254045 EX254046 EX254047
EAN 4895205100435 4895205100442 4895205100169 4895205100176
EVO-7209 P/N EX254048 EX254049 EX254050 EX254051
EAN 4895205100459 4895205100466 4895205100183 4895205100190
EVO-7210 P/N EX254052 EX254053 EX254054 EX254055
EAN 4895205100473 4895205100480 4895205100206 4895205100213
EVO-7211 P/N EX256231 EX256301 EX256135 EX256298
EAN 4895205100930 4895205100947 4895205100817 4895205100954
EVO-7212 P/N EX256232 EX256302 EX256136 EX256299
EAN 4895205100961 4895205100978 4895205100824 4895205100985
