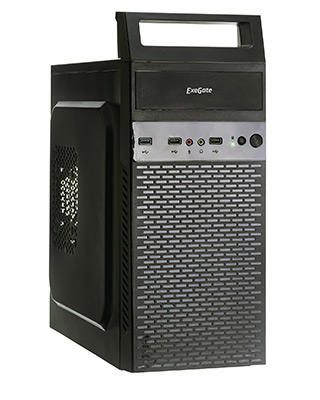

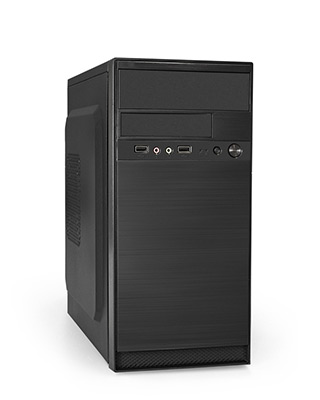

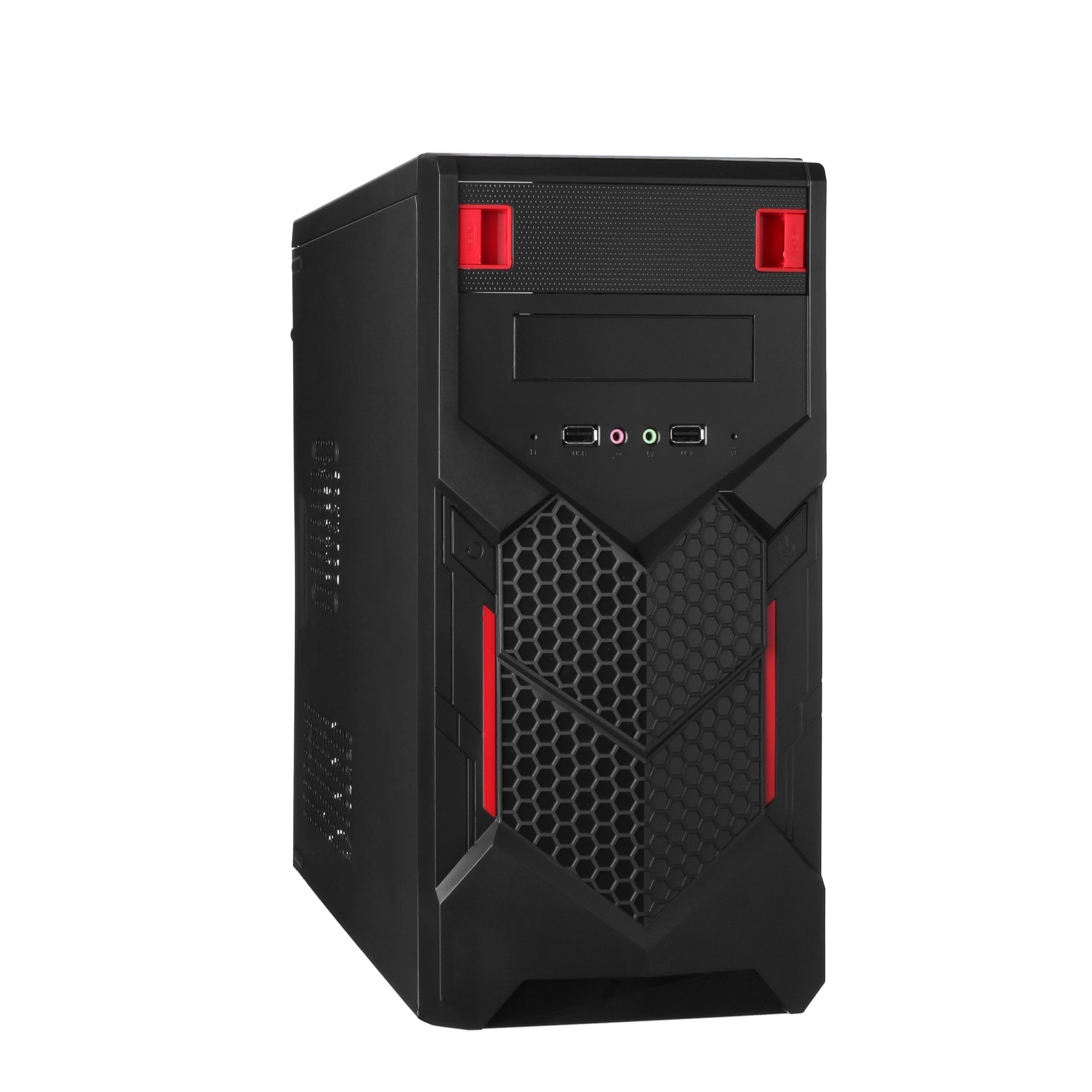

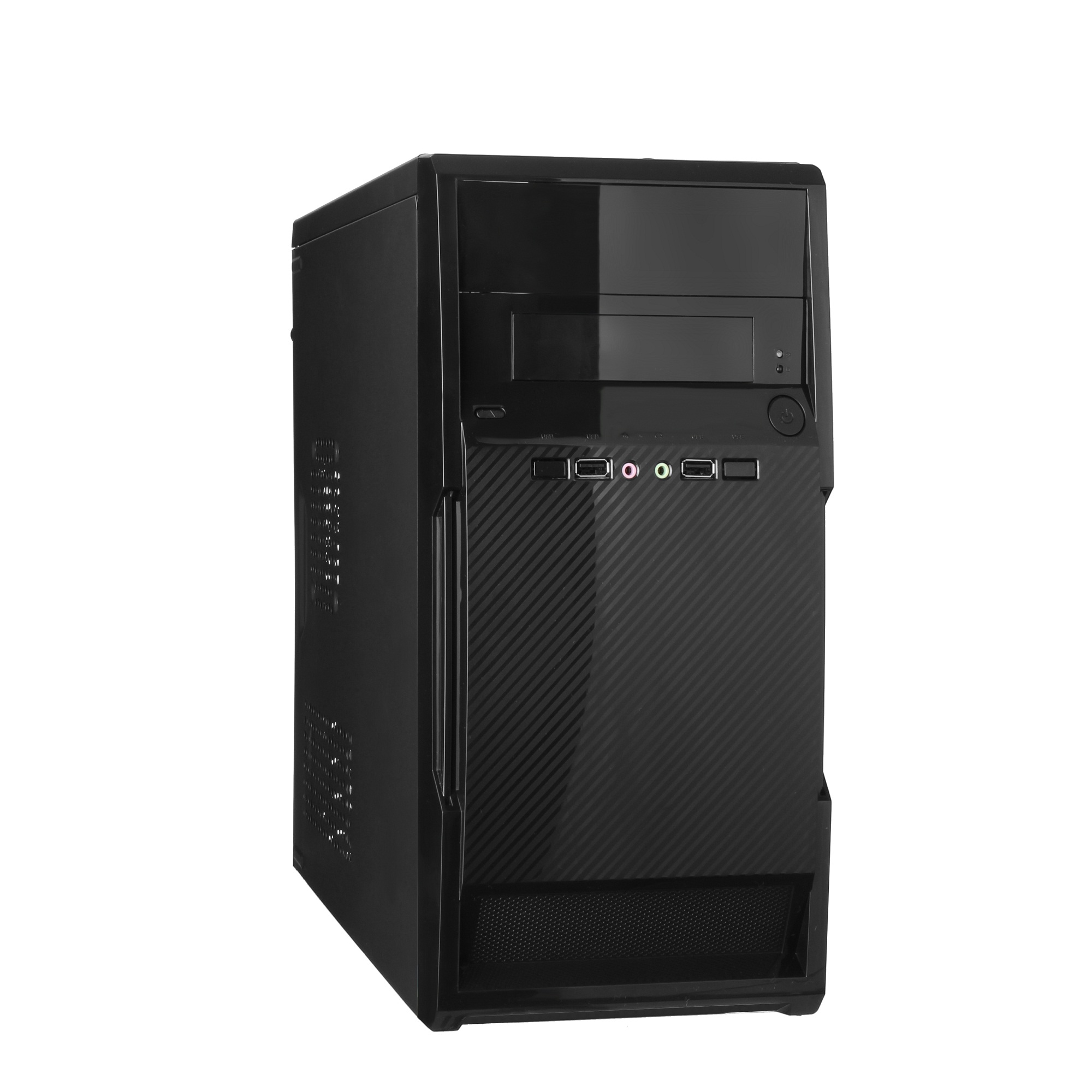

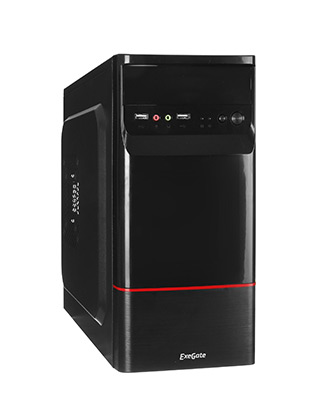

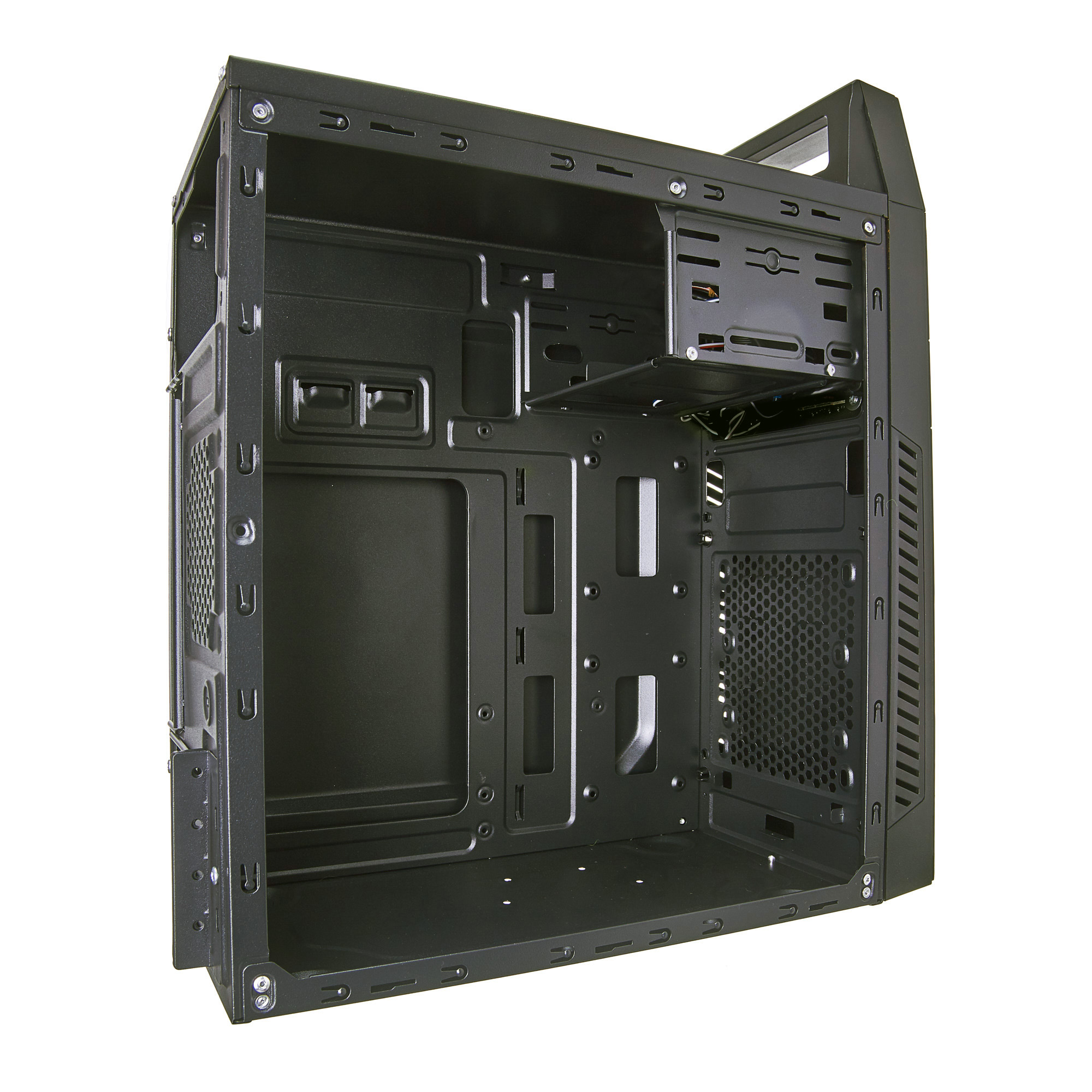

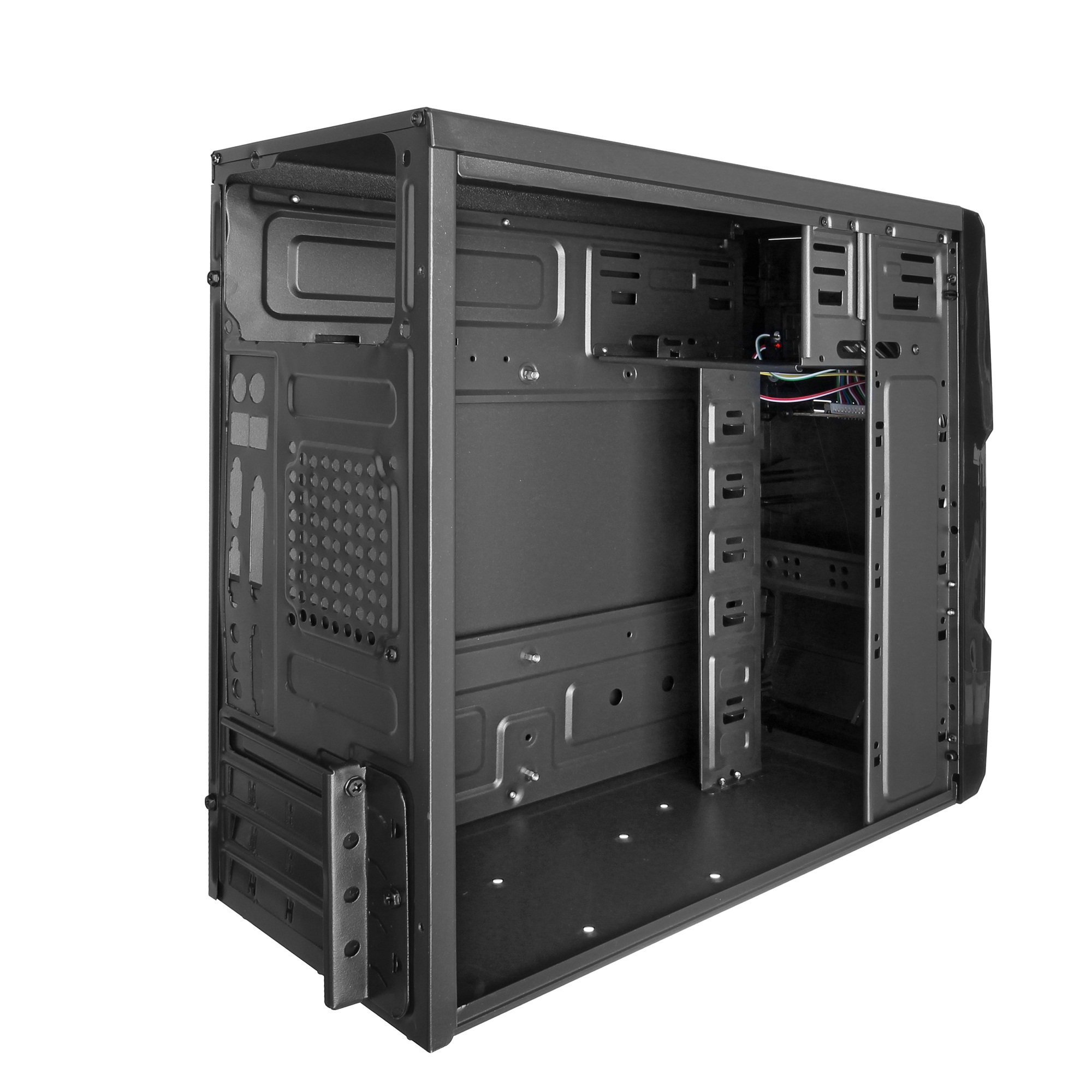

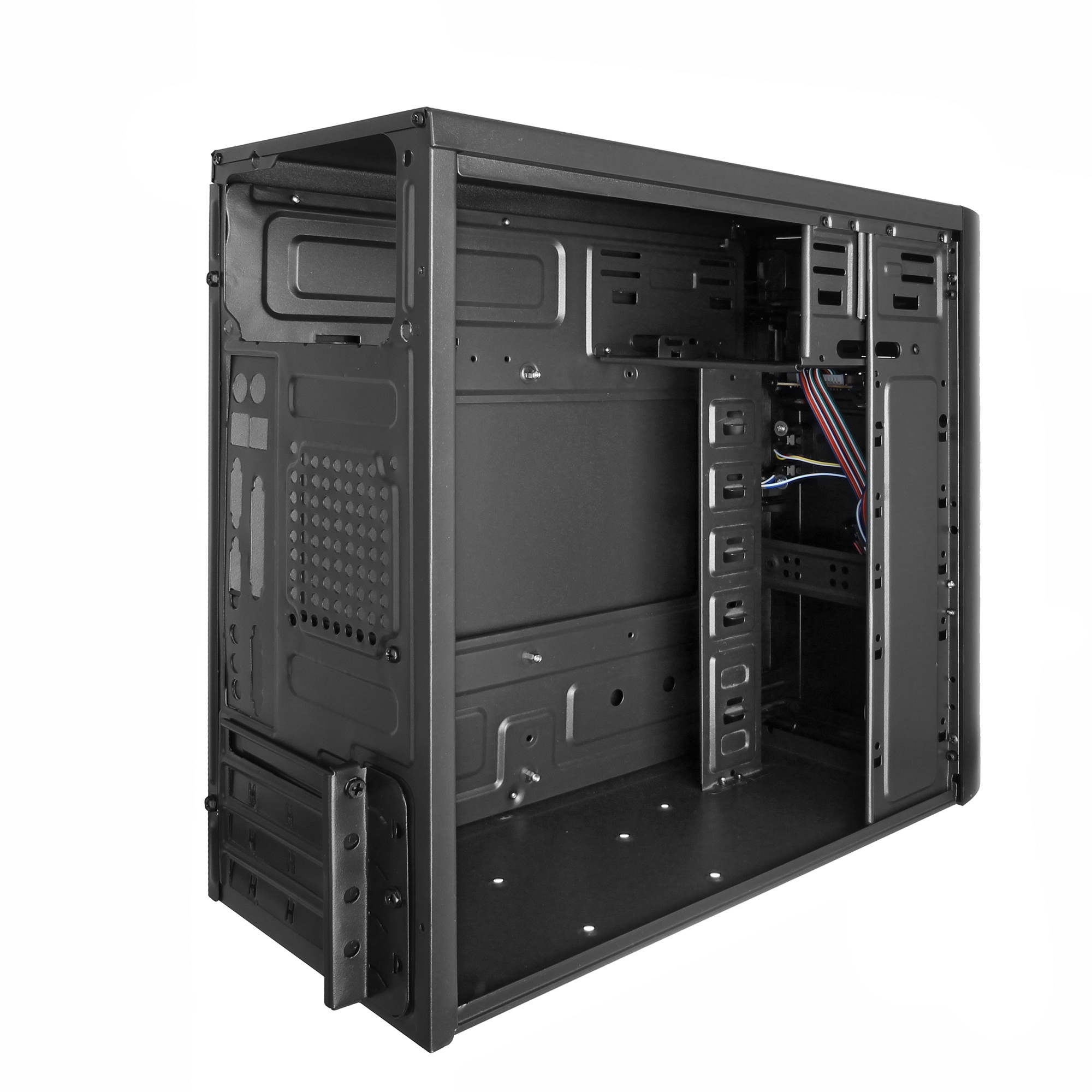

Series QA
  |
  |
  |
  |
  |
  |
  |
| QA-401 | QA-402 | QA-403 | QA-404 | QA-405 | QA-408 | QA-409U |
Specification
| Case Type | Minitower |
| Chassis Material | Steel |
| Case Color | Black |
| Motherboard Support | mATX |
| Drive Bay: | |
| Ext. 5.25" | 1 2 for QA-401 |
| Ext. 3.5" | 1 |
| Int. 3.5" | 1 2 for QA-408 3 for QA-402 |
| Int. 2.5" | 1 |
| Front I/O Ports | 2 x USB 2.0, 2 x 3.5mm Audio 2 x USB 2.0, 1x USB 3.0, 2 x 3.5mm Audio for QA-409U |
| Expansion Slots | 4 |
| Cooling System | |
| Front | 1 x 12 cm for QA-404 |
| Rear | 1 x 8 cm |
| Slide | 1 x 8 cm |
| PSU models | XP350, XP400, XP450, XP500, XP600, w/o PSU |
| Max. motherboard length, mm | 244 |
| Max. height of the CPU fan, mm | 145 |
| Max. PSU length, mm | 150/200 |
| Max. SVGA length, mm | 180/240 180 for QA-401, QA-403 |
| Structure Color | Black |
| Chassis dimensions (W x H x D), mm | 170 x 345 x 335 |
| Packing dimensions (W x H x D), mm | 173 x 347 x 390 |
| Net Weight w/o PSU / with PSU, kg | 2,0/3,0 |
| Optional accessories | HDD Adapters Front panel 3,5" Card Reader 3,5" Multifunction panel 5,25" |
| Model | w/o PSU | 350 W | 400 W | 450 W | 500 W | 600 W | |
| P/N | EX256035RUS | EX255773RUS | EX255774RUS | EX255775RUS | EX256036RUS | ||
| EAN | 4895205101647 | 4895205100749 | 4895205100756 | 4895205100763 | 4895205101630 | ||
| QA-402 | P/N | EX244508 | EX244502 | EX244503 | EX244504 | EX244505 | EX244506 |
| EAN | 4897040858137 | 4897040858144 | 4897040858151 | 4897040858168 | 4897040858175 | 4897040858182 | |
| QA-403 | P/N | EX244509 | EX244507 | EX244510 | EX244511 | EX244512 | EX244513 |
| EAN | 4897040858199 | 4897040858205 | 4897040858212 | 4897040858229 | 4897040858236 | 4897040858243 | |
| QA-404 | P/N | EX244514 | EX244515 | EX244516 | EX244517 | EX244518 | EX244519 |
| EAN | 4897040858250 | 4897040858267 | 4897040858274 | 4897040858281 | 4897040858298 | 4897040858304 | |
| QA-405 | P/N | EX244520 | EX244521 | EX244522 | EX244523 | EX244524 | EX244525 |
| EAN | 4897040858311 | 4897040858328 | 4897040858335 | 4897040858342 | 4897040858359 | 4897040858366 | |
| QA-408 | P/N | EX265189 | EX265190 | EX265191 | EX265192 | EX265194 | EX265193 |
| EAN | 4895205103696 | 4895205103696 | 4895205103702 | 4895205103719 | 4895205103726 | 4895205103733 | |
| P/N | EX265195 | EX265196 | EX265197 | EX265198 | EX265199 | EX265200 | |
| EAN | 4895205103757 | 4895205103764 | 4895205103771 | 4895205103788 | 4895205103795 | 4895205103801 |
