Series UN

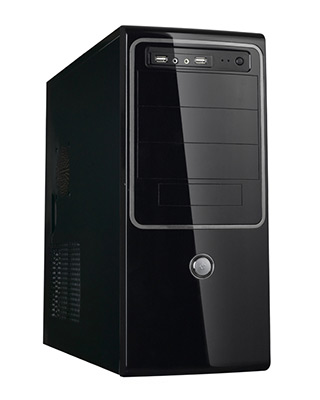

UN-610 UN-611 UN-612 UN-614 UN-615 UN-616
UN-610 UN-611 UN-612 UN-613 UN-614 UN-615 UN-616

Specification

Case Type Miditower
Chassis Material Steel
Case Color Black
Motherboard Support mATX, ATX
Drive Bay:
Ext. 5.25" 2 for UN-615
3
4 for UN-616
Int. 5.25” 1
2 for UN-615
Int. 3.5” 3
5 for UN-614, UN-615
Int. 2.5” 1
Front I/O Ports 2 x USB 2.0, 2 x 3.5mm Audio
Expansion Slots 7
Cooling System
Rear 1 x 8 cm
1 x 8 cm / 1 x 9,2 cm / 1 x 12 cm for UN-615
Front 1 x 12 cm
Side 2 x 8 cm for UN-615
PSU models UN350, UN400, UN450, UN500, w/o PSU
Max. motherboard length, mm 244
Max. height of the CPU fan, mm 135
Max. PSU length, mm 180/230
Max. SVGA length, mm 190/240
Structure Color Silver
Chassis dimensions (W x H x D), mm 174 x 405 x 350
177 x 415 x 360 for UN-615
Packing dimensions (W x H x D), mm 176 x 407 x 400
180 x 418 x 410 for UN-615
Net Weight w/o PSU / with PSU, kg 3,0/3,8
Optional accessories HDD Adapters
Front panel 3,5"
Card Reader 3,5"
Multifunction panel 5,25"



Model   w/o PSU 350W 400W 450W 500W
UN-610 P/N EX244530 EX244526 EX244527 EX244528 EX244529
EAN 4897040857925 4897040857932 4897040857949 4897040857956 4897040857963
UN-611 P/N EX244531 EX244532 EX244533 EX244534 EX244535
EAN 4897040857970 4897040857987 4897040857994 4897040858007 4897040858014
UN-612 P/N EX244536 EX244537 EX244538 EX244539 EX244540
EAN 4897040858021 4897040858038 4897040858045 4897040858052 4897040858069
UN-613 P/N EX244541 EX244542 EX244543 EX244544 EX244545
EAN 4897040858076 4897040858083 4897040858090 4897040858106 4897040858113
UN-614 P/N EX261435 EX261436 EX261437 EX261438 EX261439
EAN 4895205102798 4895205102781 4895205102774 4895205102767 4895205102750
UN-615 P/N EX261454 EX261455 EX261456 EX261458 EX261459
EAN 4895205102644 4895205102637 4895205102620 4895205102613 4895205102606
UN-616 P/N EX261460 EX261461 EX261462 EX261463 EX261464
EAN 4895205102590 4895205102583 4895205102576 4895205102569 4895205102552
