Series UN-M

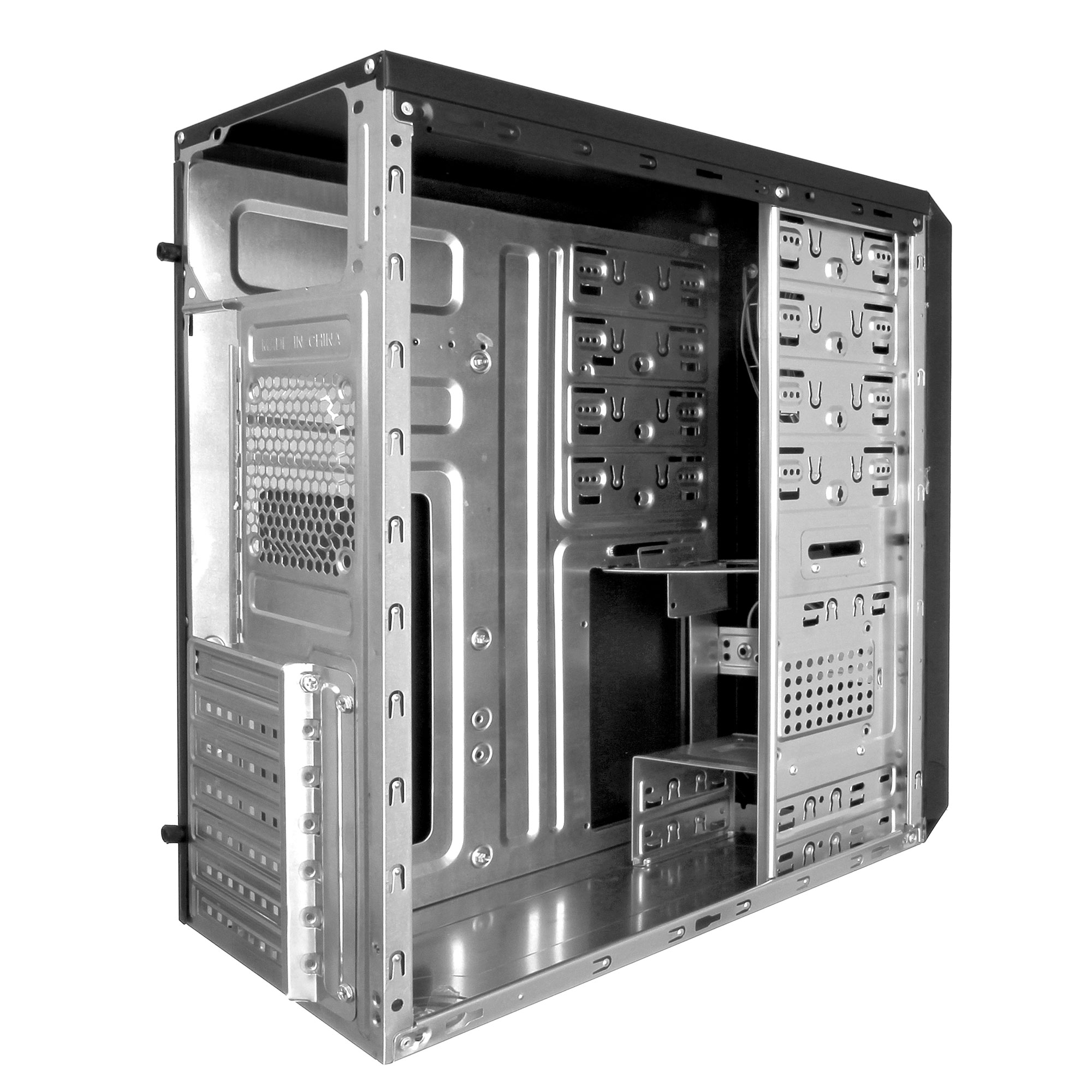

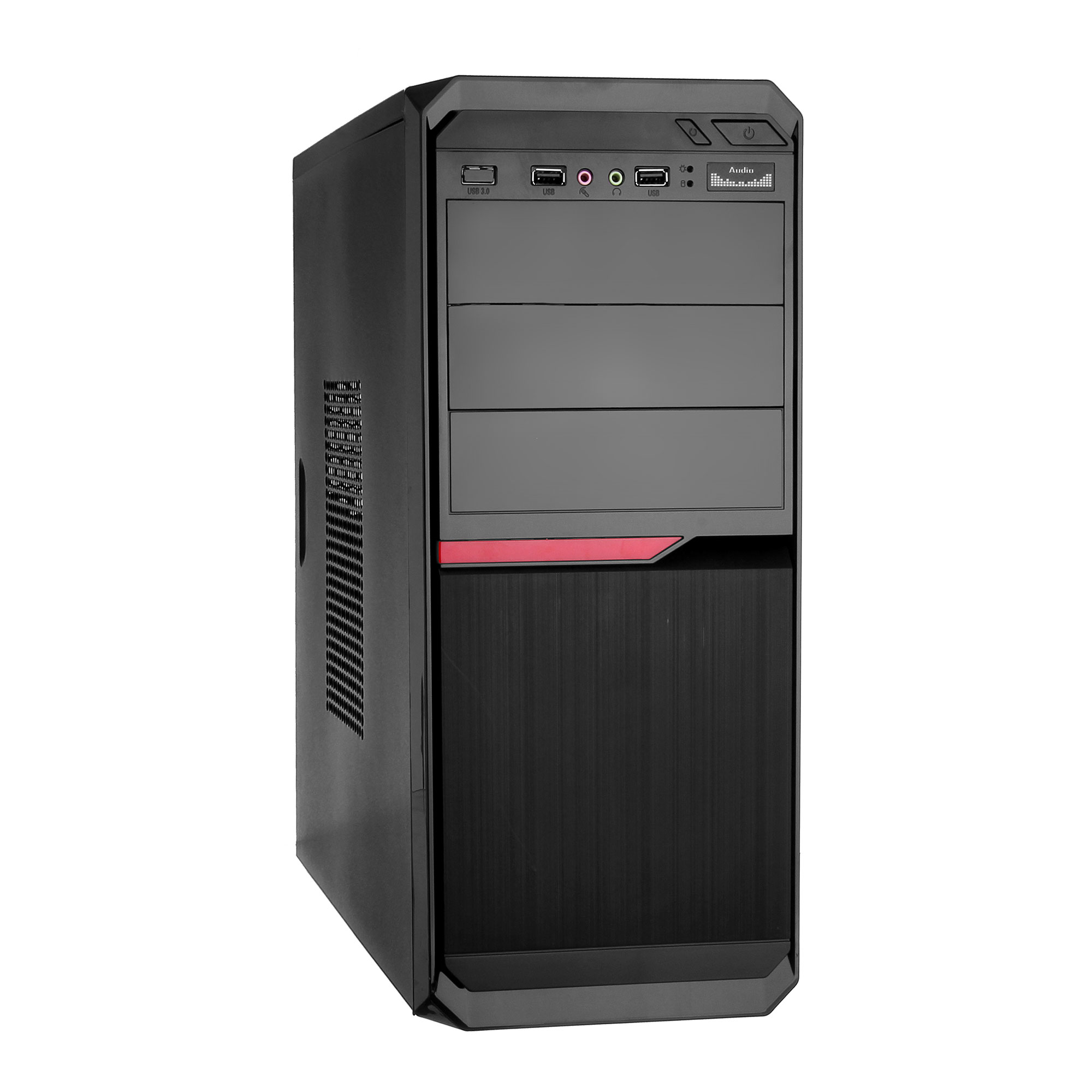

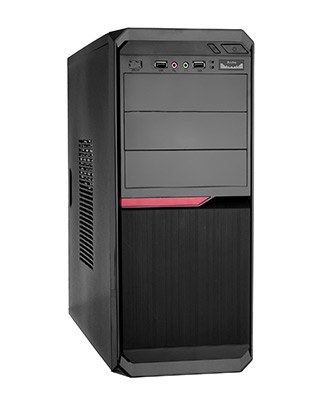

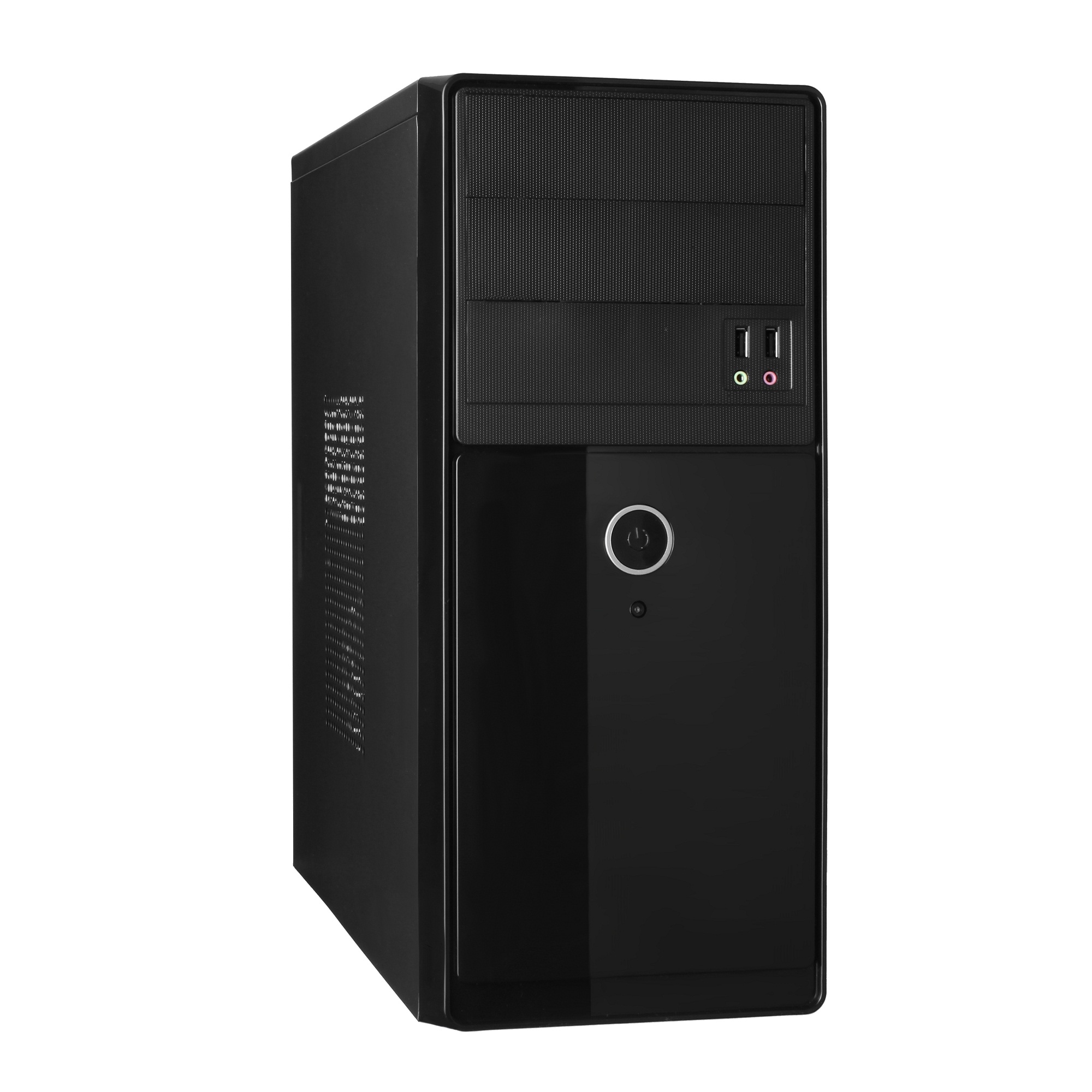

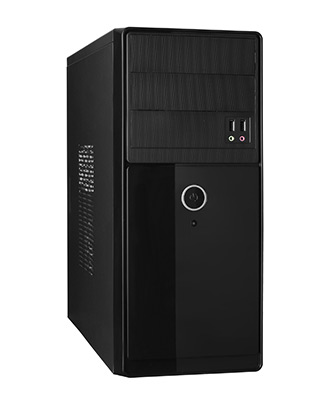

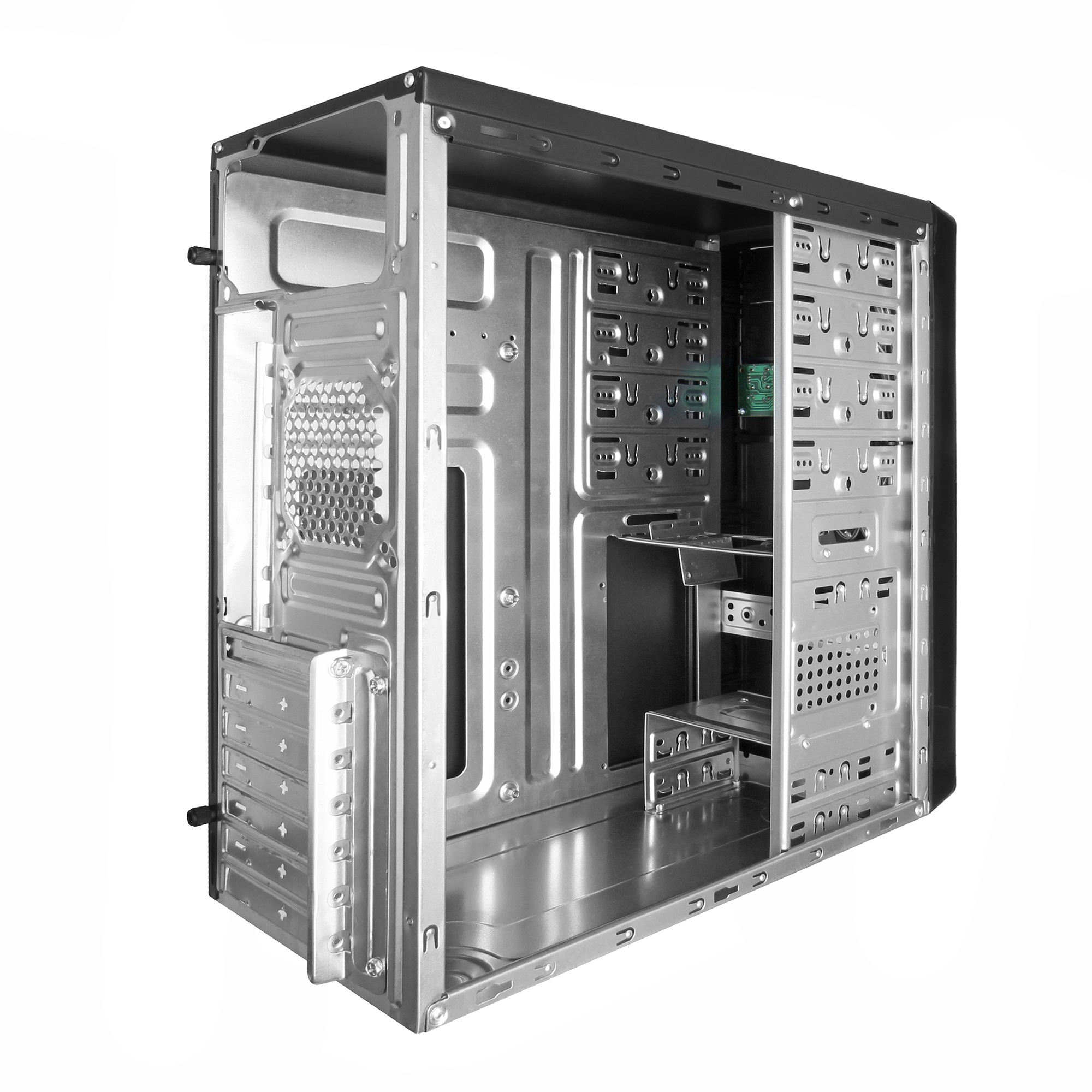

UN-610M UN-612M
UN-610M UN-612M

Specification

Case Type Miditower
Chassis Material Steel
Case Color Black
Motherboard Support mATX, ATX
Drive Bay:
Ext. 5.25" 2 for UN-610M
3 for UN-612M
Int. 5.25” 1 for UN-610M
2 for UN-612M
Int. 3.5” 6
Int. 2.5” 1
Front I/O Ports 2 x USB 2.0, MIC&HD Audio
Expansion Slots 7
Cooling System
Rear 1 x 8 cm
Front 2 x 12 cm
PSU models UN350, UN400, UN450, UN500, w/o PSU
Max. motherboard length, mm 244
Max. height of the CPU fan, mm 140
Max. PSU length, mm 140/205
Max. SVGA length, mm 180/235
Structure Color Silver
Chassis dimensions (W x H x D), mm 175 x 405 x 330
Packing dimensions (W x H x D), mm 190 x 410 x 385
Net Weight w/o PSU / with PSU, kg 2,5/3,5
Optional accessories HDD Adapters
Front panel 3,5"
Card Reader 3,5"
Multifunction panel 5,25"



Model   w/o PSU 350W 400W 450W 500W
UN-610M P/N EX261003 EX261004 EX261005 EX261006 EX261007
EAN 4895205102422 4895205102415 4895205102408 4895205102392 4895205102385
UN-612M P/N EX261008 EX261009 EX261010 EX261011 EX261012
EAN 4895205102378 4895205102361 4895205102354 4895205102347 4895205102330
