XP
  |
 |
 |
 |
  |

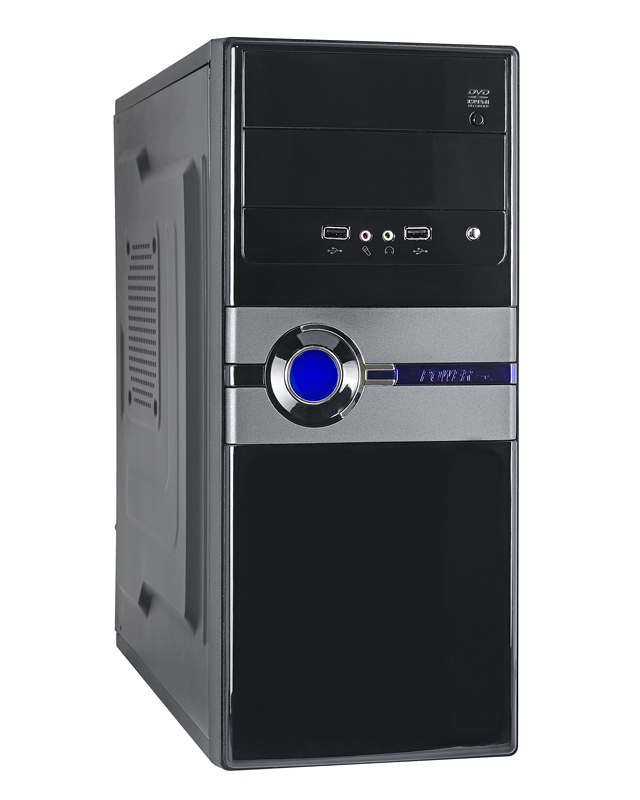

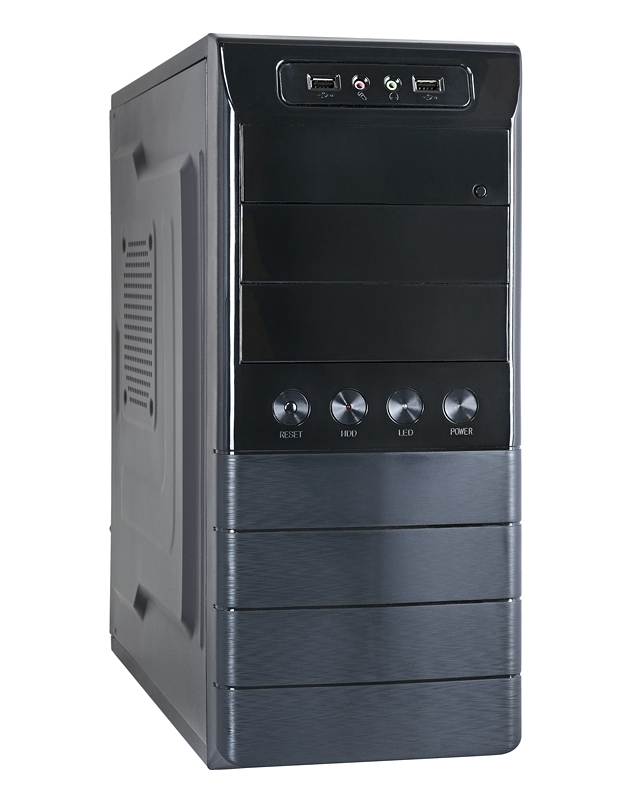

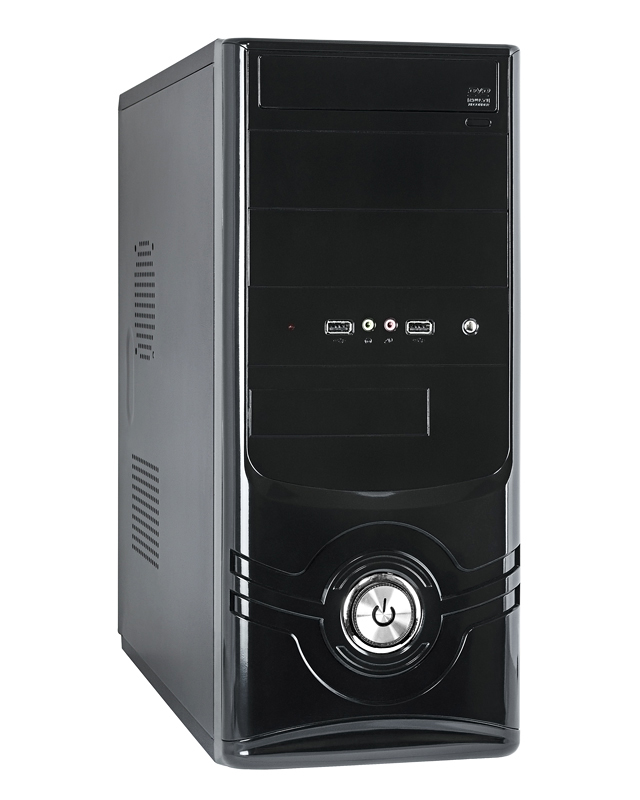

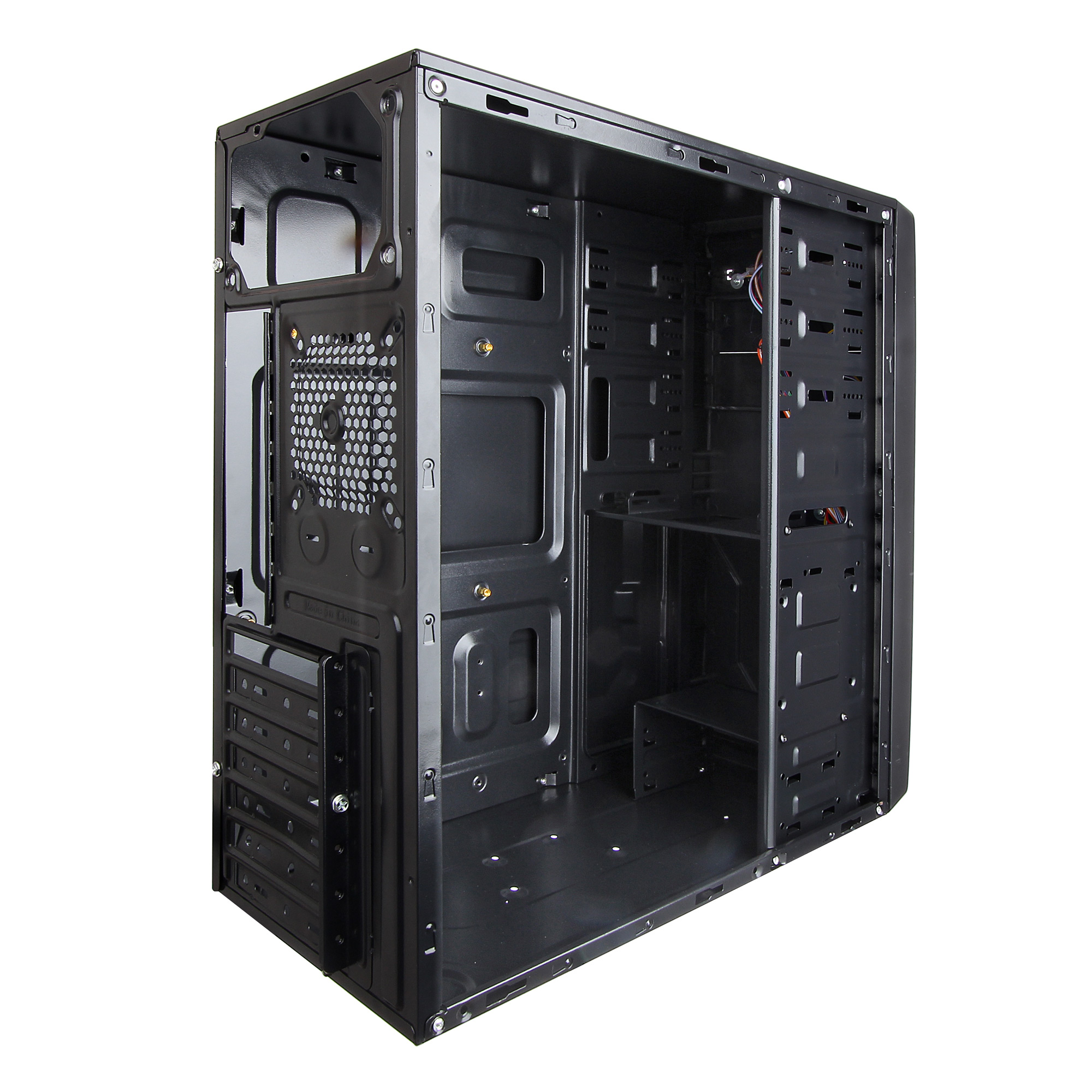

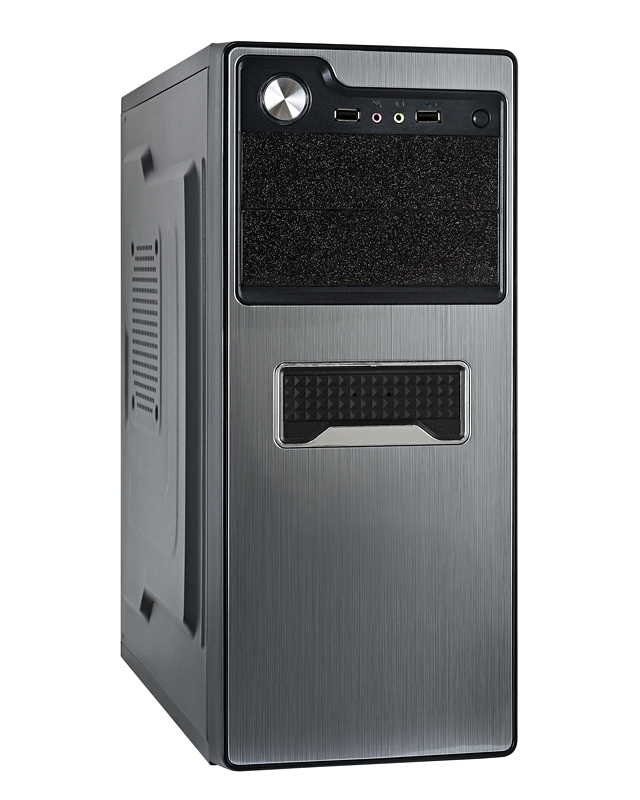

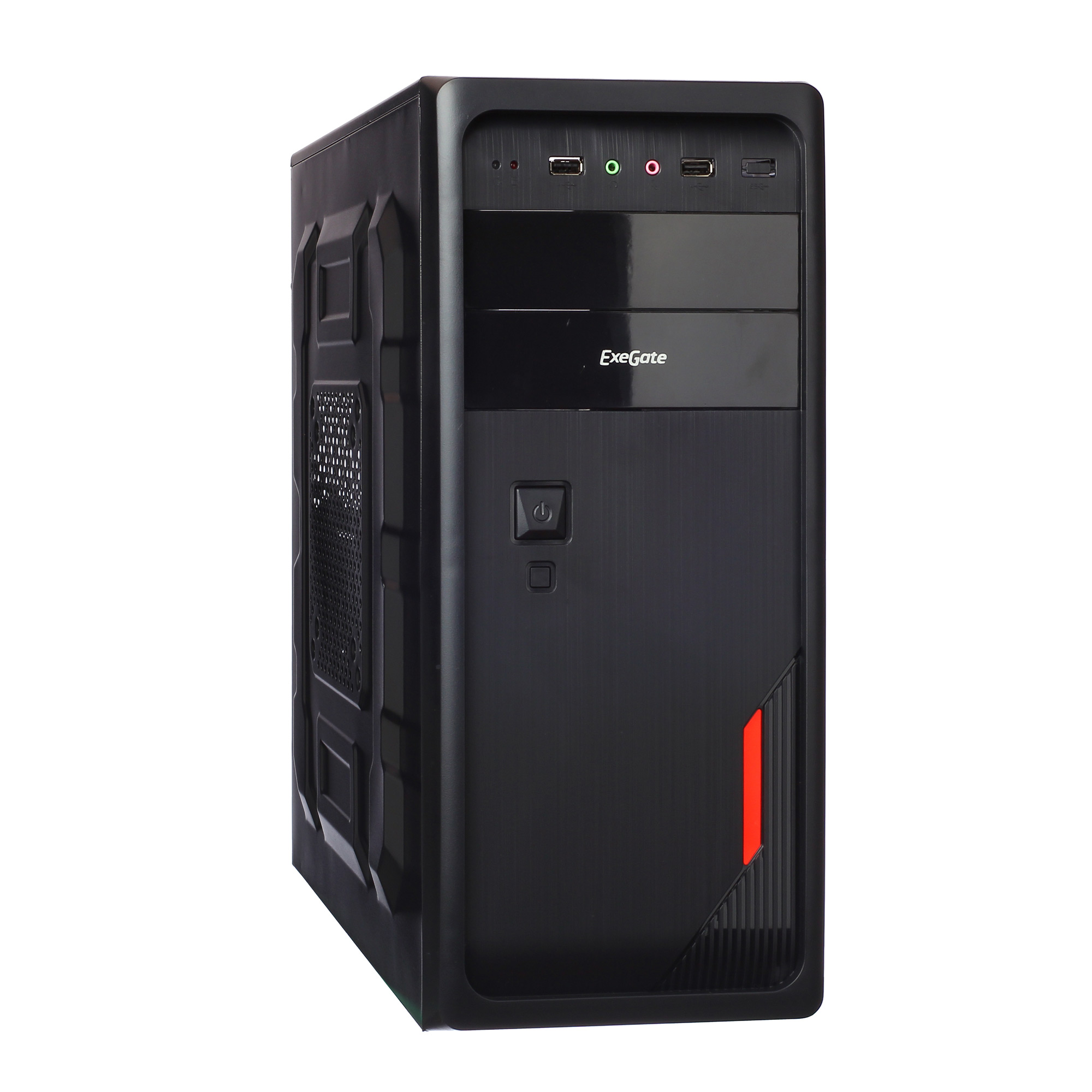

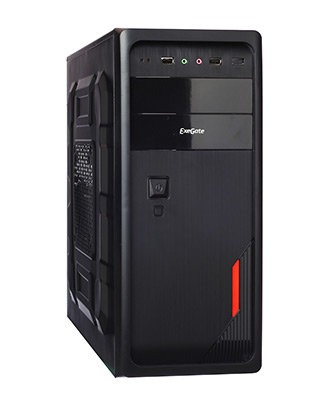

| XP-310 | XP-311 | XP-312 | XP-313 | XP-314 |
  |
  |
   |
   |
 |

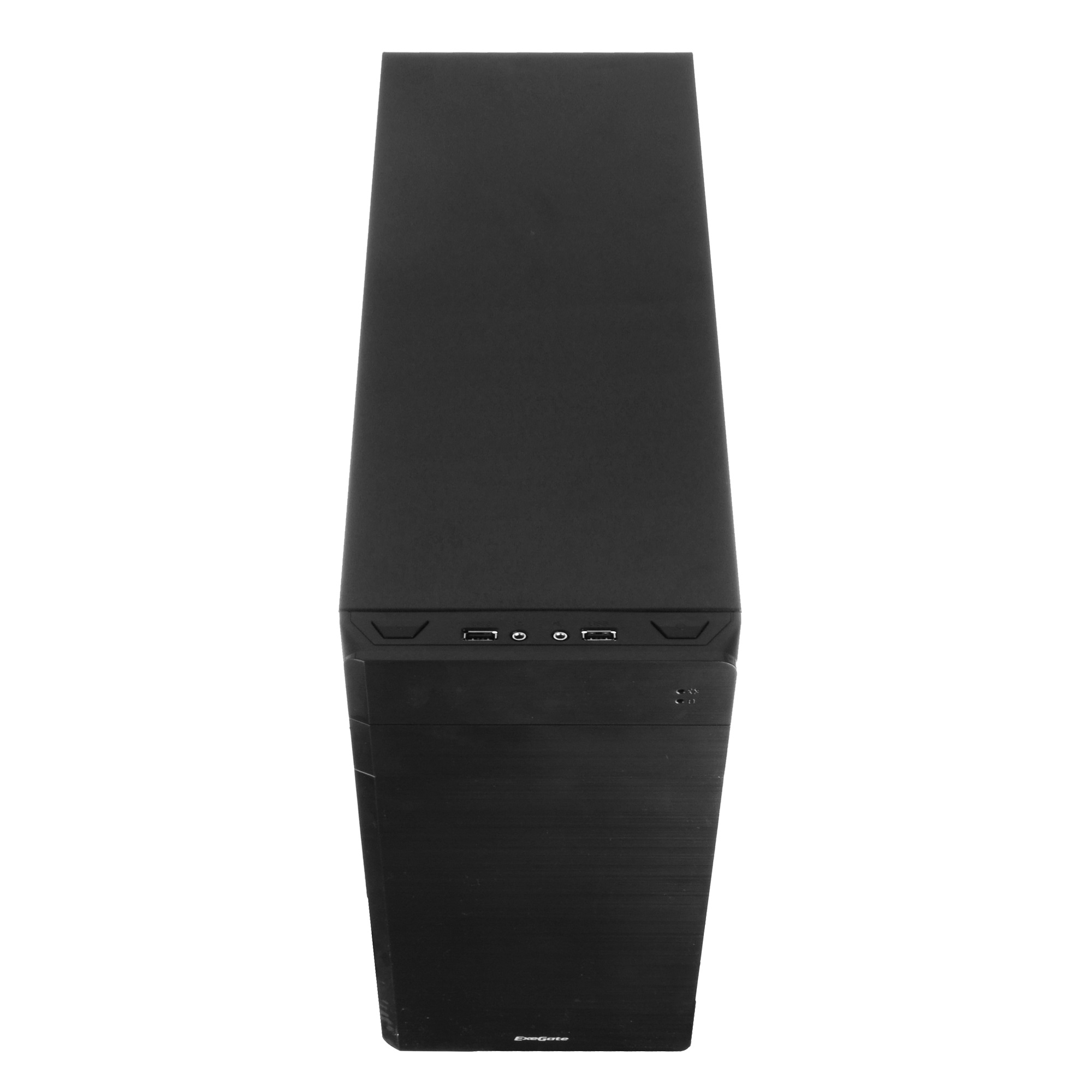

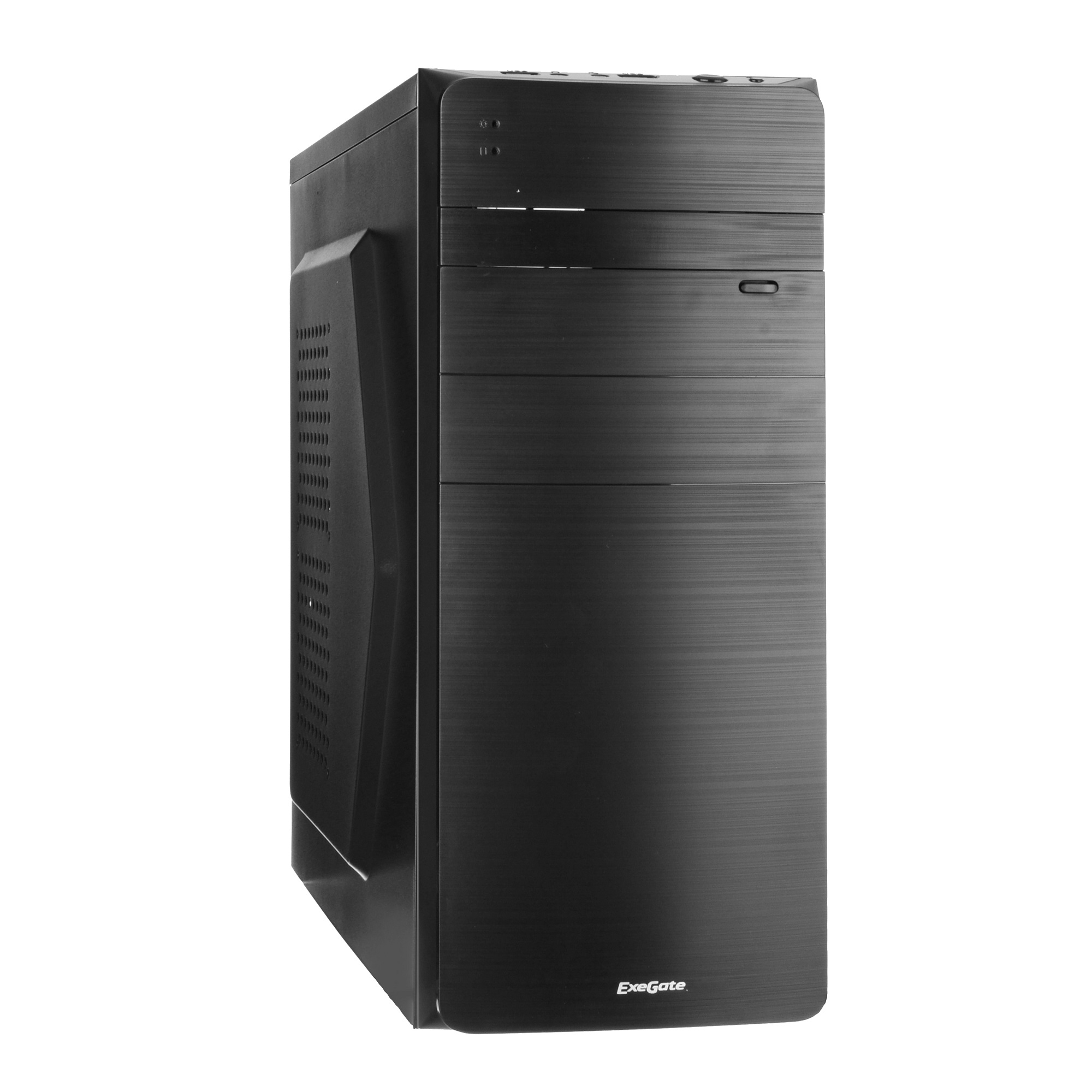

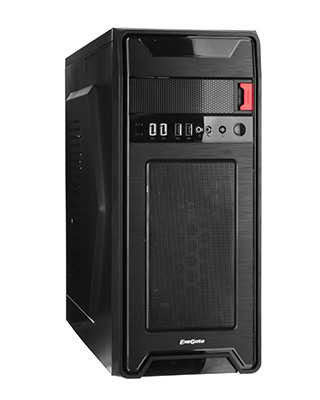

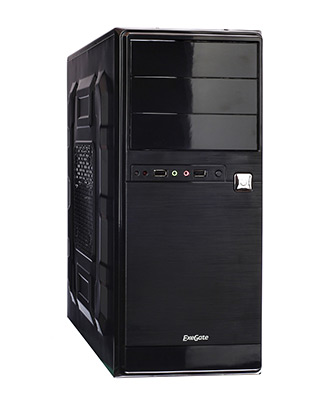

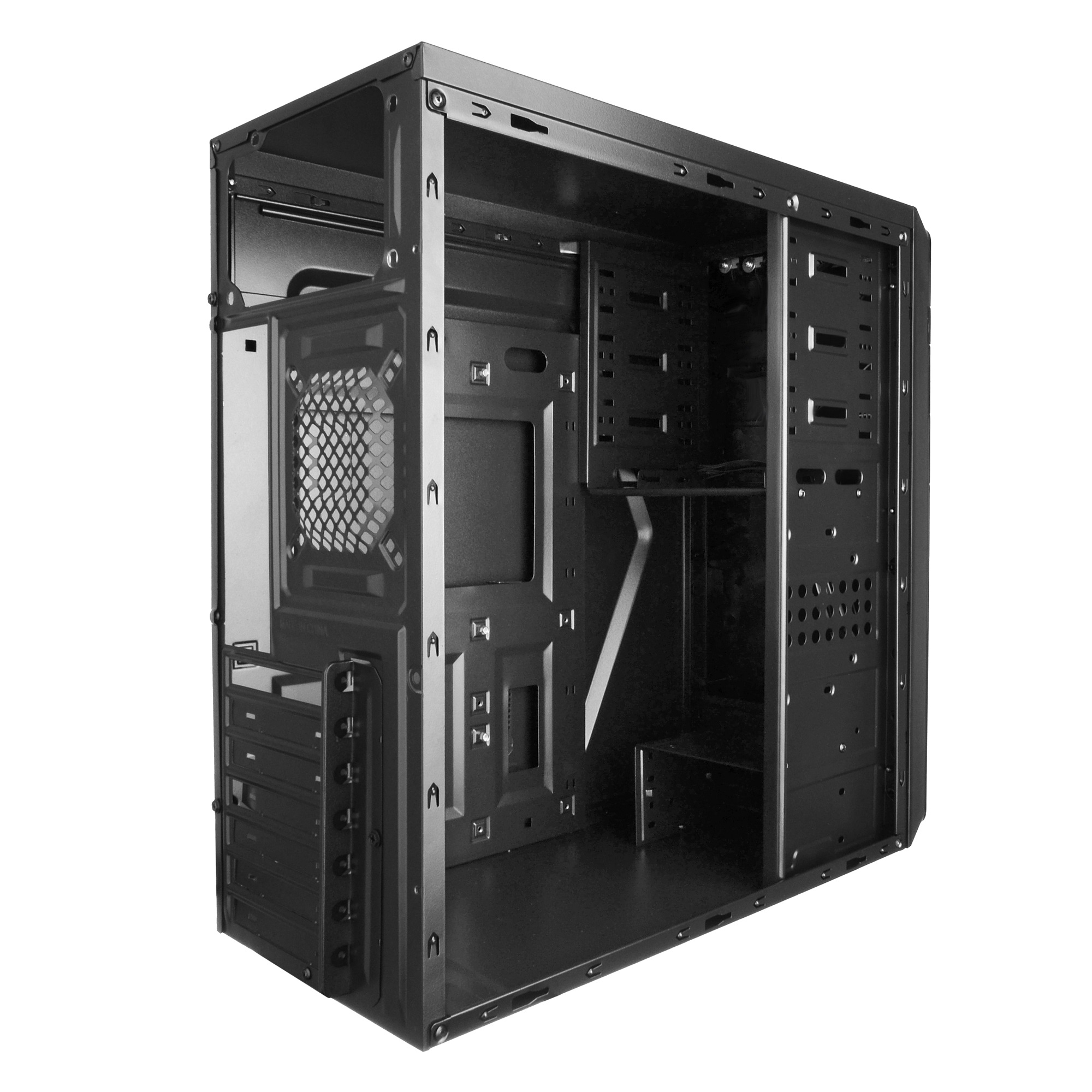

| XP-315 | XP-316 | XP-317 | XP-318 | XP-319 |
 |
 |
 |
 |
 |

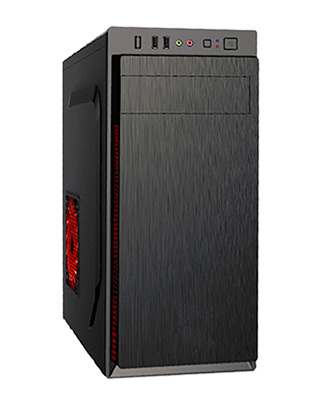

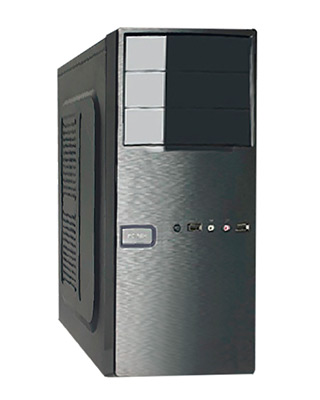

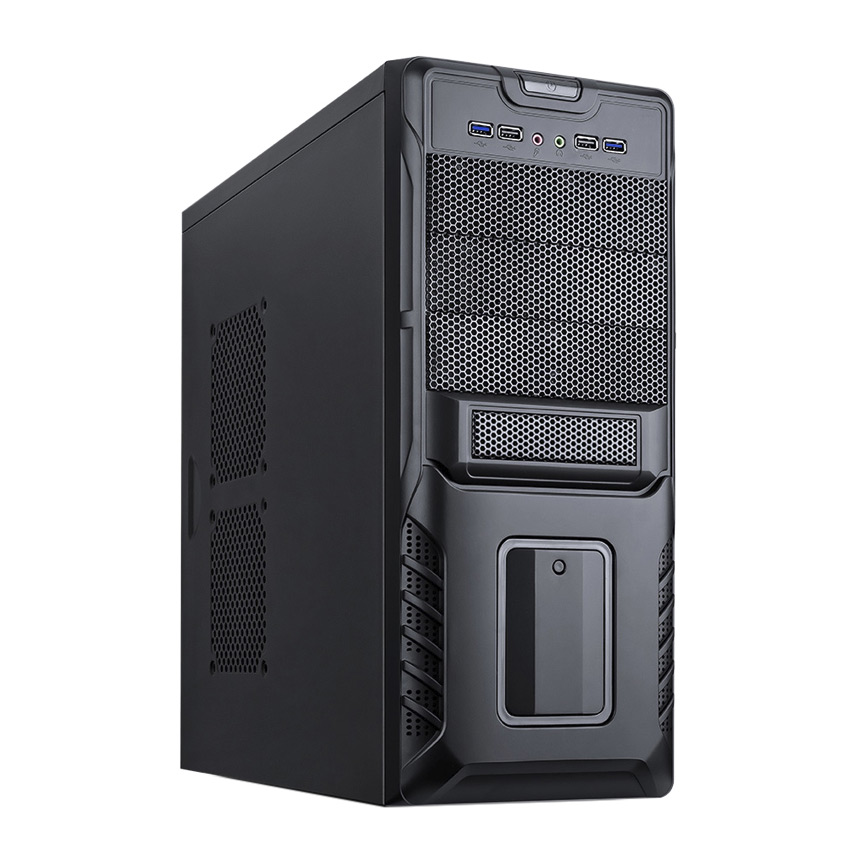

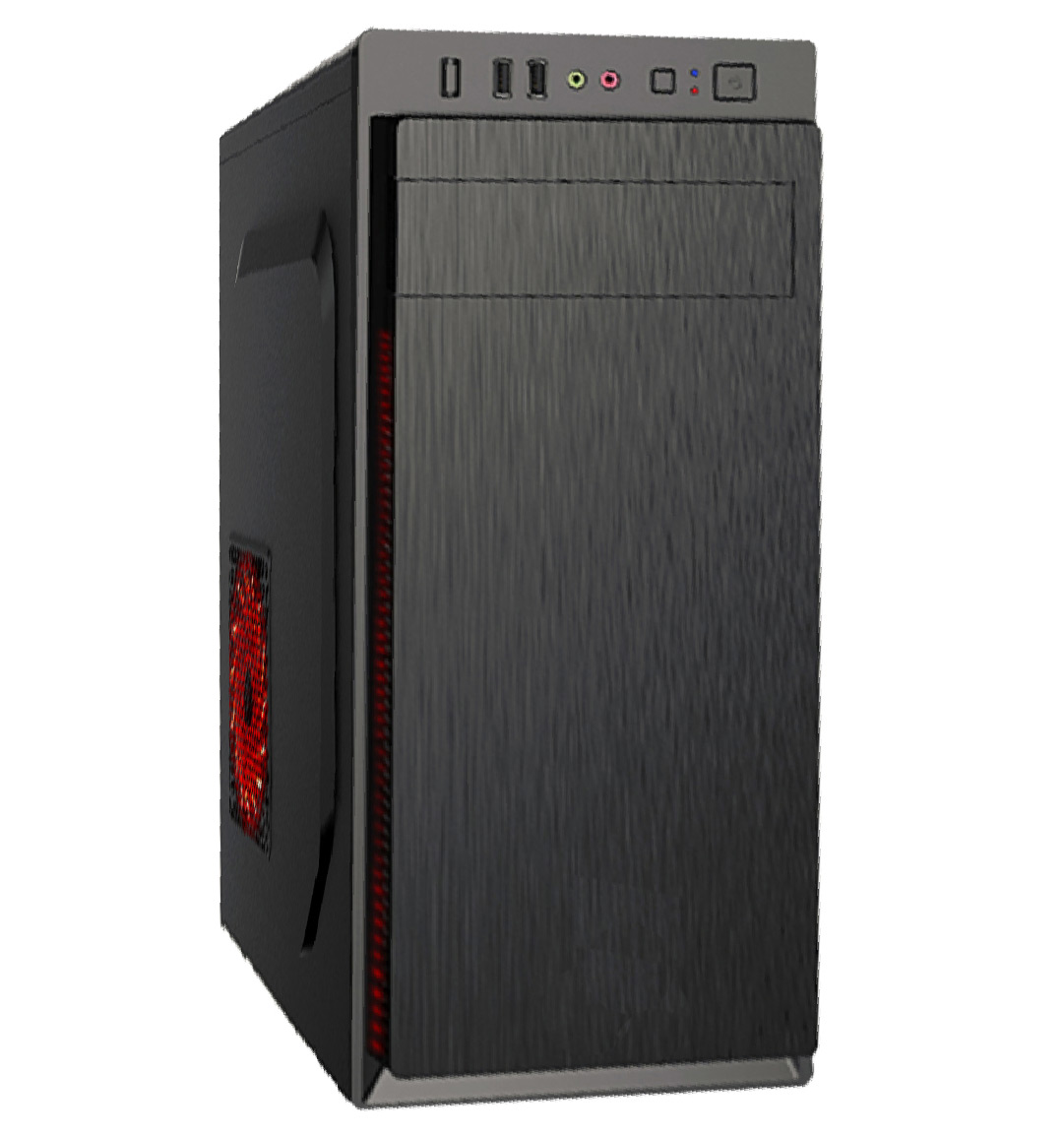

| XP-320 | XP-321 | XP-322 | XP-323 | XP-324U |
Specification
| Case Type | Miditower |
| Chassis Material | Steel |
| Case Color | Black |
| Motherboard Support | mATX, ATX |
| Drive Bay: | |
| Ext. 5.25" | 2 for XP-311, XP-312, XP-317, XP-322 3 for XP-310, XP-313, XP-321 1 for XP-318, XP-319, XP-323, XP-324U |
| Int. 5.25" | 1 for XP-310, XP-313, XP-317, XP-321, XP-322, XP-323, XP-324U 2 for XP-311, XP-312, XP-318, XP-319 |
| Ext. 3.5" | 1 for XP-313 |
| Int. 3.5" | 3 for XP-321, XP-322, XP-323, XP-324U 6 |
| Int. 2.5" | 1 for XP-321, XP-322, XP-323, XP-324U |
| Front I/O Ports | 2 x USB 2.0, MIC & HD Audio 2 x USB 3.0, 2 x USB 2.0, MIC & HD Audio for XP-320 2 x USB 2.0, 1 x USB 3.0, MIC & HD Audio for XP-324U, XP-327U |
| Expansion Slots | 7 |
| Cooling System | |
| Rear | 1 x 8 cm / 1 x 9,2 cm 1 x 8 cm for XP-320, XP-323 |
| Side |
1 x 12 cm |
| PSU models | XP350, XP400, XP450, XP500, w/o PSU |
| Max. motherboard length, mm | 244 |
| Max. height of the CPU fan, mm | 135 |
| Max. PSU length, mm | 160 |
| Max. SVGA length, mm | 220 380 for XP-317, XP-318, XP-319 |
| Chassis dimensions (W x H x D), mm | 175 x 410 x 370 180 x 410 x 375 for XP-317, XP-318, XP-319 175 x 410 x 405 for XP-320 180 x 410 x 375 for XP-323, XP-324U |
| Dimensions (W x H x D), mm | 175 x 410 x 405 195 x 413 x 430 for XP-317, XP-318, XP-319 190 x 412 x 450 for XP-320 180 x 420 x 410 for XP-323, XP-324U |
| Net Weight w/o PSU / with PSU, kg | 3,5/4,5 |
| Optional accessories | HDD Adapters Front panel 3,5" Card Reader 3,5" Multifunction panel 5,25" |
| Model | w/o PSU | 350 W | 400 W | 450 W | 500 W | 600 W | |
| XP-310 | P/N | EX210993 | EX205251 | EX210788 | EX210789 | EX210994 | |
| EAN | 4897040855655 | 4897040854016 | 4897040855648 | 4897040855563 | 4897040855570 | ||
| XP-311 | P/N | EX211001 | EX205252 | EX210999 | EX211000 | EX211002 | |
| EAN | 4897040855679 | 4897040854023 | 4897040855662 | 4897040855600 | 4897040855617 | ||
| XP-312 | P/N | EX211006 | EX205253 | EX211003 | EX211004 | EX211005 | |
| EAN | 4897040855693 | 4897040854030 | 4897040855686 | 4897040855624 | 4897040855631 | ||
| XP-313 | P/N | EX210997 | EX205254 | EX210995 | EX210996 | EX210998 | |
| EAN | 4897040855716 | 4897040854047 | 4897040855709 | 4897040855587 | 4897040855594 | ||
| XP-314 | P/N | EX254012 | EX254015 | EX254016 | EX254017 | EX254019 | |
| EAN | 4895205100541 | 4895205100527 | 4895205100015 | 4895205100022 | 4895205100534 | ||
| XP-315 | P/N | EX254020 | EX254021 | EX254022 | EX254023 | EX254024 | |
| EAN | 4895205100572 | 4895205100558 | 4895205100039 | 4895205100046 | 4895205100565 | ||
| XP-316 | P/N | EX254025 | EX254026 | EX254027 | EX254028 | EX254029 | |
| EAN | 4895205100602 | 4895205100589 | 4895205100053 | 4895205100060 | 4895205100596 | ||
| XP-317 | P/N | EX256234 | EX256267 | EX256272 | EX256117 | EX256276 | |
| EAN | 4895205101111 | 4895205101128 | 4895205101135 | 4895205100848 | 4895205101142 | ||
| XP-318 | P/N | EX256235 | EX256270 | EX256274 | EX256119 | EX256289 | |
| EAN | 4895205101159 | 4895205101166 | 4895205101173 | 4895205100855 | 4895205101180 | ||
| XP-319 | P/N | EX256236 | EX256271 | EX256275 | EX256120 | EX256290 | |
| EAN | 4895205101197 | 4895205101203 | 4895205101210 | 4895205100862 | 4895205101227 | ||
| XP-320 | P/N | EX259726 | EX259722 | EX259721 | EX259654 | EX259723 | EX263357 |
| EAN | 4895205102194 | 4895205102200 | 4895205102217 | 4895205102224 | 4895205102231 | 4895205103016 | |
| XP-321 | P/N | EX266302 | EX266303 | EX266304 | EX266305 | EX266306 | EX266307 |
| EAN | 4895205104297 | 4895205104303 | 4895205104310 | 4895205104327 | 4895205104334 | 4895205104341 | |
| XP-322 | P/N | EX266308 | EX266309 | EX266310 | EX266311 | EX266312 | EX266313 |
| EAN | 4895205104358 | 4895205104365 | 4895205104372 | 4895205104389 | 4895205104396 | 4895205104402 | |
| XP-323 | P/N | EX266314 | EX266315 | EX266316 | EX266317 | EX266318 | EX266319 |
| EAN | 4895205104419 | 4895205104426 | 4895205104433 | 4895205104440 | 4895205104457 | 4895205104464 | |
| P/N | EX266320 | EX266321 | EX266322 | EX266323 | EX266324 | EX266325 | |
| EAN | 4895205104471 | 4895205104488 | 4895205104495 | 4895205104501 | 4895205104518 | 4895205104525 |
