Pro 1U1062
Specification
| Motherboard Support | mATX, ATX |
| Max. motherboard size, mm | 305x244 |
| Drive Bay: | |
| Ext. 5.25" | 1 (installed instead Int. 3.5" drive bay) |
| Int. 3.5" | 3 |
| Dust | Front panel is equipped with dust filters |
| Front I/O Ports | 2 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 6 x HDD, 1 x NIC |
| Switch | POWER, RESET |
| Expansion Slots | 1 |

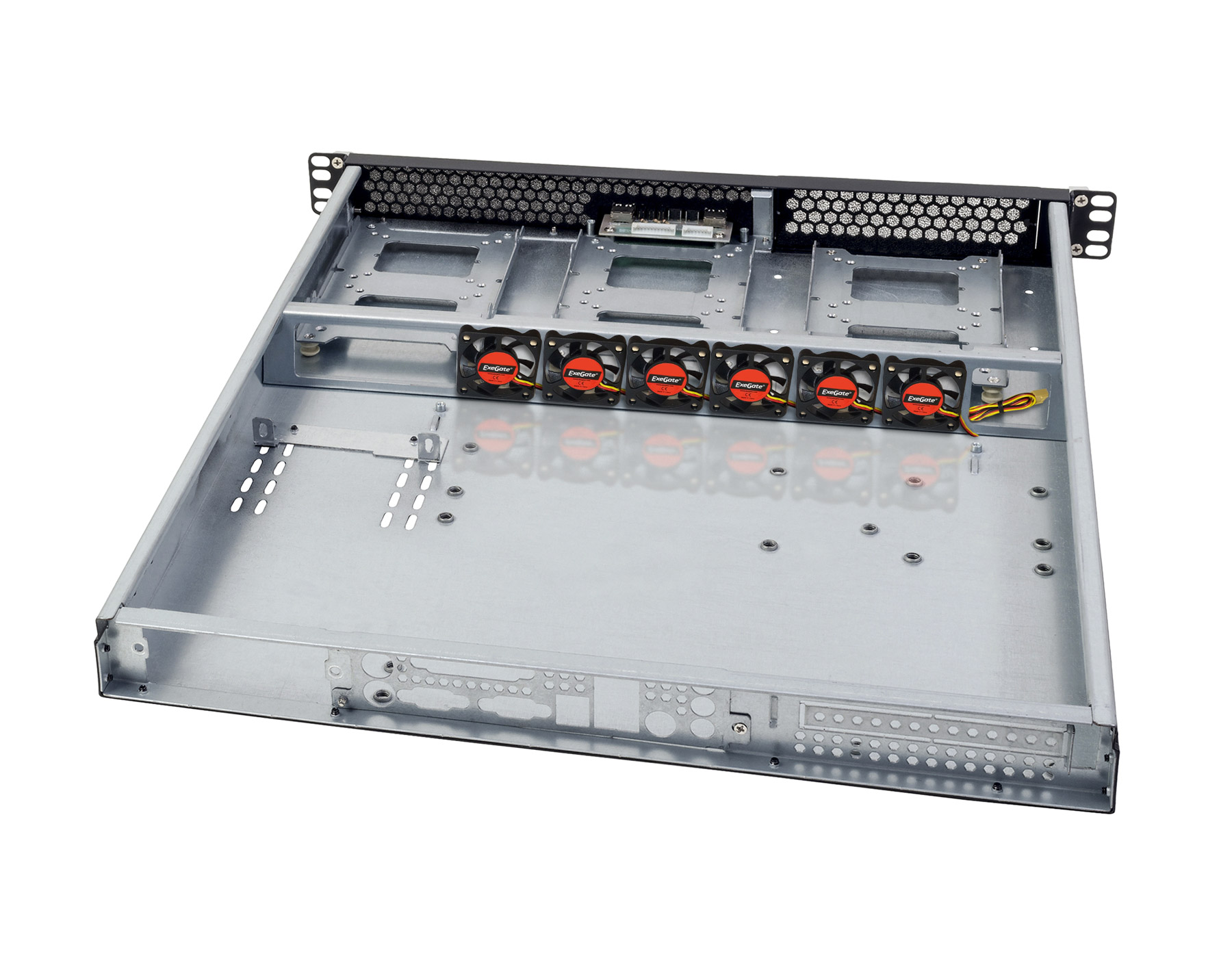

| Cooling System: | 6 x 4 cm fans in the middle frame |
| PSU | Support 1U Power Supply |
| Recommended ExeGate PSU | ServerPRO-1U-350ADS, ServerPRO-1U-400ADS, ServerPRO-1U-450ADS, ServerPRO-1U-500ADS, ServerPRO-1U-600ADS, w/o PSU |
| Chassis material | 1.0 mm steel |
| Cases color | Black |
| Chassis color | Silver |
| Dimensions (W x H x D), mm | 430x44x550 |
| Packing dimensions (W x H x D), mm | 560x140x680 |
| Net Weight w/o PSU / with PSU, kg | 6,5/8,1 |
| PSU model | w/o PSU | 350W | 400W | 450W | 500W | 600W |
| P/N | EX234950 | EX237313 | EX237314 | EX237315 | EX237316 | EX237317 |
| EAN | 4897040856959 | 4897040857291 | 4897040857284 | 4897040857277 | 4897040857260 | 4897040857253 |
