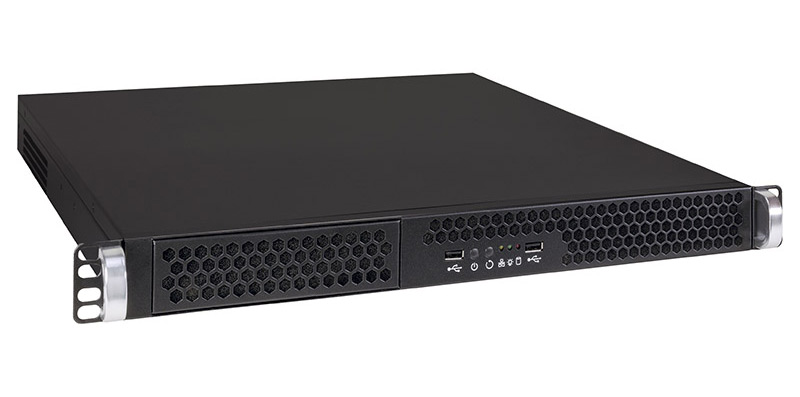

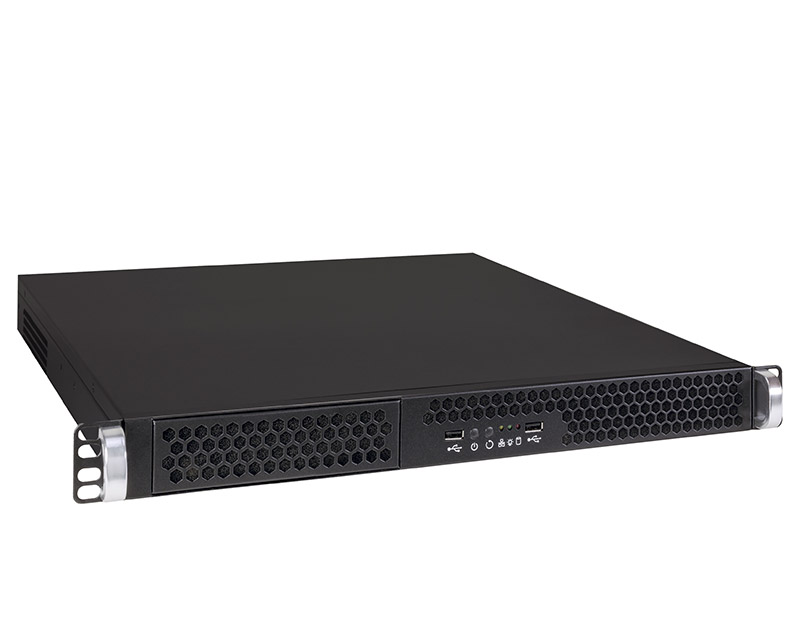

Pro 1U1062L



Motherboard Support mATX, ATX, EATX
Max. motherboard size, mm 305x330
Drive Bay:
Ext. 5.25" 1 (installed instead Int. 3.5" drive bay)
Int. 3.5" 3
Dust Front panel is equipped with dust filters
Front I/O Ports 2 x USB 2.0
Control & Indicator, LED 1 x Power, 6 x HDD, 1 x NIC
Expansion Slots 1

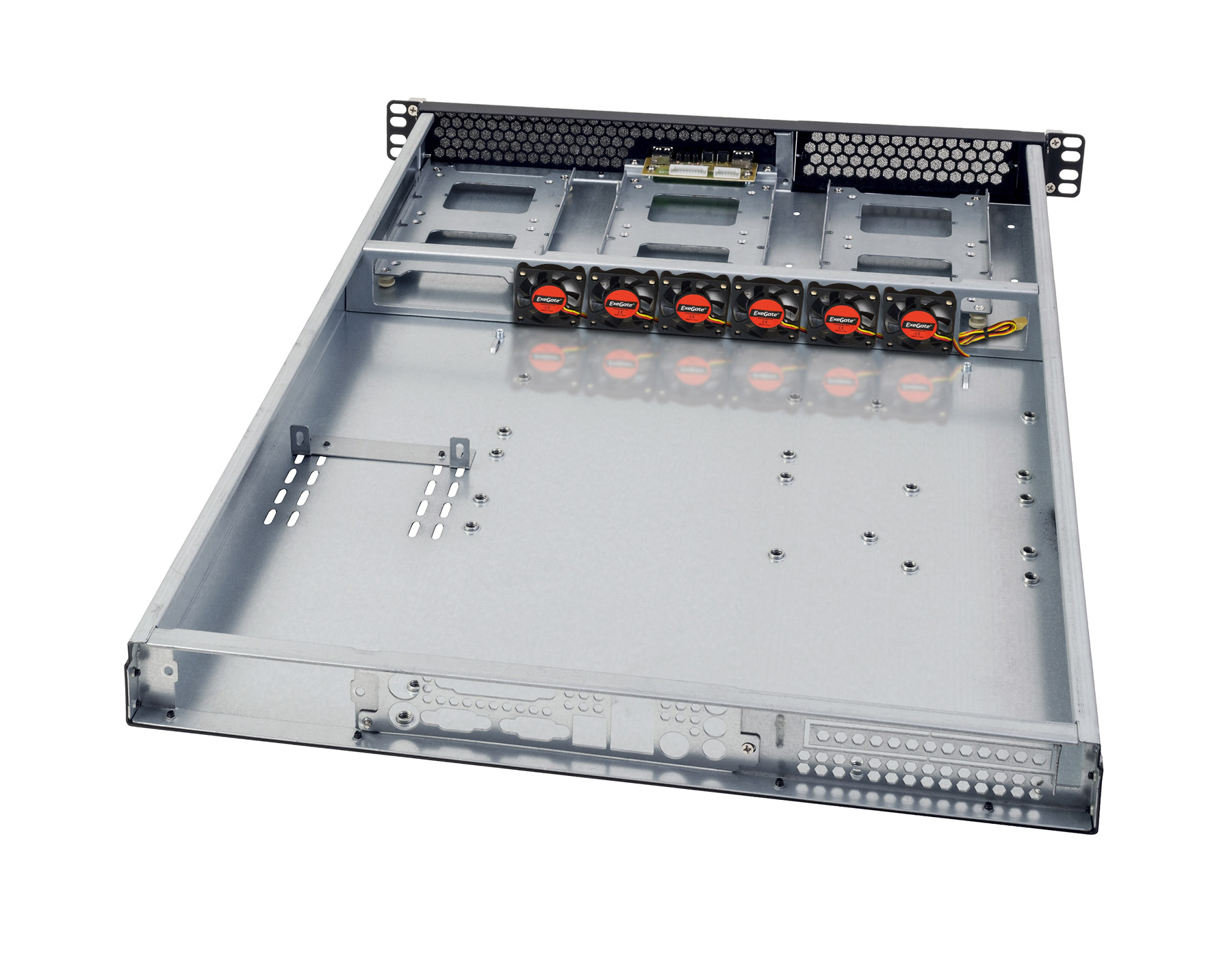

Cooling System: 6 x 4 cm fans in the middle frame
PSU Support 1U Power Supply
Recommended Exegate PSU ServerPRO-1U-350ADS, ServerPRO-1U-400ADS, ServerPRO-1U-450ADS, ServerPRO-1U-500ADS, ServerPRO-1U-600ADS, w/o PSU
Chassis material 1.0 mm steel
Cases color Black
Chassis color Silver
Dimensions (W x H x D), mm 430x44x650
Packing dimensions (W x H x D), mm 560x175x740
Net Weight w/o PSU / with PSU, kg 7,0/8,6

PSU model w/o PSU 350W 400W 450W 500W 600W
P/N EX234951 EX237318 EX237319 EX237320 EX237321 EX237322
EAN 4897040856966 4897040857246 4897040857239 4897040857222 4897040857215 4897040857208
