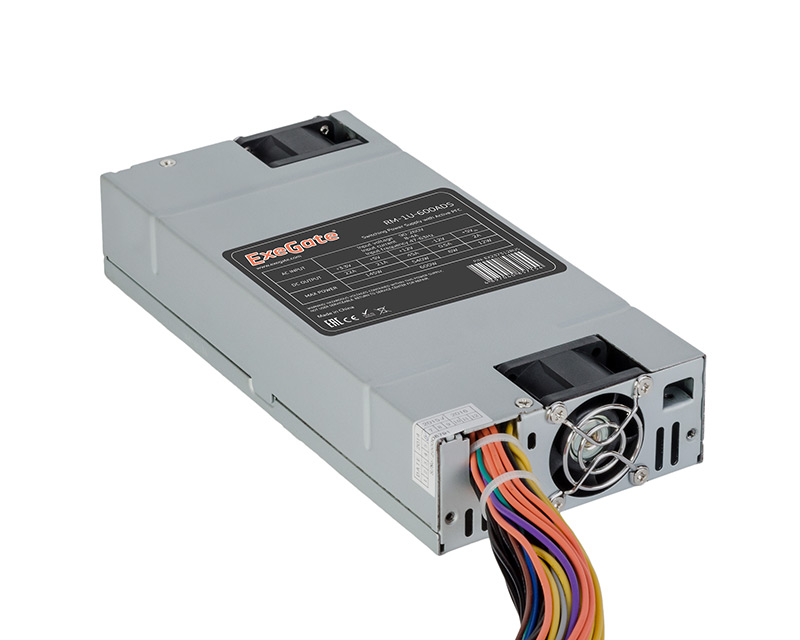

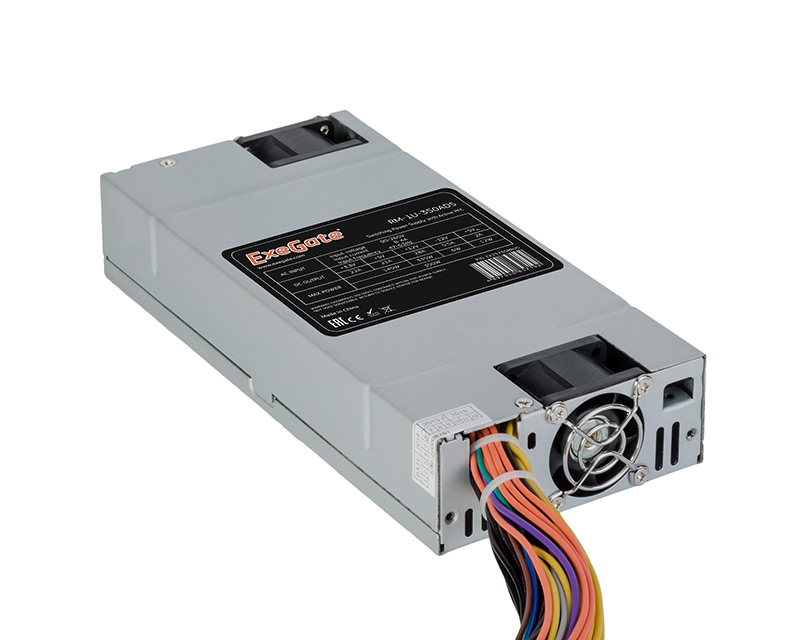

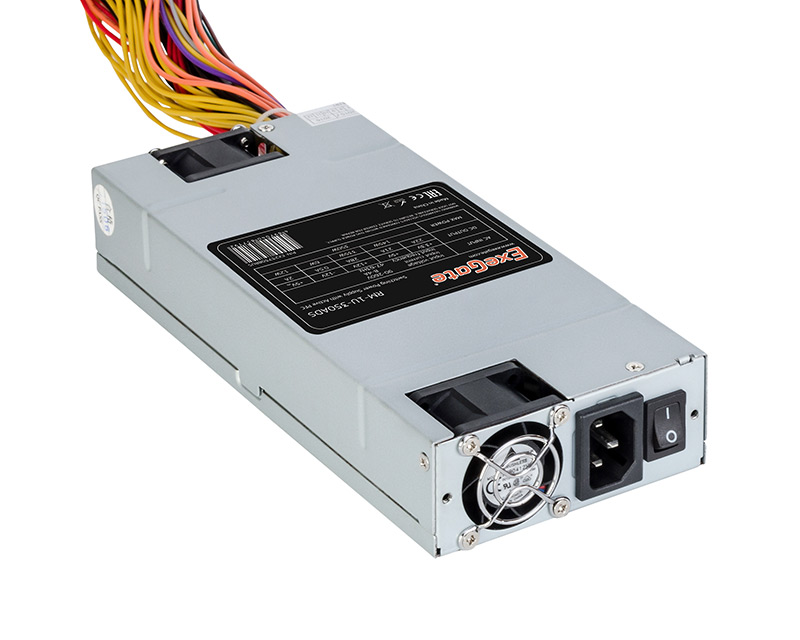

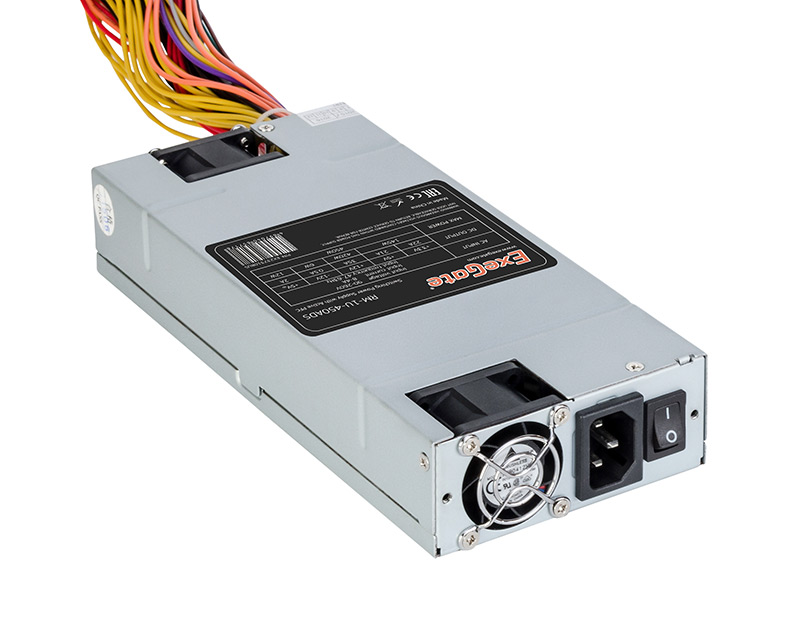

ServerPRO-1U

ServerPRO-1U-350ADS ServerPRO-1U-400ADS ServerPRO-1U-450ADS ServerPRO-1U-500ADS ServerPRO-1U-600ADS
ServerPRO-1U-350ADS ServerPRO-1U-400ADS ServerPRO-1U-450ADS ServerPRO-1U-500ADS ServerPRO-1U-600ADS

Specification

Type ATX 12V v.2.3
PFC Active
AC input, V 90-260
Input current, A 4
Input Frequency Range, Hz 47-63
FAN 2 x 4 cm
Bearing type 1 ball
Noise Level, dBA 24
Efficiency 81% typical load

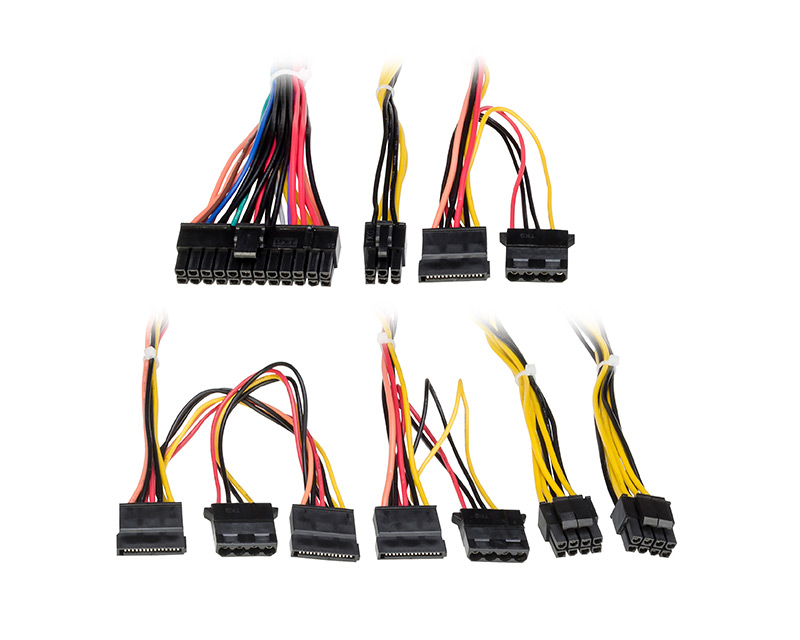

Connectors:
20+4 pin 1
4+4 pin 2
SATA 4 for 350, 400, 450 W
5 for 500, 600 W
Molex 3 for 350, 400, 450 W
4 for 500, 600 W
6 pin PCI-E 1
Protection SCP, OVP, UVP, OCP, OPP/OLP, OTP
Quality Certificates CE, FCC, CB, UL, TUV, BSMI, CCC
MTBF, HRS 100000
Storage temperature, °C 0-40
Storage Humidity, % 20-90
Color Silver
Warranty 2 Years
Dimension (W x H x D), mm 106 x 40 x 220
Weight, kg 1,5


Model ServerPRO-1U-350ADS ServerPRO-1U-400ADS ServerPRO-1U-450ADS ServerPRO-1U-500ADS ServerPRO-1U-600ADS
Max. Output Capacity, W 350 400 450 500 600
Input Voltage:
+3.3V, A 16 18 22 22 22
+5V, A 16 18 21 21 21
+12V, A 25 32 35 40 45
+5Vsb, A 2.5 2.5 2.5 2.5 2.5
-12V, A 0.5 0.5 0.5 0.5 0.5
Max Output Power:
+3.3V & +5V, W 100 120 145 145 145
+12V, W 300 350 420 480 540
-12V, W 6 6 6 6 6
+5Vsb, W 12.5 12.5 12.5 12.5 12.5
P/N EX237308 EX237309 EX237310 EX237311 EX237312
EAN 4897040857192 4897040857185 4897040857178 4897040857161 4897040857154
