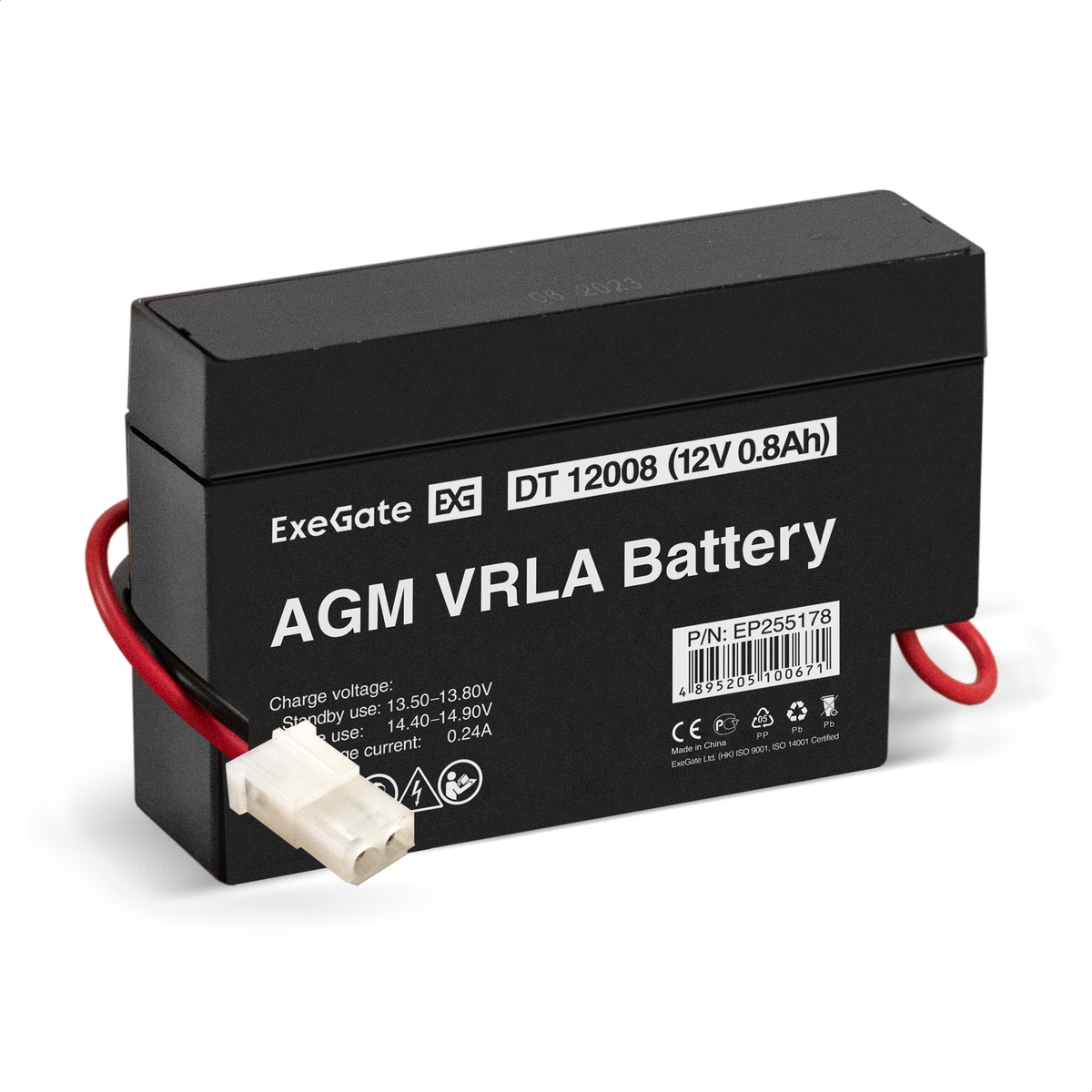

ExeGate dt series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging mode (buffer mode).

The case is made of plastic that does not support Gorenje. Internal gas recombination system, does not require adding water. Operation is allowed in any position other than upside down. Calcium-doped lead plates provide high energy density.

Specification

AppointmentFor UPS
Voltage, V12
Battery capacity, Ah0,8
Standards and certificationsDeclaration of conformity GOST 12.2.007.12-88;
GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10;
GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4
Battery Life5 years
In buffered mode5 years (at 25C)
In cyclic mode1000 cycles at 30% depth of discharge
Number of charge-discharge cycles in cyclic mode at 100% discharge240
Self-discharge3% per month at 20C
Charge methodConstant voltage charge (25C)
Cyclic mode2.4 - 2.5 V / cell
Buffer mode2.27 - 2.3 V / cell
Internal resistance of a fully charged battery (25C), m?110
Cabinet materialABS plastic
Temperature modesfrom -20C to + 50C
Storagefrom -15C to + 50C
Chargefrom -10C to + 50C
Dischargefrom -20C to + 50C
Warranty12 months if operating conditions are observed
Terminal typeT9/ VHR-2N
Maximum discharge current (25 C)21A(5c)
Delivery setBattery
Product size, mm92x25x62
Weight, kg0,34
P/NEP255178
EAN4895205100671
