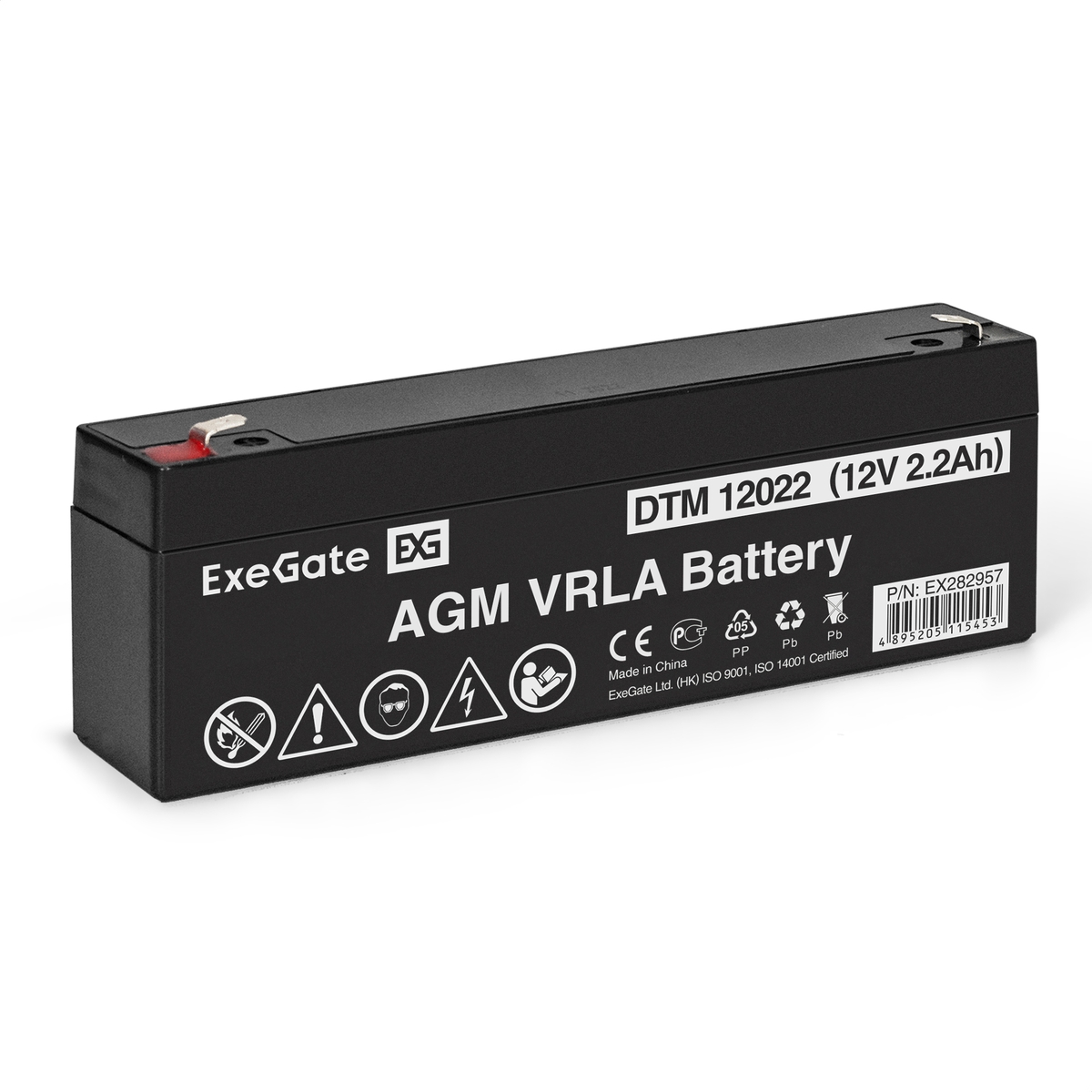

Battery ExeGate DTM 12022

Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
Battery ExeGate DTM 12022
ExeGate DTM series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Optimized for continuous charging mode (buffer mode) or discharge-charge mode (cyclic mode).

The case is made of plastic that does not support Gorenje. The battery design eliminates electrolyte leakage. Internal gas recombination system, does not require adding water. There are no restrictions on transportation by any type of transport. The battery can be operated in any position other than

Specification

AppointmentFor UPS
Voltage, V12
Battery capacity, Ah2,2
Standards and certificationsDeclaration of conformity GOST 12.2.007.12-88;
GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10;
GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4
Battery Life
In buffered mode6 years (at 25°C)
In cyclic mode1200 cycles at 30% depth of discharge
Number of charge-discharge cycles in cyclic mode at 100% discharge240
Self-discharge3% per month at 20°C
Charge methodConstant voltage charge (25°C)
Cyclic mode2.35 - 2.4 V / cell
Buffer mode2.25 - 2.3 V / cell
Internal resistance of a fully charged battery (25°C), m?45
Cabinet materialABS plastic
Temperature modes
Storagefrom -35°C to + 60°C
Chargefrom -10°C to + 60°C
Dischargefrom -20°C to + 60°C
Warranty12 months if operating conditions are observed
Terminal typeF1
Maximum discharge current (25 ° C)37.5A(5c)
Height with terminal, mm66
Delivery setBattery
Product size, mm178x35x60
Weight, kg0,98
P/NEX282957
EAN4895205115453
