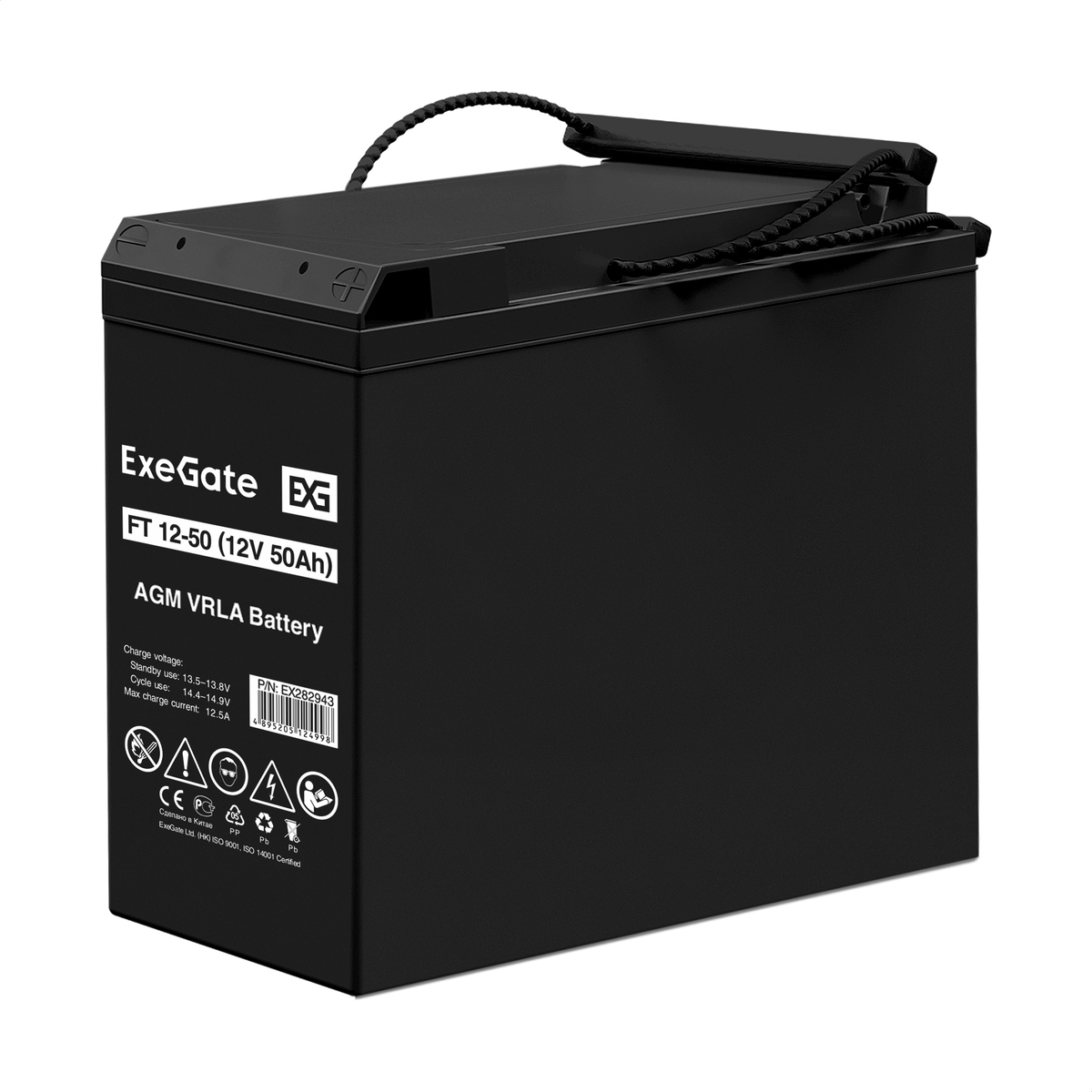

Battery ExeGate FT 12-50
FT series batteries are optimized for installation in 19" and 23" cabinets and racks. They are optimal for mobile operators ' power systems.
The front position of the terminals provides easy installation and maintenance. It does not require water level monitoring and refilling.
SpecificationThe front position of the terminals provides easy installation and maintenance. It does not require water level monitoring and refilling.
| Appointment | For UPS |
| Voltage, V | 12 |
| Battery capacity, Ah | 50 |
| Standards and certifications | Declaration of conformity GOST 12.2.007.12-88; GOST R IEC 61056-1-2012; GOST R IEC 60896-2-99 |
| Battery Life | |
| In cyclic mode | 10-12 years |
| In buffered mode | 1400 cycles at 30% depth of discharge |
| Self-discharge | 3% per month at 20°C |
| Charge method | Constant voltage charge (20°C) |
| Cyclic mode | 2.35-2.4 V / cell |
| Buffer mode | 2.27-2.3 V / cell |
| Internal resistance of a fully charged battery (25°C), m? | 9 |
| Cabinet material | ABS plastic |
| Temperature modes | |
| Storage | -20°C to +60°C |
| Charge | -10°C to +60°C |
| Discharge | -20°C to +60°C |
| Warranty | 12 months if operating conditions are observed |
| Terminal type | for M6 bolt |
| Maximum discharge current (25 ° C) | 500A(5c) |
| Height with terminal, mm | 224 |
| Delivery set | Battery |
| Product size, mm | 277x106x224 |
| Weight, kg | 15,5 |
| P/N | EX287149 |
| EAN | 4895205124998 |
