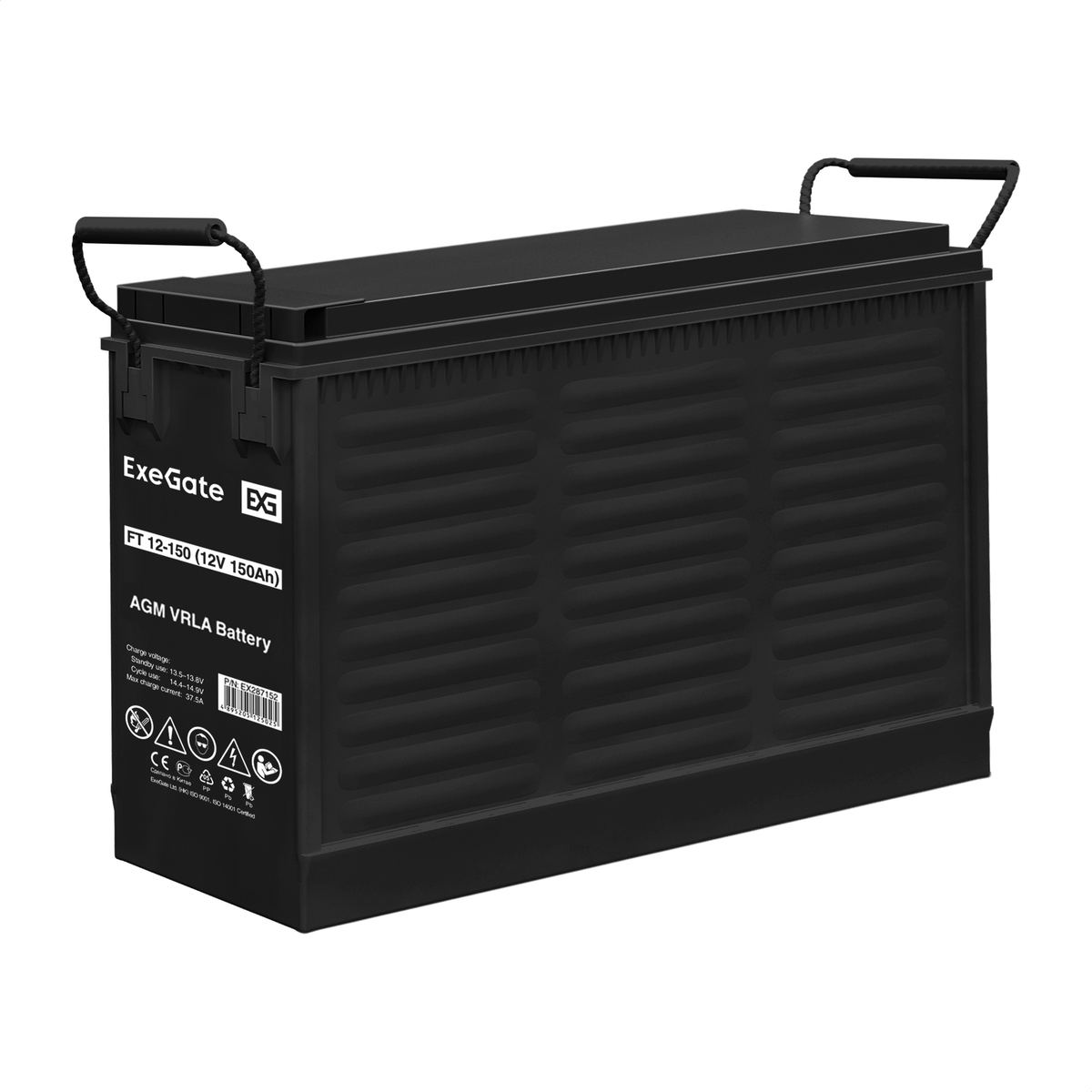

Battery ExeGate FT 12-150

Battery ExeGate FT 12-150
Battery ExeGate FT 12-150
Battery ExeGate FT 12-150
Battery ExeGate FT 12-150
FT series batteries are optimized for installation in 19" and 23" cabinets and racks. They are optimal for mobile operators ' power systems.

The front position of the terminals provides easy installation and maintenance. It does not require water level monitoring and refilling.

Specification

AppointmentFor UPS
Supply voltage, W12
Battery capacity, Ah150
Standards and certificationsDeclaration of conformity GOST 12.2.007.12-88; GOST R IEC 61056-1-2012; GOST R IEC 60896-2-99
Battery Life
In cyclic mode10-12 years
In buffered mode1400 cycles at 30% depth of discharge
Self-discharge3% per month at 20C
Charge methodConstant voltage charge (20C)
Cyclic mode2.35-2.4 V / cell
Buffer mode2.27-2.3 V / cell
Internal resistance of a fully charged battery (25C), m?3,1
Cabinet materialABS plastic
Temperature modes
Storage-20C to +60C
Charge-10C to +60C
Discharge-20C to +60C
Warranty12 months if operating conditions are observed
Terminal typefor M8 bolt
Maximum discharge current (25 C)1050 A(5c)
Height with terminal, mm287
Delivery setBattery
Product size, mm551x110x287
Weight, kg45,5
P/NEX287152
EAN4895205125025
