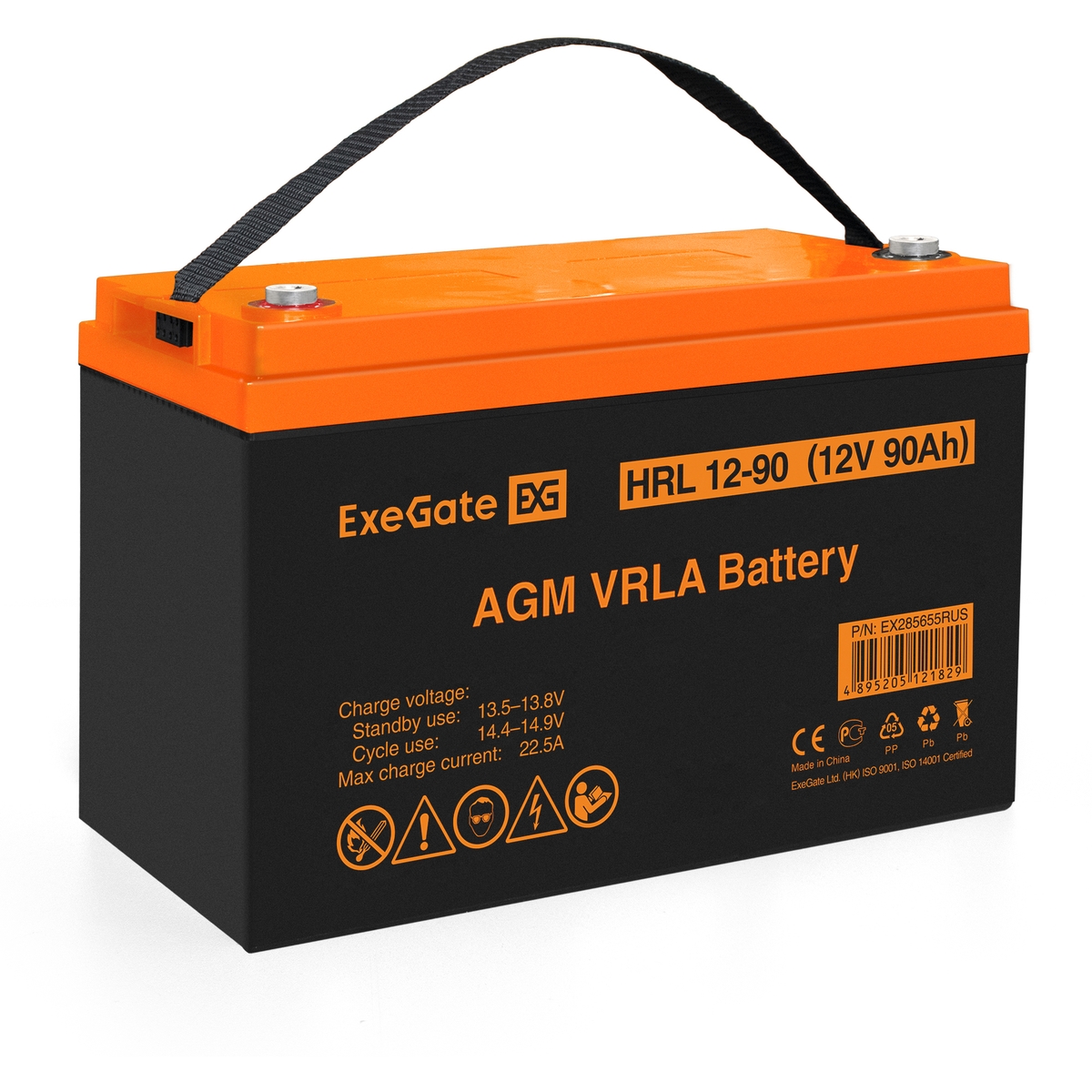

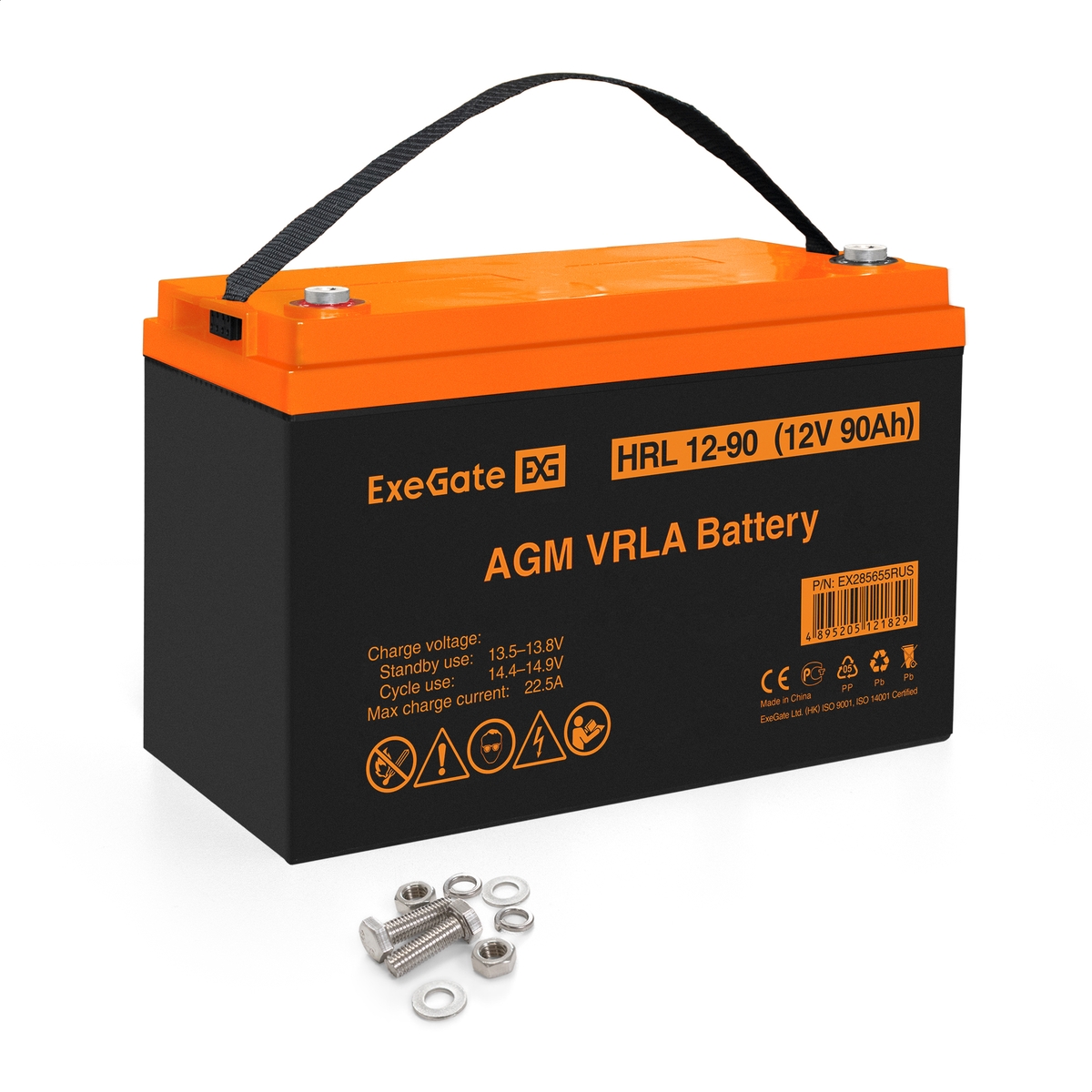

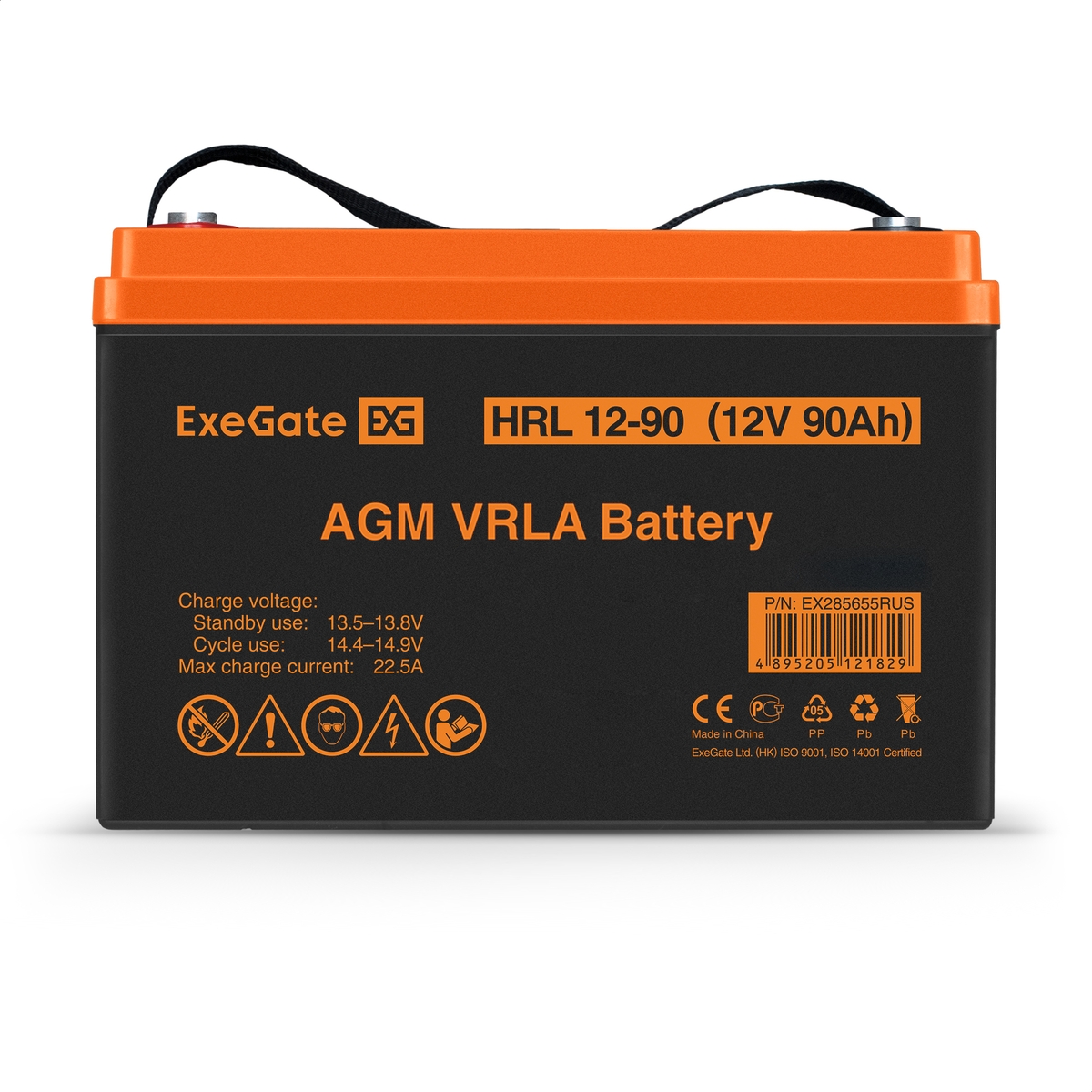

Battery ExeGate HRL 12-90

Battery ExeGate HRL 12-90
Battery ExeGate HRL 12-90
ExeGate HRL series lead-acid maintenance-free batteries are manufactured using AGM technology. They have low internal resistance and self-discharge. Excellent discharge characteristics at short discharge times.

The case is made of plastic that does not support Gorenje. The battery design eliminates electrolyte leakage. Internal gas recombination system, no water refilling. Corresponds to UL. The battery can be operated in any position other than upside down. Double sealing of brands.

Specification

AppointmentFor UPS
Supply voltage, W12
Battery capacity, Ah90
Standards and certificationsDeclaration of conformity GOST 12.2.007.12-88;
GOST R IEC 61056-1-2012 Pn. 4.1.2 - 4.1.4, 4.4, 5.4, 5.7 - 5.10;
GOST R IEC 60896-22-2015 Clause 4.2,4.3,4.4
Battery Life10-12 years (at 25C)
Number of charge-discharge cycles in cyclic mode at 100% discharge260
Self-discharge3% per month at 20C
Charge methodConstant voltage charge (25C)
Cyclic mode2.3 - 2.35 V / cell
Buffer mode2.23 - 2.27 V / cell
Internal resistance of a fully charged battery (25C), m?5,2
Cabinet materialABS plastic
Temperature modes
Storagefrom -35C to + 60C
Chargefrom -10C to + 60C
Dischargefrom -20C to + 60C
Warranty12 months if operating conditions are observed
Terminal typefor M6 bolt
Maximum discharge current (25 C)800A(5c)
Height with terminal, mm306x169x210
Delivery setBattery
Product size, mm306x169x210
Weight, kg29
P/NEX285655
EAN4895205121829
