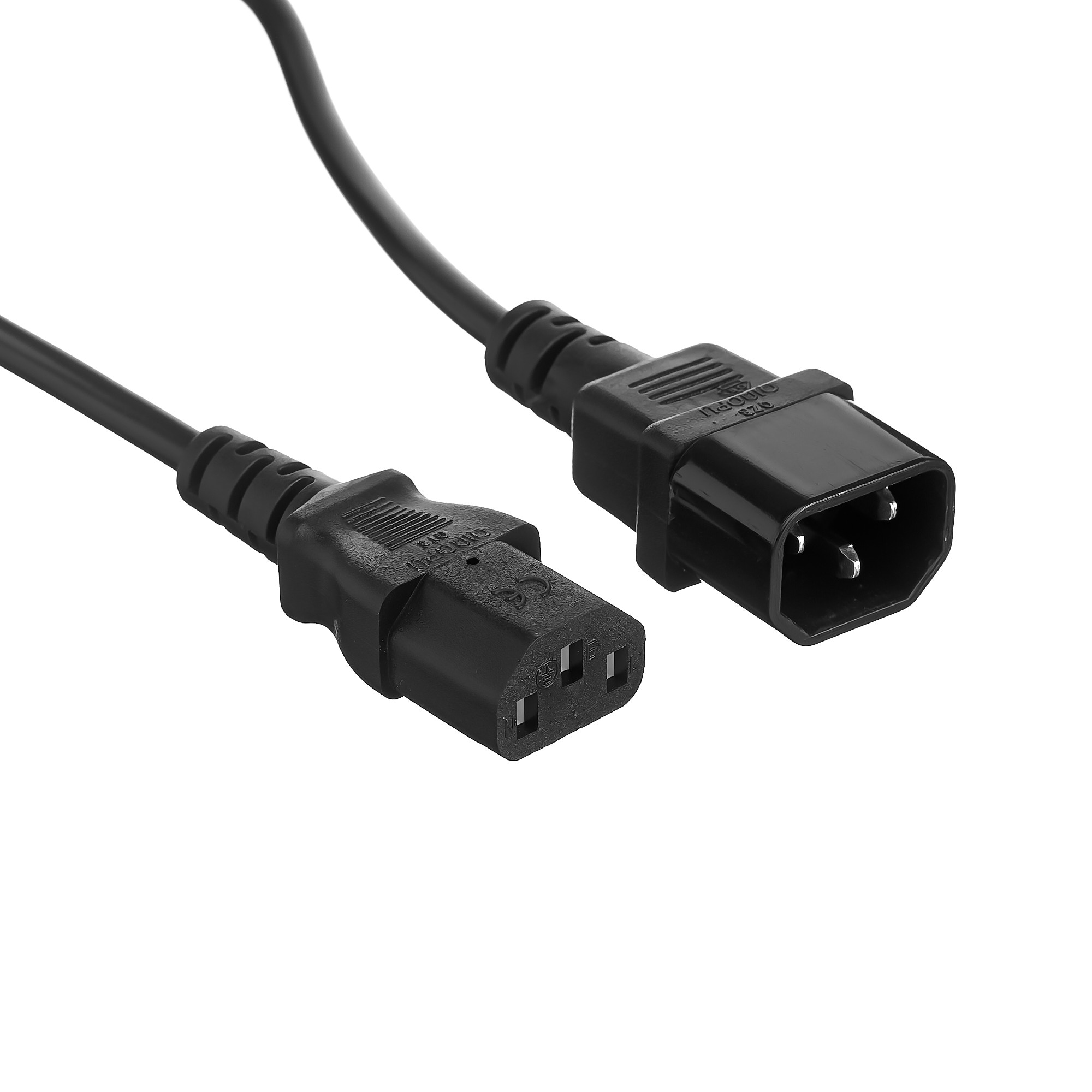

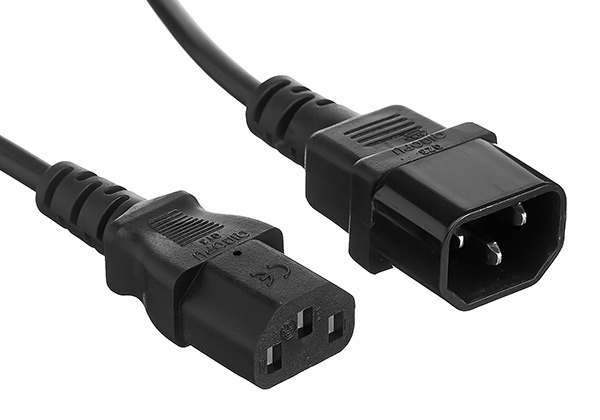

C14 - C13
Specification
Destination | Monitor - computer |
Plug type(M) | IEC 320 C13 |
Plug type (F) | IEC 320 C14 |
Number of wire | 3 |
Rated voltage, V | 230±10% |
Insulation Material: | PVC |
Color | Black |
Cabling Standards | VDE, EAC |
Model | ExeGate® Power | ExeGate® Power | ExeGate® Power | ExeGate® Power | ExeGate® Special | ExeGate® Power | ExeGate® Special | ExeGate® Power | ExeGate® Power | ExeGate® Special |
EC-0,5P (IEC 320 C13->C14) | EC-0,5P (IEC 320 C13->C14) | EC-1P (IEC 320 C13->C14) | EC-1P (IEC 320 C13->C14) | EC-1,8S (IEC 320 C13->C14) | EC-1,8P (IEC 320 C13->C14) | EC-1,8S (IEC 320 C13->C14) | EC-1,8P (IEC 320 C13->C14) | EC-1,8P (IEC 320 C13->C14) | EC-3S (IEC 320 C13->C14) | |
Conductor cross-sectional area, mm² | 0,5 | 0,75 | 0,5 | 0,75 | 0,5 | 0,5 | 0,75 | 0,75 | 3*1.0 | 0,5 |
Conductor Material | Copper | Copper | Copper | Copper | CCA | Copper | CCA | Copper | Copper | CCA |
Rated Current, A | 6 | 10 | 6 | 10 | 6 | 6 | 6 | 10 | 10 | 6 |
Cable Length, m | 0,5 | 0,5 | 1 | 1 | 1,8 | 1,8 | 1,8 | 1,8 | 1,8 | 3 |
P/N | EP280619 | EP280620 | EP280621 | EP280622 | ES280987 | EP280624 | ES280988 | EP280625 | EP280626 | ES280989 |
EAN | 4895205110427 | 4895205110434 | 4895205110496 | 4895205110502 | 4895205111011 | 4895205110441 | 4895205111028 | 4895205110458 | 4895205110465 | 4895205111035 |
Model | ExeGate® Power | ExeGate® Special | ExeGate® Power | ExeGate® Power | ExeGate® Power | ExeGate® Special | ExeGate® Power | ExeGate® Power | ExeGate® Power | ExeGate® Power |
EC-3P (IEC 320 C13->C14) | EC-3S (IEC 320 C13->C14) | EC-3P (IEC 320 C13->C14) | EC-3P (IEC 320 C13->C14) | EC-5P (IEC 320 C13->C14) | EC-5S (IEC 320 C13->C14) | EC-5P (IEC 320 C13->C14) | EC-5P (IEC 320 C13->C14) | EC-10P (IEC 320 C13->C14) | EC-10P (IEC 320 C13->C14) | |
Conductor cross-sectional area, mm² | 0,5 | 0,75 | 0,75 | 3*1.0 | 0,5 | 0,75 | 0,75 | 3*1.0 | 0,75 | 3*1.0 |
Conductor Material | Copper | CCA | Copper | Copper | Copper | CCA | Copper | Copper | Copper | Copper |
Rated Current, A | 6 | 6 | 10 | 10 | 6 | 6 | 10 | 10 | 10 | 10 |
Cable Length, m | 3 | 3 | 3 | 3 | 5 | 5 | 5 | 5 | 10 | 10 |
P/N | EP280627 | ES280990 | EP280628 | EP280629 | EP280630 | ES280991 | EP280631 | EP280632 | EP280633 | EP280634 |
EAN | 4895205110519 | 4895205111042 | 4895205110526 | 4895205110533 | 4895205110540 | 4895205111059 | 4895205110557 | 4895205110564 | 4895205110472 | 4895205110489 |
