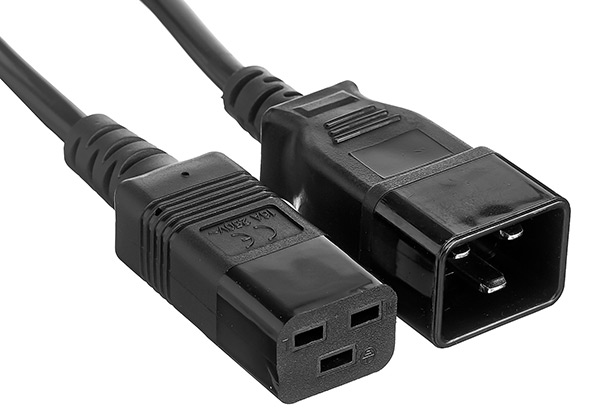

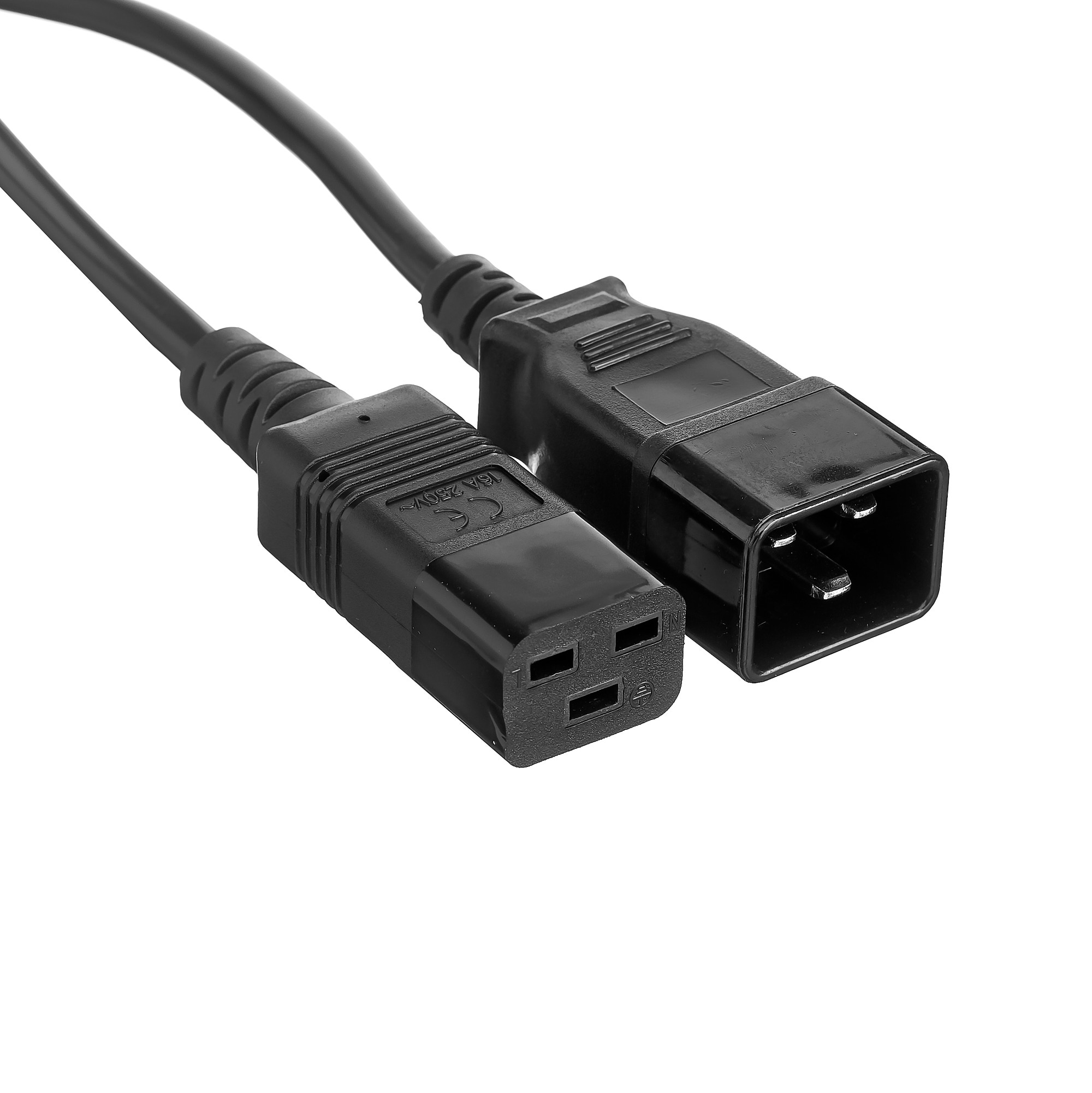

C20 - C19
Specification
| Destination | Power cord (UPS) |
| Plug type(M) | IEC 320 C19 |
| Plug type (F) | IEC 320 C20 |
| Number of wire | 3 |
| Rated voltage, V | 230±10% |
| Insulation Material: | PVC |
| Color | Black |
| Cabling Standards | VDE, EAC |
| Model | ExeGate® Power | ExeGate® Power | ExeGate® Power | ExeGate® Power |
| EC20-1,8P (IEC 320 C19->C20) | EC20-3P (IEC 320 C19->C20) | EC20-5P (IEC 320 C19->C20) | EC20-10P (IEC 320 C19->C20) | |
| Conductor cross-sectional area, mm² | 1,5 | 1,5 | 1,5 | 1,5 |
| Conductor Material | Copper | Copper | Copper | Copper |
| Rated Current, A | 16 | 16 | 16 | 16 |
| Cable Length, m | 1,8 | 3 | 5 | 10 |
| P/N | EP280635 | EP280636 | EP280637 | EP280639 |
| EAN | 4895205110571 | 4895205110595 | 4895205110601 | 4895205110588 |
