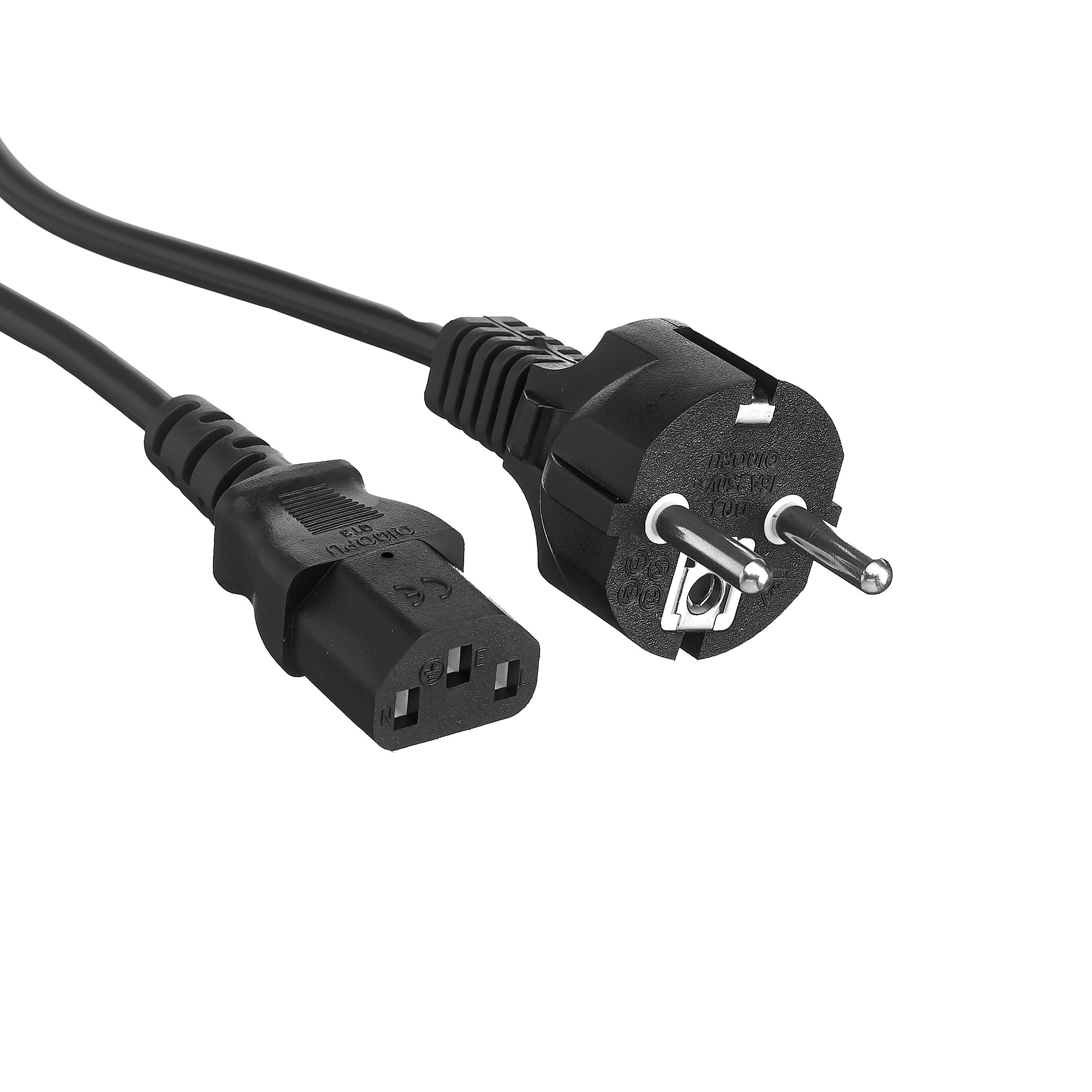

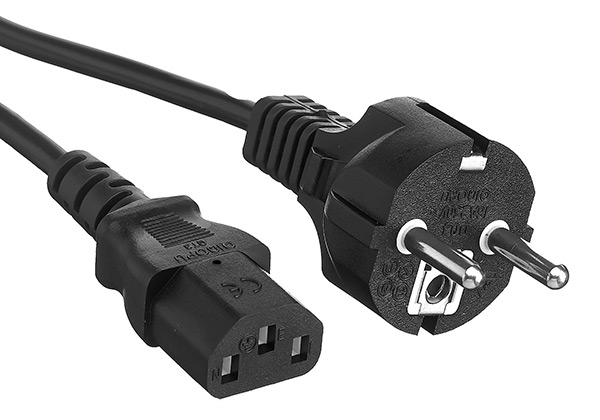

C13 - Schuko

Specification

Destination Power cord (UPS)
Plug type(M) Europlug Schuko
Plug type (F) IEC 320 C13
Number of wire 3
Rated voltage, V 230±10%
Insulation Material: PVC
Color Black
Cabling Standards VDE, EAC



Model ExeGate® Power ExeGate® Special ExeGate® Power ExeGate® Power ExeGate® Power ExeGate® Special ExeGate® Power ExeGate® Special ExeGate® Power ExeGate® Power ExeGate® Special
  PC-1P (Europlug Schuko->C13) PC-1S (Europlug Schuko->C13) PC-1P (Europlug Schuko->C13) PC-1,5P (Europlug Schuko->C13) PC-1,5P (Europlug Schuko->C13) PC-1,8S (Europlug Schuko->C13) PC-1,8P (Europlug Schuko->C13) PC-1,8S (Europlug Schuko->C13) PC-1,8P (Europlug Schuko->C13) PC-1,8P (Europlug Schuko->C13) PC-3S (Europlug Schuko->C13)
Conductor cross-sectional area, mm² 0,5 0,5 0,75 0,5 0,75 0,5 0,5 0,75 0,75 1 0,5
Conductor Material Copper CCA Copper Copper Copper CCA Copper CCA Copper Copper CCA
Rated Current, A 6 * 10 6 10 * 6 6 10 10 *
Cable Length, m 1 1 1 1,5 1,5 1,8 1,8 1,8 1,8 1,8 3
P/N EP280640 ES280992 EP280641 EP280642 EP280643 ES280993 EP280645 ES280994 EP280646 EP280647 ES280995
EAN 4895205110762 4895205111073 4895205110779 4895205110618 4895205110625 4895205111165 4895205110632 4895205111172 4895205110649 4895205110656 4895205111080



Model ExeGate® Power ExeGate® Special ExeGate® Power ExeGate® Power ExeGate® Power ExeGate® Special ExeGate® Power ExeGate® Special ExeGate® Power ExeGate® Power ExeGate® Power ExeGate® Power
  PC-3P (Europlug Schuko->C13) PC-3S (Europlug Schuko->C13) PC-3P (Europlug Schuko->C13) PC-3P (Europlug Schuko->C13) PC-3P (Europlug Schuko->C13) PC-5S (Europlug Schuko->C13) PC-5P (Europlug Schuko->C13) PC-5S (Europlug Schuko->C13) PC-5P (Europlug Schuko->C13) PC-5P (Europlug Schuko->C13) PC-10P (Europlug Schuko->C13) PC-10P (Europlug Schuko->C13)
Conductor cross-sectional area, mm² 0,5 0,75 0,75 1 1,5 0,5 0,5 0,75 0,75 1 0,75 1
Conductor Material Copper CCA Copper Copper Copper CCA Copper CCA Copper Copper Copper Copper
Rated Current, A 6 6 10 10 10 * 6 6 10 10 10 10
Cable Length, m 3 3 3 3 3 5 5 5 5 5 10 10
P/N EP280648 ES280996 EP280650 EP280652 EX295578 ES280997 EP280653 ES280998 EP280654 EP280655 EP280656 EP280657
EAN 4895205110786 4895205111097 4895205110793 4895205110809 4895205148253 4895205111127 4895205110847 4895205111134 4895205110854 4895205110861 4895205110687 4895205110694

* Depends on operating conditions
