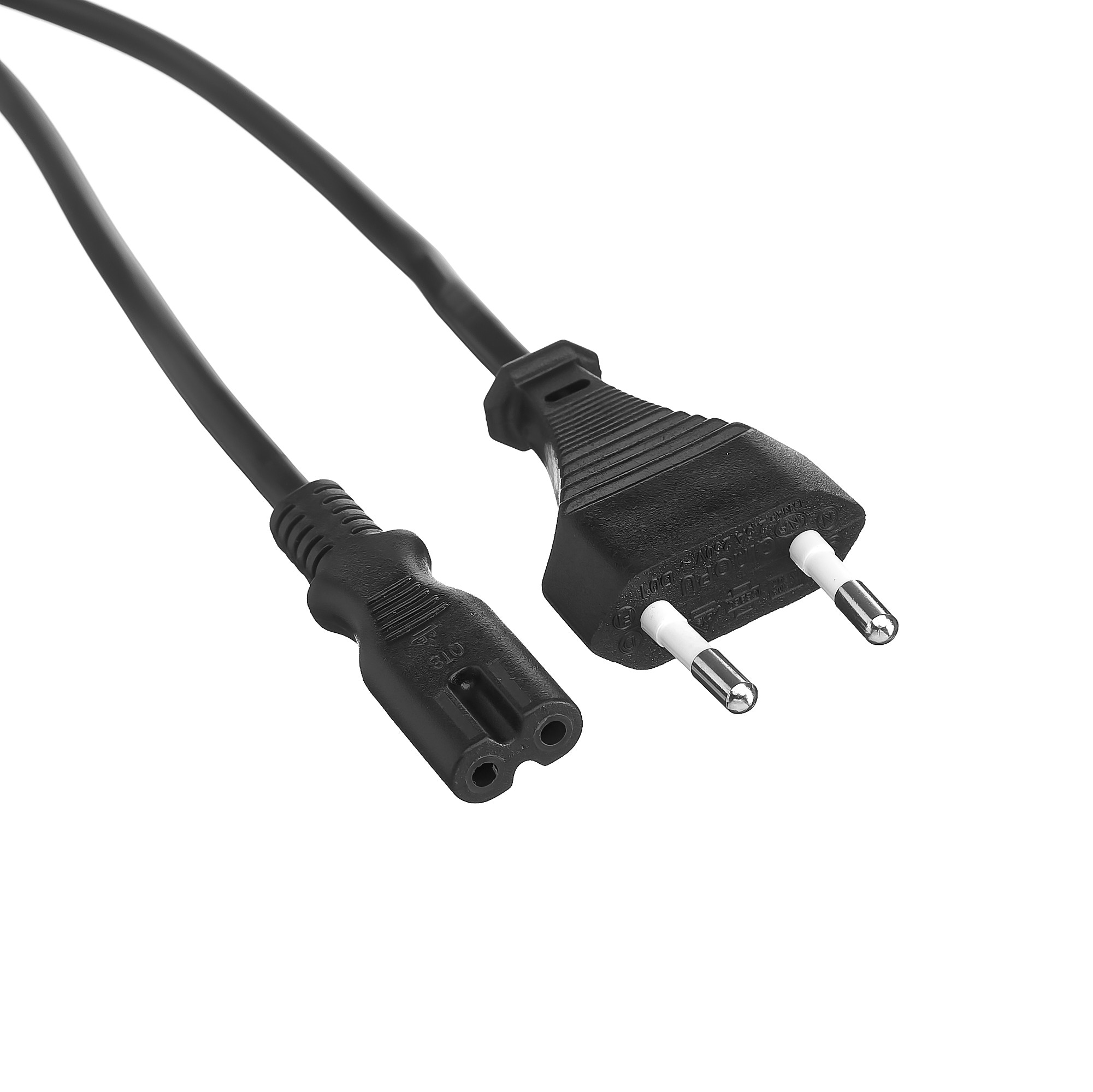

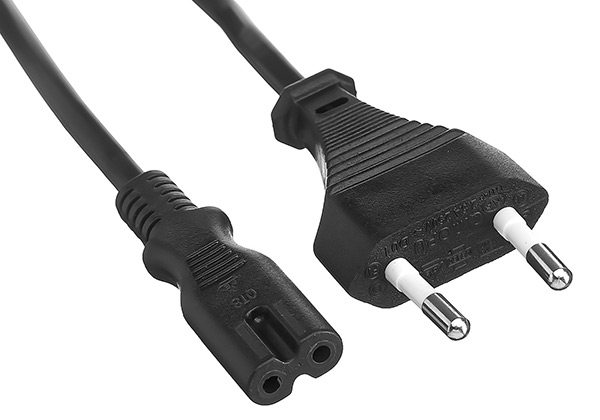

C7 - Europlug
Specification
Destination | Laptop power cord, audio/ video |
Plug type(M) | Socket CEE7/16 |
Plug type (F) | IEC 320 C7 |
Number of wire | 2 |
Rated voltage, V | 230±10% |
Insulation Material: | PVC |
Color | Black |
Cabling Standards | VDE, EAC |
Model | ExeGate® Special | ExeGate® Power | ExeGate® Power | ExeGate® Power | ExeGate® Special | ExeGate® Power | ExeGate® Power |
PCN-0,5S (Europlug CEE7/16->C7) | PCN-0,5P (Europlug CEE7/16->C7) | PCN-7,5P (Europlug CEE7/16->C7) | PCN-1,5P (Europlug CEE7/16->C7) | PCN-1,8S (Europlug CEE7/16->C7) | PCN-1,8P (Europlug CEE7/16->C7) | PCN-3P (Europlug CEE7/16->C7) | |
Conductor cross-sectional area, mm² | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 |
Conductor Material | CCA | Copper | Copper | Copper | CCA | Copper | Copper |
Rated Current, A | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Cable Length, m | 0,5 | 0,5 | 0,75 | 1,5 | 1,8 | 1,8 | 3 |
P/N | ES281004 | EP280673 | EP280674 | EP280675 | ES281005 | EP280676 | EP280677 |
EAN | 4895205111196 | 4895205110939 | 4895205110977 | 4895205110946 | 4895205111202 | 4895205110953 | 4895205110960 |
