Products / Archive / Case / Series MS

Series MS

Case TypeSlim Minitower
Chassis MaterialSteel
PSU TypeSFX
Optional accessories HDD Adapters
Accessories

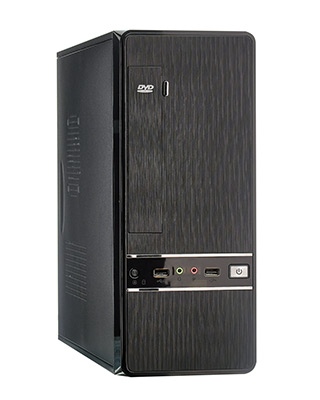

Model MS-305
MS-305

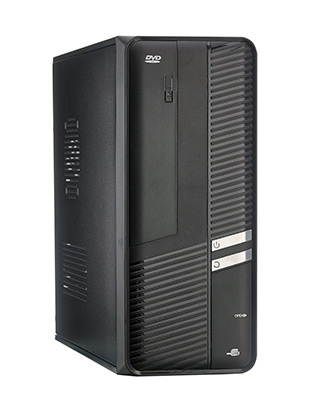

MS-306
MS-306
Cases Features
Material Thickness, mm0.60.6
Motherboard SupportATXATX
Screwless accessYesYes
Number of screws for mounting the side panel, pcs22
External 5,25" Drive Bay11
Internal 3,5" Drive Bay11
Internal 2,5" Drive Bay33
Interfaces
Front I/O PortsAudio 2 x 3.5mm (AC97)Audio 2 x 3.5mm (AC97)
USB22
Interface locationIn the middle of the front panelIn the middle of the front panel
Expansion Slots44
Fan Support:
Rear Panel6 cm x 26 cm x 2
Side Panel8 cm x 18 cm x 1
PSU modelsM300, M350, M400, M450M300, M350, M400, M450
Power supply locationAt the top of the rear sideAt the top of the rear side
Fan of PSU8080
Max. motherboard length, mm244244
Max. height of the CPU fan, mm100100
Max. PSU length, mm210210
Max. PSU length with drive opposite, mm160160
Max. SVGA length, mm310310
Max. SVGA length with drive opposite, mm310310
Case ColorBlackBlack
Chassis ColorSilverSilver
Chassis dimensions
Width, mm130130
Height, mm325325
Depth, mm360360
Case Dimensions
Width, mm130130
Height, mm330330
Depth, mm400400
Carton Dimensions
Width, mm170170
Height, mm370370
Depth, mm445445
Net Weight , kg2.852.85
PSU models, PN/EAN
w/o PSUEX280452
4895205110250
EX280457
4895205110205
300WEX280444
4895205110298
EX280453
4895205110243
350WEX280449
4895205110281
EX280454
4895205110236
400WEX280450
4895205110274
EX280455
4895205110229
450WEX280451
4895205110267
EX280456
4895205110212
