Series TP

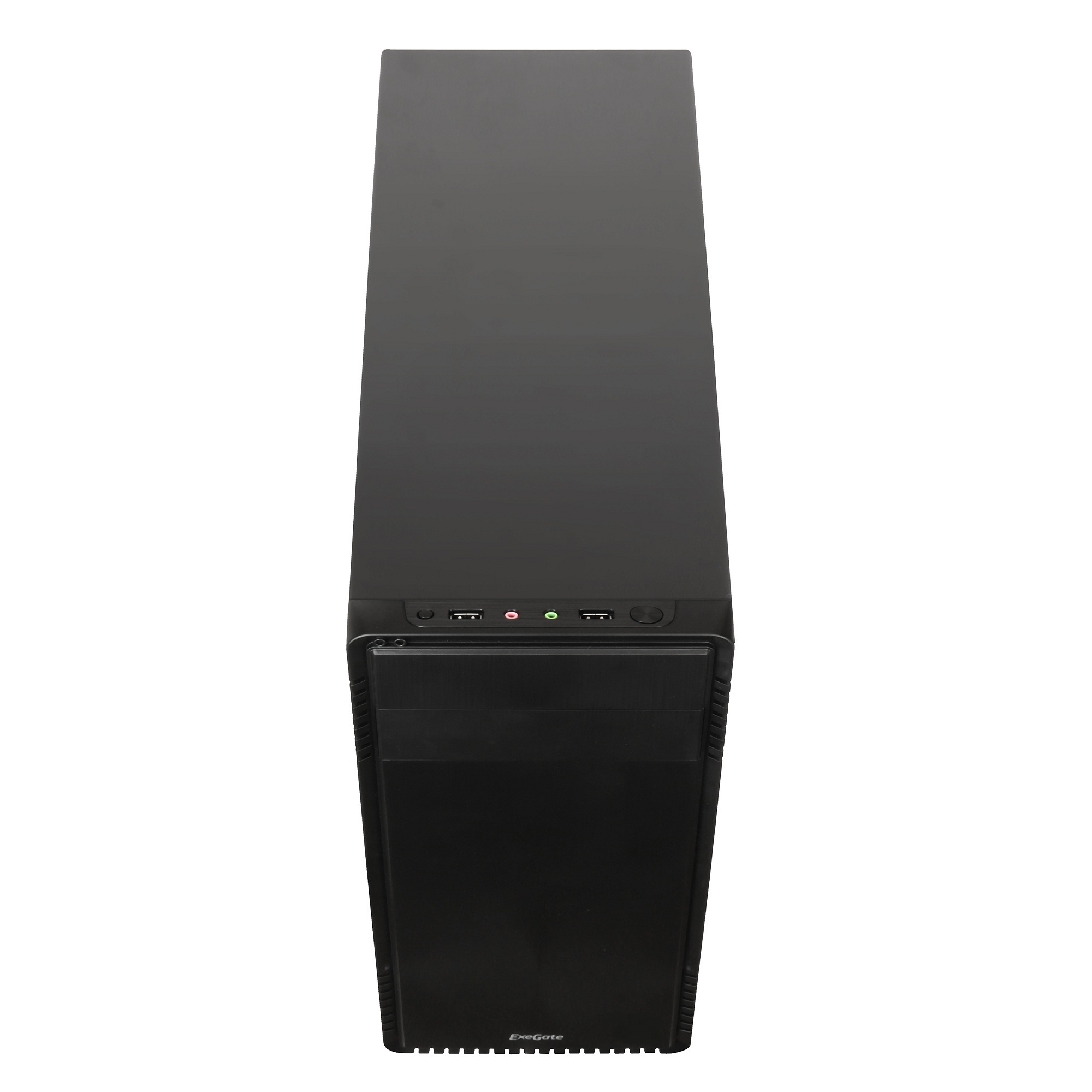

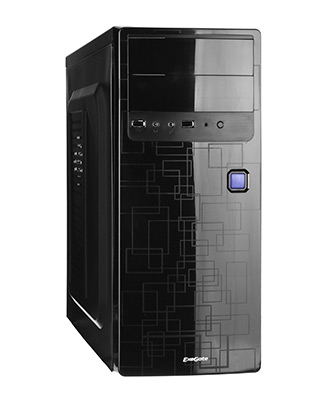

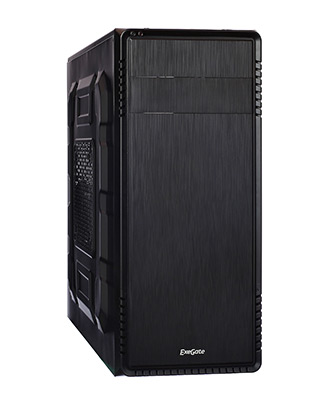

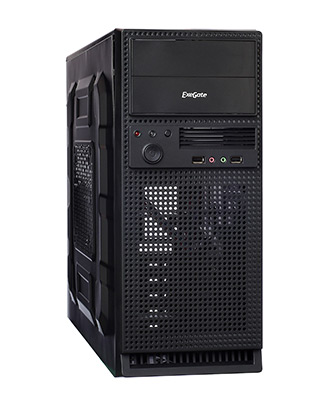

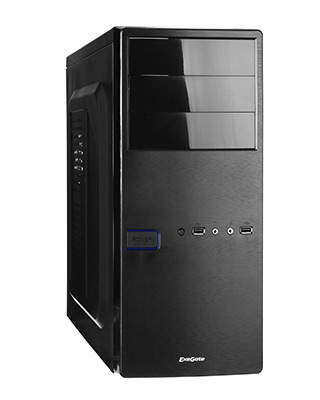

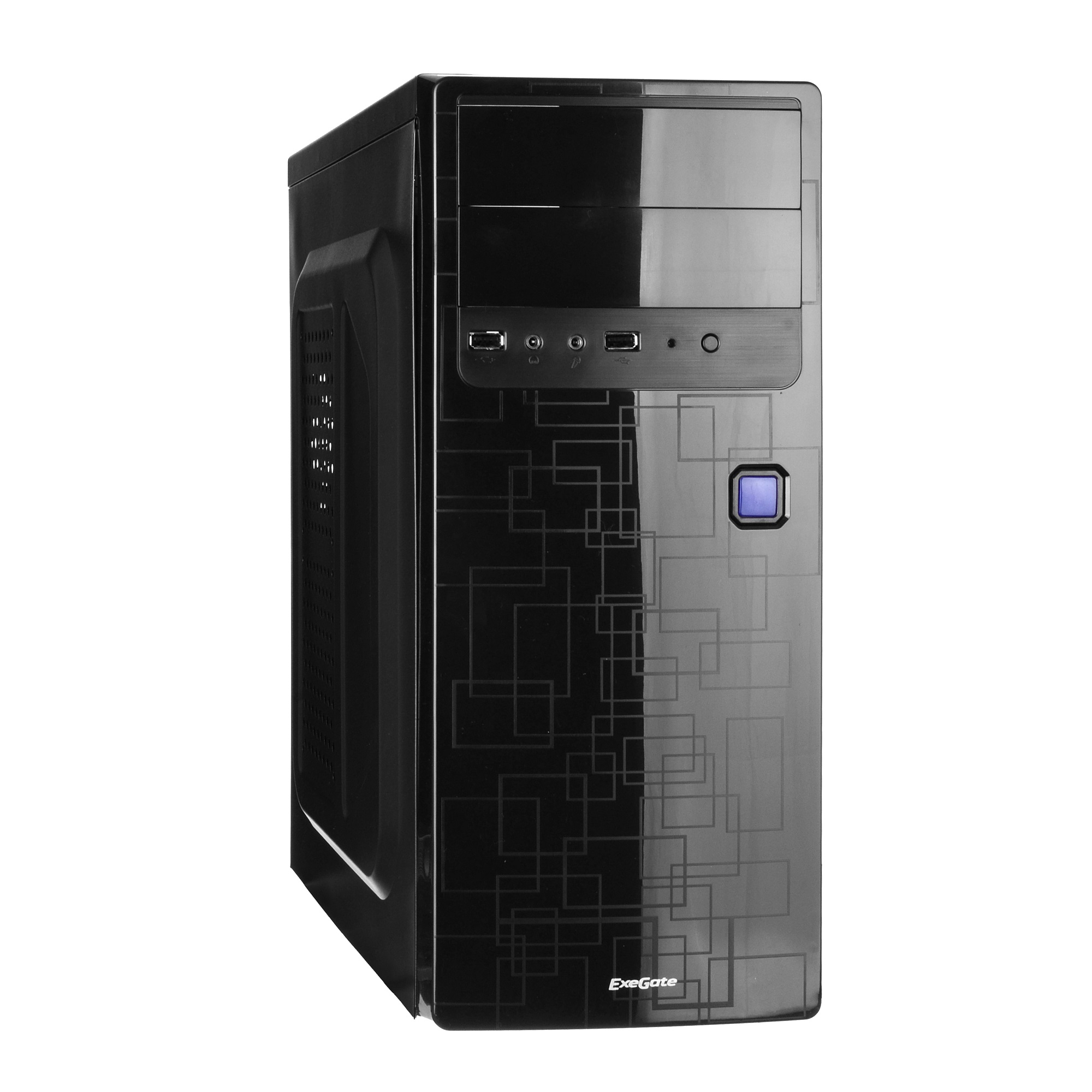

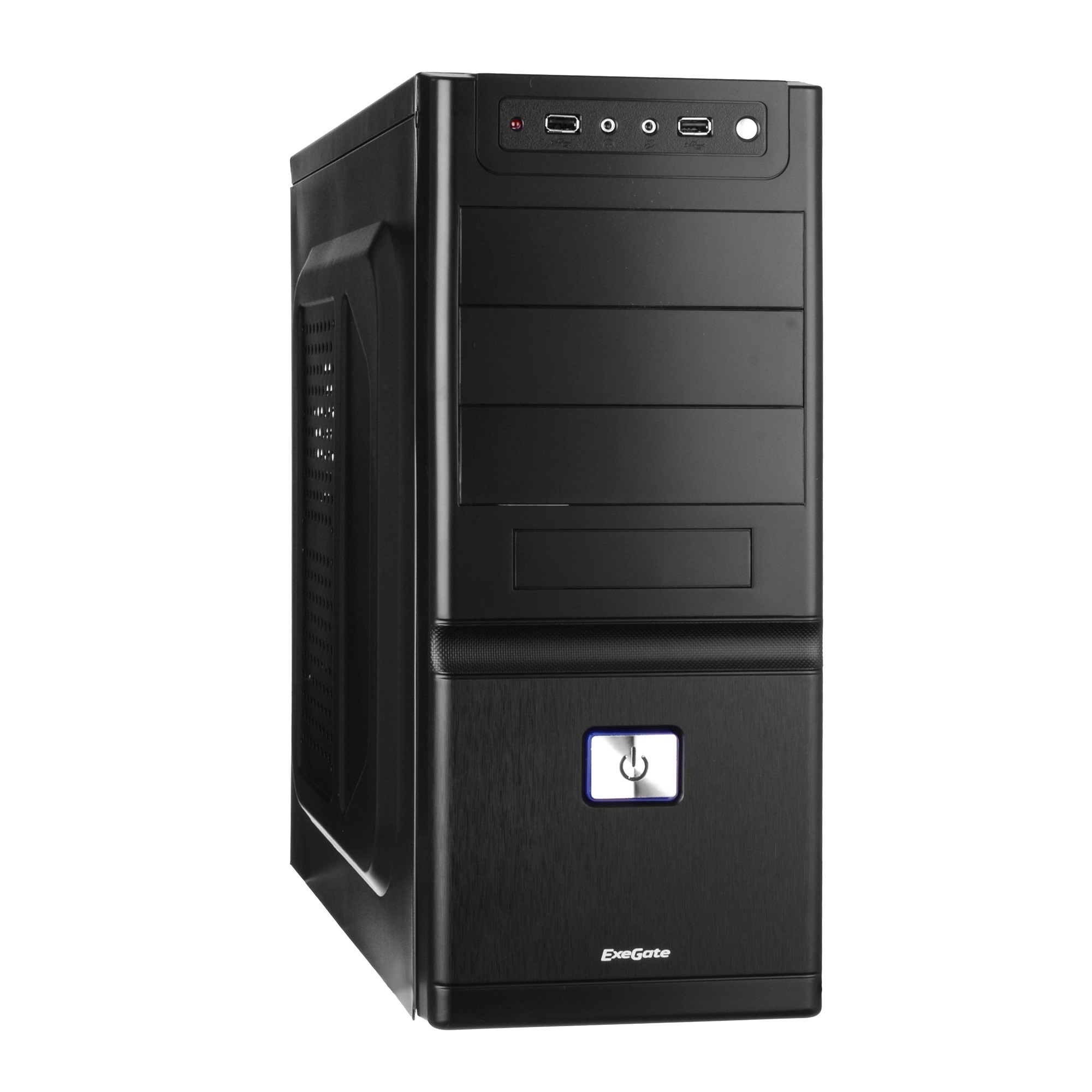

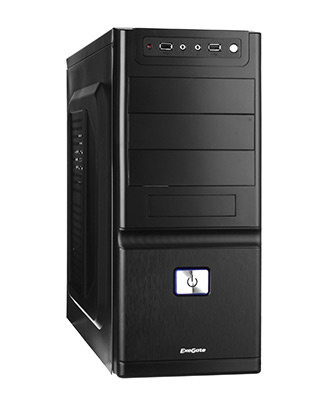

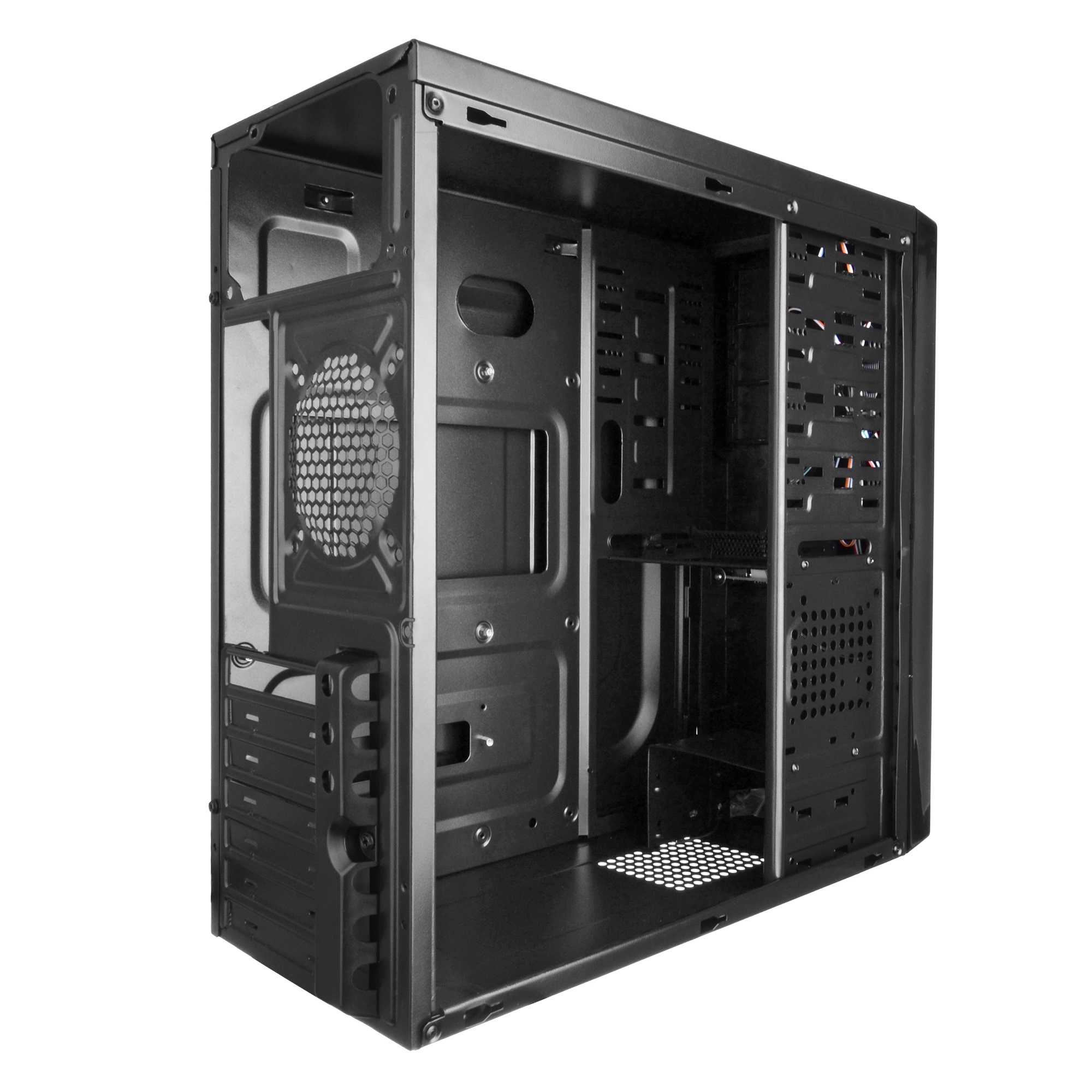

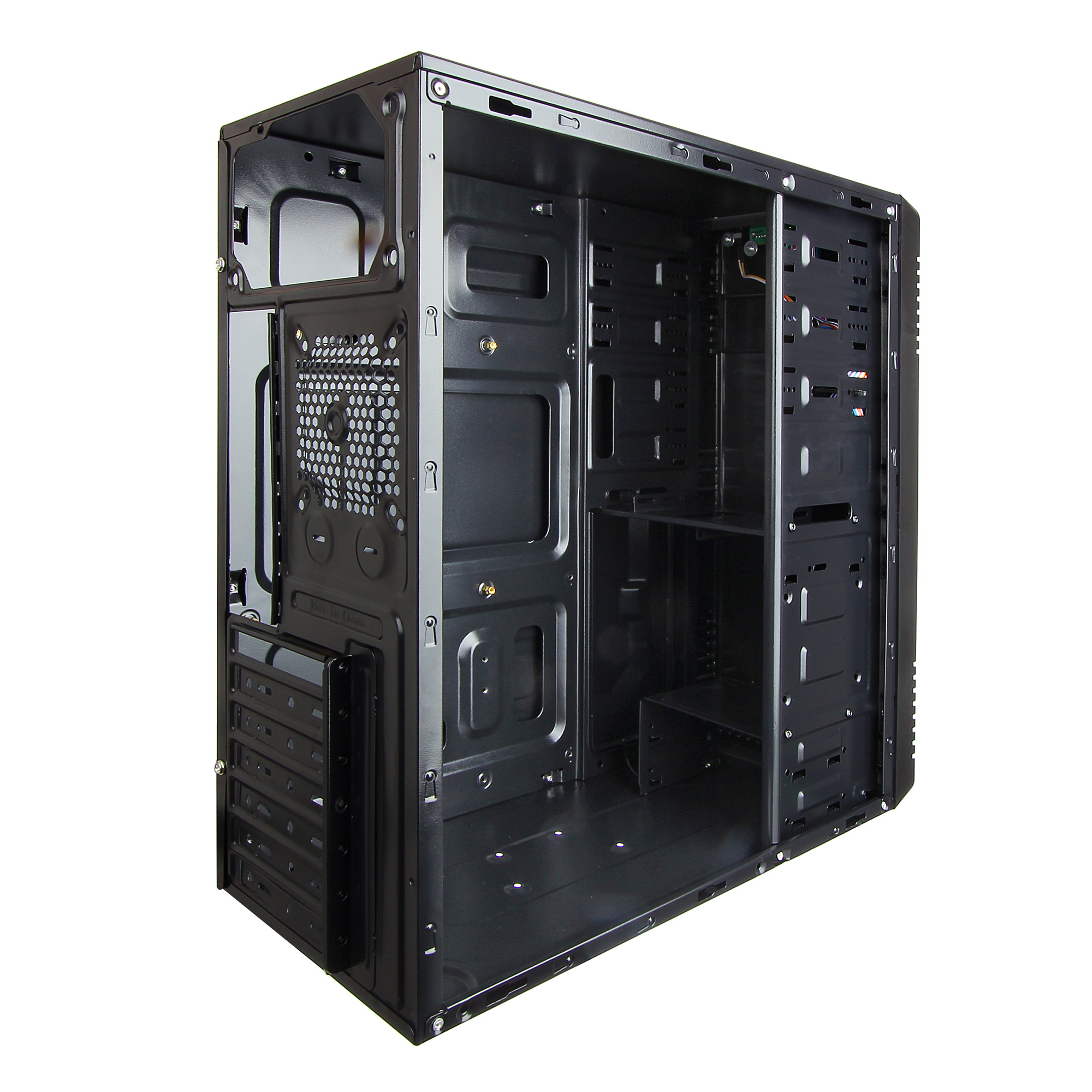

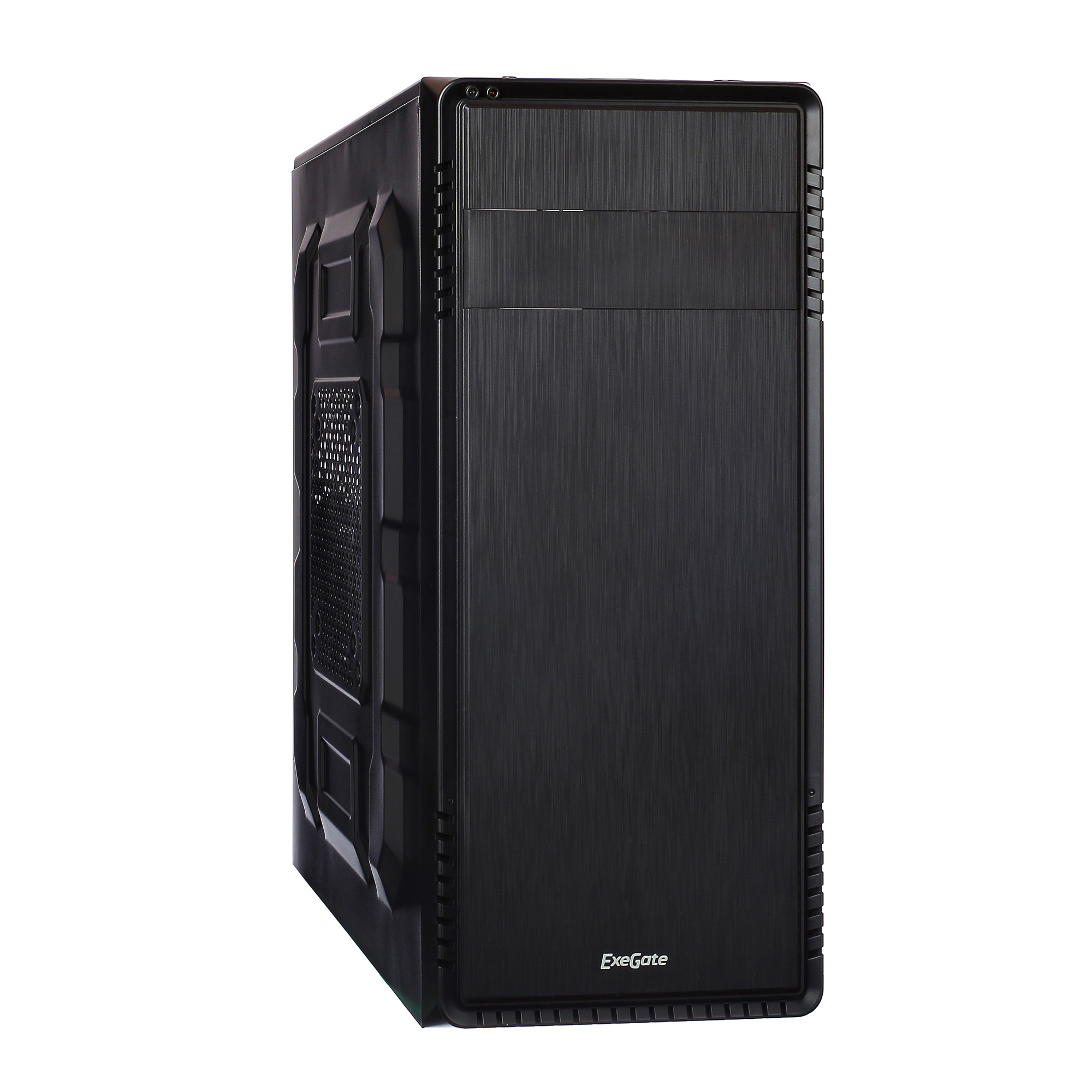

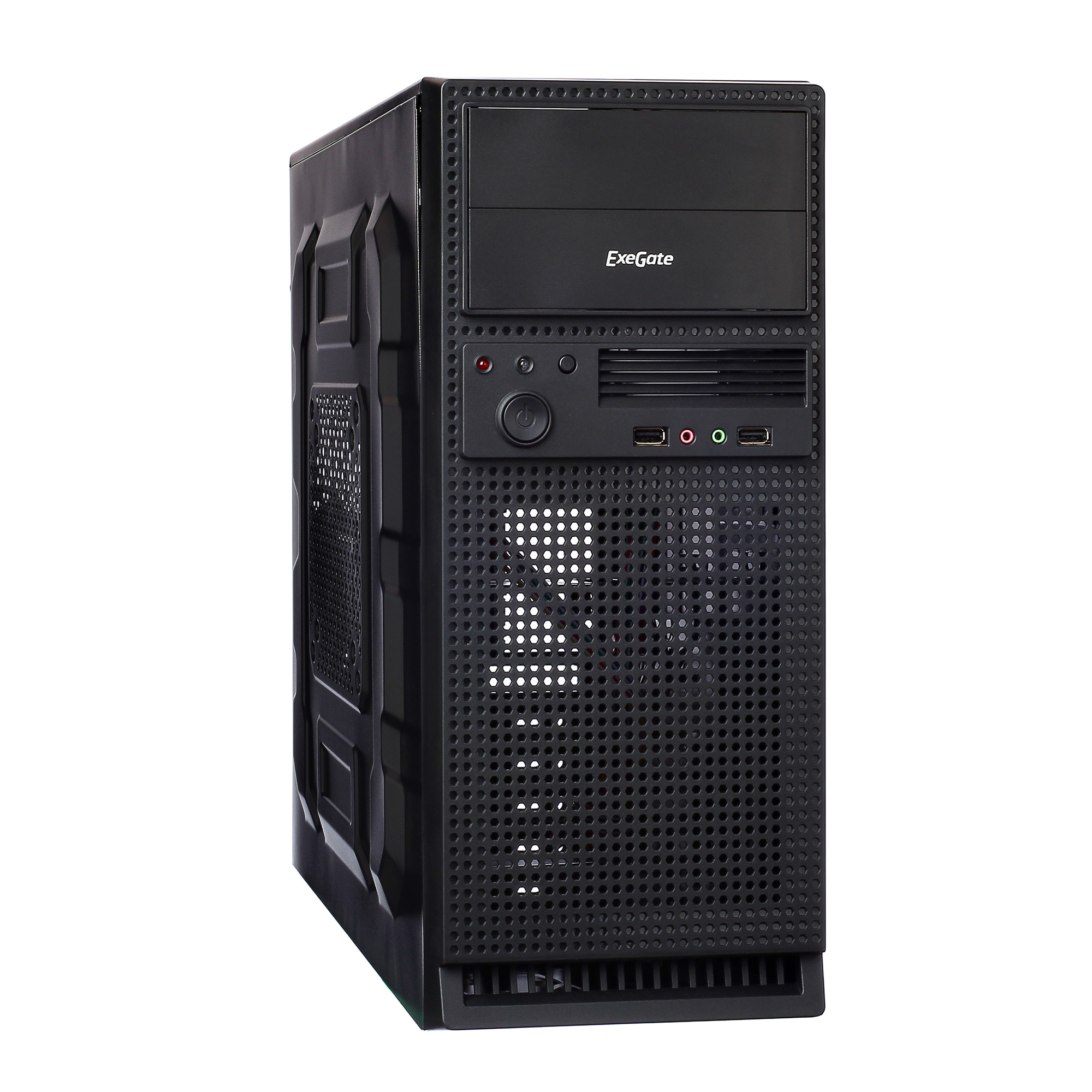

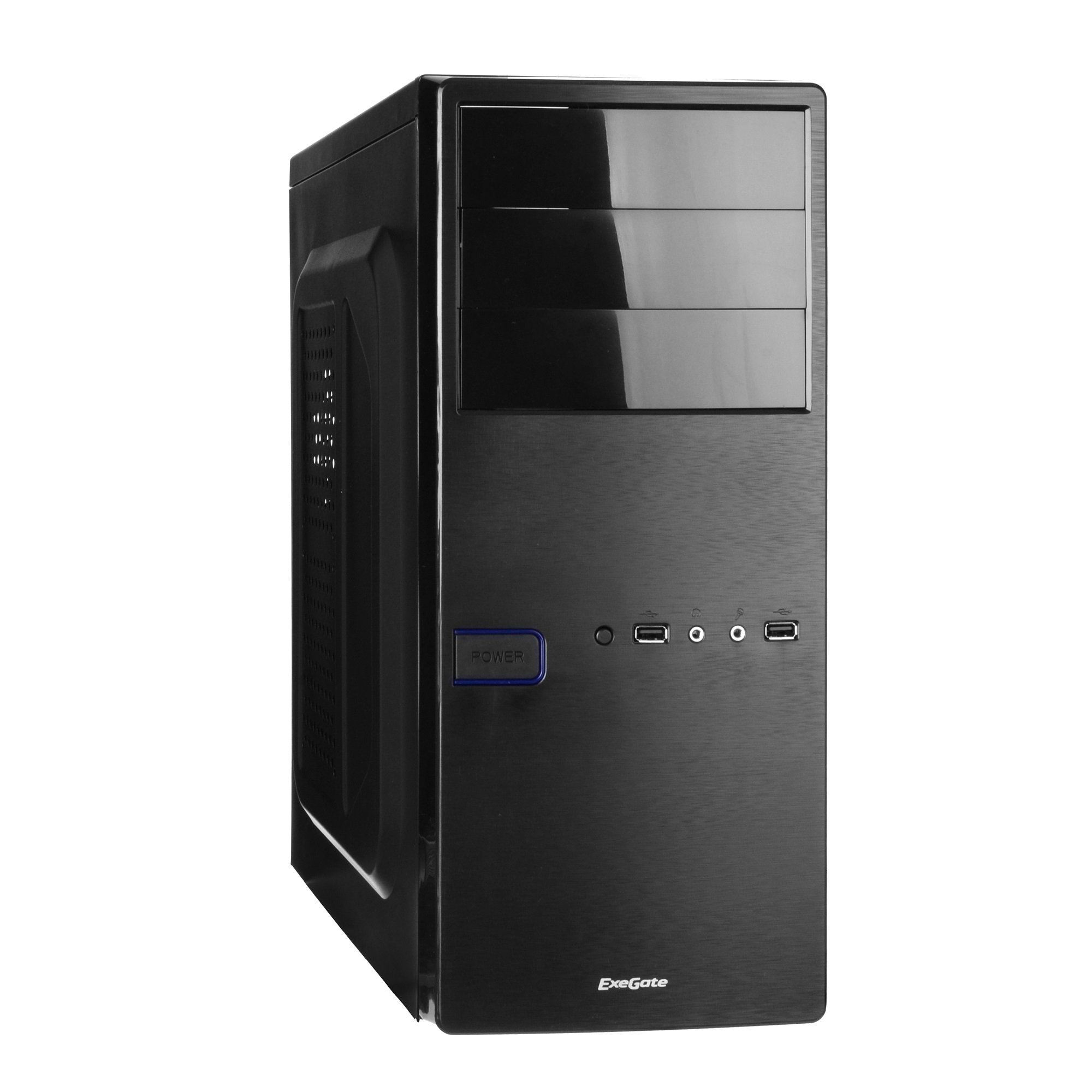

TP-209 TP-210 TP-211 TP-212 TP-213
TP-209 TP-210 TP-211 TP-212 TP-213

Specification

Case Type Miditower
Chassis Material Steel
Case Color Black
Motherboard Support mATX, ATX
Drive Bay:
Ext. 5.25" 3
2 for TP-210, TP-212, TP-213
1 for TP-209
Ext. 3.5" 1 for TP-213
Int. 5.25" 1 except TP-211
Int. 3.5" 2
3 for TP-211, TP-212, TP-213
Int. 2.5" 2
1 for TP-211, TP-212, TP-213
Front I/O Ports 2 x USB 2.0, MIC&HD Audio
Expansion Slots 7
Cooling System
Rear 1 x 8 cm/ 1 x 9,2 cm
Side 1 x 12 cm
2 x 12 cm for TP-211, TP-212, TP-213
PSU models NPX400, NPX450, NPX500, w/o PSU
Max. motherboard length, mm 244
Max. height of the CPU fan, mm 145
Max. PSU length, mm 245/190
Max. SVGA length, mm 380
Chassis dimensions (W x H x D), mm 175 x 410 x 365
175 x 410 x 375 for TP-211, TP-212, TP-213
Dimensions (W x H x D), mm 185 x 412 x 406
190 x 412 x 420 for TP-210, TP-211, TP-212, TP-213
Net Weight w/o PSU / with PSU, kg 3,5/4,5
Optional accessories HDD Adapters
Front panel 3,5"
Card Reader 3,5"
Multifunction panel 5,25"


Model   w/o PSU 400 W 450 W 500 W
TP-209 P/N EX254034 EX254035 EX254036 EX254037
EAN 4895205100503 4895205100107 4895205100114 4895205100121
TP-210 P/N EX254038 EX254039 EX254040 EX254041
EAN 4895205100510 4895205100138 4895205100145 4895205100152
TP-211 P/N EX256237 EX256291 EX256127 EX256294
EAN 4895205101029 4895205101036 4895205100787 4895205101043
TP-212 P/N EX256238 EX256292 EX256128 EX256296
EAN 4895205101050 4895205101067 4895205100794 4895205101074
TP-213 P/N EX256239 EX256293 EX256130 EX256297
EAN 4895205101081 4895205101098 4895205100800 4895205101104
