200x200

Specification

Dimension, mm 200x200x20
Speed (R.P.M.) 800±10%
Air flow (CFM) 100
Air pressure (mmH2O) 0,6
Fan life expectancy 70 000
Noise, dBA 24
Bearing type 1 sleeve
Connector 3 pin
Rated Current, A 0,27
Power Input, W 3,2
Rated Voltage, V 12
LED/UV LED
Weight, g 120


  Model Color P/N EAN

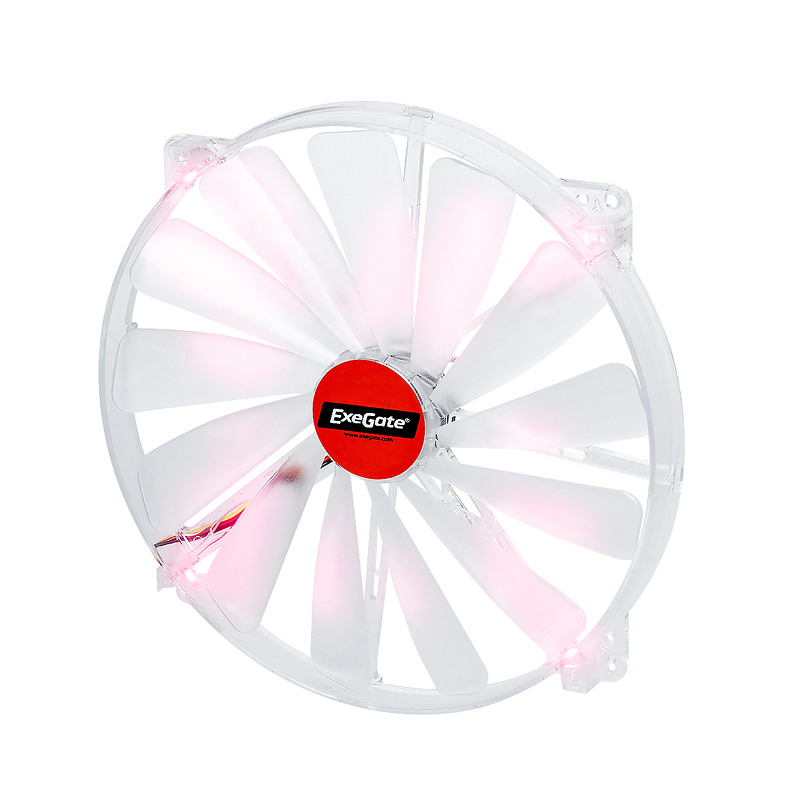

Mirage 200x20S, Red LED Mirage 200x20S, Red LED Red EX166178 4897040851534

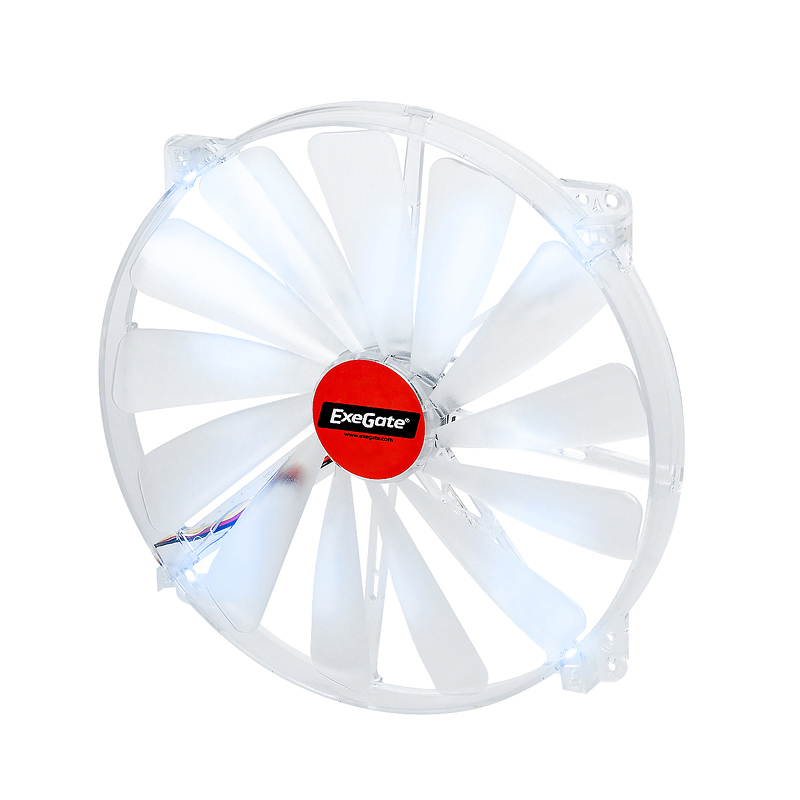

Mirage 200x20S, Blue LED Mirage 200x20S, Blue LED Blue EX166179 4897040851541

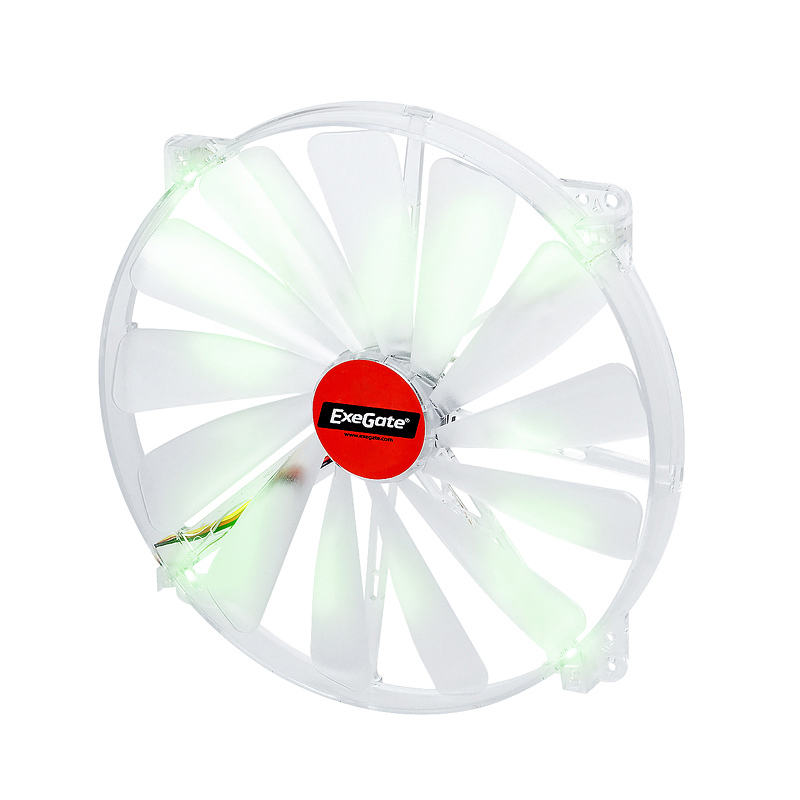

Mirage 200x20S, Green LED Mirage 200x20S, Green LED Green EX166180 4897040851558
