Case

Specification

MotherBoard ATX
Metal Thickness SGCC/1.0mm
Max. motherboard size, mm 305x244
Front I/O Ports 2 x USB 2.0
Indicators 1x Power Status (blue),1x HDD Status(red)
Front Buttons 1x Power On/Off, 1x Reset Switch
PSU 2 x ATX
Recommended Exegate PSU EX850, EX1000, EX1200, SHP1300, SHP1700, SHP2000
Cases color Black
Chassis color Silver



Pro 6-470

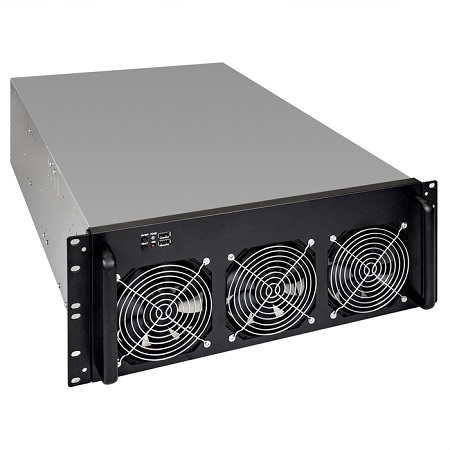

Pro 6-650

Pro 8-430

Pro 8-650

Pro 13-430
Expansion Slots 6 PCS graphic cards (Max length 330mm) 6 PCS graphic cards (Max length 340mm) 8 PCS graphic cards (Max length 340mm) 8 PCS graphic cards (Max length 330mm) 13 PCS graphic cards(Max length 340mm)
Driver Bays Internal: 1x3.5" HDD Internal: 1x3.5" HDD or 1x2.5" HDD Internal: 1x3.5" HDD, 1x2.5" HDD (3x2.5 instead 1x3.5") Internal: 1x3.5" HDD or 1x2.5" HDD Internal: 1x3.5" HDD or 2x2.5" HDD
Cooling System FAN 3 x 12 cm (Front Panel) + FAN 3 x 12 cm (Rear Panel) (opt) FAN 3 x 12 cm (Front Panel) + FAN 3 x 12 cm (Middle Panel) + FAN 2 x 12 cm (Rear Panel) (opt) FAN 4 x 12 cm (Front Panel) + FAN 4 x 12 cm (Rear Panel) (opt) FAN 3 x 12 cm (Front Panel) + FAN 3 x 12 cm (Middle Panel) + FAN 2 x 12 cm (Rear Panel) (opt) FAN 5 x 12 cm (Front Panel) + FAN 5 x 12 cm (Rear Panel) (opt)
RPM 4500 4500 4500 4500 4500
Air Flow, CFM 174 174 174 174 174
Bearing Type Ball Bearing Ball Bearing Ball Bearing Ball Bearing Ball Bearing
Chassis Dimensions (D x W x H), mm 470 x 430 x 267 430 x 650 x 180 470 x 520 x 267 430 x 650 x 180 430 x 650 x 265
Net Weight, kg 7,4 10 9,86 10 10,7
P/N EX270770 EX288959 EX270771 EX288960 EX270772
EAN 4895205105621 4895205126855 4895205105638 4895205126862 4895205105614
