Unmanaged switches
Specification
| Description | The switch is designed to connect several nodes of a computer network within one or several network segments. With a connection speed of up to 1 Gb and PoE (depending on the model). Ideal for offices and premises that require a low noise level. |
| Model | Ports | Interface | PoE | Material | Energy saving function | Mounting | P/N |

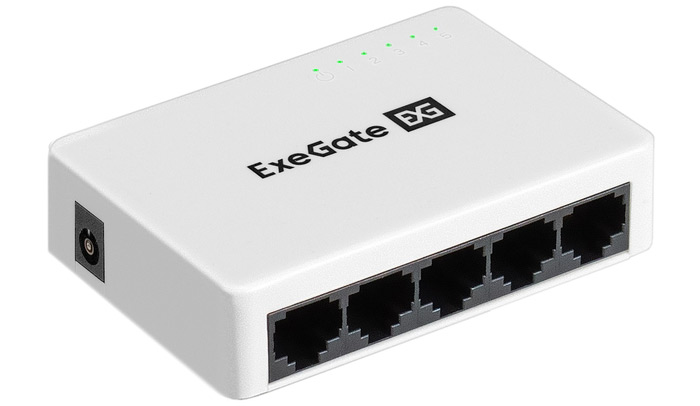

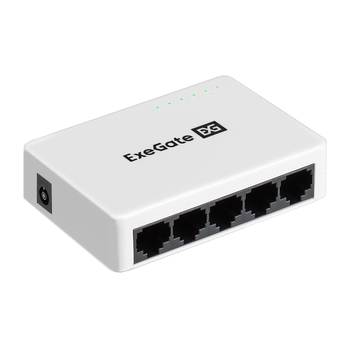

 EDES-1005C |
5 | UTP 10/100 | - | plastic | GET | desk | EX298685 |

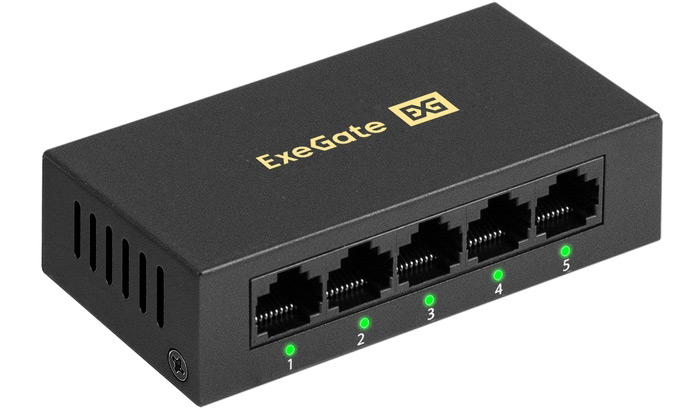

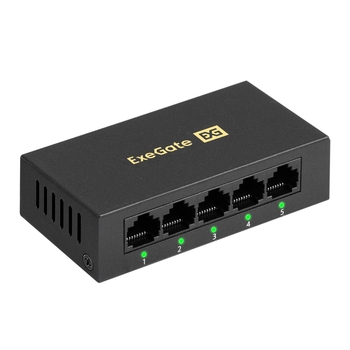

 EDES-1005D |
5 | UTP 10/100 | - | metall | EEE | desk/wall | EX298689 |

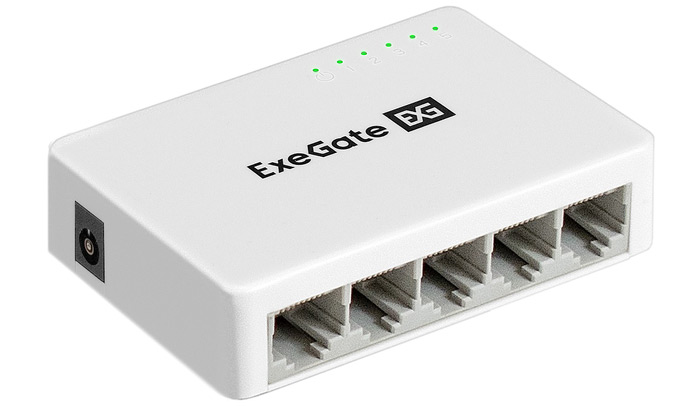

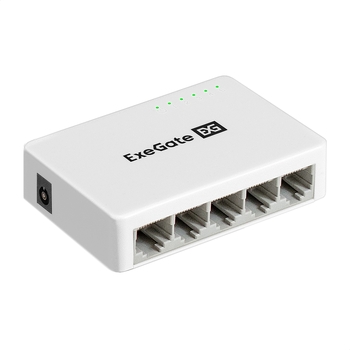

 EDGS-1005C |
5 | UTP 10/100/1000 Base-T | - | plastic | EEE | desk | EX298687 |

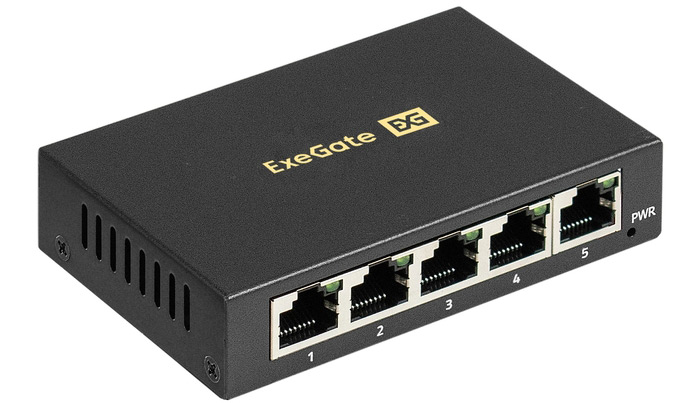

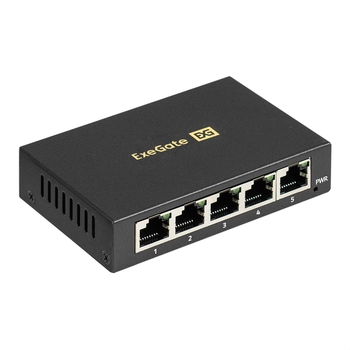

 EDGS-1005D |
5 | UTP 10/100/1000 Base-T | - | metall | GET | desk | EX298693 |

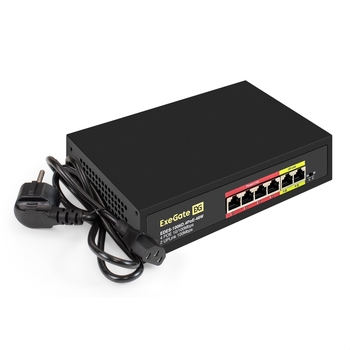

| EDES-1006D.4PoE-48W | 6 | 4 x UTP 10/100 PoE 25W + 2 x RJ45 | PoE 48W | metall | - | desk/wall | EX299020 |

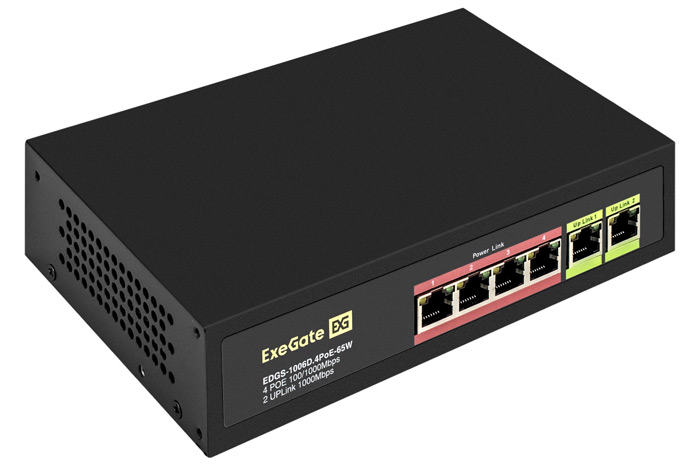

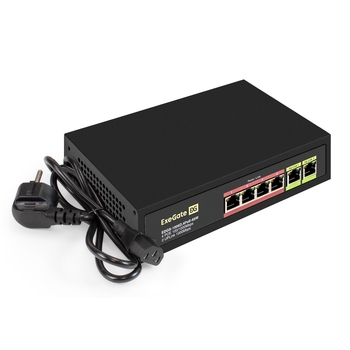

| EDGS-1006D.4PoE-65W | 6 | 4 x UTP 10/100/1000 PoE 15,4W + 2 x RJ45 | PoE 65W | metall | - | desk/wall | EX299022 |

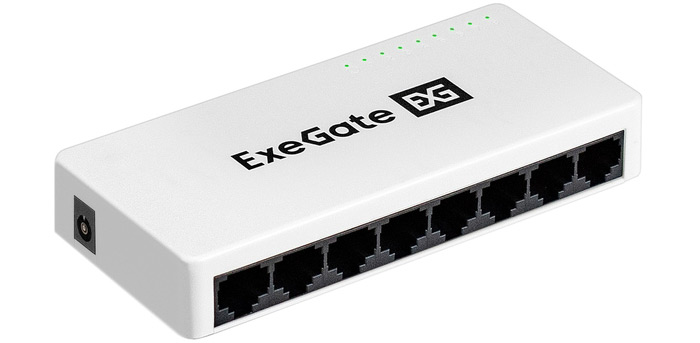

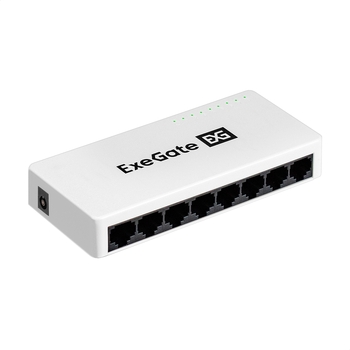

 EDES-1008C |
8 | UTP 10/100 | - | plastic | GET | desk/wall | EX298686 |

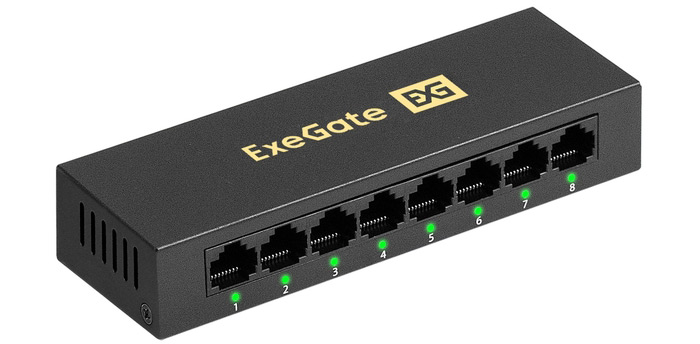

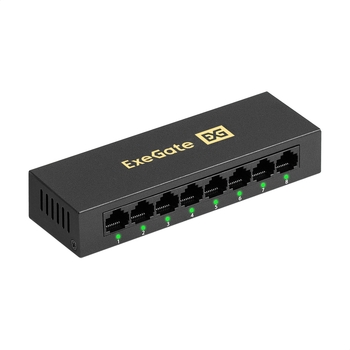

 EDES-1008D |
8 | UTP 10/100 | - | metall | EEE | desk/wall | EX298690 |

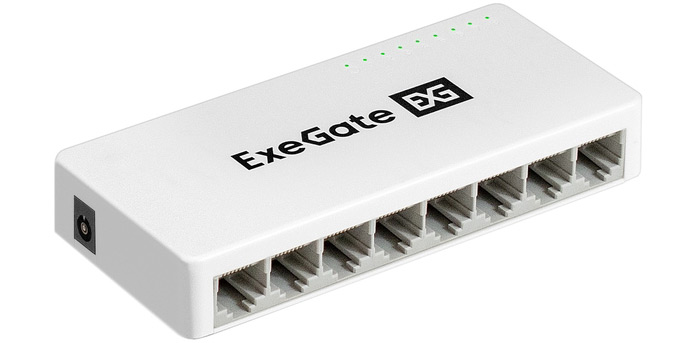

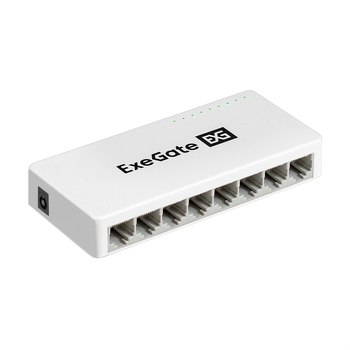

 EDGS-1008C |
8 | UTP 10/100/1000 Base-T | - | plastic | EEE | desk/wall | EX298688 |

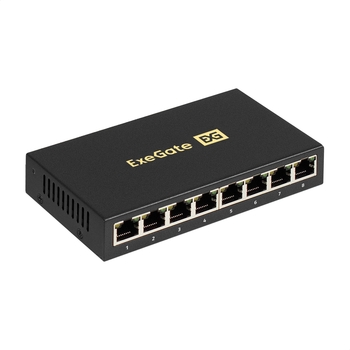

 EDGS-1008D |
8 | UTP 10/100/1000 Base-T | - | metall | GET | desk/wall | EX298694 |

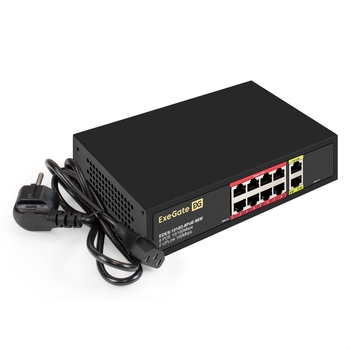

| EDES-1010D.8PoE-96W | 10 | 8 x UTP 10/100 PoE 25W + 2 x RJ45 | PoE 96W | metall | - | desk/wall | EX299021 |
| EDGS-1010D.8PoE-120W | 10 | 8 x UTP 10/100/1000 PoE 15,4W + 2 x RJ45 | PoE 120W | metall | - | desk/wall | EX299023 |

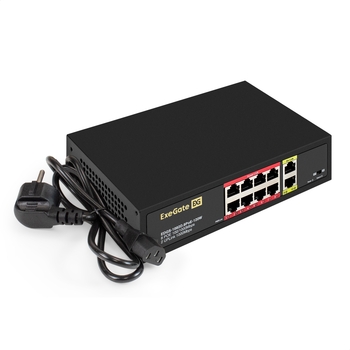

| EDGS-1082D.8PoE-120W | 10 | 8 x UTP 10/100 PoE 15,4W + 2 x RJ45 10/100/1000 | PoE 120W | metall | - | desk/wall | EX299028 |

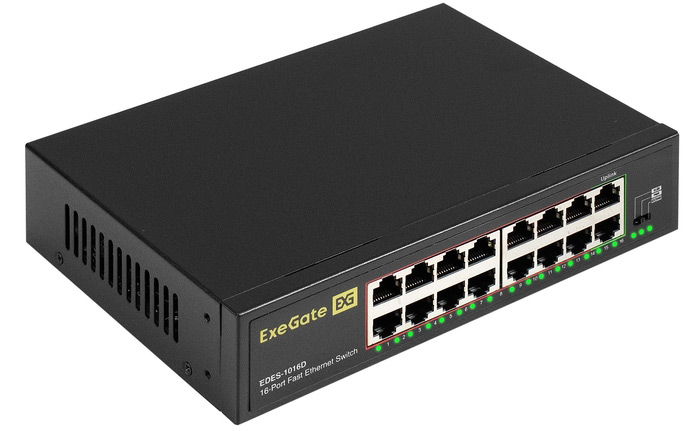

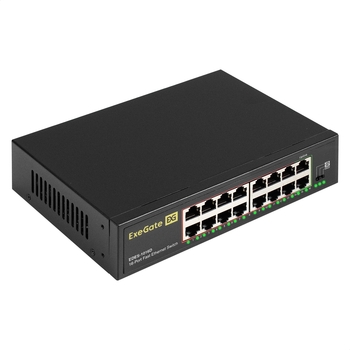

 EDES-1016D |
16 | UTP 10/100 | - | metall | - | rack mountable | EX298691 |

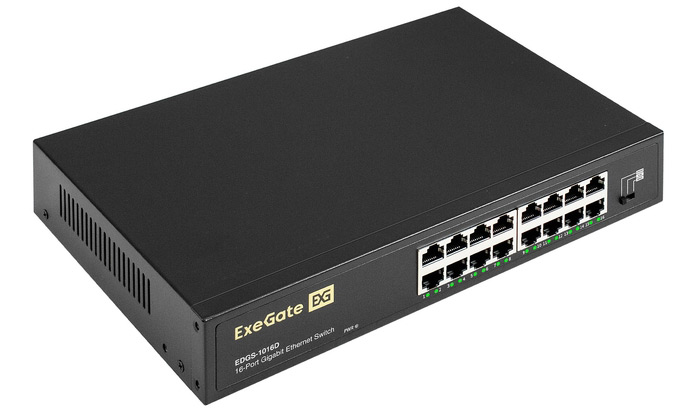

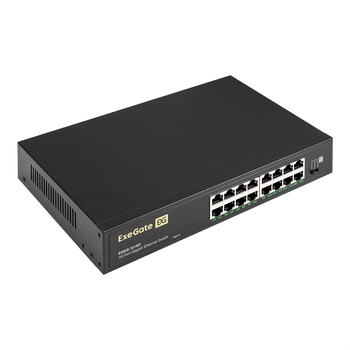

 EDGS-1016D |
16 | UTP 10/100/1000 Base-T | - | metall | EEE | rack mountable | EX298695 |

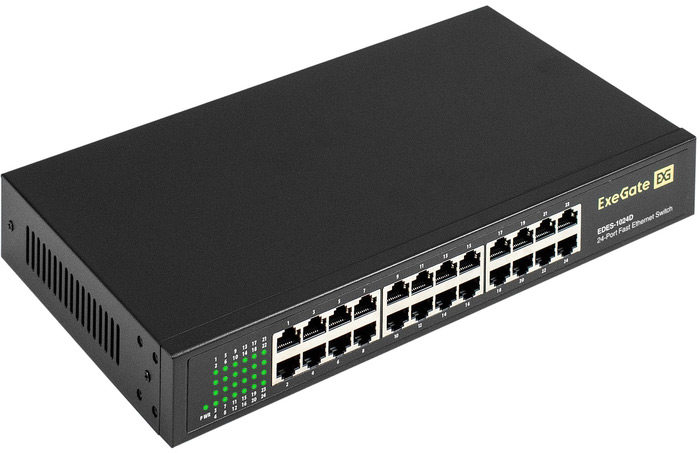

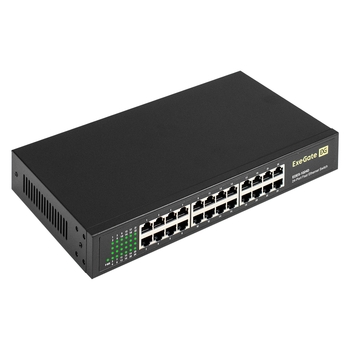

 EDES-1024D |
24 | UTP 10/100 | - | metall | - | rack mountable | EX298692 |

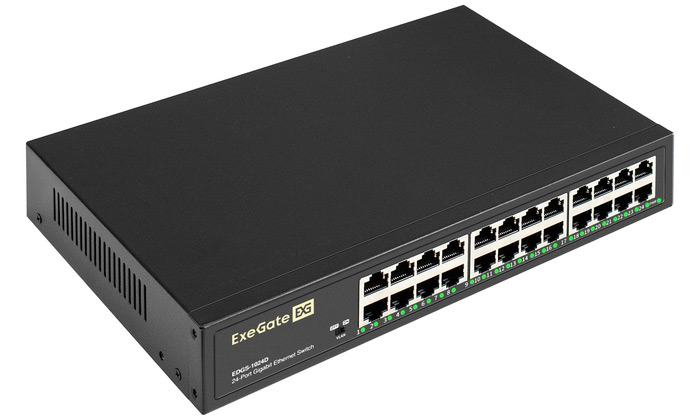

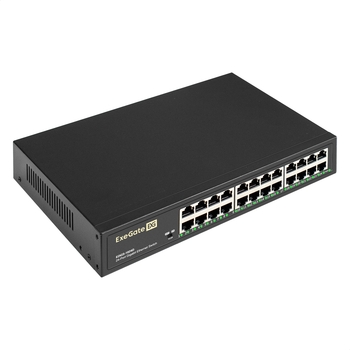

 EDGS-1024D |
24 | UTP 10/100/1000 Base-T | - | metall | EEE | rack mountable | EX298696 |
