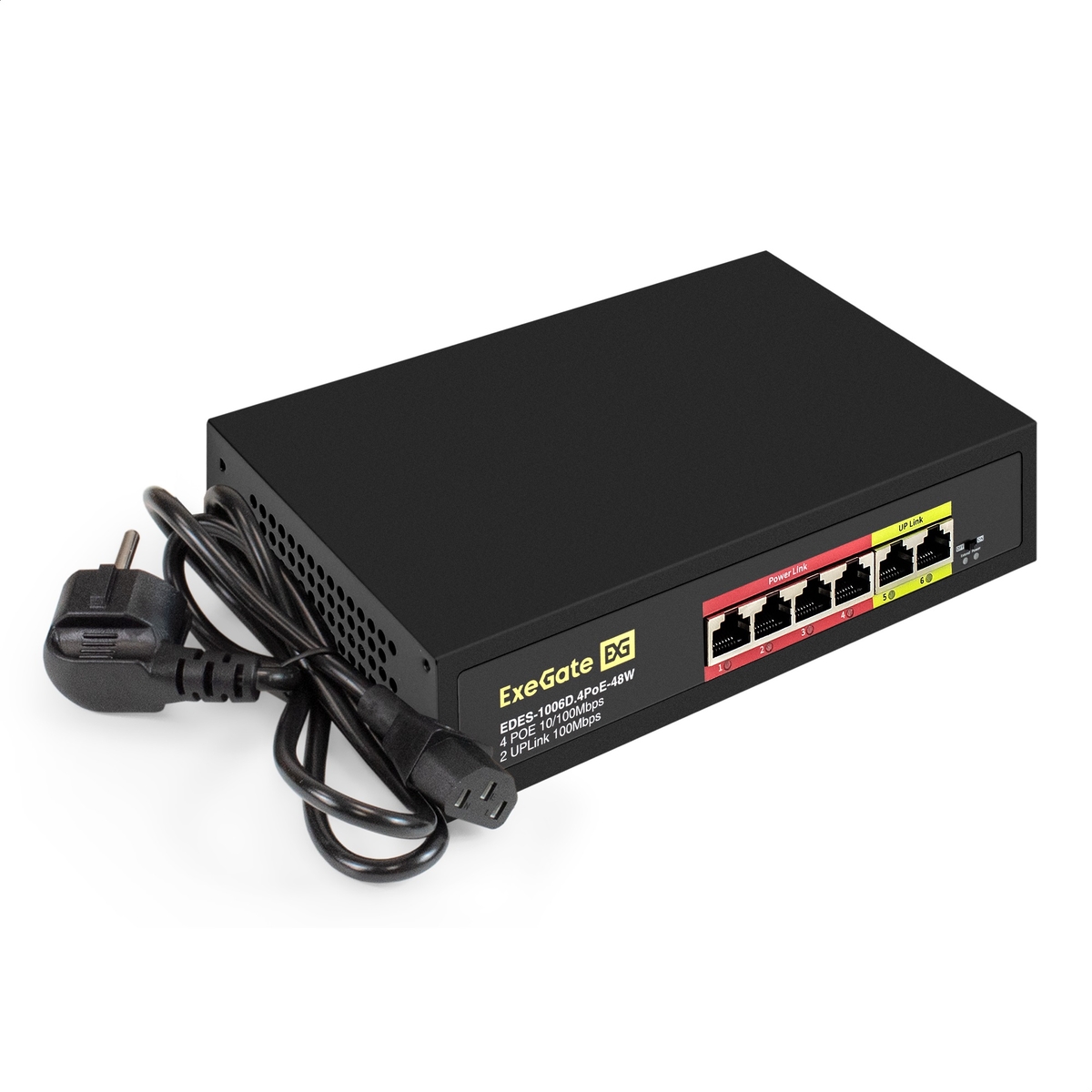

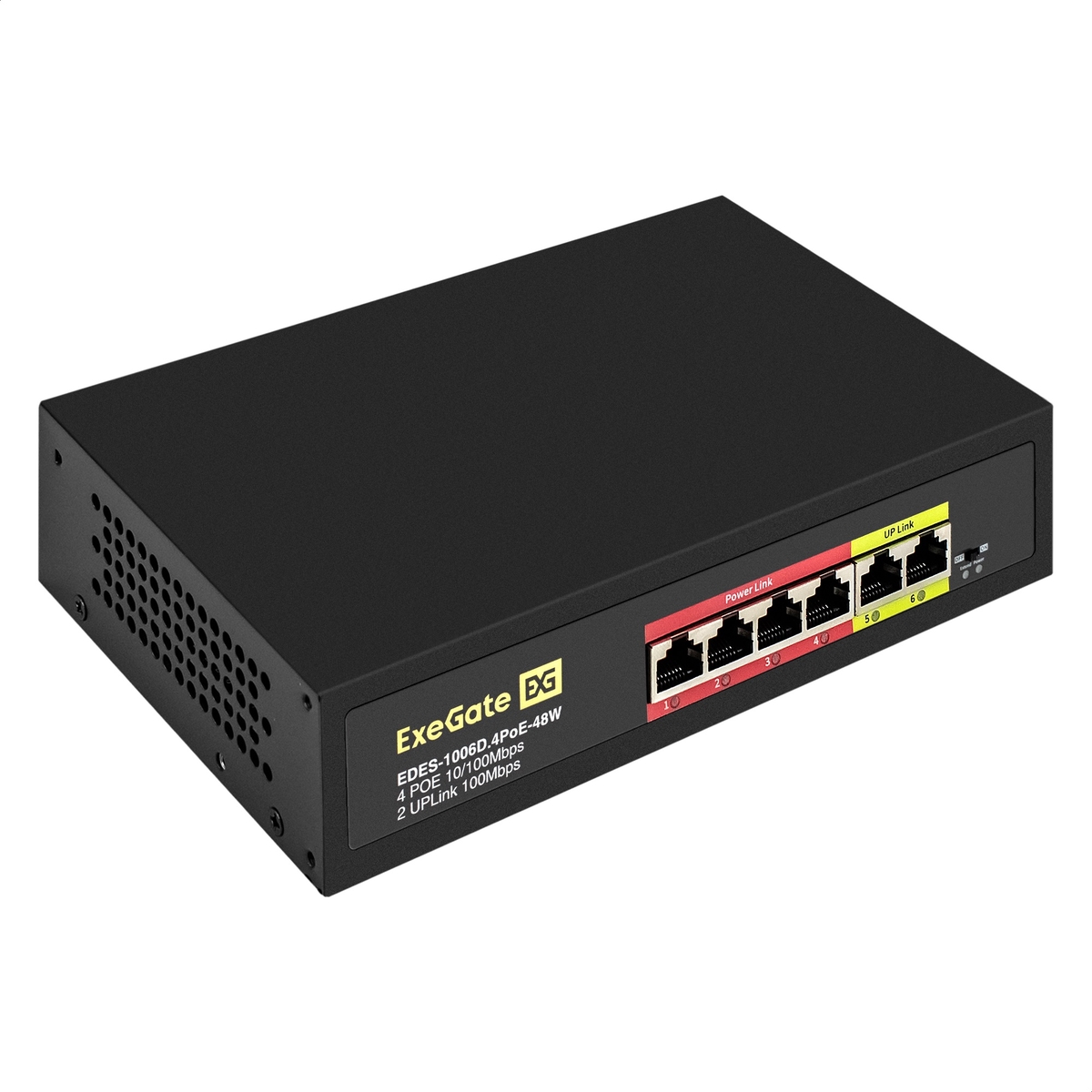

Unmanaged Switch ExeGate EDES-1006D.4PoE-48W
The Layer 2 EDES-1006D.4PoE-48W unmanaged PoE switch is designed to connect multiple computer network nodes within one or more network segments. This switch has 6 ports with a speed of 100 Mbps. Silent (fanless) design – works quietly, ideal for offices and rooms requiring low noise levels.
Compact design for easy placement. Plug and Play support, no additional configuration required. With power saving function (Green Ethernet Technology).
SpecificationCompact design for easy placement. Plug and Play support, no additional configuration required. With power saving function (Green Ethernet Technology).

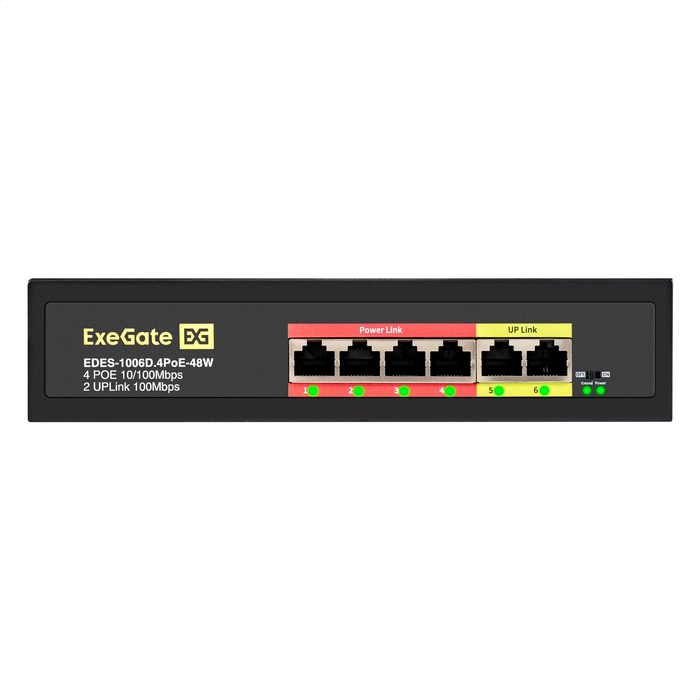

| Interface | 6 ports 10/100Base-TX |
| LED Indicators | Power; Link/Activity |
| Material | Metal |

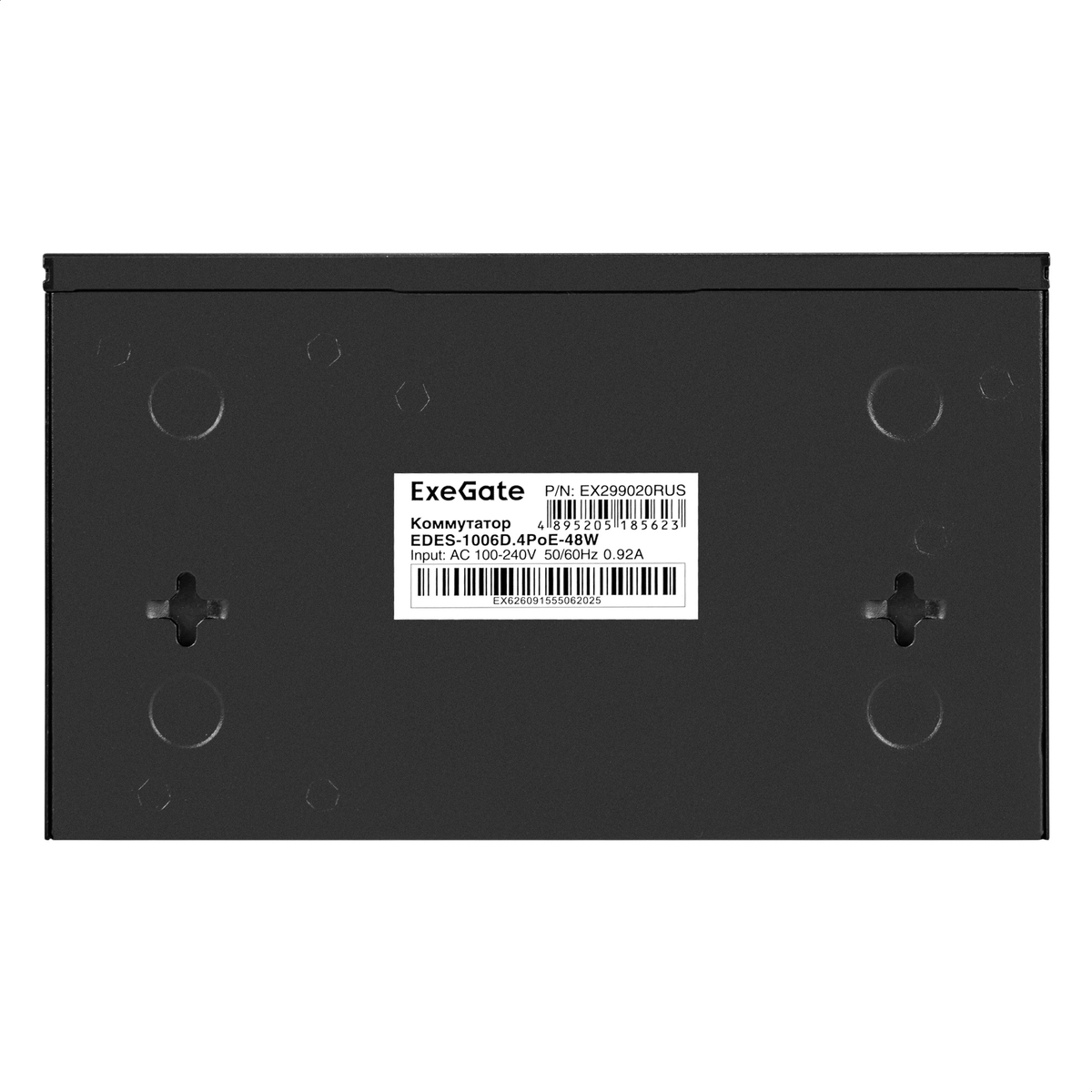

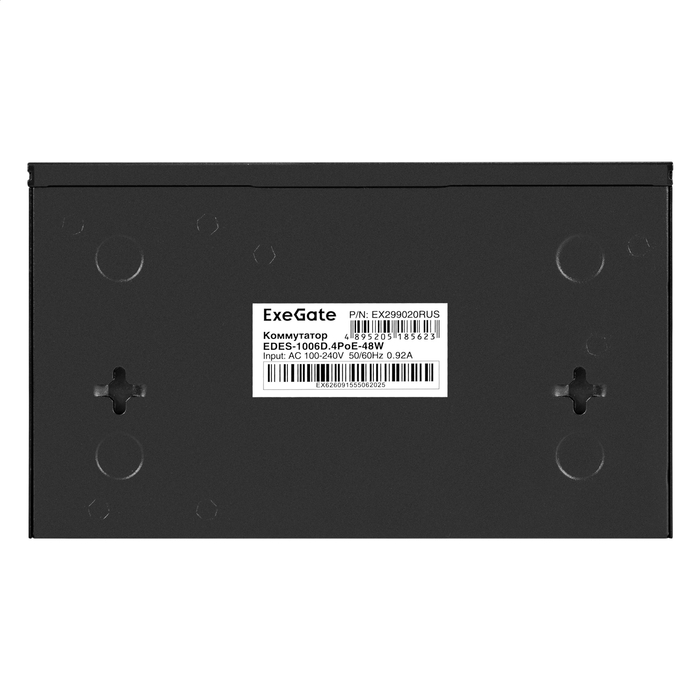

| Mounting | Desk+Wall |
| IEEE Standards | IEEE 802.3 IEEE 802.3 u, 802.3 x, 802.3af, 802.3at |
| Support | Automatic speed and duplex mode negotiation; IEEE 802.3x flow control; Automatic MDI/MDIX detection on all ports |
| Type | Unmanaged |
| Switch level | Layer 2 |
| PoE+ support ports | 4 |
| Total power budget | 48 |
| Power budget per port | 25 |
| 10/100BASE-TX ports | 6 |
| Switching Capacity | 1.2Gbps |
| Transfer method | Store-and-forward |
| MAC Address | 1K |
| MAC Address learning and aging | Automatic |
| Buffer Memory | 768K |
| Jumbo Frames | 2048 |
| Cooling system | Passive |

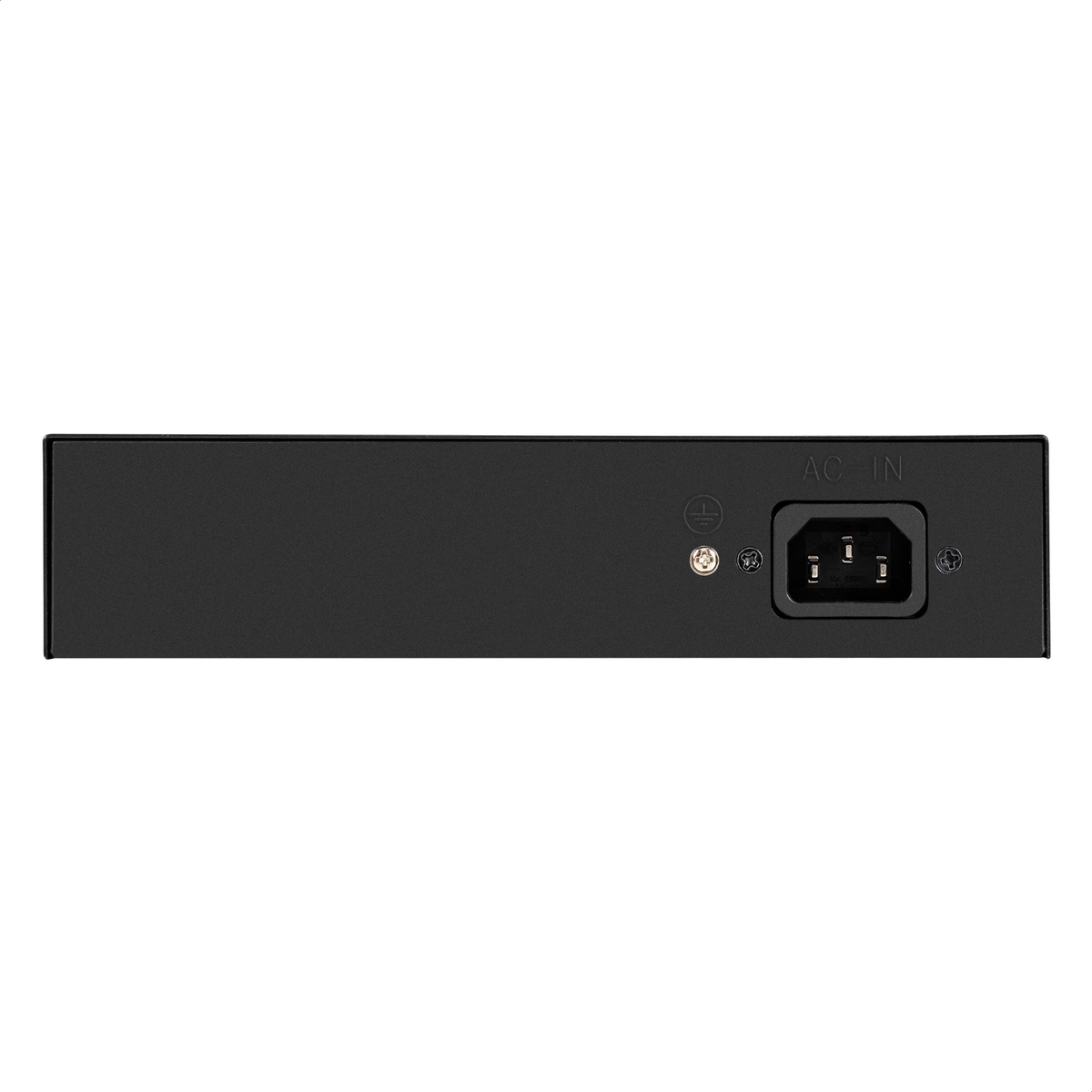

| Power | AC100-240V 50/60HZ |
| Usage conditions | |
| Storage Temperature | -40 ... +80 °C |
| Operating Temperature | -20 ... +50 °C |
| Storage humidity | 5% ... 90% non-condensing |
| Operating humidity | 10% ... 90% non-condensing |
| Network media | 10Base-T: UTP cat.3 or better; 100Base-TX: UTP cat. 5 or better |
| Other | |
| Product size, mm | 200x118x44 |
| Package size, mm | 232x188x72 |
| Net weight, kg | 0,9 |
| Gross weight, kg | 1 |
| Instruction |  Download |
| P/N | EX299020 |
| EAN | 4895205185623 |
