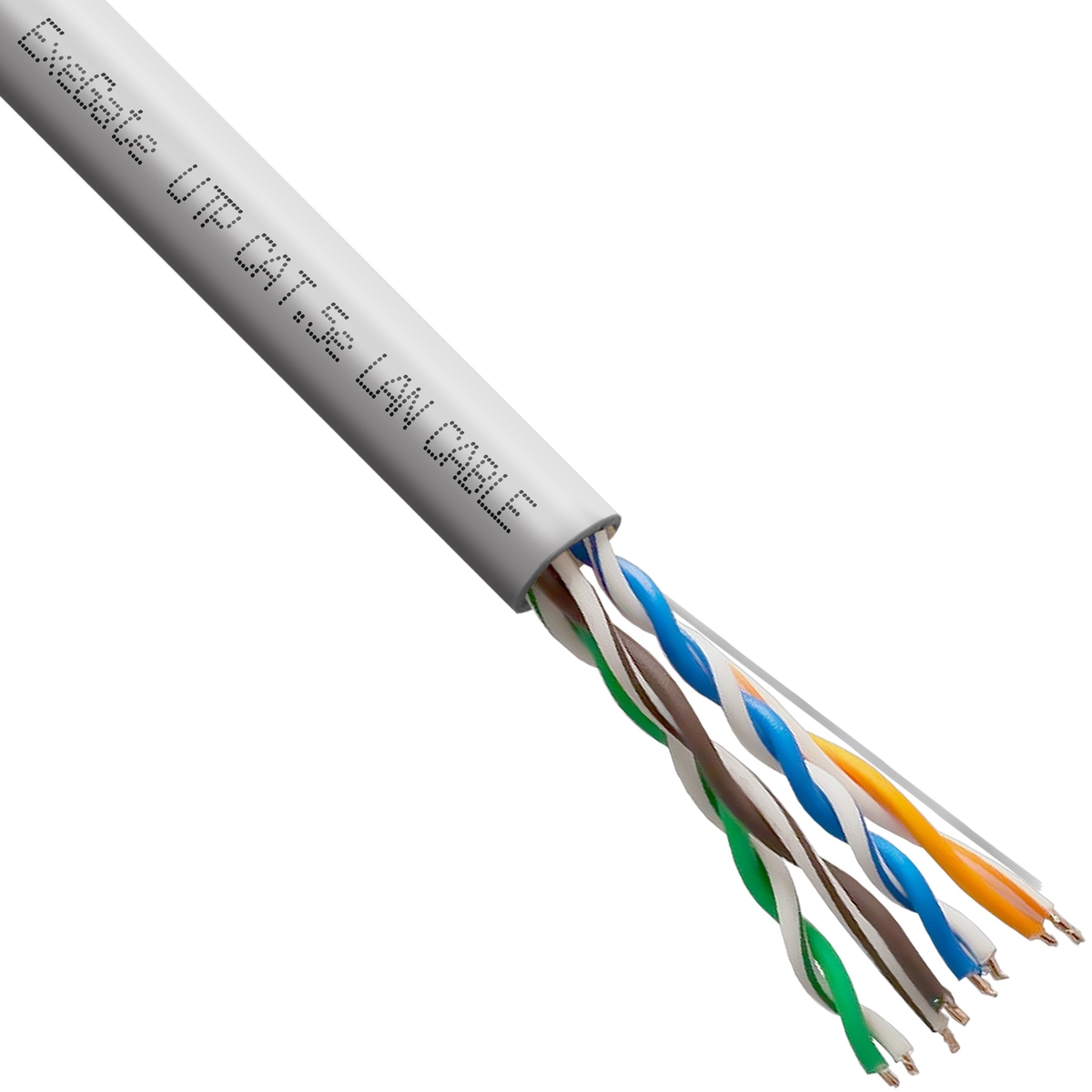

Cable ExeGate UTP4-C5E-CCA-P24-IN-PVC-GY-305 UTP
Inside the premises. Construction of backbone and horizontal subsystems of structured cabling systems of category 5e under conditions of minor electromagnetic interference.
Transmission of 1 Gbit/s signals at a frequency of up to 100 MHz. with speeds up to 100 Mbit / s when using 2 pairs and up to 1000 Mbit / s when using 4 pairs.
SpecificationTransmission of 1 Gbit/s signals at a frequency of up to 100 MHz. with speeds up to 100 Mbit / s when using 2 pairs and up to 1000 Mbit / s when using 4 pairs.
Type | UTP |
Appointment | Suitable for indoor use |
Length, m | 305 |
Industry Standards | 5e |
Number of Pairs | 4 |
Wire diameter | 7*0,16mm |
Wire Gauge, AWG | 24 |
Threads | Stranded |
Material | CCA |
Shielding | Unshielded (UTP) |
Packaging | Pullbox |
Jacket material | PVC |
Color | Gray |
Conformity to standards | Comply with 5 / Class D and ISO/IEC 11801, IEC 61156(2009), EN 50173, TIA/EIA 568-B. 2 standards |
Installation temperature, °C | -10 … +50 |
Max operating temperature, °C | 60 |
Min operating temperature, °C | -40 |
Product size, cm | 37x37x22 |
Weight, kg | 7,2 |
P/N | EX205293 |
EAN | 4897040854160 |
