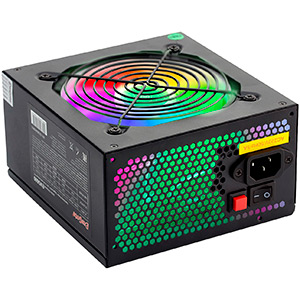

Series EVO

EVO600 EVO800
EVO600 EVO800

Specification

Type ATX 12V v.2.3
PFC Active
AC input, V 115-240
Input current, A 8
Input Frequency Range, Hz 47-63
FAN, cm 14, LED
Noise Level, dBA 25
Efficiency 81% typical load
Connectors:
20+4 pin ATX 1
4+4 pin CPU 1
SATA 5
Molex 3
Floppy 1
6+2 pin PCI-E 1
Protection SCP, OVP, UVP, OCP, OPP/OLP, OTP
Quality Certificates CE, FCC, CV, UL, TUV, VSMI, CCC
MTBF, HRS 120000
Storage temperature, °C 0-40
Storage Humidity, % 20-90
Color Black
Dimension (W x H x D), mm 150x86x160
Weight, kg 1,5
* Option packing PSU with 220V power cable with safety clip


Ok!
Model EVO600 EVO800
Max. Output Capacity, W 600 800
Input Voltage:
+3.3V, A 25 25
+5V, A 30 30
+12V, A 40 58
+5Vsb, A 2.5 2.5
-12V, A 0.3 0.3
Max Output Power:
+3.3V &+5V, W 130 130
+12V1 &+12V2, W 480 700
-12V, W 3.6 3.6
+5Vsb, W 30 30
P/N EX280440 EX280441
EAN 4895205110052 4895205110045
