HDD Enclosure
 |
 |
 |
 |
 |
 |
 |
|

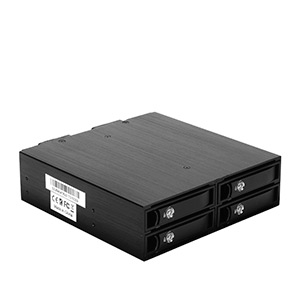

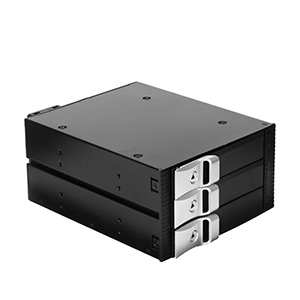

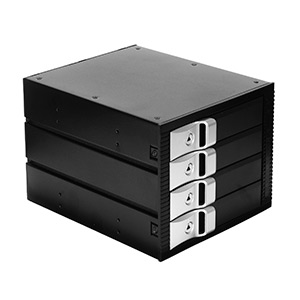

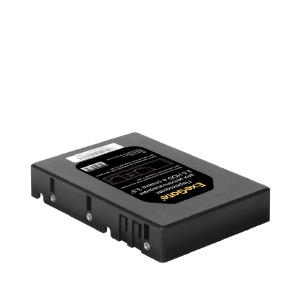

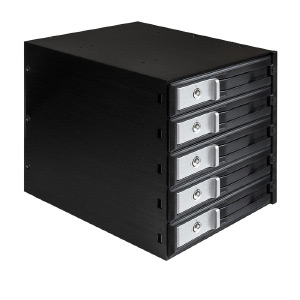

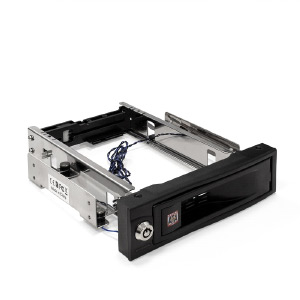

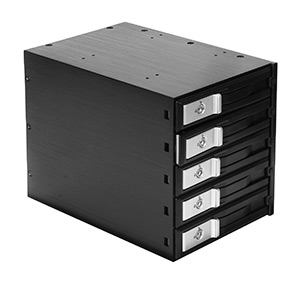

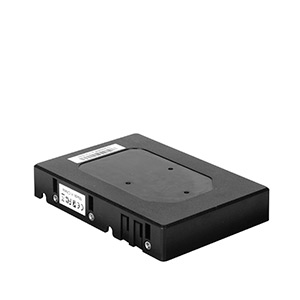

| Model | HS135-01 | HS335-01 | HS435-01 | HS535-01 | HS535-12G | HS425-01 | Adapter for 2.5" HDD to 3,5" HDD size |
| Application | Internal Enclosure for 3,5" HDD Hot Swappable | Internal Enclosure for 2,5" HDD Hot Swappable | Convert 2.5" HDD to 3.5" HDD size | ||||
| Type of HDD | 1 x 3,5" HDD | 3 x 3,5" HDD | 4 x 3,5" HDD | 5 x 3,5" HDD | 5 x 3,5" HDD | - | 4 x 2,5" HDD |
| Interface | SATA/SAS | ||||||
| Assembly Space | 1 x 5,25" | 2 x 5,25" | 3 x 5,25" | 3 x 5,25" | 3 x 5,25" | 1 x 5,25" | 1 x 3,5" |
| FAN | - | 2 x 4 cm | 2 x 4 cm | 1 x 8 cm | 1 x 8 cm | 2 x 4 cm | - |
| Support SAS I/II & SATA I/II/III | Yes | ||||||
| Connectors: | |||||||
| SATA 7 pin | 1 | 3 | 4 | 5 | 5 | 4 | - |
| SATA 15 pin | - | 3 | 4 | 2 | 2 | - | - |
| IDE 4 pin | 1 | - | - | 2 | - | 2 | - |
| IDE 4 pin small type | - | 3 | 4 | 2 | - | - | - |
| LED Indicator | - | Blue LED for power; Orange LED for activity |
Blue steady for power; Blue blinking for access; |
Power (Blue light); Access (Orange light blinking); Fans malfunction (Red &Blue lights blinking) |
- | ||
| Fan speed control | - | - | - | Yes | - | ||
| Package contents | |||||||
| SATA power Y | - | 1 | 2 | - | - | - | - |
| SATA power cable | - | 1 | - | - | - | - | - |
| SATA data cable | - | 3 | 4 | 5 | 5 | 4 | - |
| Aluminum front panel with lock | Lock; 2 keys in package | - | |||||
| Hot Swappable | Support | ||||||
| Power and working environment | Voltage: 12V + 5V DC Working Temperature: 0° ~ 55°C Storage Temperature: -20° ~ 55°C Relative Humidity: 5% ~ 65% |
||||||
| Operating System | Windows XP/7/8/8.1/10; Mac OS; Linux | ||||||
| Color | Black | ||||||
| Material | Plastic, Metal | Aluminum, Alloy Zinc, SGCC | Aluminum, SGCC | Plastic, Metal | |||
| Dimension (L x W x H), mm | 151 x 146 x 42 | 195 x 148 x 89 | 195 x 148 x 127 | 190 x 146 x 127 | 190 x 146 x 127 | 151 x 146 x 42 | 146 x 101 x 25 |
| Product Weight, g | 306 | 1044 | 1582 | 1704 | 1704 | 740 | 128 |
| P/N | EX289283 | EX264639 | EX264645 | EX264646 | EX289284 | EX264647 | EX264648 |
| EAN | 4895205127951 | 4895205103313 | 4895205103337 | 4895205103344 | 4895205127944 | 4895205103320 | 4895205103351 |
