10 sockets

Model Maximum load current, A Input information Control Functions Standard Compliance Dimension, mm P/N EAN
Type of outlet Input socket Power Cable LED indication Overload button Protection filter with indicator Protection filter with 3 indicators Switcher with light and cover   Circuit breaker Weight, kg Size, mm Packing dimension, mm
Type of plug Specification Length, m

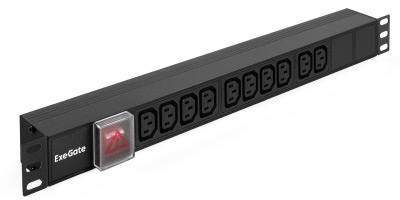

PDU-19H001 PDU-19H001 10 IEC 320 C13 IEC 320 C14 No Without power cable No No No No No Yes No VDE, EAC 0,64 No No EX280859 4895205111219

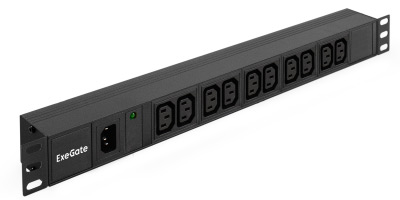

PDU-19H002 PDU-19H002 10 IEC 320 C13 IEC 320 C14 No Without power cable No Yes No No No No No EAC 0,64 No No EX280860 4895205111226

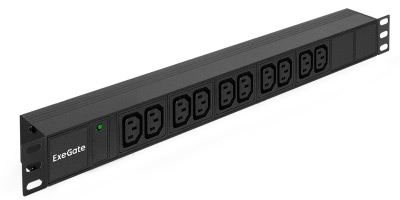

PDU-19H003 PDU-19H003 10 IEC 320 C13 IEC 320 C14 No Without power cable No Yes No No No No No EAC 0,64 No No EX280861 4895205111233

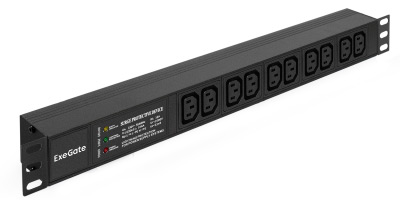

PDU-19H004 PDU-19H004 10 IEC 320 C13 IEC 320 C14 No Without power cable No No No No LED indication No No EAC 0,64 No No EX280862 4895205111240

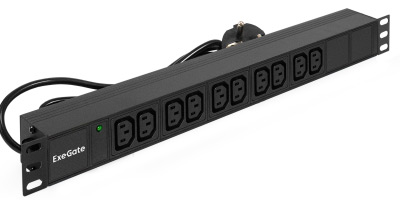

PDU-19H005 PDU-19H005 16 IEC 320 C13 No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 3 Yes No No No No No VDE, EAC 1 No No EX280863 4895205111257
