Products / Server equipment / PDU / 5 C13 - 5/6 Schuko

5 C13 - 5/6 Schuko

Model Maximum load current, A Output Sockets Input Power Control Functions Standard Compliance Weight, kg P/N EAN
Socket Type of outlet Type of plug Specification Conductor material Length, m

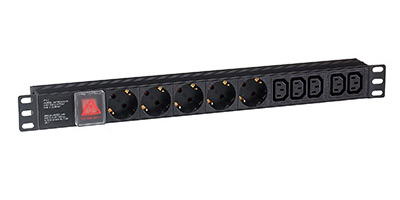

PDU-19H008ServerPro PDU-19H008

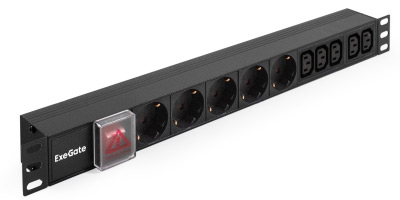

Al-5C135S-C14-SW		 10 5 IEC 320 C13 + 5 Schuko IEC 320 C14 Without power cable Switcher with light and cover EAC 0,64 EX280866 4895205111288

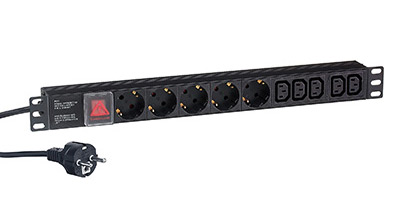

PDU-19H009ServerPro PDU-19H009

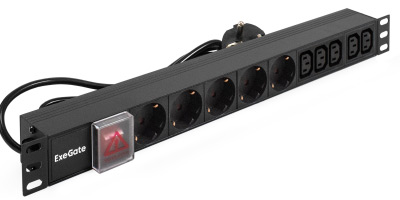

Al-5C135S-EU2.5CU-SW		 16 5 IEC 320 C13 + 5 Schuko Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 2,5 Switcher with light and cover VDE, EAC 0,96 EX280867 4895205111295

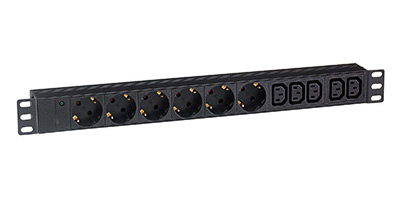

PDU-19H010ServerPro PDU-19H010

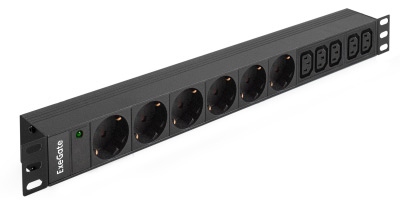

Al-5C136S-C14		 10 5 IEC 320 C13 + 6 Schuko IEC 320 C14 Without power cable LED indication EAC 0,64 EX280868 4895205111301

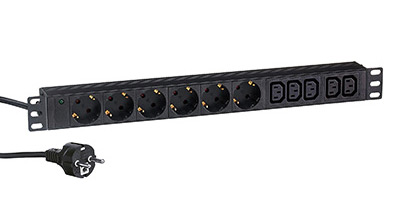

PDU-19H011ServerPro PDU-19H011
Al-5C136S-EU2.5		 16 5 IEC 320 C13 + 6 Schuko Schuko plug (CEE 7/7);
Undetachable		 Wire section: 3 x 1,5 mm2 Copper 2,5 LED indication VDE, EAC 0,96 EX280869 4895205111318
