7 sockets

Model Maximum load current, A Input information Control Functions Standard Compliance Dimension, mm P/N EAN
Socket Type of outlet Input socket Power Cable LED indication Overload button Protection filter with indicator Protection filter with 3 indicators Switcher with light and cover Circuit breaker Weight, kg Size, mm Packing dimension, mm
Type of plug Specification Length, m

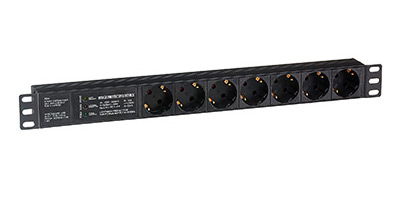

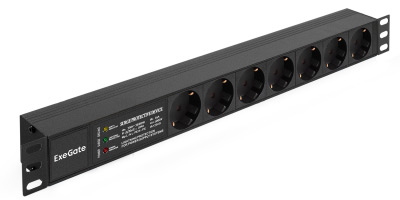

PDU-19H701 PDU-19H701 10 7 Schuko IEC 320 C14 No Without power cable No No No No LED indication No No EAC 0,64 No No EX280836 4895205111462

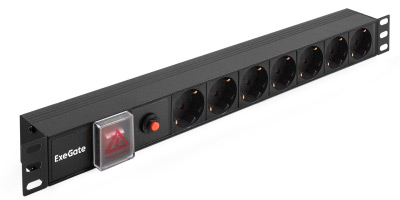

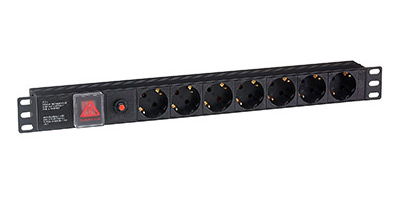

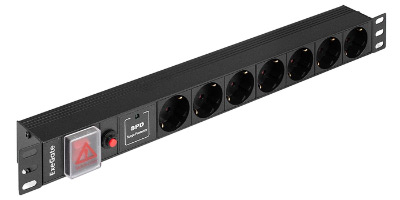

PDU-19H702 PDU-19H702 10 7 Schuko IEC 320 C14 No Without power cable No No Yes No No Yes No EAC 0,64 No No EX280837 4895205111479

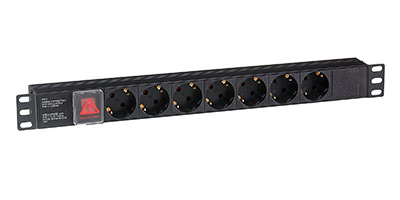

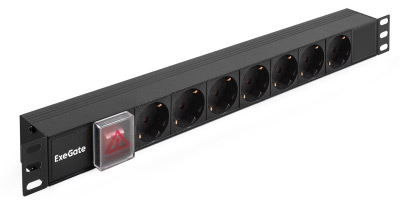

PDU-19H703 PDU-19H703 16 7 Schuko IEC 320 C20 No Without power cable No No No No No Yes No EAC 0,64 No No EX280838 4895205111486

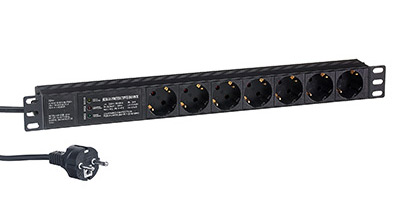

PDU-19H704 PDU-19H704 16 7 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 2,5 No No No LED indication No No VDE, EAC 0,96 No No EX280839 4895205111493
