8 sockets

Model Maximum load current, A Input information Control Functions Standard Compliance Dimension, mm P/N EAN
Type of outlet Input socket Power Cable LED indication Overload button Protection filter with indicator Protection filter with 3 indicators Switcher with light and cover Circuit breaker Weight, kg Size, mm Packing dimension, mm
Type of plug Specification Length, m

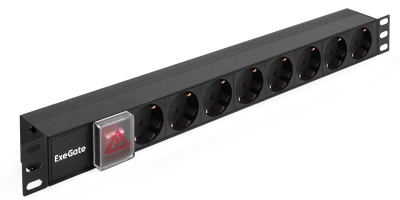

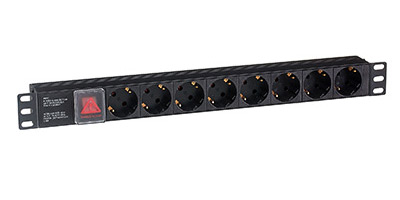

PDU-19H801 PDU-19H801 10 Schuko IEC 320 C14 No Without power cable No No No No No Yes No EAC 0,64 No No EX280840 4895205111509

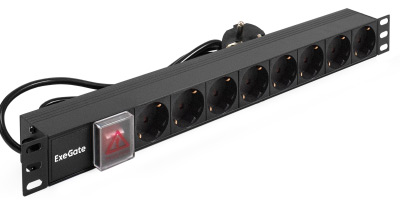

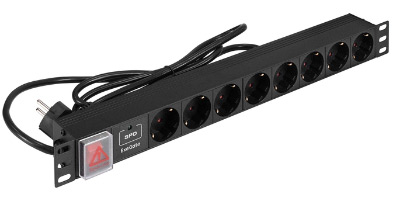

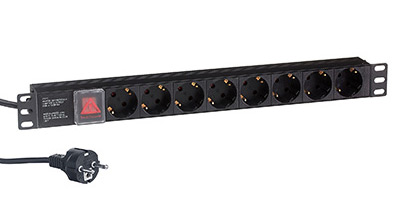

PDU-19H802 PDU-19H802 16 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 1,8 No No No No Yes No VDE, EAC 0,92 No No EX280841 4895205111516

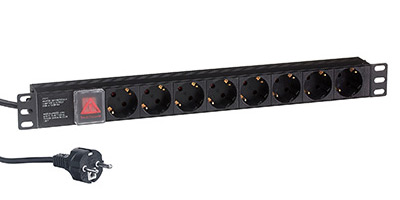

PDU-19H803 PDU-19H803 16 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 2 No No No No Yes No VDE, EAC 0,92 No No EX280842 4895205111523

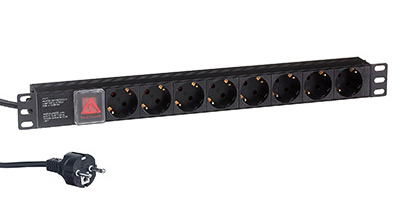

PDU-19H804 PDU-19H804 16 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 2,5 No No No No Yes No VDE, EAC 0,96 No No EX280843 4895205111530

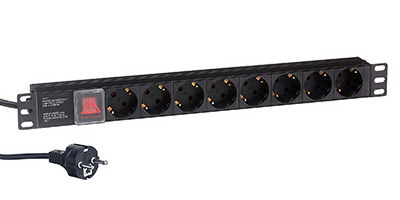

PDU-19H805 PDU-19H805 16 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 3 No No No No Yes No VDE, EAC 0,98 No No EX280844 4895205111547

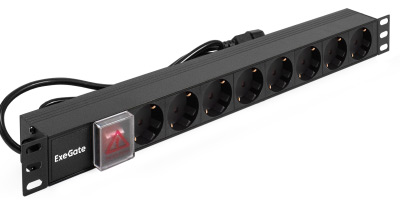

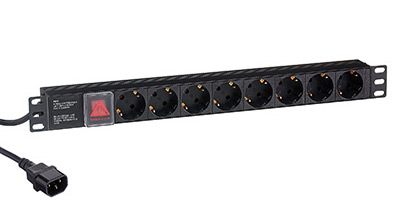

PDU-19H806 PDU-19H806 10 Schuko No IEC 320 C14;
Undetachable
Wire section: 3 x 1,0 mm2 3 No No No No Yes No VDE, EAC 0,96 No No EX280845 4895205111554

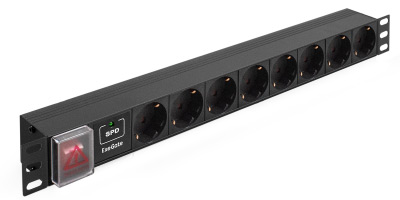

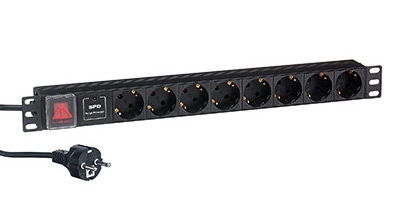

PDU-19H807 PDU-19H807 16 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 2 No No Yes No Yes No VDE, EAC 0,92 No No EX280846 4895205111561

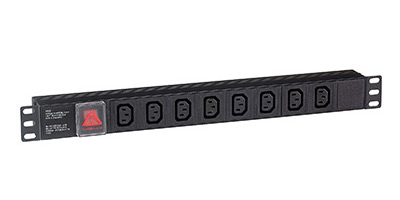

PDU-19H808 PDU-19H808 10 IEC 320 C13 IEC 320 C14 No Without power cable No No No No No Yes No EAC 0,64 No No EX280854 4895205111578

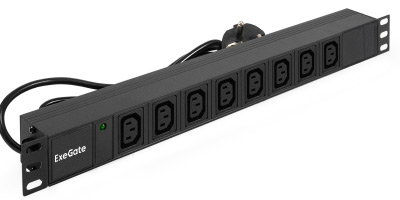

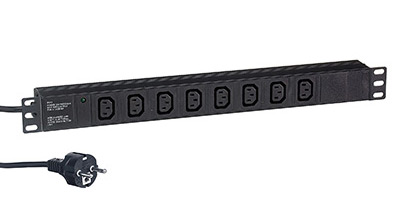

PDU-19H809 PDU-19H809 16 IEC 320 C13 No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 2,5 Yes No No No No No VDE, EAC 0,96 No No EX280855 4895205111585

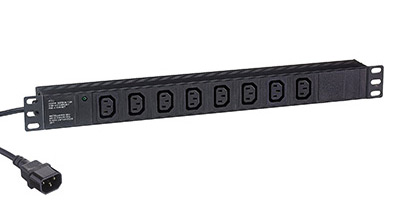

PDU-19H810 PDU-19H810 10 IEC 320 C13 No IEC 320 C14;
Undetachable
Wire section: 3 x 1,0 mm2 2,5 Yes No No No No No VDE, EAC 0,92 No No EX280856 4895205111592

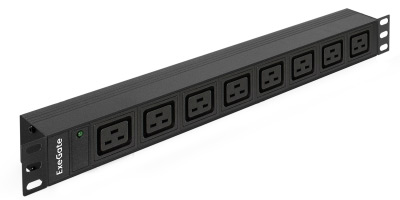

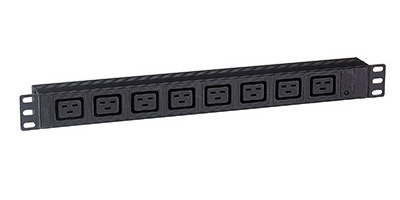

PDU-19H014 PDU-19H014 16 IEC 320 C19 IEC 320 C20 No Without power cable No Yes No No No No No EAC 0,64 No No EX280872 4895205111349

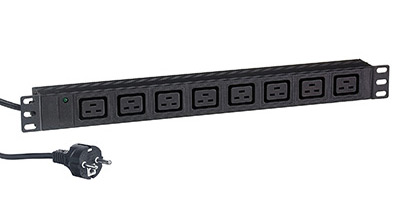

PDU-19H015 PDU-19H015 16 IEC 320 C19 No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 3 Yes No No No No No VDE, EAC 1 No No EX280873 4895205111356
