9 sockets

Model Maximum load current, A Input information Control Functions Standard Compliance Dimension, mm P/N EAN
Type of outlet Input socket Power Cable LED indication Overload button Protection filter with indicator Protection filter with 3 indicators Switcher with light and cover   Circuit breaker Weight, kg Size, mm Packing dimension, mm
Type of plug Specification Length, m

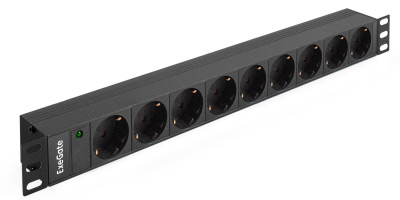

PDU-19H901 PDU-19H901 10 Schuko IEC 320 C14 No Without power cable No Yes No No No No No EAC 0,64 No No EX280847 4895205111608

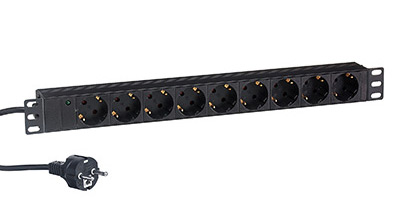

PDU-19H902 PDU-19H902 16 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 1,8 Yes No No No No No VDE, EAC 0,92 No No EX280848 4895205111615

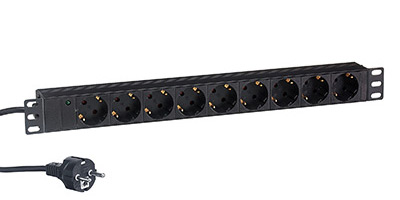

PDU-19H903 PDU-19H903 16 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 2 Yes No No No No No VDE, EAC 0,92 No No EX280849 4895205111622

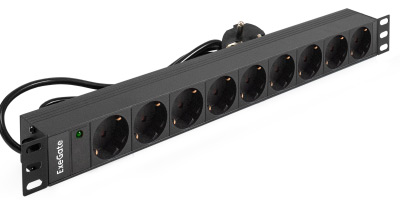

PDU-19H904 PDU-19H904 16 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 2,5 Yes No No No No No VDE, EAC 0,96 No No EX280850 4895205111639

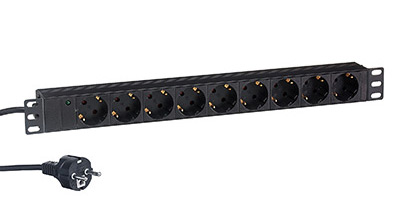

PDU-19H905 PDU-19H905 16 Schuko No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 3 Yes No No No No No VDE, EAC 1 No No EX280851 4895205111646

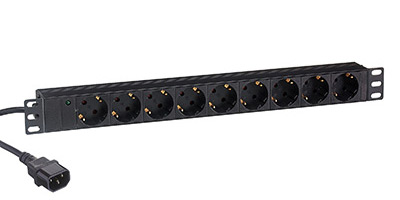

PDU-19H906 PDU-19H906 10 Schuko No IEC 320 C14;
Undetachable
Wire section: 3 x 1,0 mm2 2,5 Yes No No No No No VDE, EAC 0,96 No No EX280852 4895205111653

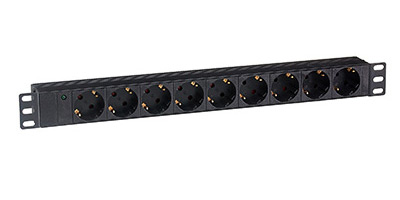

PDU-19H907 PDU-19H907 16 Schuko IEC 320 C20 No Without power cable No Yes No No No No No EAC 0,64 No No EX280853 4895205111660

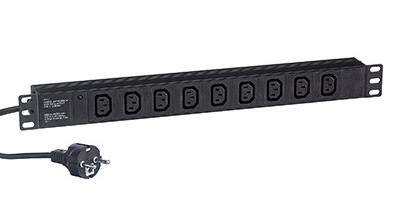

PDU-19H908 PDU-19H908 16 IEC 320 C13 No Schuko plug (CEE 7/4);
Undetachable
Wire section: 3 x 1,5 mm2 3 Yes No No No No No VDE, EAC 1 No No EX280857 4895205111677

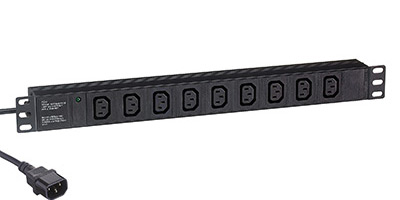

PDU-19H909 PDU-19H909 10 IEC 320 C13 No IEC 320 C14 Wire section: 3 x 1,0 mm2 2,5 Yes No No No No No VDE, EAC 0,92 No No EX280858 4895205111684
