Server cases

1U
1U
2U
2U
3U
3U
4U
4U

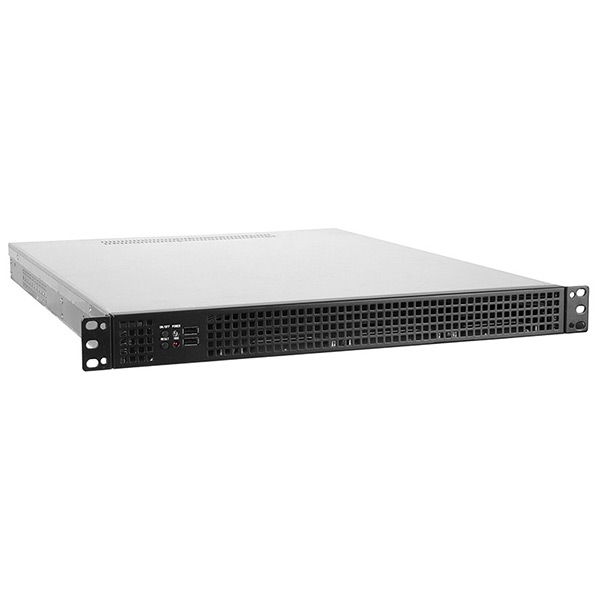

1U

Model 1U250-01 1U390-01 1U550-04 1U650-04 1U660-HS4
Type 1U250-01 1U390-01 1U550-04 1U650-04 1U660-HS4
Short Medium Long
Motherboard Support mini-ITX mATX, ATX, SSI CEB, SSI EEB mini-ITX, mATX, ATX mATX, ATX, SSI CEB, SSI EEB
M/B size, mm 170x170 305x330 244x305 305x330
Drive Bay
   Ext 3.5" 1 2 4 4 -
   3.5" HotSwap - - - - 4
Dimensions (D x W x H), mm 250x430x44 400x430x44 550x430x44 650x430x44 660x430x44

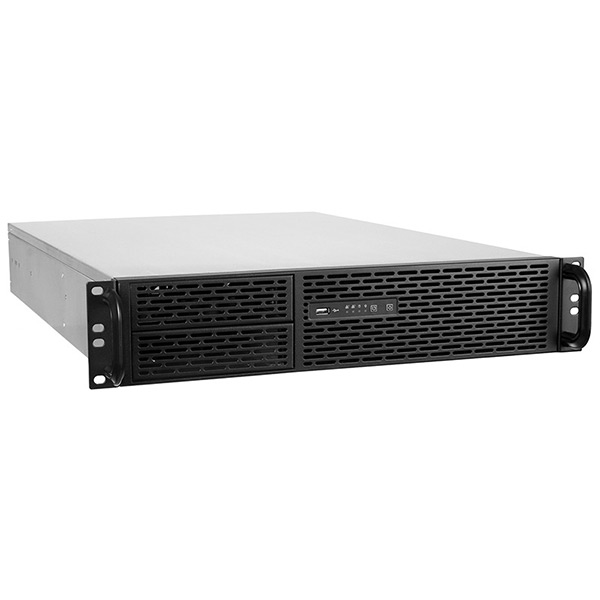

2U

Model 2U350-03 2U390-04 2U420-06 2U480-HS06 2U550-HS08 2U550-HS12 2U550-06/
2U2088
2U650-06/
2U2098L
2U660-HS06
Type 2U350-03 2U390-04 2U420-06 2U480-HS06 2U550-HS08 2U550-HS12 2U550-06/2U2088 2U650-06/2U2098L 2U660-HS6
Short Medium Long
Motherboard Support mini-ITX, mATX mini-ITX, mATX mATX, ATX (PSU 1U/2U) mini-ITX, mATX ATX mATX, ATX mATX, ATX, SSI CEB, SSI EEB
M/B size, mm 244x244 244x244 244x305 244x244 244x305 244x305 244x305 305x330 305x330
Drive Bay
   Ext 5.25" - 2 - - - - 2 2 -
   Int 3.5" 3 4 6 3 1 - 6 6 2
   3.5" HotSwap - - - 6 8 12 - - 6
Dimensions (D x W x H), mm 350x430x89 390x430x89 420x430x89 480x430x89 550x429x89 550x431x89 550x430x89 650x430x89 660x430x89

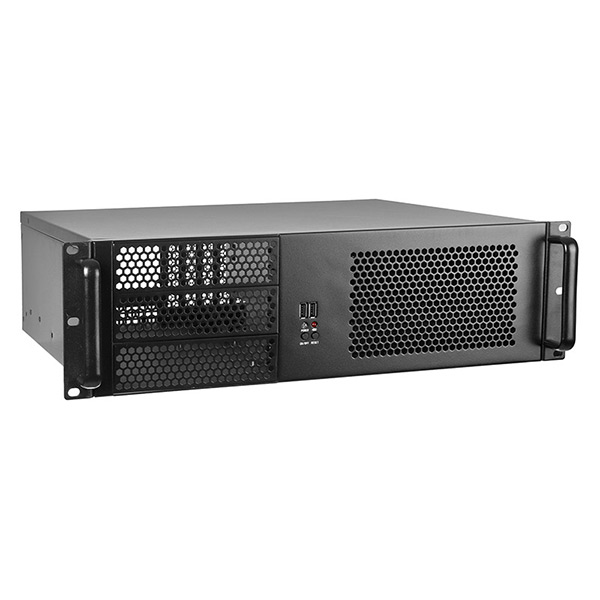

3U

Model 3U330-02 3U390-08 3U660-HS16
Type 3U330-02 3U390-08 3U660-HS16
Short
Motherboard Support mini-ITX, mATX, ATX
M/B size, mm 244x305
Drive Bay
   Ext 5.25" 1 3 1
   Int 3.5" 2 8 8
   3.5" HotSwap - - 16
Dimensions (D x W x H), mm 300x430x133 390x430x133 660x430x132

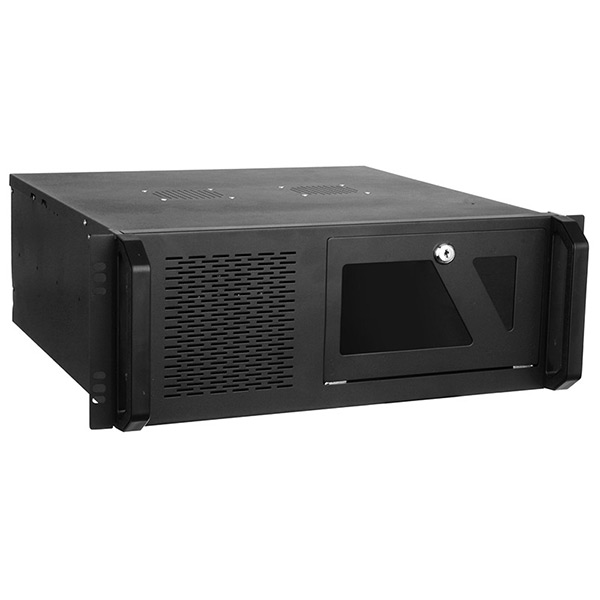

4U

Model 4U300-08 4U450-07/
4U4017S
4U450-16/
4U4019S
4U450-26/
4U4020S
4U480-15/
4U4132
4U650-010/
4U4139L
Type 4U300-08 4U450-07/4U4017S 4U450-16/4U4019S 4U450-26/4U4020S 4U480-15/4U4132 4U650-010/4U4139L
Short Medium Long
Motherboard Support mATX, ATX mATX, ATX, SSI CEB miniITX, mATX, ATX, SSI CEB mATX, ATX, SSI CEB, SSI EEB, EATX
M/B size, mm 305x244 305x244 305x267 305x267 305x330 305x330
Drive Bay
   Ext 5.25" - 2 2 3 1 3
   Ext 3.5" - 1 1 1 1 -
   Int 3.5" 8 7 6 6 5 10
Dimensions (D x W x H), mm 300x430x178 450x430x177 450x430x177 450x430x177 480x430x177 650x430x177
