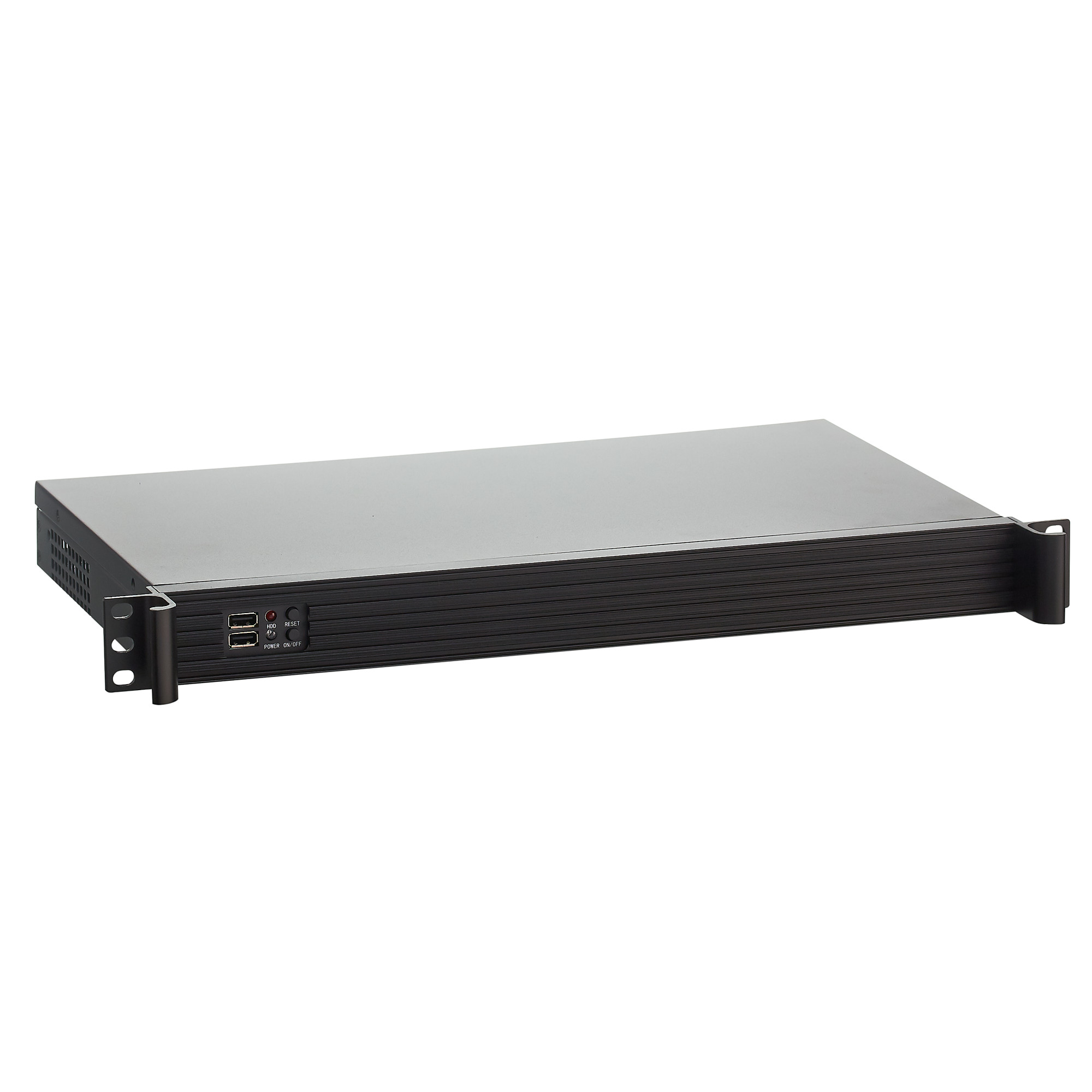

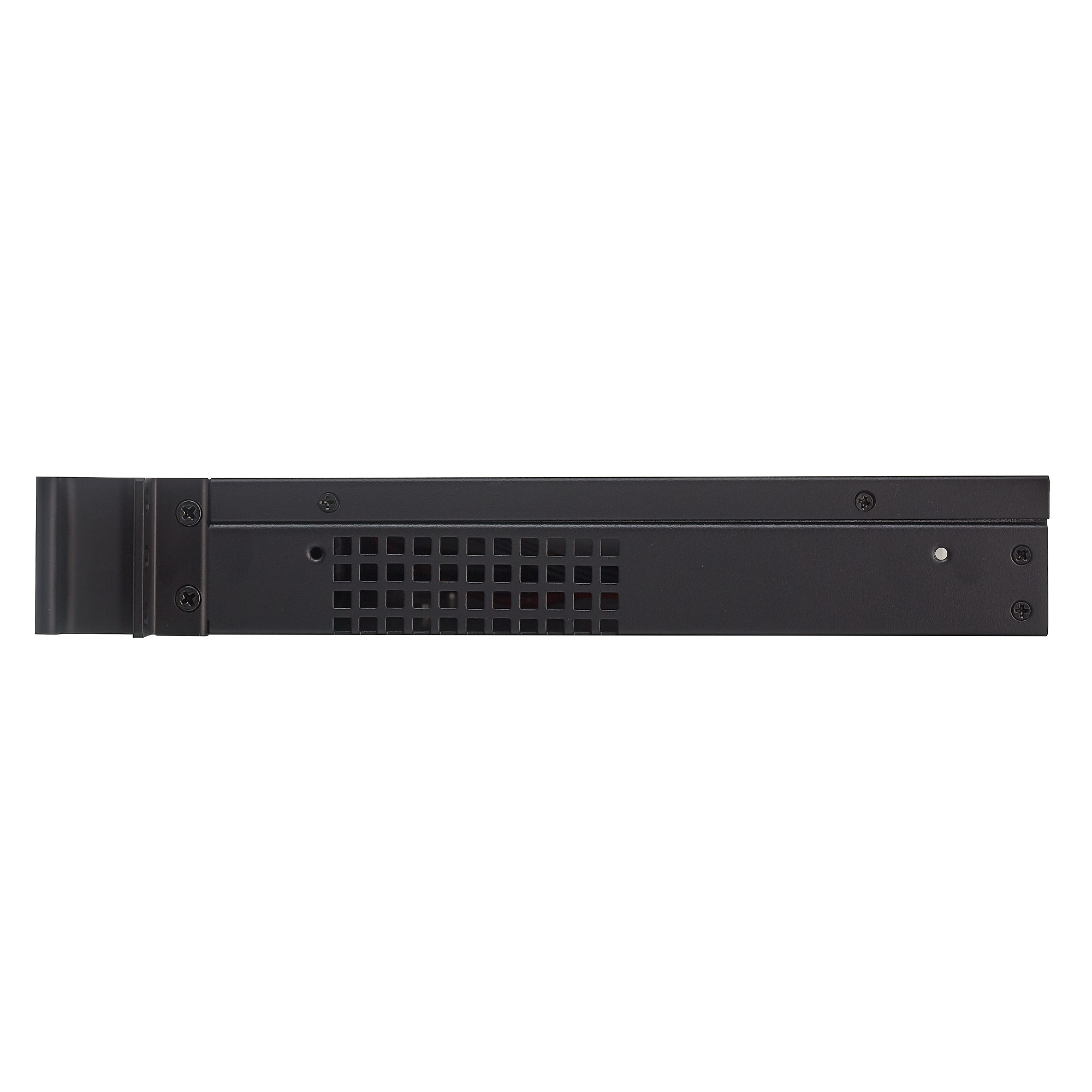

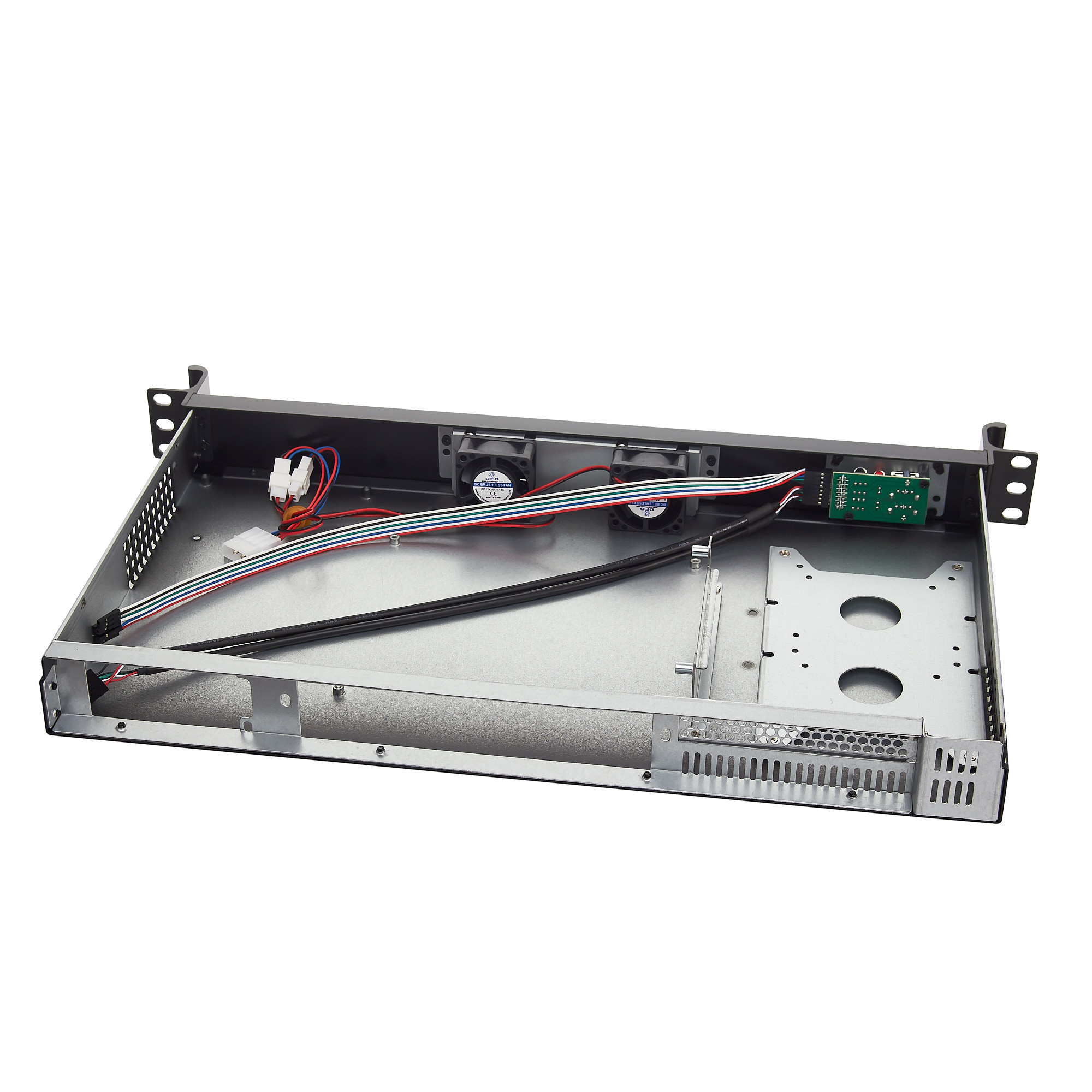

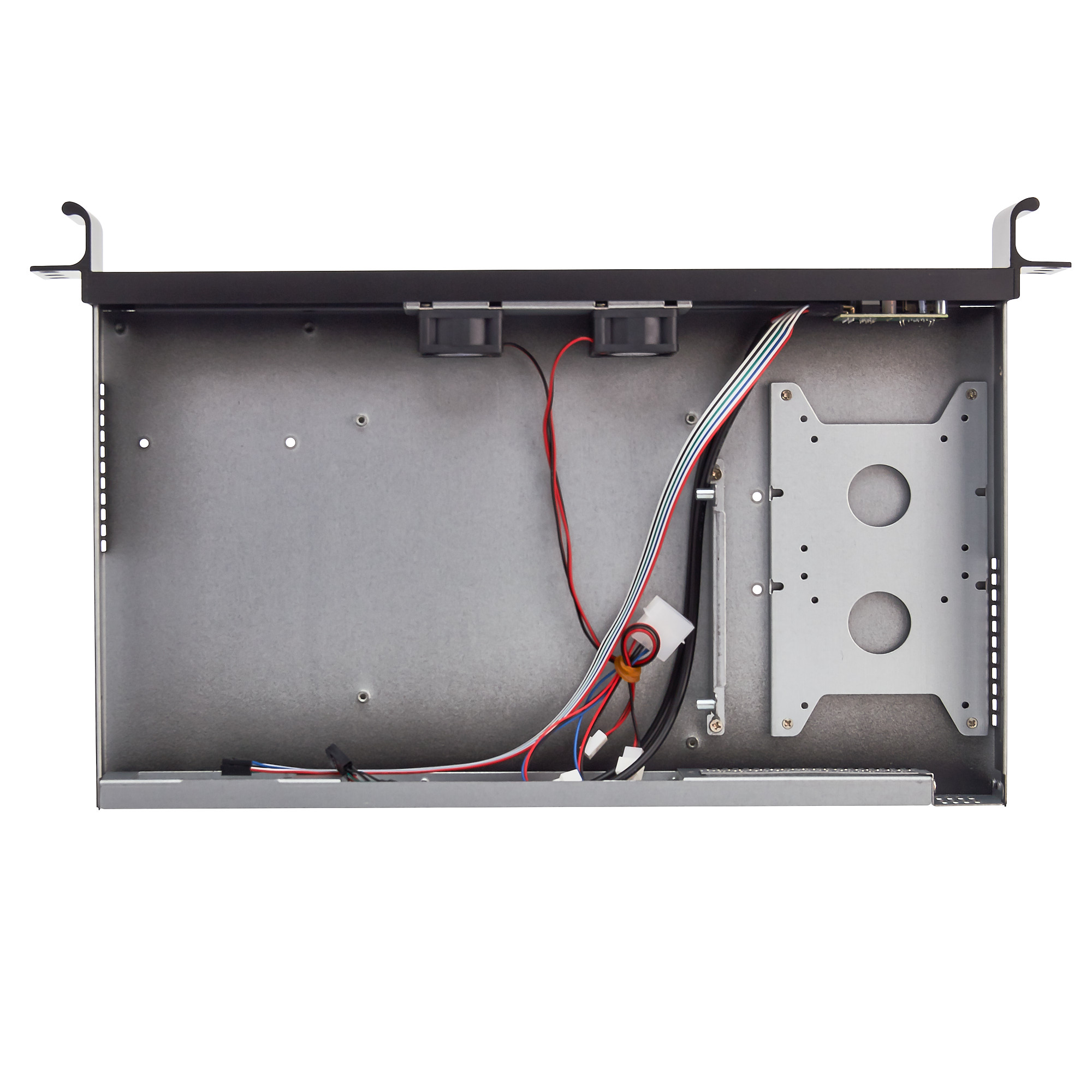

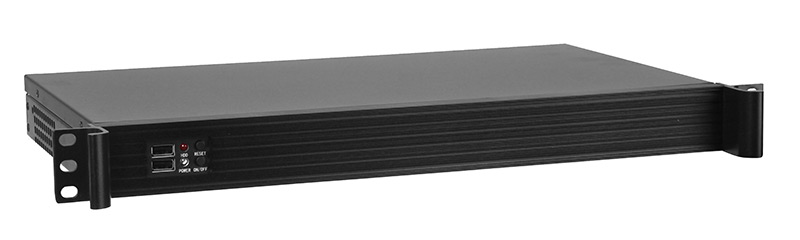

1U250-01
Specification
Type | 1U |
Motherboard Support | mini-ITX |
Max. motherboard size, mm | 170x170 |
Drive Bay: | |
Internal | 1 x 3.5" or 2 x 2.5" |
Front I/O Ports | 2 x USB 2.0 |
Control & Indicator, LED | 1 x Power, 1 x HDD |
Switch | POWER, RESET |
Expansion Slots | 1 |
Cooling System: | 2 x 4 fans in the front panel |
PSU | Support 1U Flex Power Supply |
Chassis material | 1.0 mm steel |
Cases color | Black |
Chassis color | Silver |
Dimensions (D x W x H), mm | 250 x 427 x 44 |
Net Weight w/o PSU / with PSU, kg | 3,43/3,7 |
Model | PSU | P/N | EAN |
1U250-01 | w/o PSU | EX264264 | 4895205103368 |
1U250-01/F250AS | 250W | EX264950 | 4895205103818 |
1U250-01/F250S | 250W | EX264947 | 4895205103825 |
1U250-01/F300AS | 300W | EX264951 | 4895205103832 |
1U250-01/F300S | 300W | EX264948 | 4895205103849 |
1U250-01/F350AS | 350W | EX264952 | 4895205103856 |
1U250-01/F350S | 350W | EX264949 | 4895205103863 |
1U250-01/F400AS | 400W | EX264953 | 4895205103870 |
