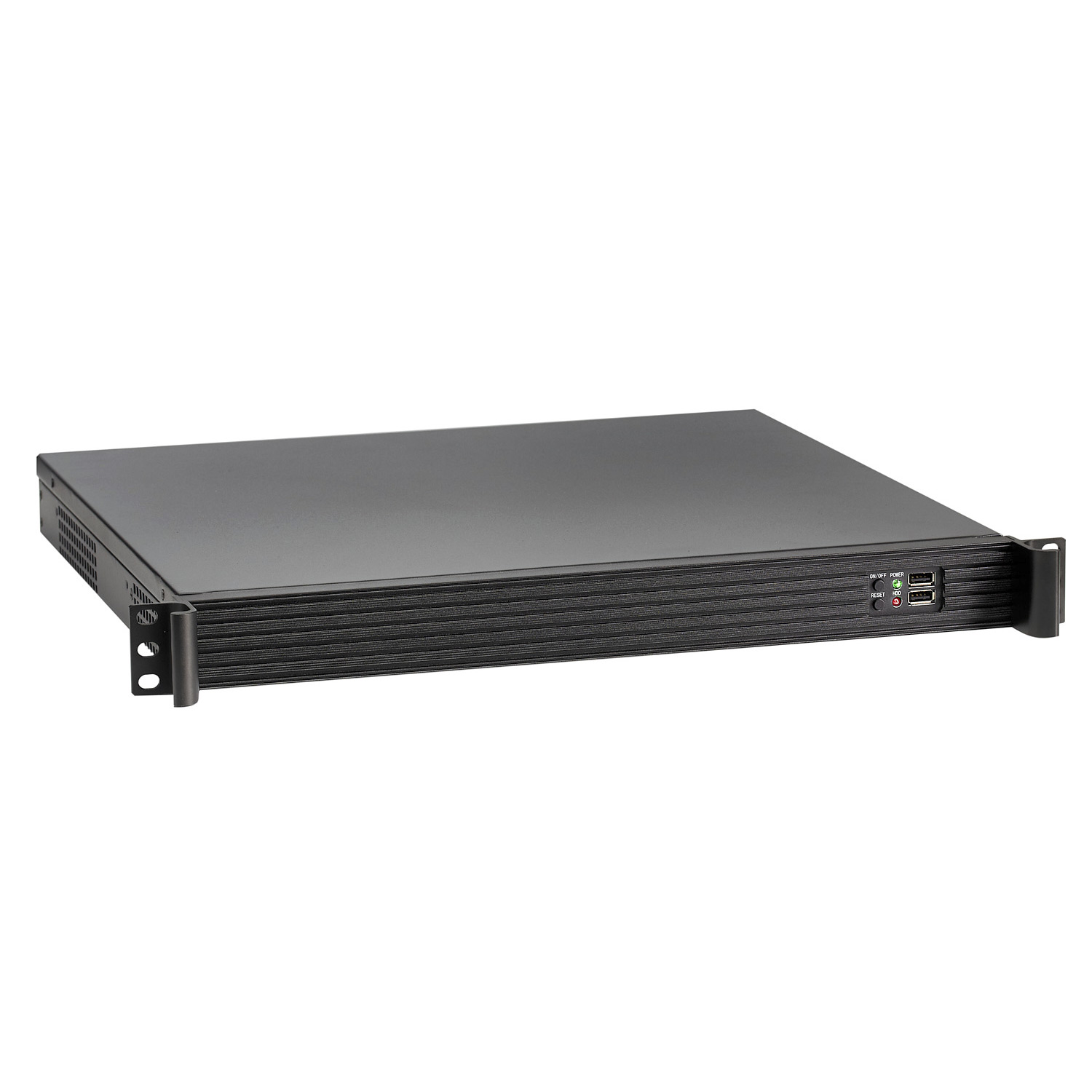

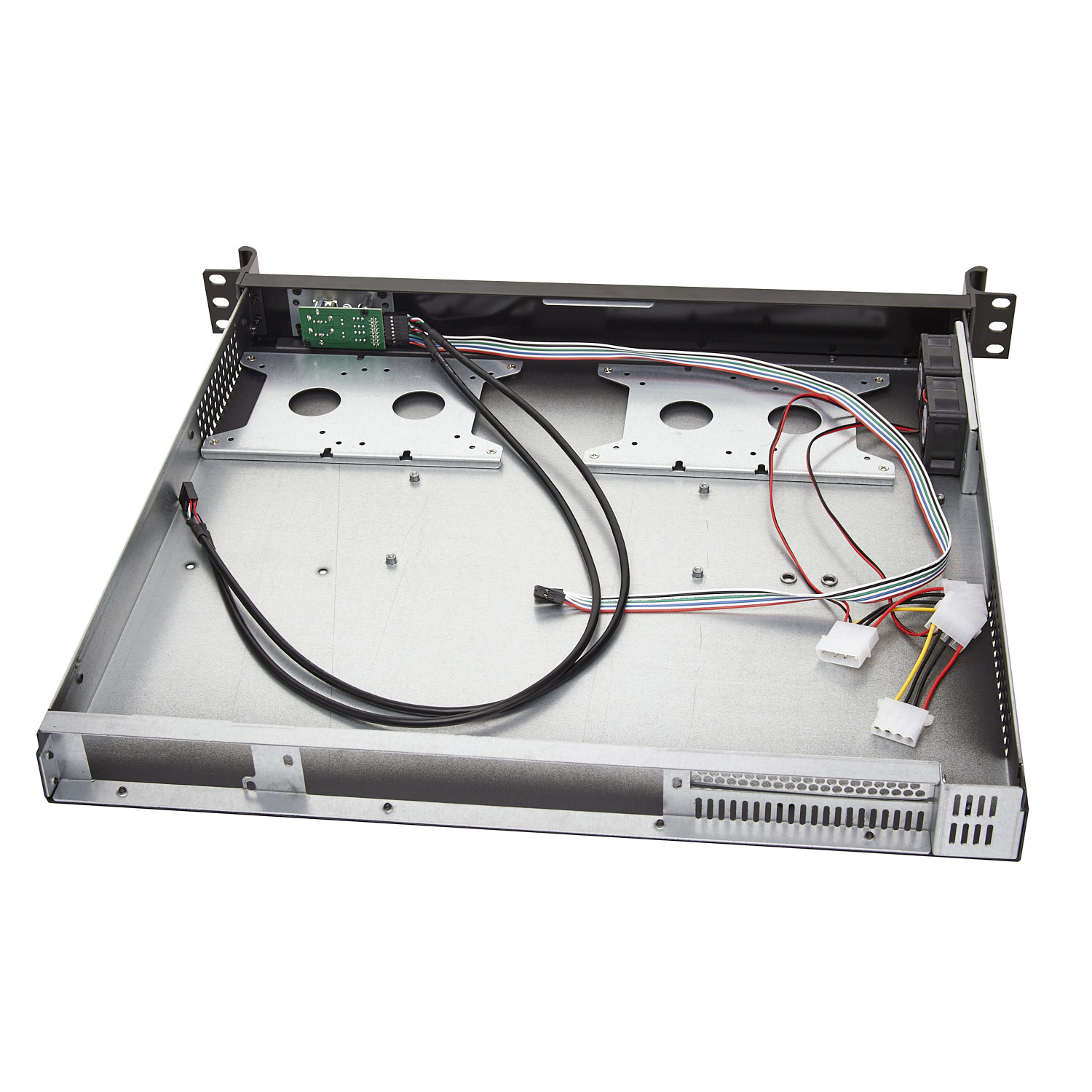

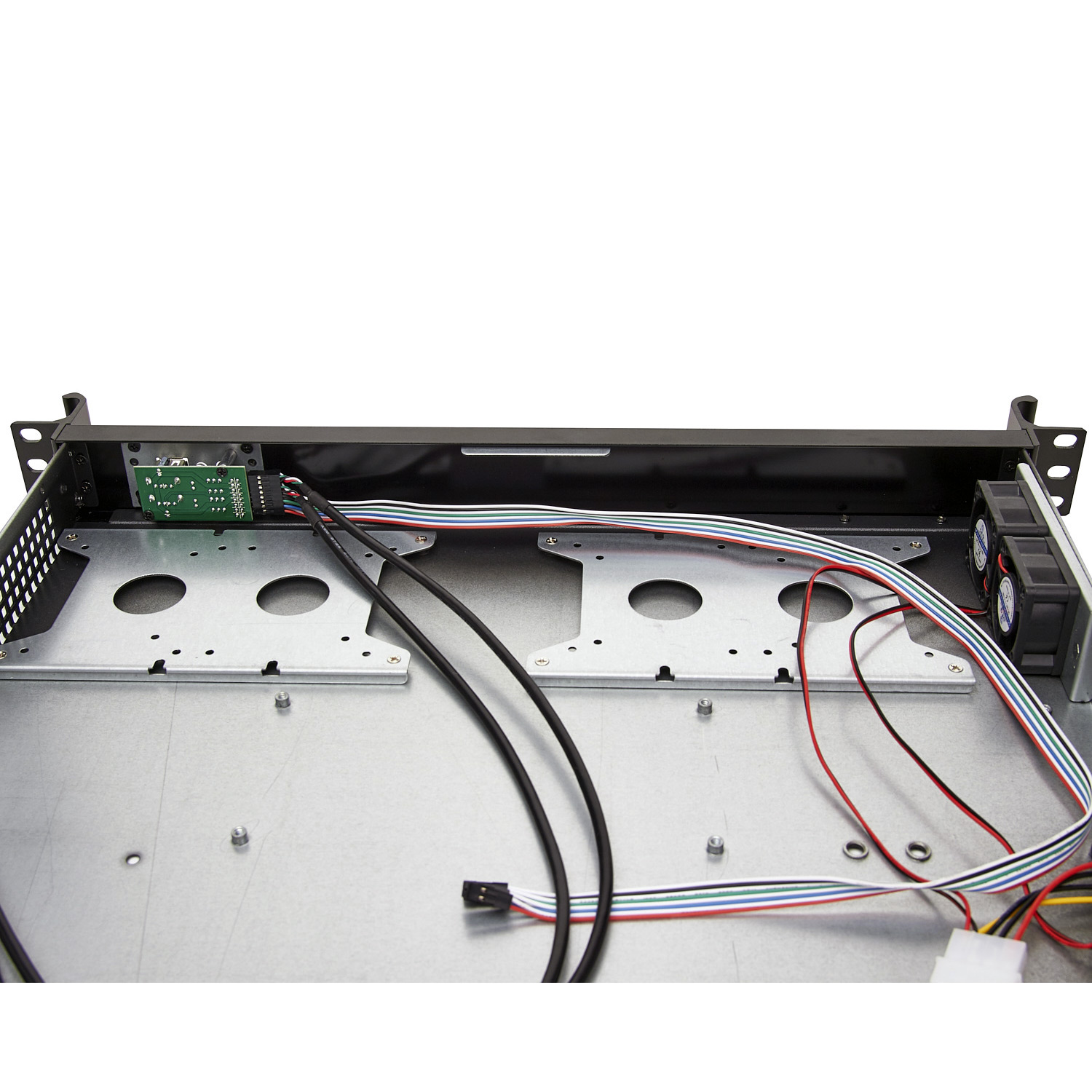

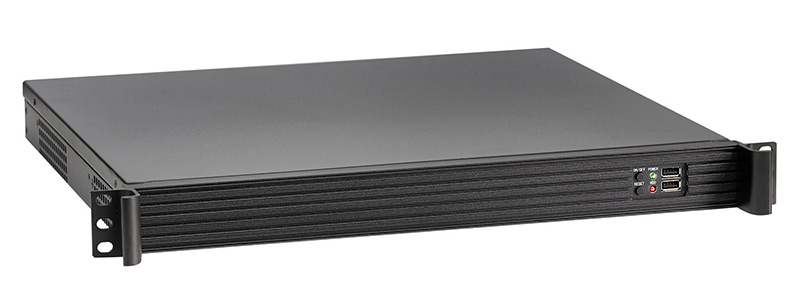

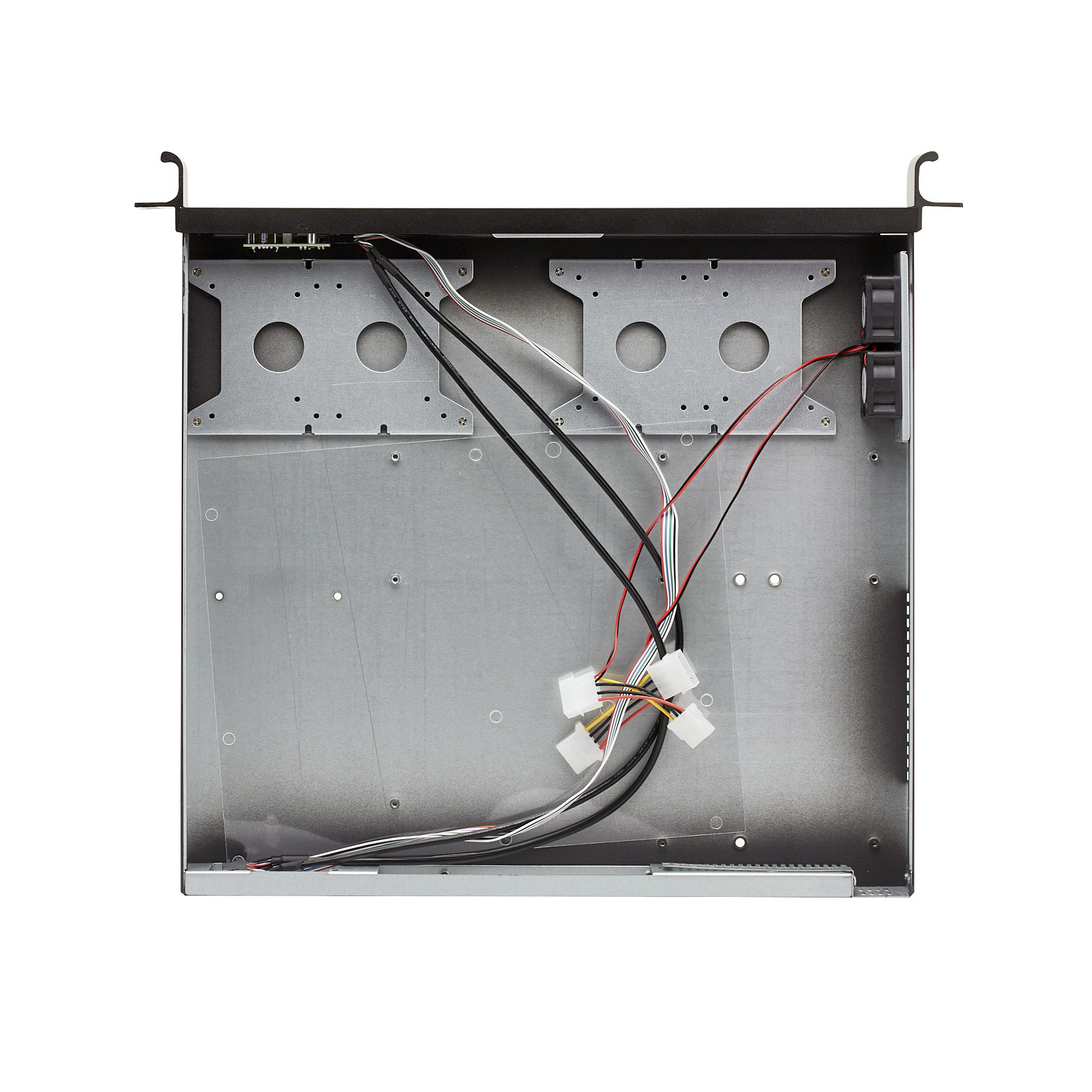

1U390-01

1U390-01

Specification

Type 1U
Motherboard Support miniITX, mATX, ATX, SSI CEB, SSI EEB
Max. motherboard size, mm 305x330
Drive Bay:
Internal 3,5" 2
Internal 2,5" 4 (instead 2 x 3.5" or 1 x 3.5" + 2 x 2.5")
Front I/O Ports 2 x USB 2.0
Control &Indicator, LED 1 x Power, 1 x HDD
Switch POWER, RESET
Expansion Slots 1
Cooling System: 2 x 4 cm fans in the side panel
PSU Support 1U Flex Power Supply
Recommended ExeGate PSU ServerPRO-1U-F250AS, ServerPRO-1U-F250S, ServerPRO-1U-F300AS, ServerPRO-1U-F300S, ServerPRO-1U-F350AS, ServerPRO-1U-F350S, ServerPRO-1U-F400AS, ServerPRO-1U-F400S
Chassis material 1.0 mm steel
Cases color Black
Chassis color Silver
Dimensions chassis (D x W x H), mm 400 x 430 x 44
Dimensions (D x W x H), mm 435 x 482 x 44
Net Weight w/o PSU / with PSU, kg 3,5/3,8


Model PSU P/N EAN
1U390-01 w/o PSU EX279686 4895205109100
1U390-01/F250AS 250W EX279769 4895205109117
1U390-01/F250S 250W EX279776 4895205109124
1U390-01/F300AS 300W EX279770 4895205109131
1U390-01/F300S 300W EX279778 4895205109148
1U390-01/F350AS 350W EX279771 4895205109155
1U390-01/F350S 350W EX279777 4895205109162
1U390-01/F400AS 400W EX279772 4895205109179
1U390-01/F450AS 450W EX279773 4895205109186
1U390-01/F500AS 500W EX279774 4895205109193
1U390-01/F600AS 600W EX279775 4895205109209
