1U650-04
Specification
| Type | 1U |
| Motherboard Support | microATX, ATX, SSI CEB, SSI EEB |
| Max. motherboard size, mm | 305x330 |
| Drive Bay: | |

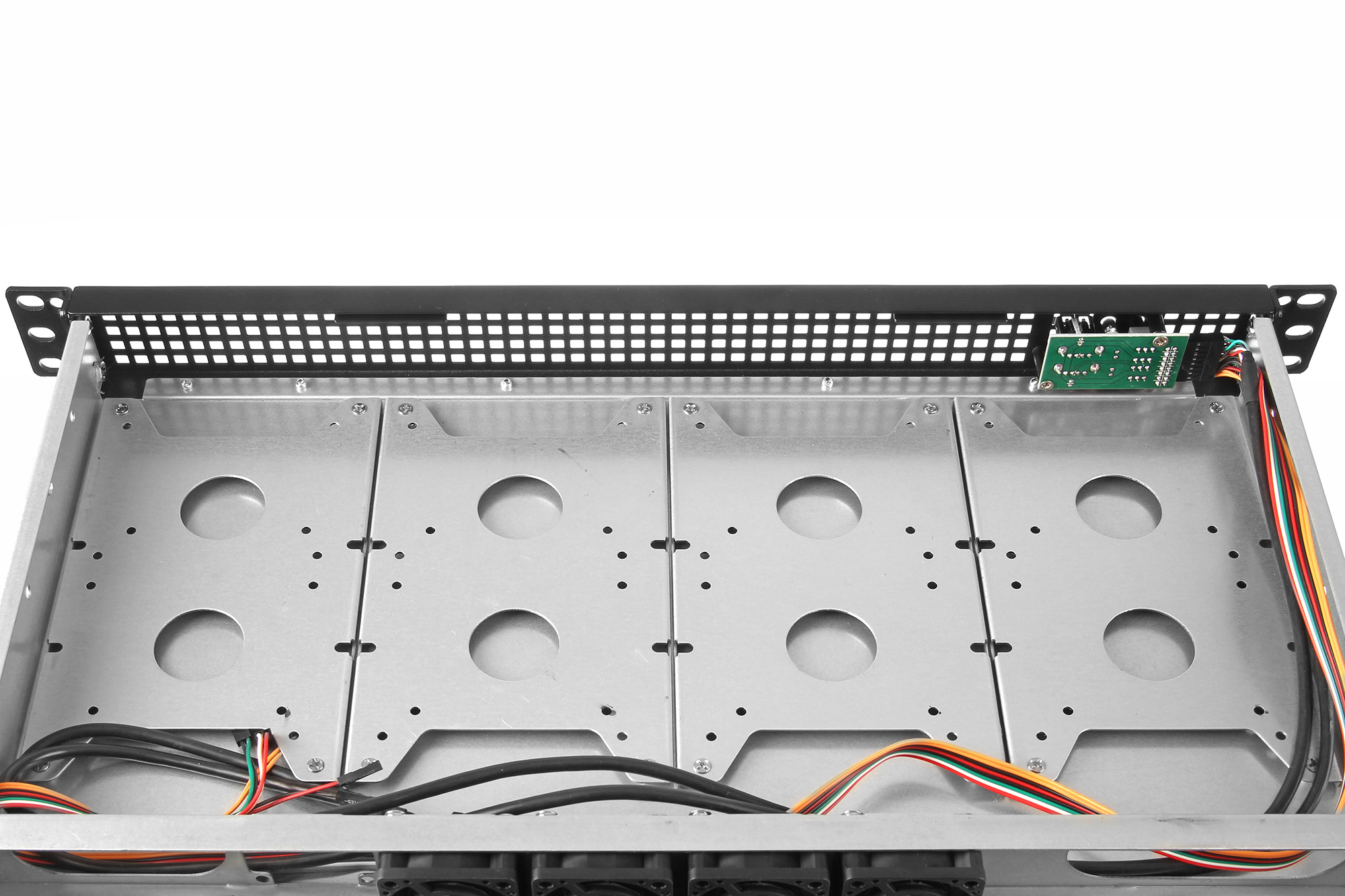

| Int. 3.5" | 4 |
| Int. 2.5" | 6 or 8 if special adapter is used (opt.) |
| Dust | Front panel is equipped with dust filters |
| Front I/O Ports | 2 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 1 x HDD |
| Switch | POWER, RESET |
| Expansion Slots | 1 |

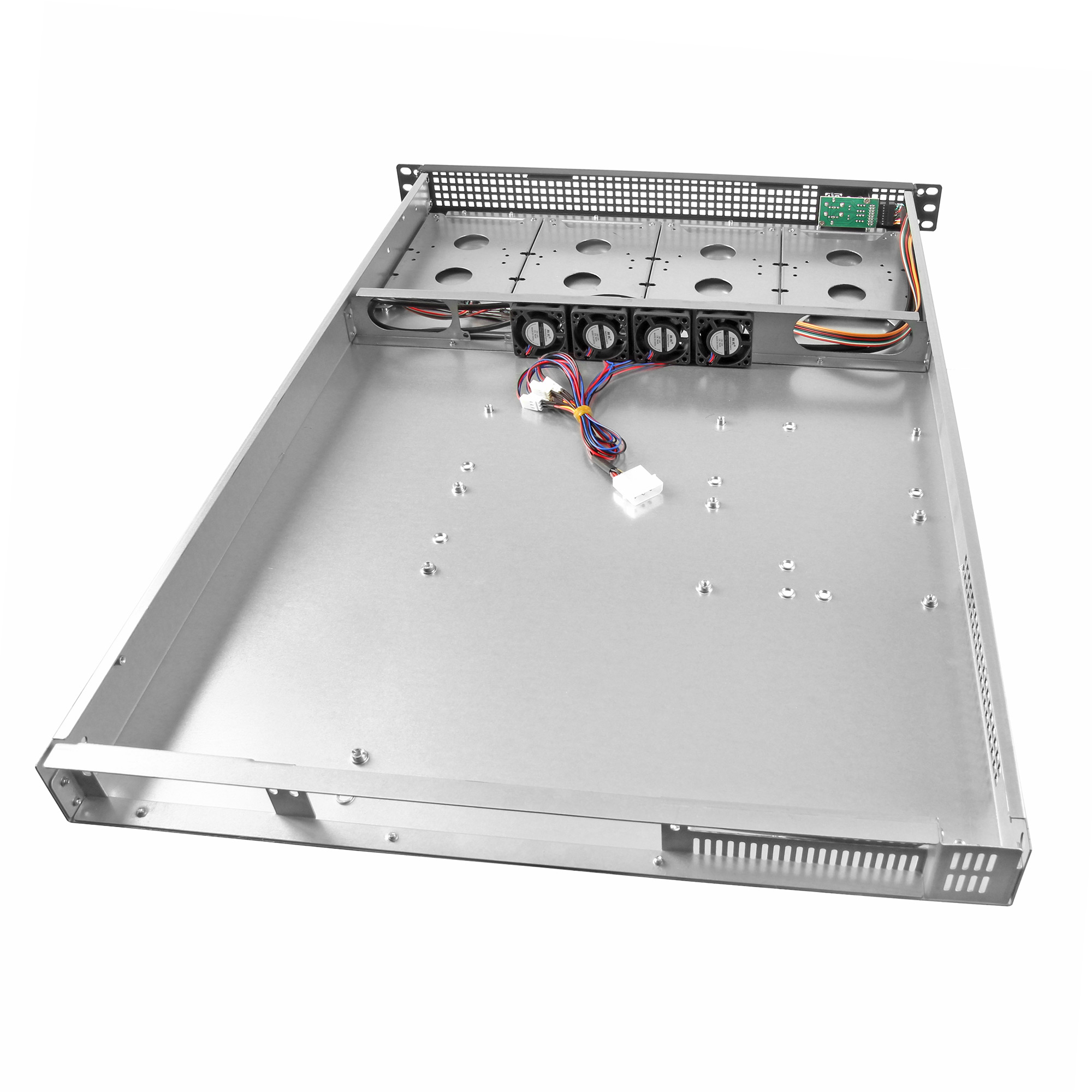

| Cooling System: | 4 x 4 cm fans in the middle frame, 1 x 4 cm (opt.) |
| PSU | 1U |
| Chassis material | 1.2 mm steel |
| Cases color | Black |
| Chassis color | Silver |
| Dimensions (D x W x H), mm | 650 x 430 x 44 |
| 6,94/7,3 |
| Model | PSU | P/N | EAN |
| 1U650-04 | w/o PSU | EX264266 | 4895205103382 |
| 1U650-04/250ADS | 250 | EX265505 | 4895205103986 |
| 1U650-04/250DS | 250 | EX265504 | 4895205103993 |
| 1U650-04/300ADS | 300 | EX265506 | 4895205104006 |
| 1U650-04/300DS | 300 | EX265512 | 4895205104013 |
| 1U650-04/350ADS | 350 | EX265507 | 4895205104020 |
| 1U650-04/350DS | 350 | EX265513 | 4895205104037 |
| 1U650-04/400ADS | 400 | EX265508 | 4895205104044 |
| 1U650-04/450ADS | 450 | EX265509 | 4895205104051 |
| 1U650-04/500ADS | 500 | EX265510 | 4895205104068 |
| 1U650-04/600ADS | 600 | EX265511 | 4895205104075 |
| 1U650-04/700ADS | 700 | EX288495 | 4895205126312 |
| 1U650-04/800ADS | 800 | EX288496 | 4895205126329 |
