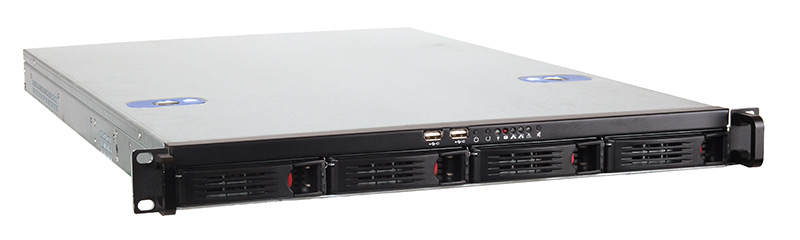

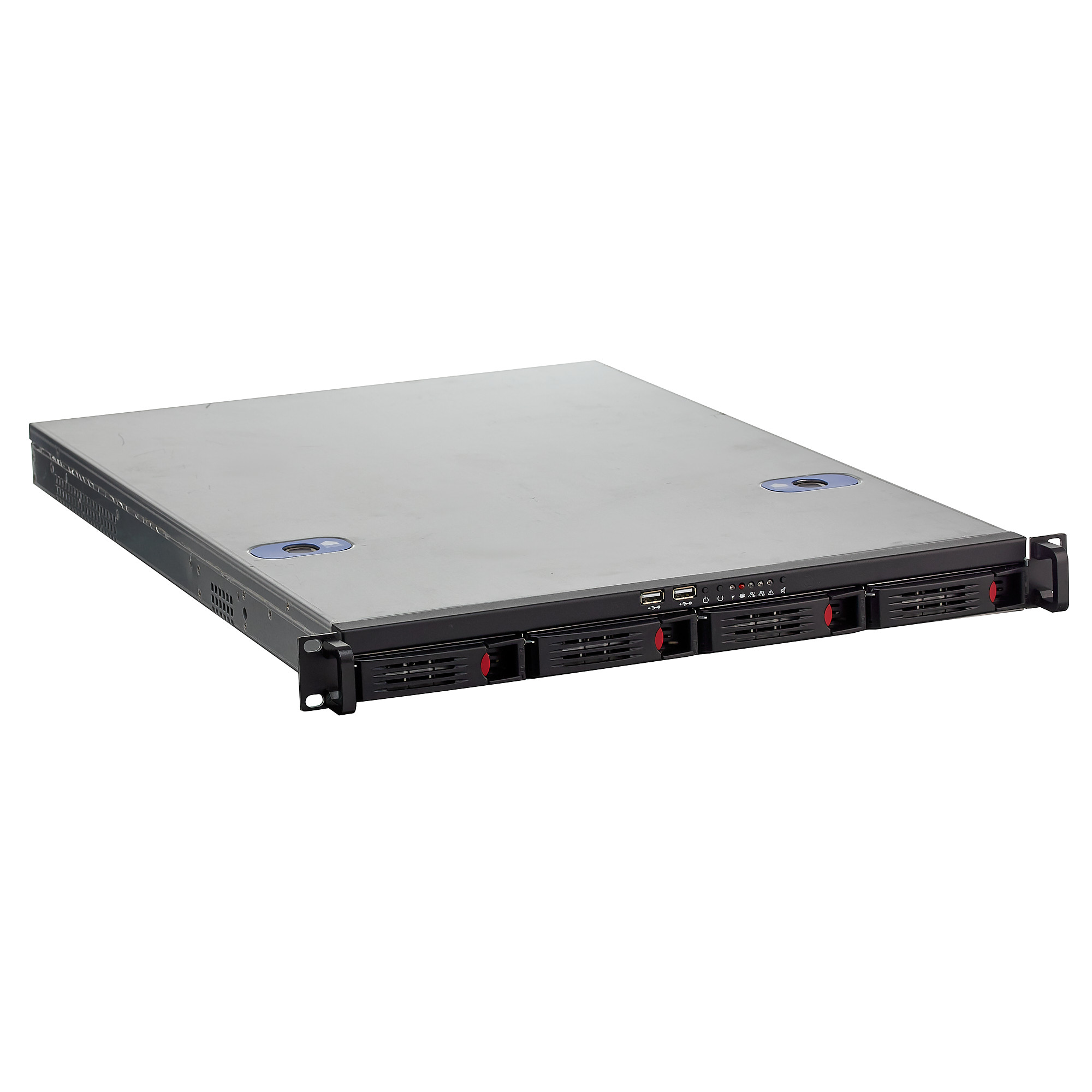

1U660-HS04
Specification
| Type | 1U |
| Motherboard Support | microATX, ATX, SSI CEB, EATX |
| Max. motherboard size, mm | 305x330 |
| Drive Bay: | |

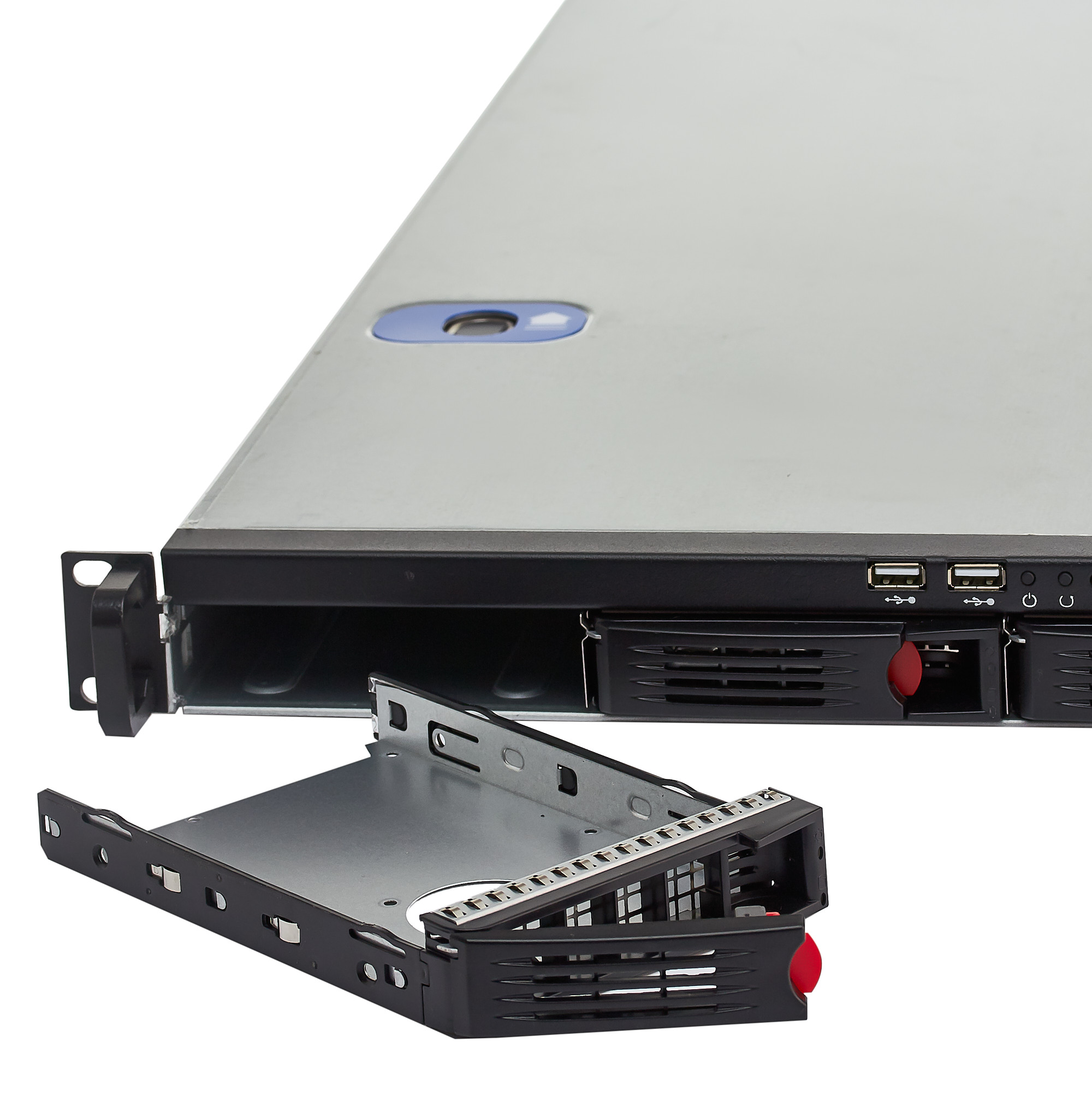

| 3.5" HotSwap | 4 |
| Dust | Front panel is equipped with dust filters |
| Front I/O Ports | 2 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 1 x HDD, 1 x NIC |
| Switch | POWER, RESET |
| Expansion Slots | 1 |

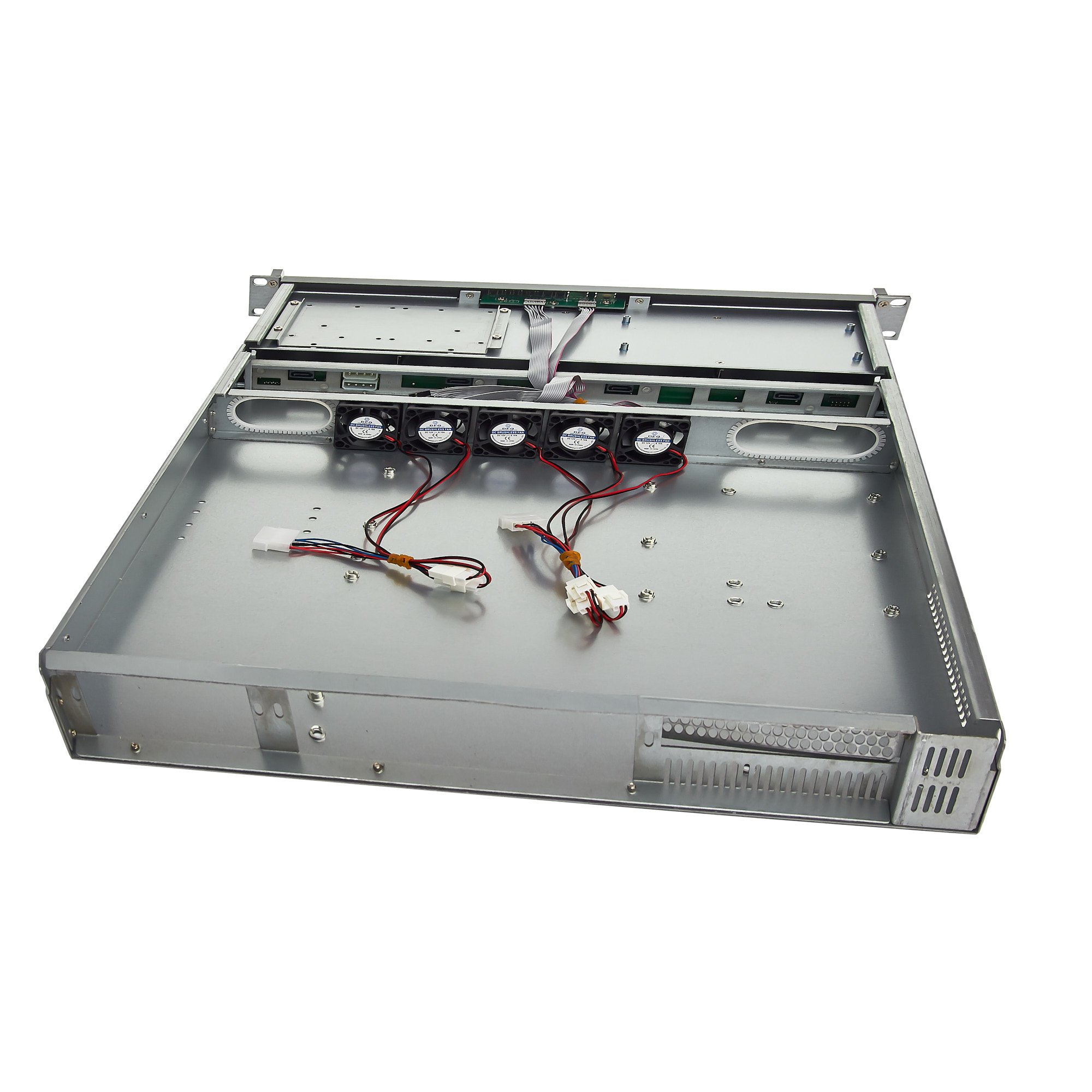

| Cooling System: | 4 x 4 cm fans in the middle frame |
| PSU | 1U |
| Chassis material | 1.2 mm steel |
| Cases color | Black |
| Chassis color | Silver |
| Dimensions (D x W x H), mm | 660 x 430 x 45 |
| 7,5/7,85 |
| Model | PSU | P/N | EAN |
| 1U660-HS04 | w/o PSU | EX264267 | 4895205103399 |
| 1U660-HS04/250ADS | 250 | EX265514 | 4895205104082 |
| 1U660-HS04/250DS | 250 | EX265515 | 4895205104099 |
| 1U660-HS04/300ADS | 300 | EX265516 | 4895205104105 |
| 1U660-HS04/300DS | 300 | EX265517 | 4895205104112 |
| 1U660-HS04/350ADS | 350 | EX265518 | 4895205104129 |
| 1U660-HS04/350DS | 350 | EX265519 | 4895205104136 |
| 1U660-HS04/400ADS | 400 | EX265520 | 4895205104143 |
| 1U660-HS04/450ADS | 450 | EX265521 | 4895205104150 |
| 1U660-HS04/500ADS | 500 | EX265522 | 4895205104167 |
| 1U660-HS04/600ADS | 600 | EX265523 | 4895205104174 |
| 1U660-HS04/700ADS | 700 | EX288492 | 4895205126299 |
| 1U660-HS04/800ADS | 800 | EX288493 | 4895205126305 |
