2U550-08
Specification
| Type | 2U |
| Motherboard Support | ATX |
| Max. motherboard size, mm | 305x244 |
| Drive Bay: | |
| Int. 3.5" | 8 |
| Int.2.5" | 3 |
| Front I/O Ports | 2 x USB 2.0 |
| Control &indicator, LED | 1 x Power, 1 x HDD |
| Switch | POWER, RESET |
| Expansion Slots | 7 |
| Cooling System | |

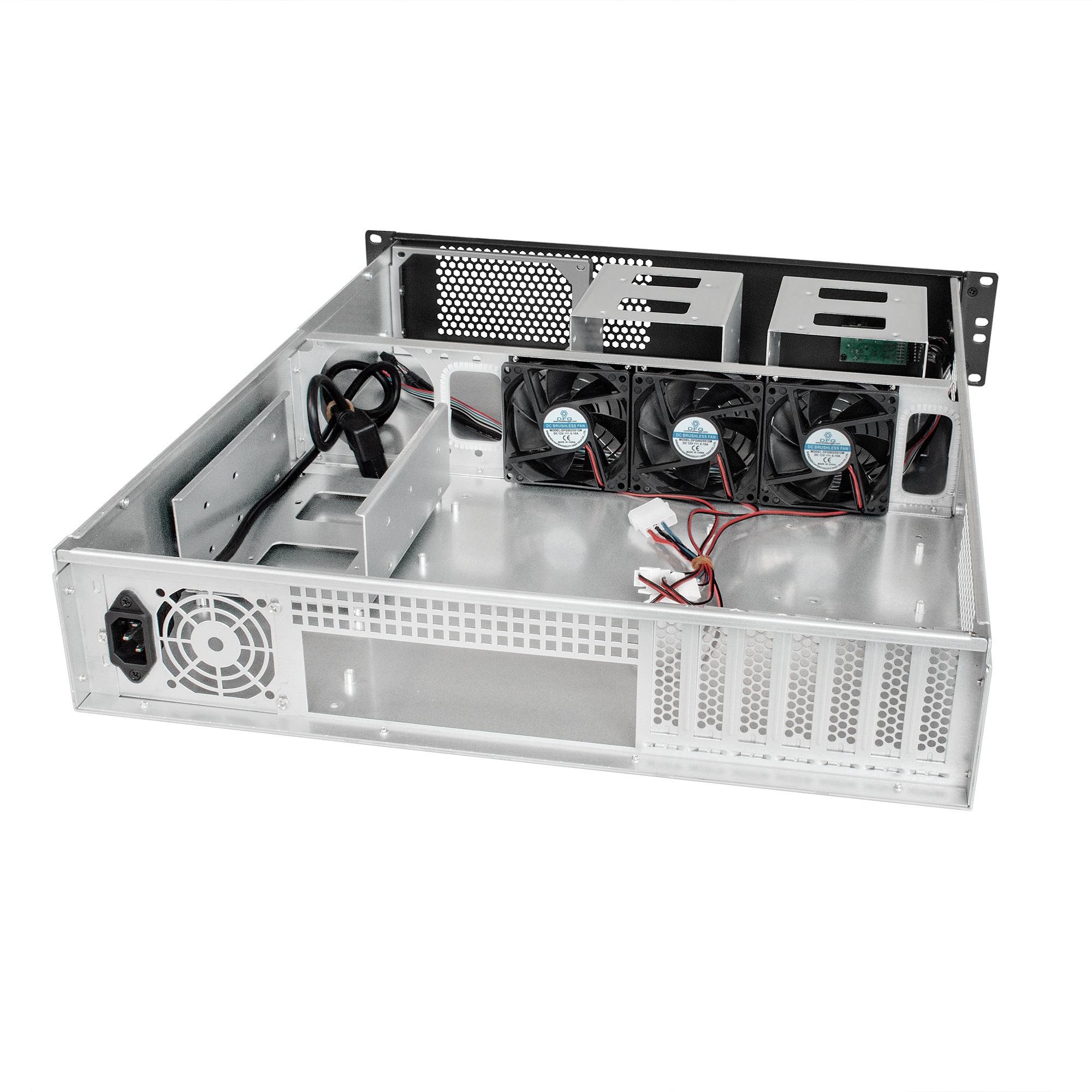

| Integral fan | 3 x 80mm in the central part |
| Integral fan location | In the central part |
| Fan Support | 3 x 80mm |
| Recommended ExeGate PSU | ATX |
| Chassis material | Steel |
| Metal thickness | 1.2 mm |
| Cases color | Black |
| Chassis color | Silver |
| Dimensions chassis (D x W x H), mm | 560 x 430 x 90 |
| Dimensions (D x W x H), mm | 600 x 485 x 90 |
| Dimensions package (D x W x H), mm | 690 x 545 x 175 |
| Net Weight w/o PSU / with PSU, kg | 9,1/10,2 |
| PSU | w/o PSU | 500W | 600W | 700W | 800W |
| P/N | EX284959 | EX284973 | EX284974 | EX284975 | EX284976 |
| EAN | 4895205117945 | 4895205120143 | 4895205120150 | 4895205120167 | 4895205120174 |
