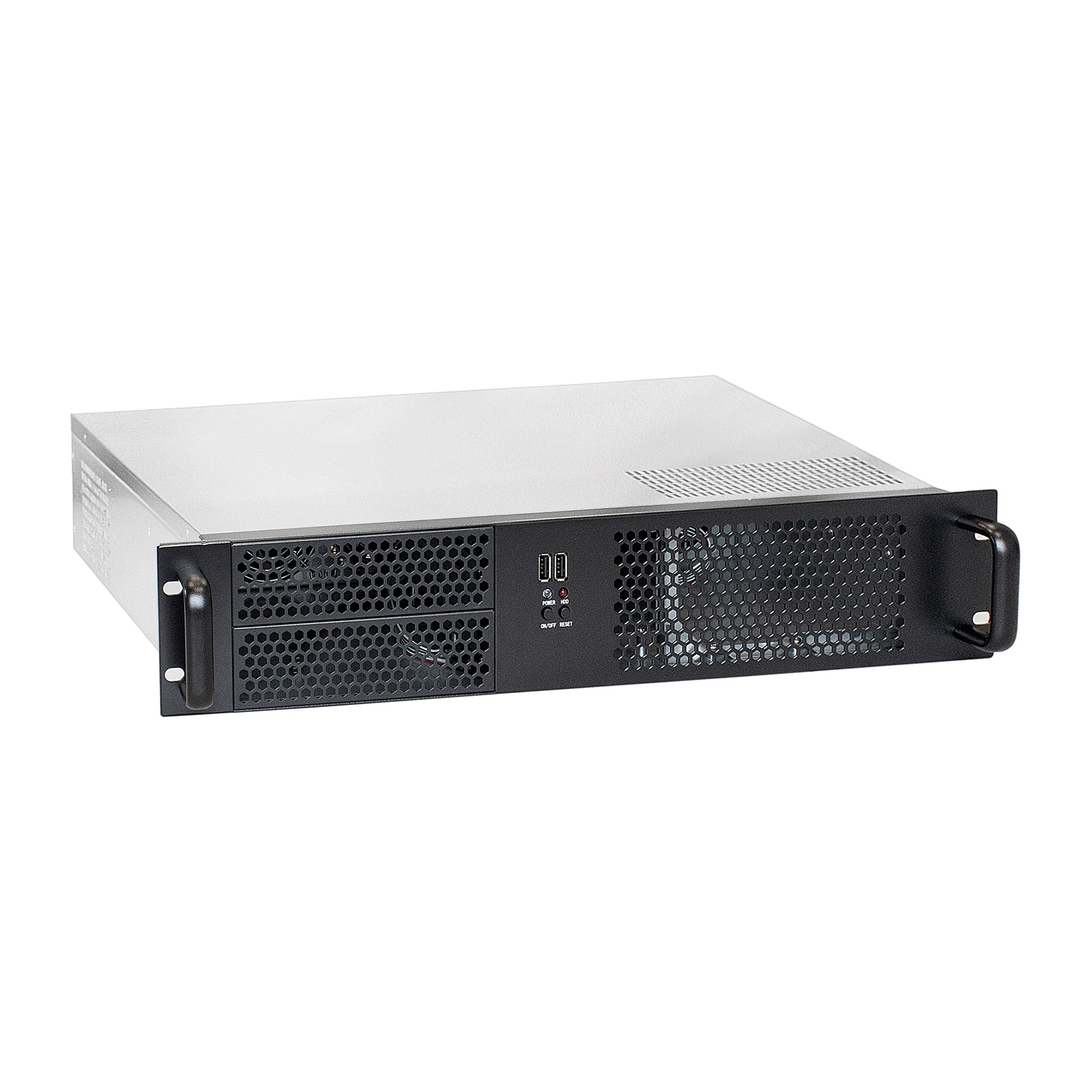

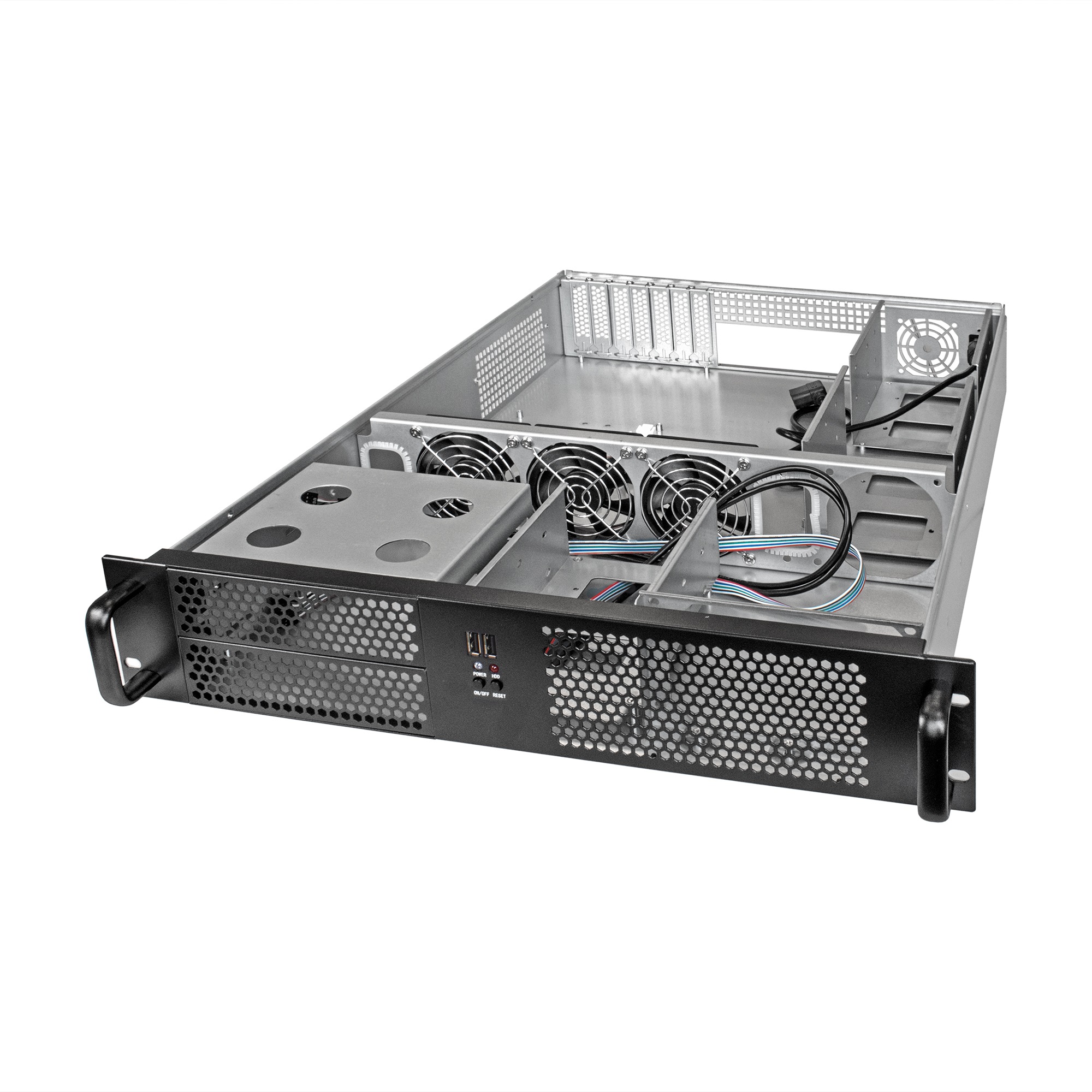

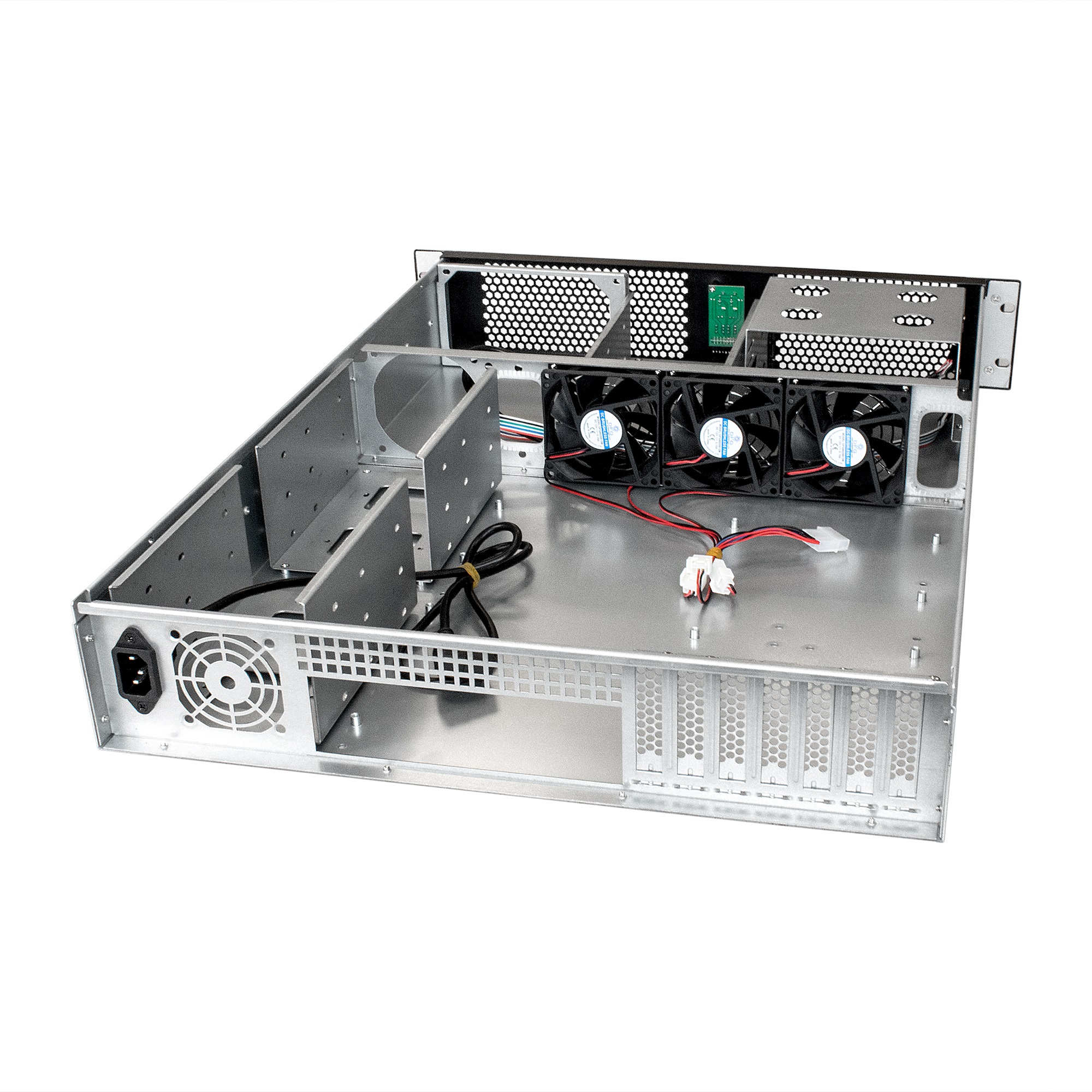

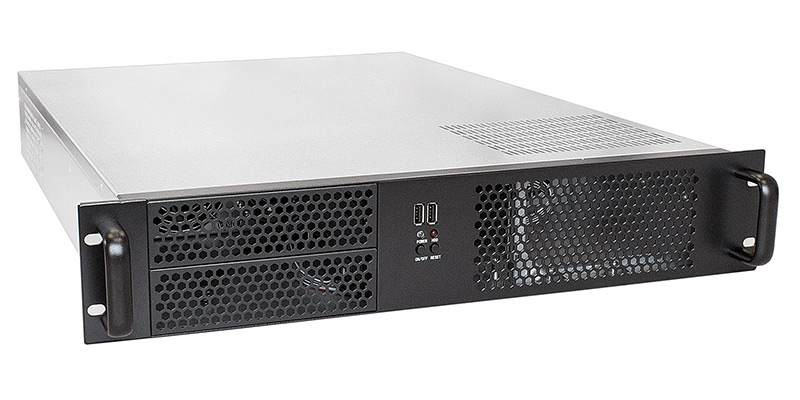

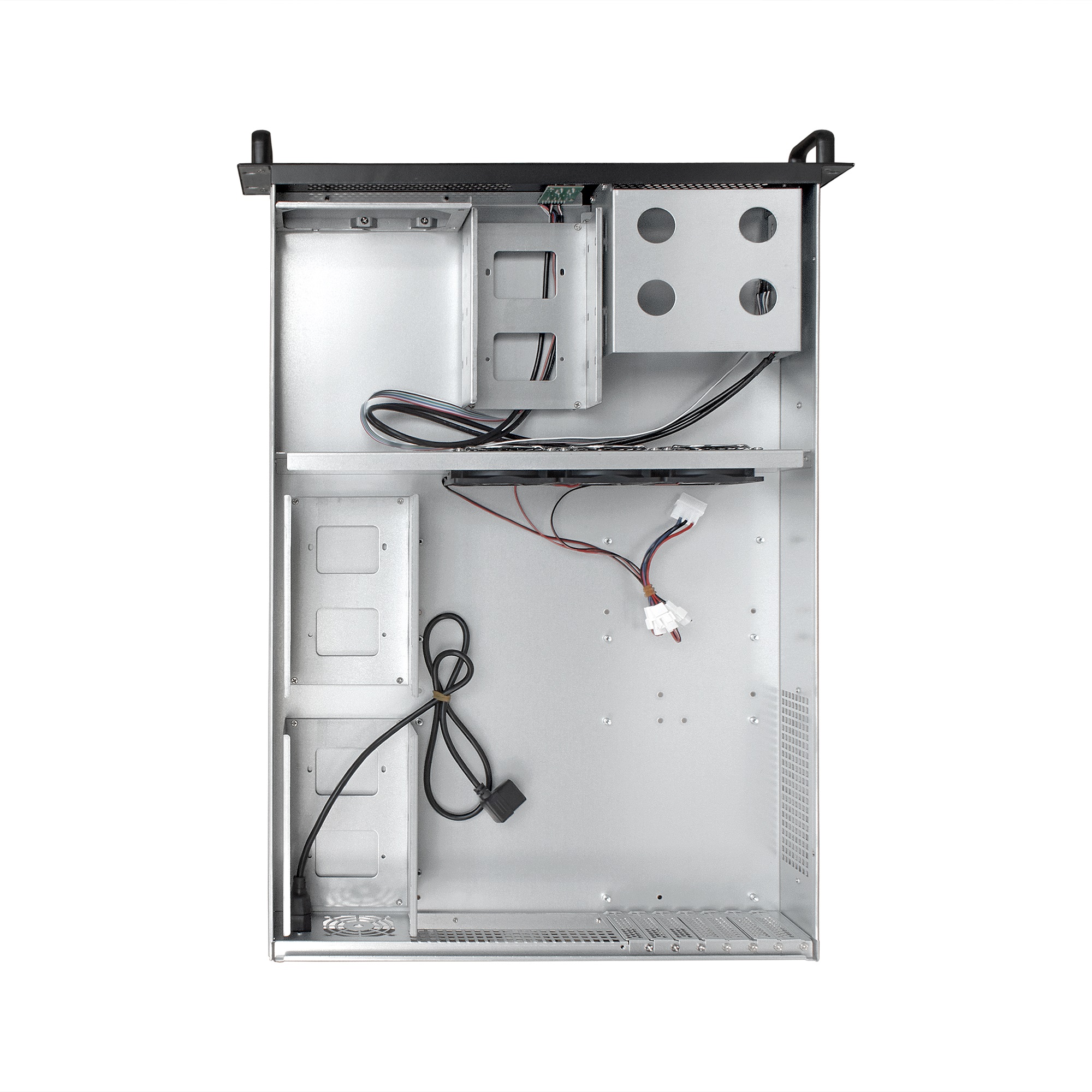

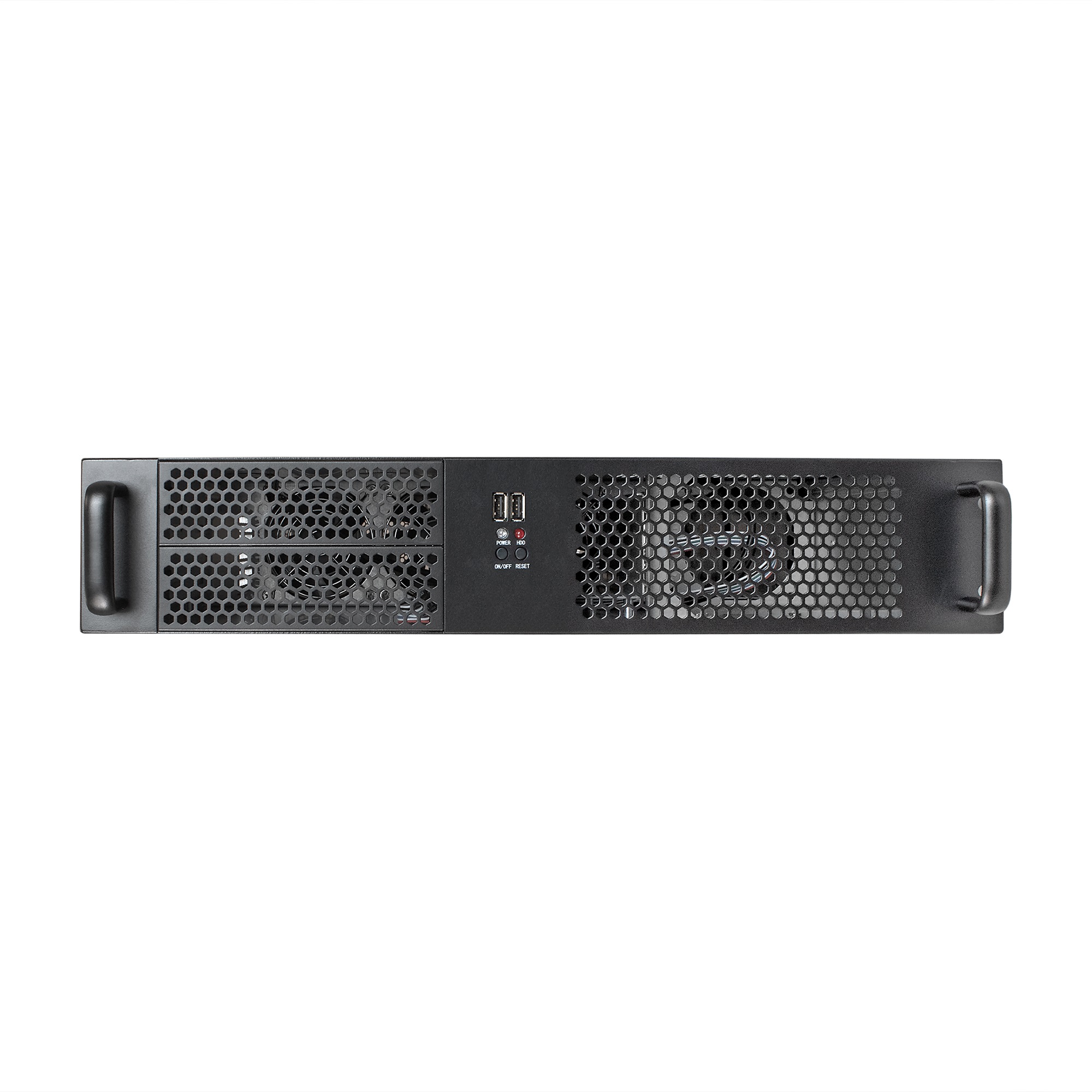

2U650-08

2U650-08

Specification

Type 2U
Motherboard Support ATX
Max. motherboard size, mm 305x244
Drive Bay:
Ext. 5.25" 2
Int. 3.5" 7
Int.2.5" 3
Front I/O Ports 2 x USB 2.0
Control &indicator, LED 1 x Power, 1 x HDD
Switch POWER, RESET
Expansion Slots 7
Cooling System
Integral fan 3 x 80mm In the central part
Integral fan location In the central part
Fan Support 3 x 80mm
Recommended ExeGate PSU ATX
Chassis material Steel
Metal thickness 1.2 mm
Cases color Black
Chassis color Silver
Dimensions chassis (D x W x H), mm 650 x 430 x 90
Dimensions (D x W x H), mm 690 x 480 x 90
Dimensions package (D x W x H), mm 785 x 550 x 175
Net Weight w/o PSU / with PSU, kg 10,5/11,6


PSU w/o PSU 500W 600W 700W 800W
P/N EX284960 EX284977 EX284978 EX284979 EX284980
EAN 4895205117952 4895205120181 4895205120198 4895205120204 4895205120211
