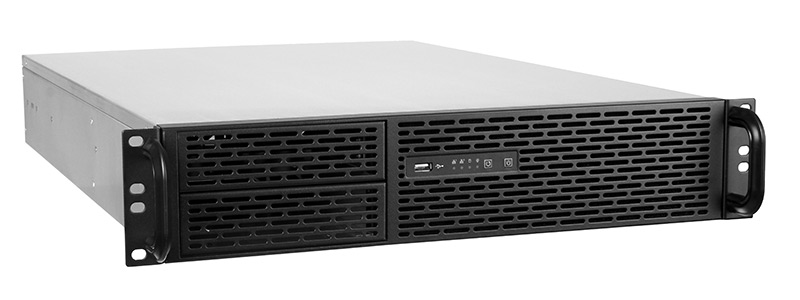

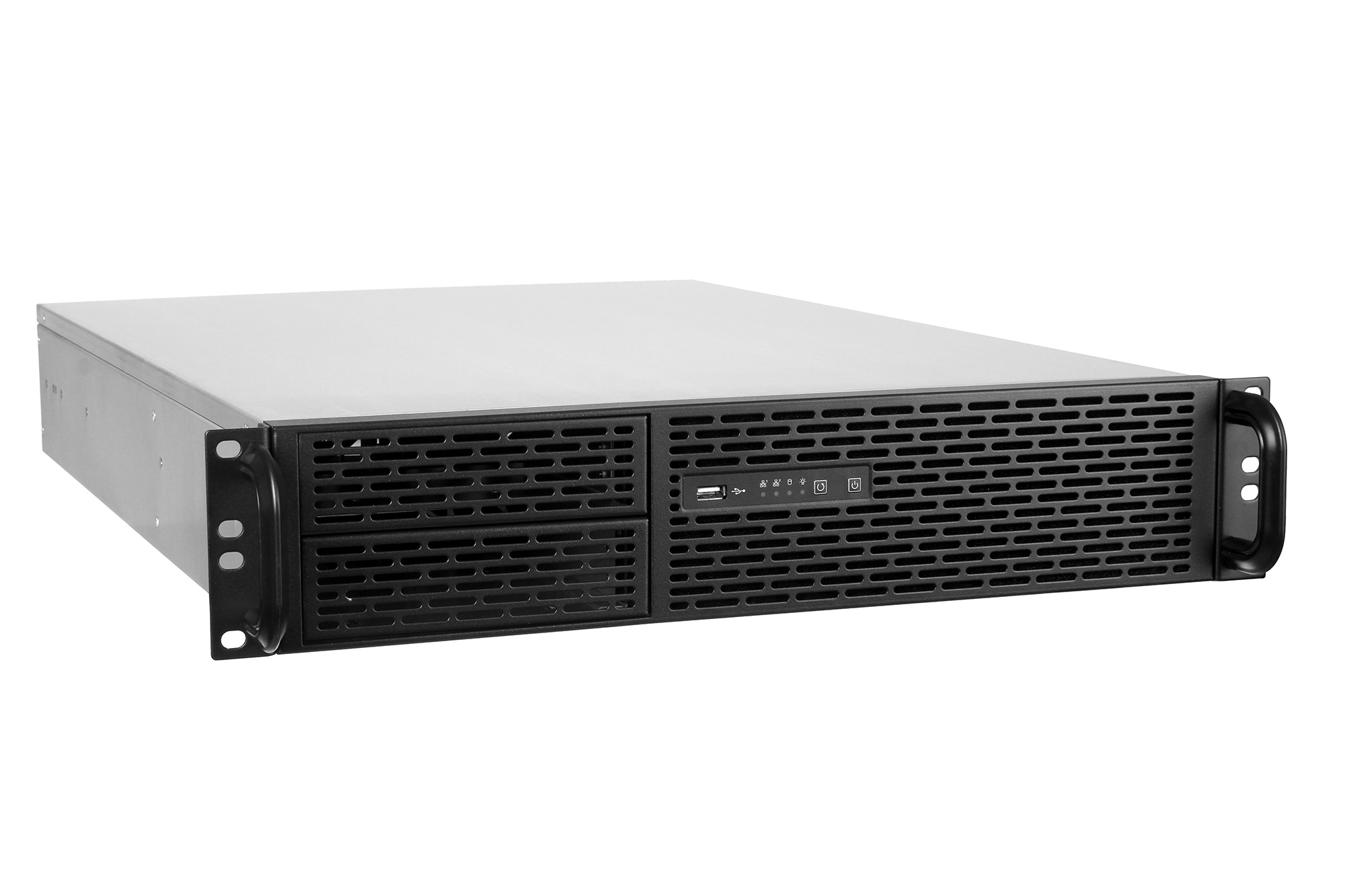

2U650-06/2U2098L
Specification
| Type | 2U |
| Motherboard Support | mATX, ATX, SSI EEB |
| Max. motherboard size, mm | 305x330 |
| Drive Bay: | |
| Ext. 5.25" | 2 |

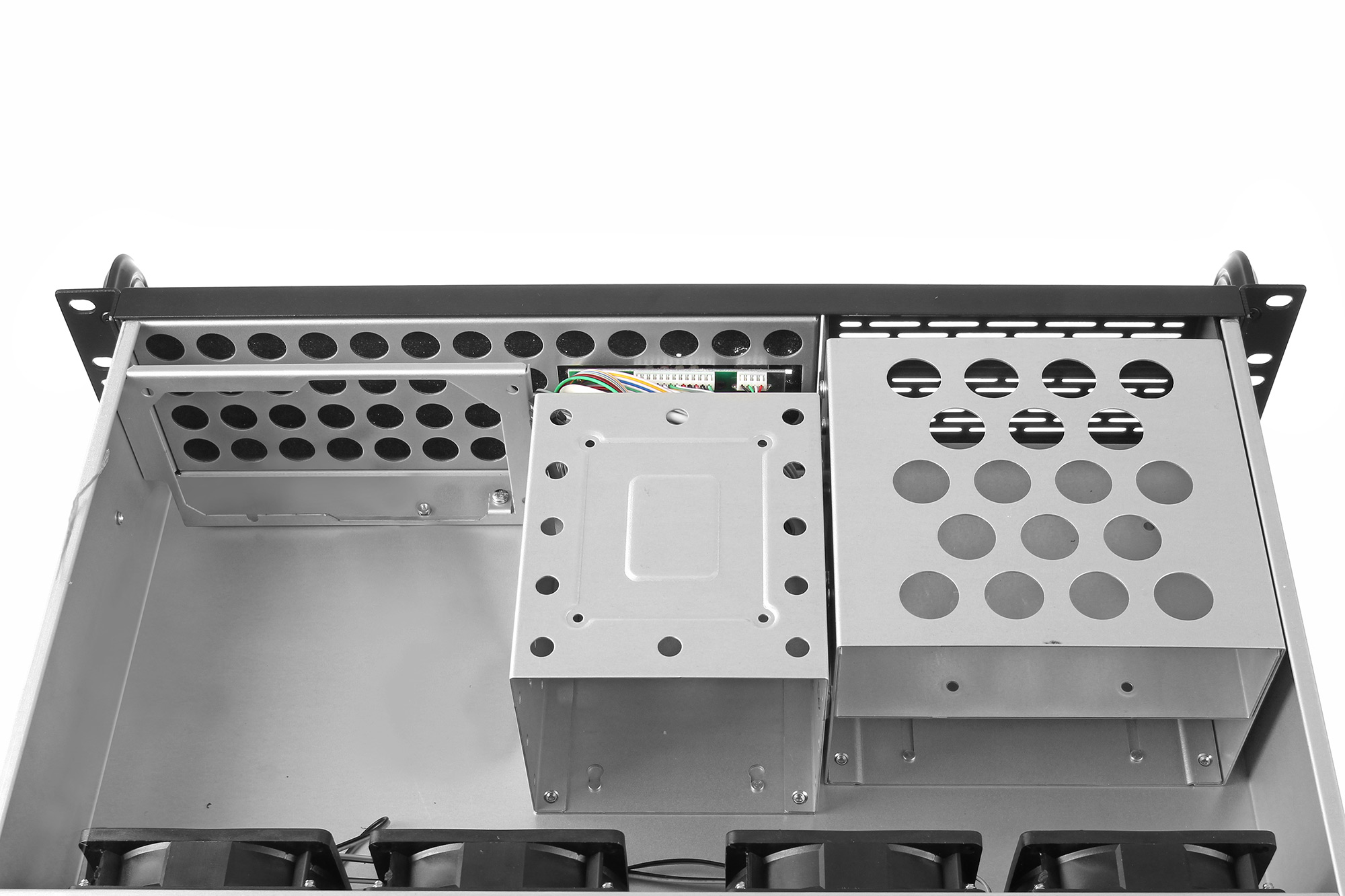

| Int. 3.5" | 6 |
| Dust | Front panel is equipped with dust filters |
| Front I/O Ports | 1 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 1 x HDD, 2 x NIC |
| Switch | POWER, RESET |
| Expansion Slots | 7 |

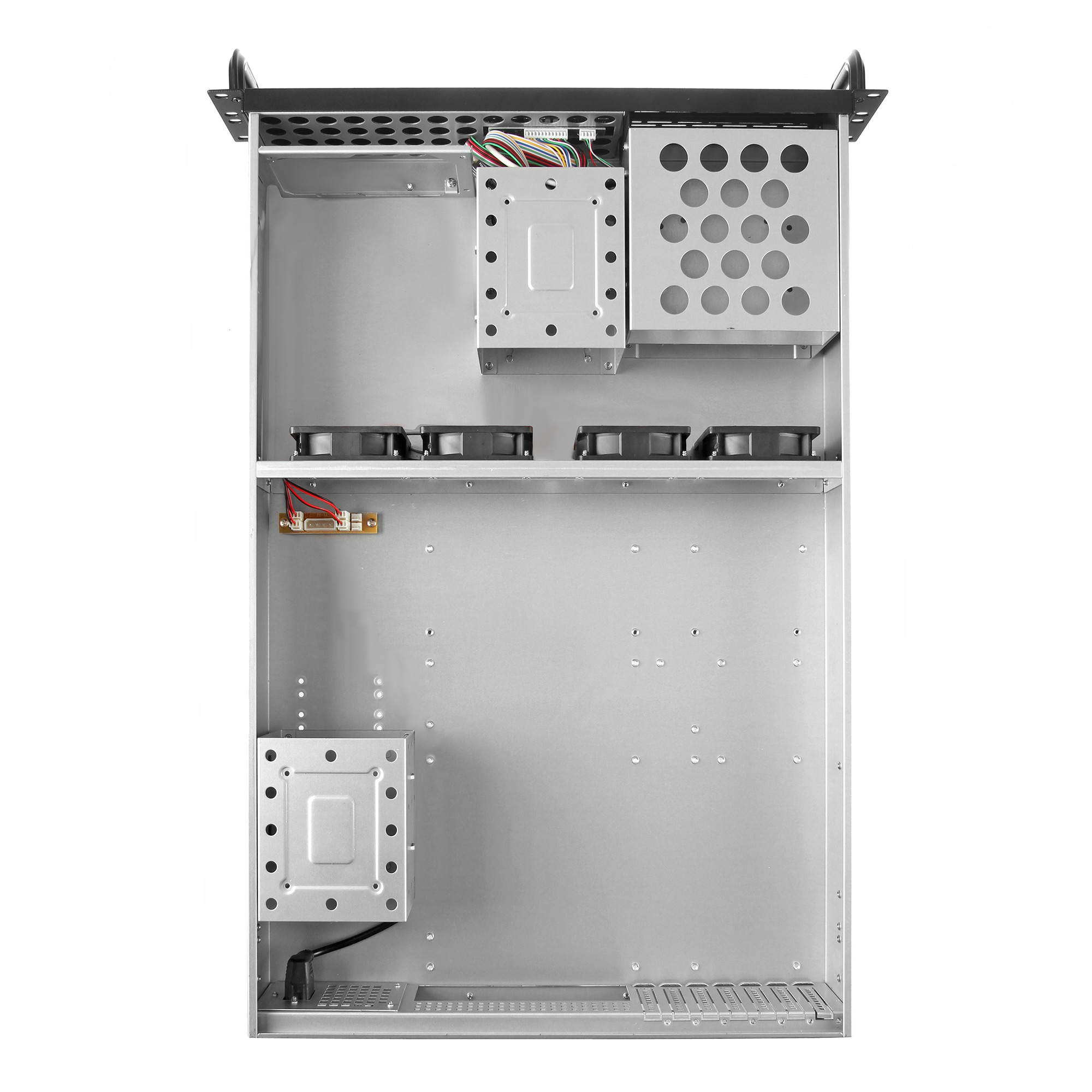

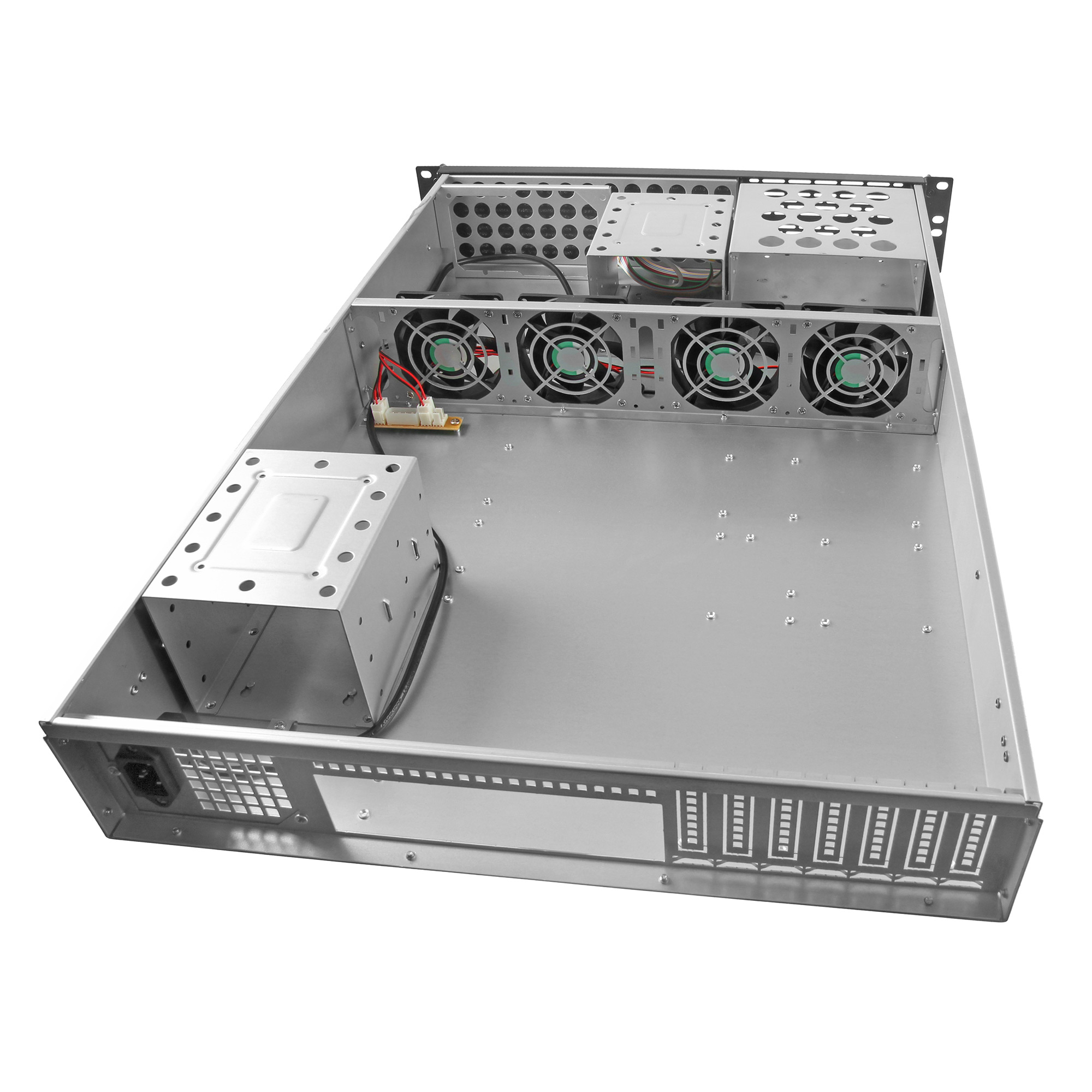

| Cooling System: | 4 x 8 cm fans in the middle frame |
| PSU | Support ATX Power Supply |
| Recommended Exegate PSU | ServerPRO-500ADS, ServerPRO-600ADS, ServerPRO-700ADS, ServerPRO-800ADS, w/o PSU |
| Chassis material | 1.0 mm steel |
| Cases color | Black |
| Chassis color | Silver |
| Dimensions (D x W x H), mm | 650 x 430 x 89 |
| Net Weight w/o PSU / with PSU, kg | 8,8/10,3 |
| PSU model | w/o PSU | 500W | 600W | 700W | 800W |
| P/N | EX172964 | EX234958 | EX234959 | EX234960 | EX248516 |
| EAN | 4897040850803 | 4897040857383 | 4897040857390 | 4897040857406 | 4897040859219 |
