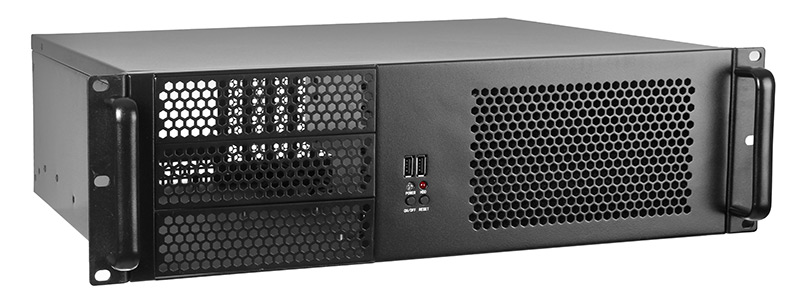

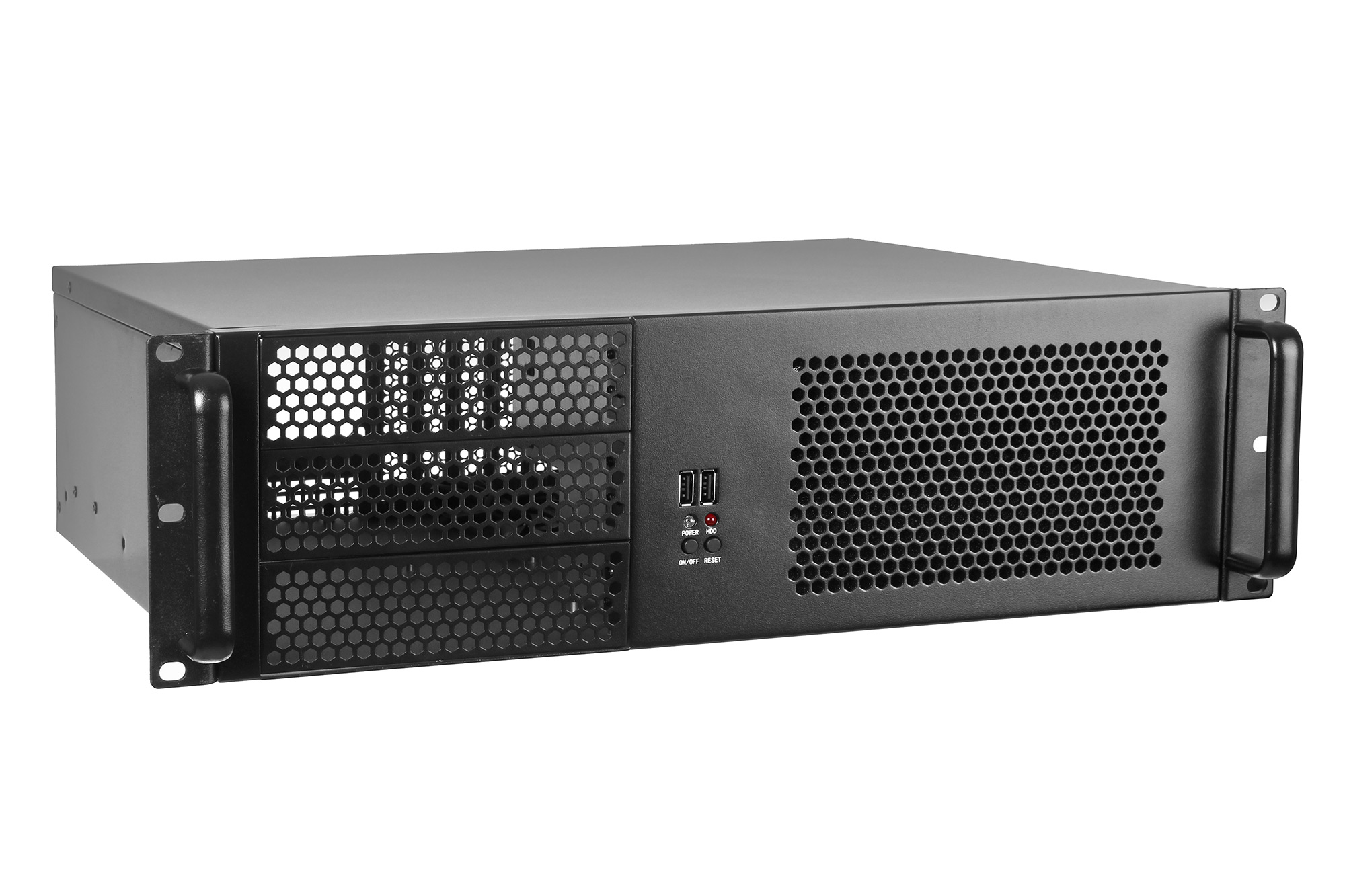

3U390-08
Specification
| Type | 3U |
| Motherboard Support | miniITX, mATX, ATX * |
| Max. motherboard size, mm | 244x305 |
| Drive Bay: | |
| Ext. 5.25" | 3 |
| Int. 3.5" | 8 (with m/b ITX) or 6 (with m/b ATX) |
| Dust | Front panel is equipped with dust filters |
| Front I/O Ports | 2 x USB 2.0 |
| Control & Indicator, LED | 1 x Power, 1 x HDD, 1 x NIC |
| Switch | POWER, RESET |
| Expansion Slots | 4 |
| Cooling System: | 2 x 8 cm fan |
| PSU | ATX |
| Recommended ExeGate PSU | ServerPRO-500ADS, ServerPRO-600ADS, ServerPRO-700ADS, ServerPRO-800ADS |
| Chassis material | 1.2 mm steel |
| Cases color | Black |
| Chassis color | Silver |
| Dimensions (D x W x H), mm | 390 x 430 x 133 |
| 5,85/6,65 | |
| * Notes | The power supply cover the the two extreme slots for expansion board. |
| PSU | w/o PSU | 500W | 600W | 700W | 800W |
| P/N | EX264270 | EX264943 | EX264944 | EX264945 | EX264946 |
| EAN | 4895205103429 | 4895205104259 | 4895205104266 | 4895205104273 | 4895205104280 |
