4U450-16/4U4019S
Specification
Type | 4U |
Motherboard Support | mATX, ATX, SSI CEB |
Max. motherboard size, mm | 305x267 |
Drive Bay: | |
Ext. 5.25" | 3 |
Ext. 3.5" | 1 |
Int. 3.5" | 6 |
Dust | Front panel is equipped with dust filters |
Front I/O Ports | 2 x USB 2.0 |
Control & Indicator, LED | 1 x Power, 1 x HDD, 1 x SLEEP |
Switch | POWER, RESET |
Expansion Slots | 7 |

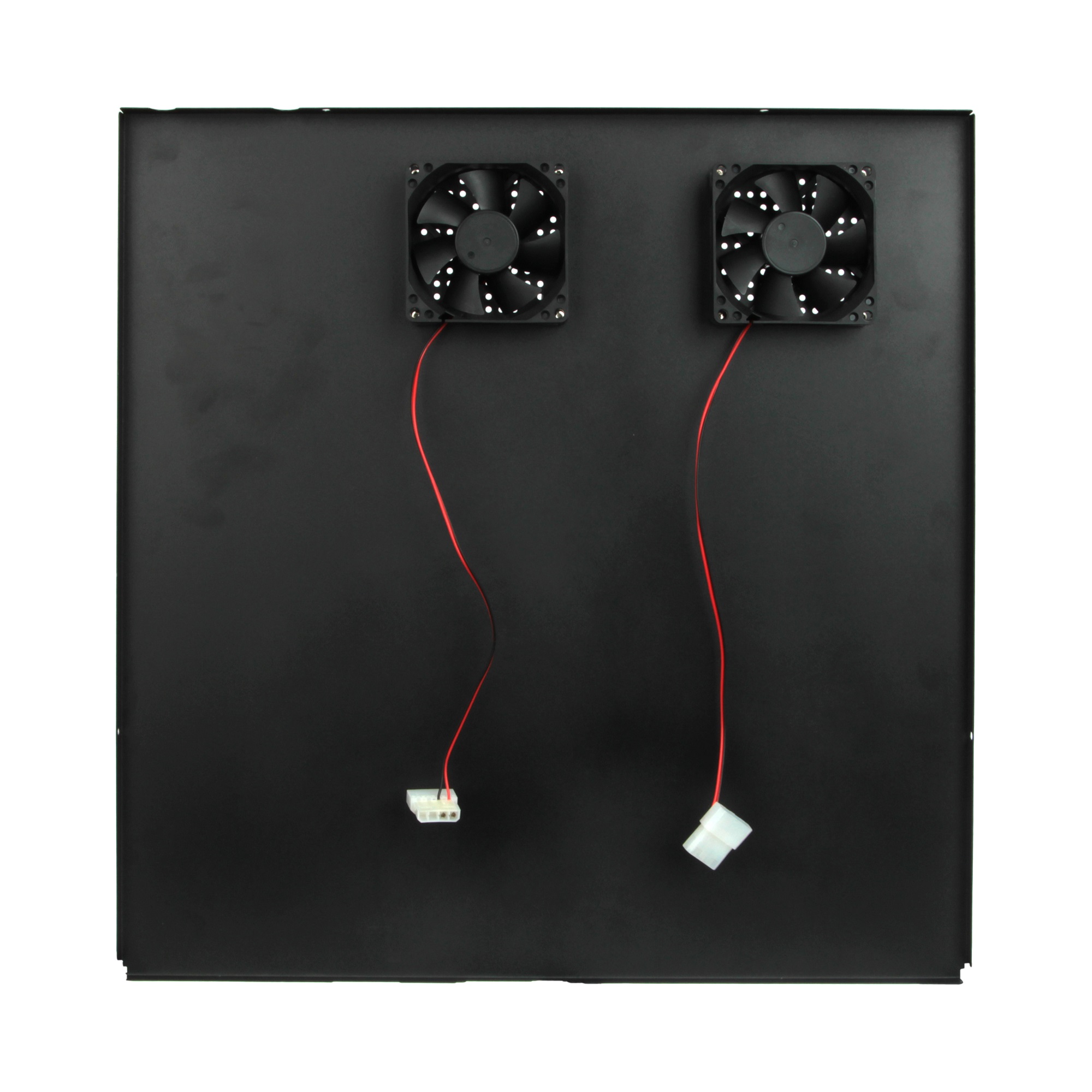

Cooling System: | 2 x 8 cm on the on the top cover |
Place for add coolers: | 2 x 6 cm in the rear panel; 1 x 12 cm on the front panel |
PSU | Support ATX Power Supply up to 250mm |
Recommended Exegate PSU | ServerPRO-500ADS, ServerPRO-600ADS, ServerPRO-700ADS, ServerPRO-800ADS |
Chassis material | 1.0 mm steel |
Cases color | Black |
Chassis color | Black |
Dimensions (D x W x H), mm | 450 x 430 x 177 |
Net Weight w/o PSU / with PSU, kg | 9,95/11,65 |
PSU model | w/o PSU | 500W | 600W | 700W | 800W |
P/N | EX254716 | EX244591 | EX244592 | EX244603 | EX244608 |
EAN | 4895205100619 | 4897040858434 | 4897040858441 | 4897040858458 | 4897040858465 |
