4U450-26/4U4020S

4U4020S

Specification

Type 4U
Motherboard Support miniITX, mATX, ATX, SSI CEB
Max. motherboard size, mm 305x267
Drive Bay:
Ext. 5.25" 2
Ext. 3.5" 1
Int. 3.5" 6
Dust Front panel is equipped with dust filters
Front I/O Ports 2 x USB 2.0
Control & Indicator, LED 1 x Power, 6 x HDD, 1 x KB-LOCK
Switch POWER, RESET, KB-LOCK
Expansion Slots 7

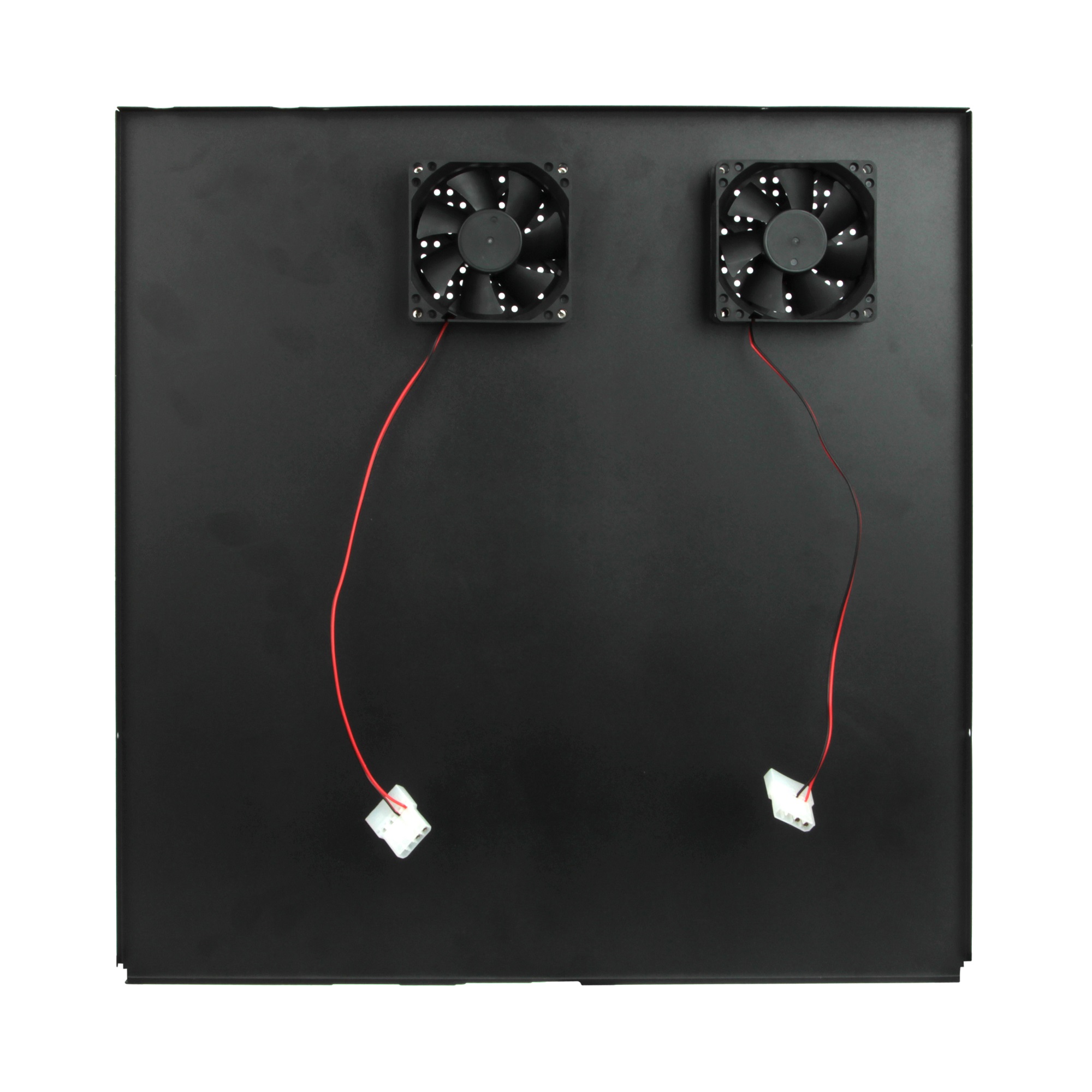

Cooling System: 2 x 8 cm on the on the top cover
Place for add coolers: 2 x 6 cm in the rear panel; 1 x 12 cm on the front panel
PSU Support ATX Power Supply up to 250mm
Recommended Exegate PSU ServerPRO-500ADS, ServerPRO-600ADS, ServerPRO-700ADS, ServerPRO-800ADS
Chassis material 1.0 mm steel
Cases color Black
Chassis color Black
Dimensions (D x W x H), mm 450 x 430 x 177
Net Weight w/o PSU / with PSU, kg 11,3/13,1


PSU model w/o PSU 500W 600W 700W 800W
P/N EX254717 EX244588 EX244606 EX244604 EX244610
EAN 4895205100626 4897040858489 4897040858496 4897040858502 4897040858519
