4U480-06/4U4021S

Specification

Type	4U
Motherboard Support	miniITX, mATX, ATX, SSI CEB
Max. motherboard size, mm	305x267
Drive Bay:
Ext. 5.25"	3
Ext. 3.5"	1
Int. 3.5"	6
Dust	Front panel is equipped with dust filters
Front I/O Ports	2 x USB 2.0
Control & Indicator, LED	1 x Power, 6 x HDD, 1 x SLEEP
Switch	POWER, RESET
Expansion Slots	7

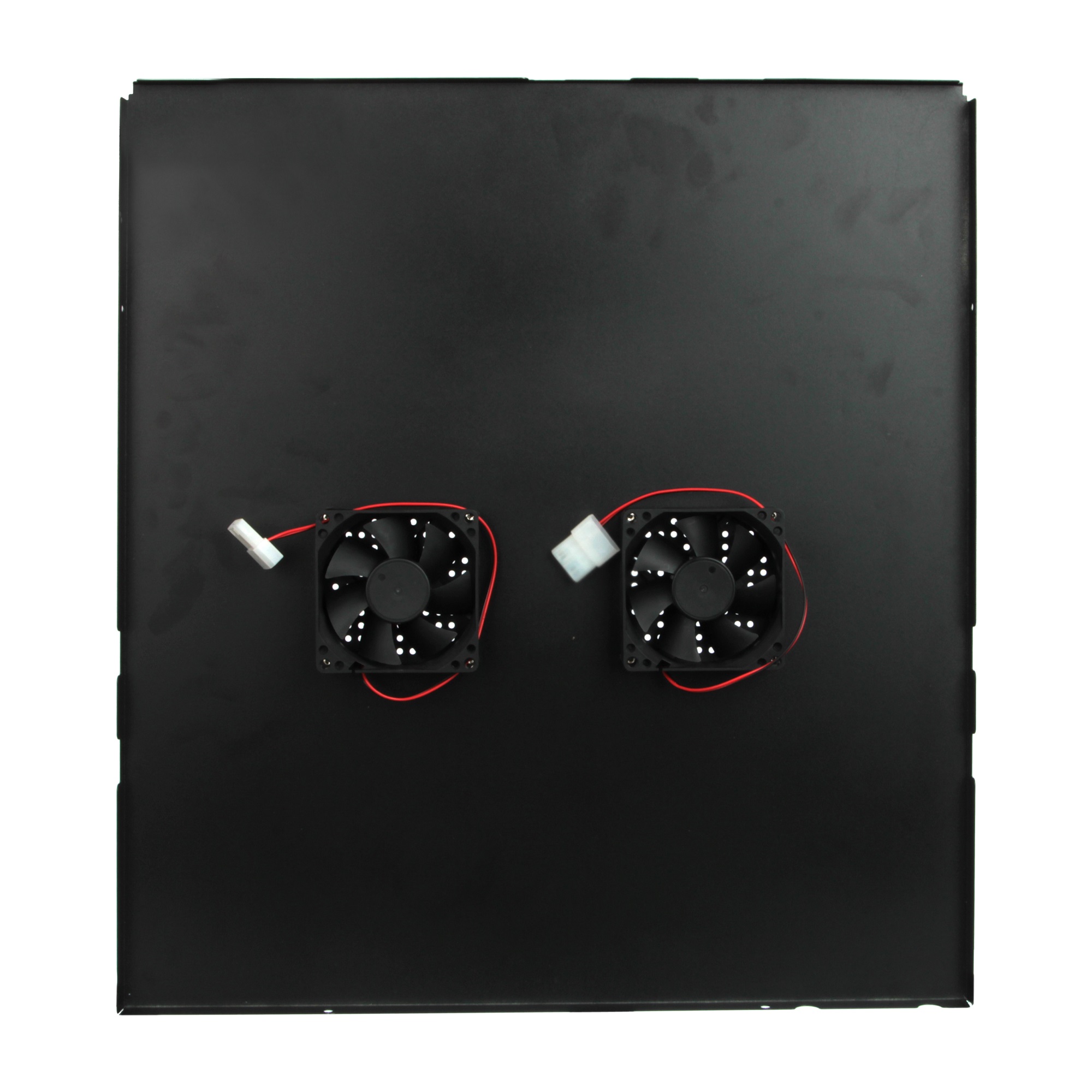

Cooling System:	2 x 8 cm on the on the top cover
Place for add coolers:	2 x 6 cm in the rear panel; 1 x 12 cm on the front panel
PSU	Support ATX Power Supply up to 250mm
Recommended Exegate PSU	ServerPRO-500ADS, ServerPRO-600ADS, ServerPRO-700ADS, ServerPRO-800ADS
Chassis material	1.0 mm steel
Cases color	Black
Chassis color	Black
Dimensions (D x W x H), mm	480 x 430 x 177
Net Weight w/o PSU / with PSU, kg	11,8/13,3
